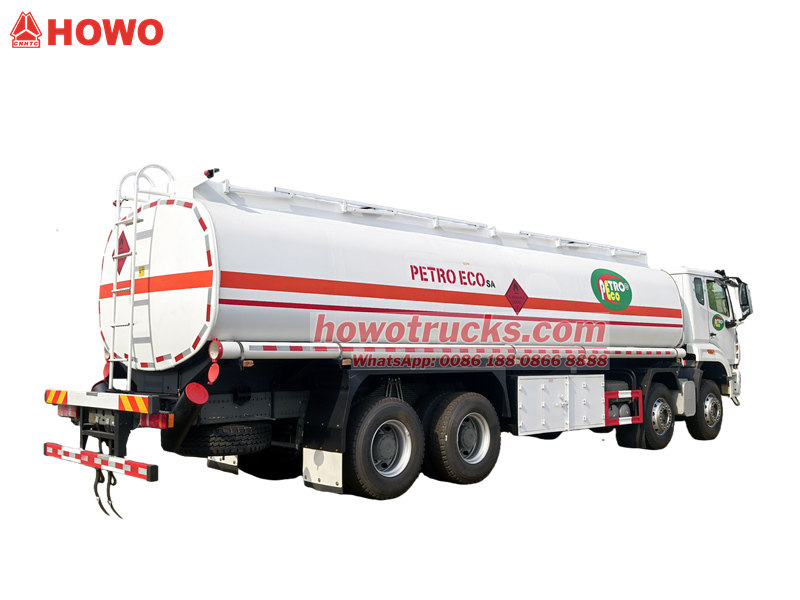

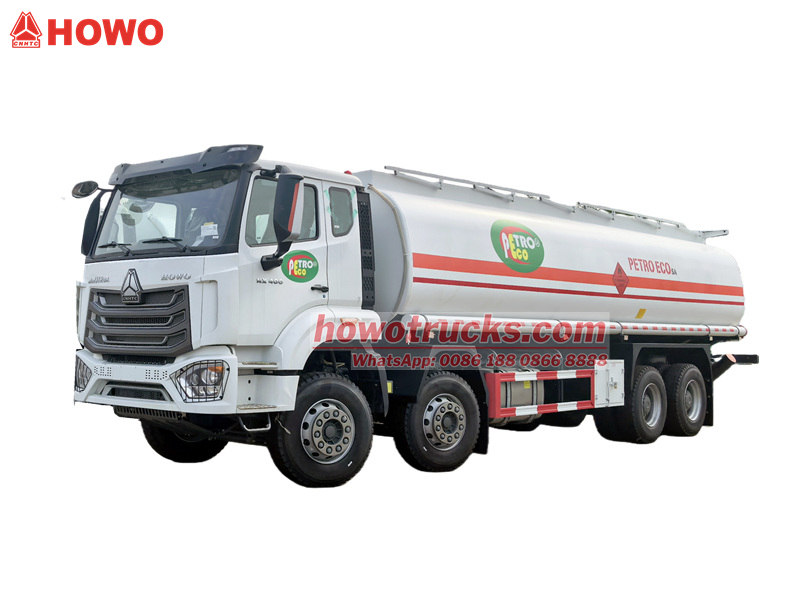

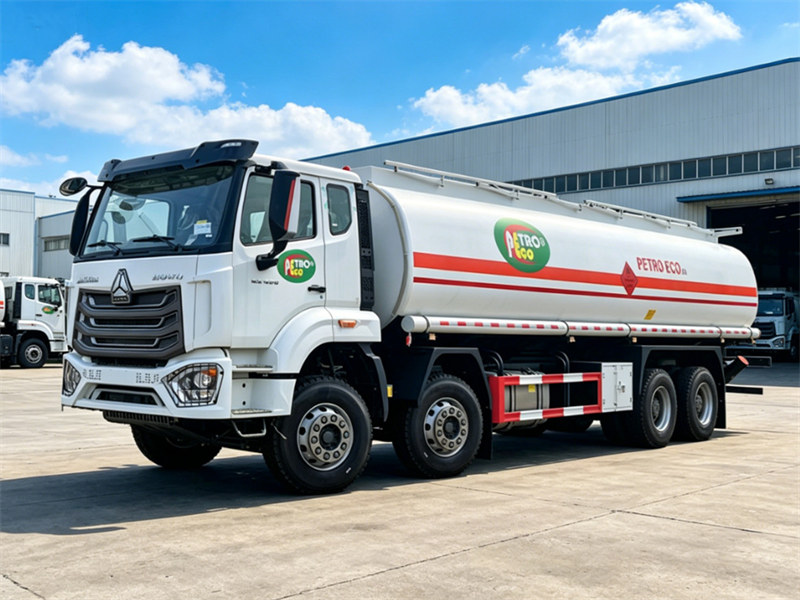

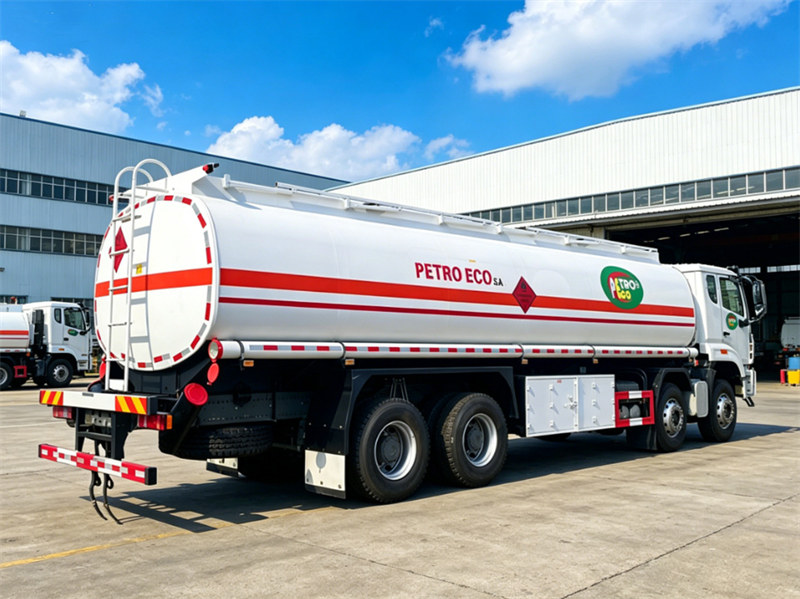

HOWO NX 400HP fuel delivery bowser truck

Powered by a high-performance WP-series 6-cylinder in-line water-cooled turbocharged intercooled diesel engine, this HOWO fuel tanker boasts a maximum power output of 400 horsepower. It is matched with a 10-forward and 2-reverse speed transmission system and a reinforced diaphragm clutch assembly. This premium powertrain configuration provides robust power reserve and precise, responsive control, enabling the truck to adapt seamlessly to various complex road conditions and complete fuel transportation tasks efficiently and stably.

The tanker features a genuine 30,000-liter actual tank capacity to meet large-volume fuel transport demands. The tank body is constructed from high-quality Q345 carbon steel with a wall thickness of no less than 4mm, ensuring outstanding durability, pressure resistance and corrosion resistance for long-term service. Fitted with top-tier Chinese brand fuel pumps, valves and pipeline systems, along with a complete set of professional fuel distribution devices, the truck guarantees stable fuel delivery, high working efficiency and reliable operational safety.

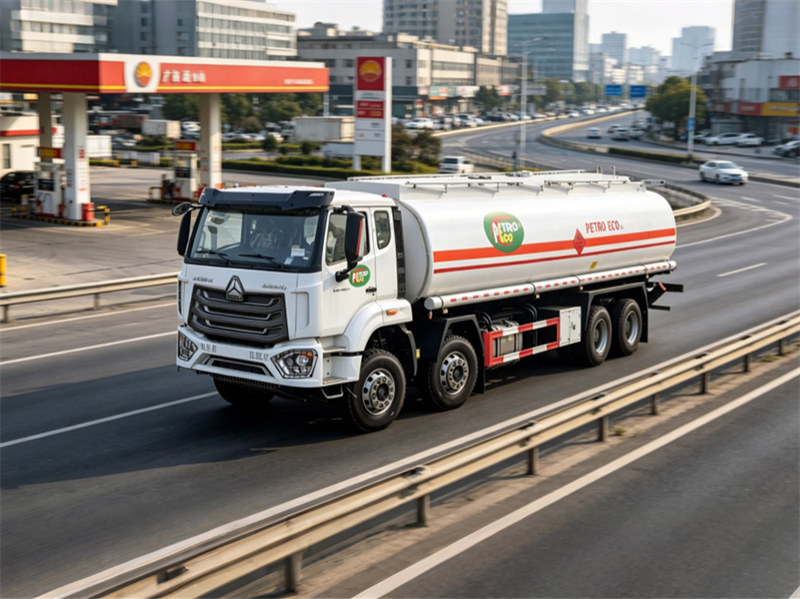

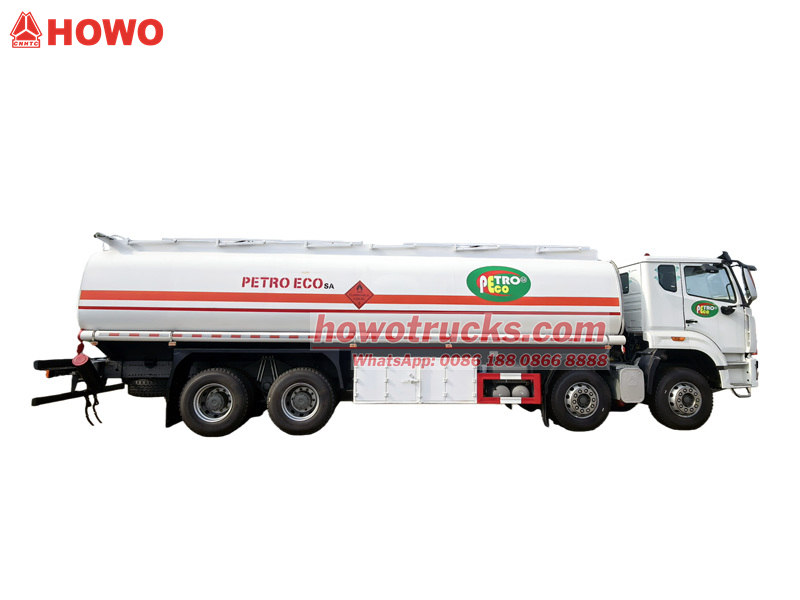

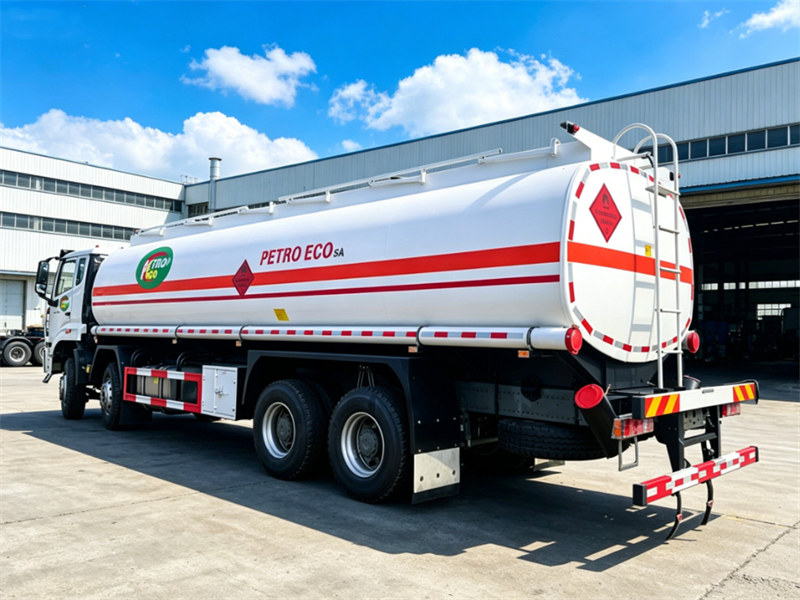

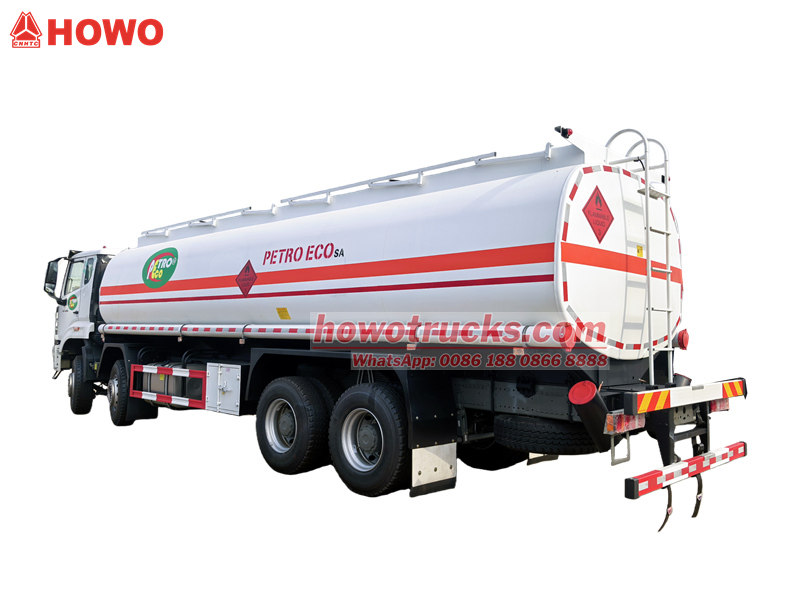

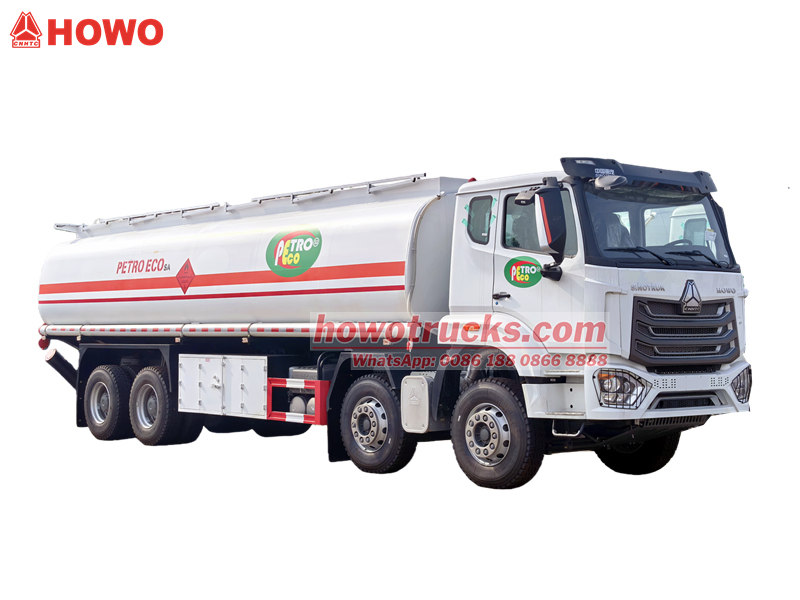

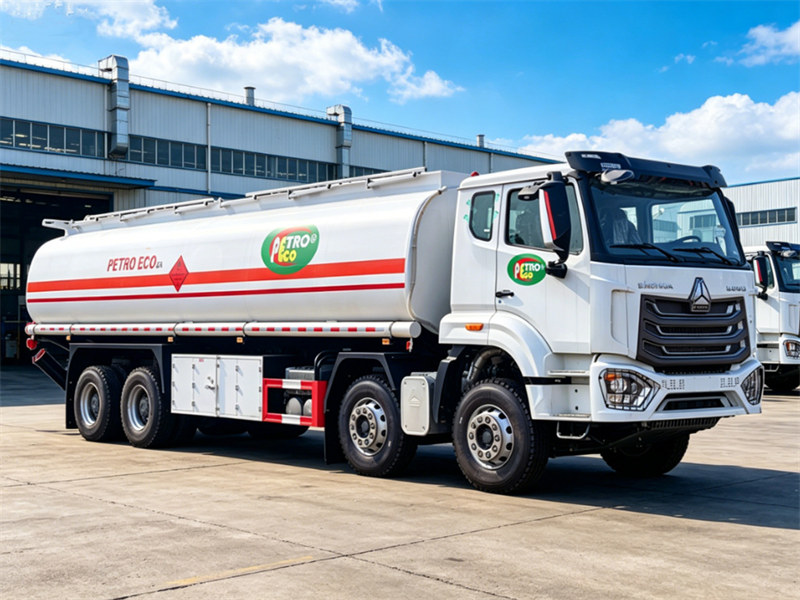

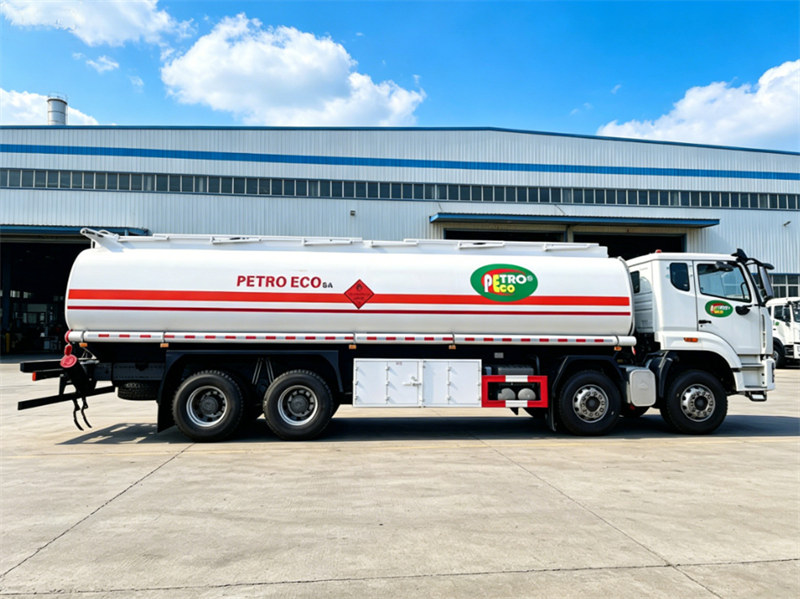

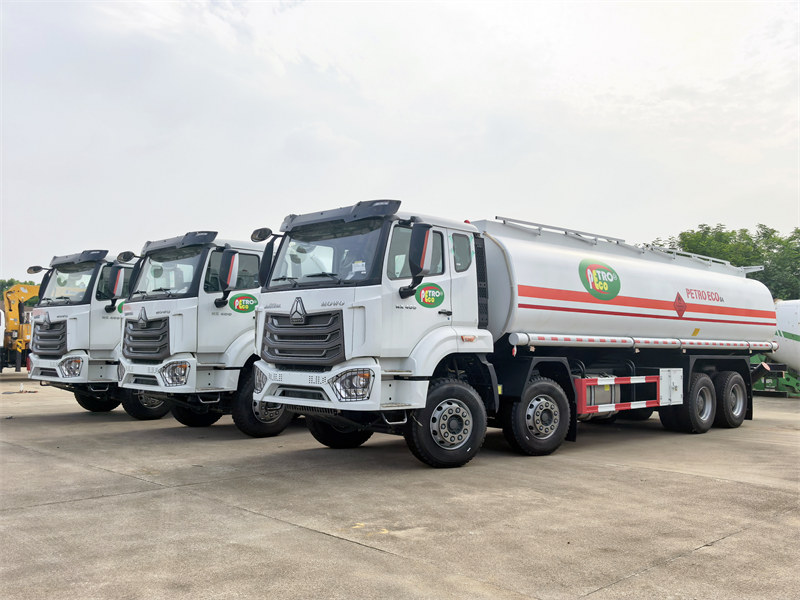

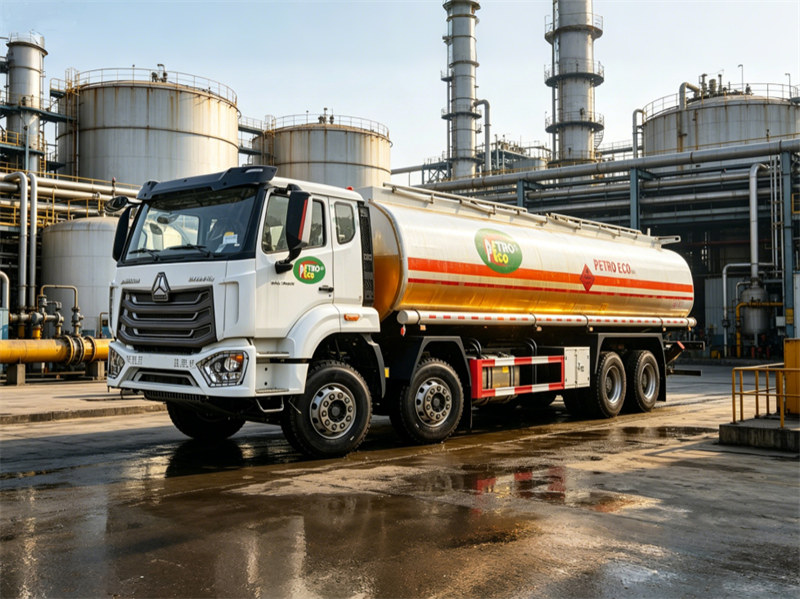

*HOWO NX 30000L Fuel Tank Truck*

------------------------------------------------------------------

CS Trucks Group is professional manufacturer in HOWO truck area,

guarantee all products Brand-New and High-Quality.



✦Ⅰ.Product Definition and Introduction « « «

Manufacturer: CS Trucks Group

Features:

▶ Truck Chassis: Sinotruk HOWO truck chassis,8x4, 8x8 model, WP model with 300HP,340HP,380HP,400HP... Euro 2,3



▶ Tank material: 6mm thick high-quality steel for prolonged service lier, carbon steel, aluminum alloy or stainless steel can be choose.



▶ Professional Compartment：The tank is divided into 6 compartments, which can simultaneously load oils of different grades or categories to avoid cross contamination and meet the transportation needs of multiple categories.







✦ Ⅱ.Product Parameter For HOWO NX Fuel Tank Truck  « « «



HOWO NX 30000L Fuel Tank Truck
General	Vehicle Brand	CEEC TRUCKS
	Chassis Brand	HOWO
	Overall Dimension	13800 * 2300 * 2650 mm
	GVW / Kerb Weight	33,000kg / 16,800kg
Cab	Cab Capacity	2 people allowed
	Air Conditioner	Heating/cooling air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	WP12S400E201
	Power	400 HP
	Displacement	12 L
	Emission Standard	Euro 3
Chassis	Drive Type	8X4 (left/right hand drive)
	Transmission	Manual 10 speed levers with 1 reverse
	Wheelbase/No. of axle	1750+4600+1350 mm / 4
	Tire Specification	12.00R20
	Tire Number	12 tires and 1 spare tire
	Max Speed	95 km/h
	Paint	Metallic paint
Superstructure	Body capacity	30,000 Litres
	Tanker Material	Carbon Steel (Q235)
	Pump	Fuel pump equipped for overhead delivery
	Suction head	7 m
	Hose	High quality, wire strengthened hose, with cooper wire, anti-static

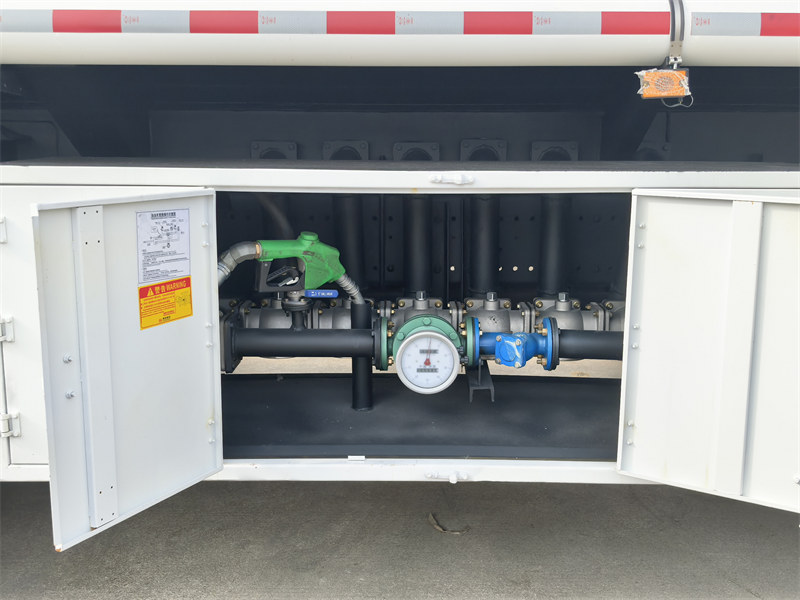

	Refueling Machine	Equipped based on customer requirement
	Control panel	English or Your language
	All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers...
Optional	** Tank material could be carbon steel, stainless steel, aluminum (Aluminum tanker).  ** It can be divided into many compartments.  ** Imported American pump as optional. ** Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge, etc ** Heat preservation & heating system could be added. ** Bottom loading system can be equipped.



✦ Ⅲ. Advantage For HOWO Fuel Tank Truck « « «



 Power and Heavy-Duty Performance Advantages:

♦ Powerful Engine for Complex Working Conditions: Equipped with an MC07.34-30 engine, delivering ample 340 horsepower, providing strong starting and climbing capabilities even on muddy, steep, and unpaved roads in regions like Africa.

♦ Compliant Heavy-Duty and Stable Load Bearing: With a gross vehicle weight of 25 tons and a tank volume of 20,000 liters, featuring a Q345 carbon steel tank body and 5mm thickened tank walls, it boasts strong load-bearing capacity and structural stability, meeting the needs of large-scale oil transfer.

♦ Highly Reliable Transmission System: The HW19710 10-speed gearbox with a reinforced clutch offers high transmission efficiency, durability, and a low failure rate under frequent start-stop and heavy-duty conditions.



Tank Body Structure:

♦ Customizable tank shapes: round, oval, rectangular and trapezoidal for diverse applications.

♦ The top comes complete with a manhole cover, breather valve, oil vapor recovery system and guardrails. A φ500 access opening is reserved for easy maintenance.

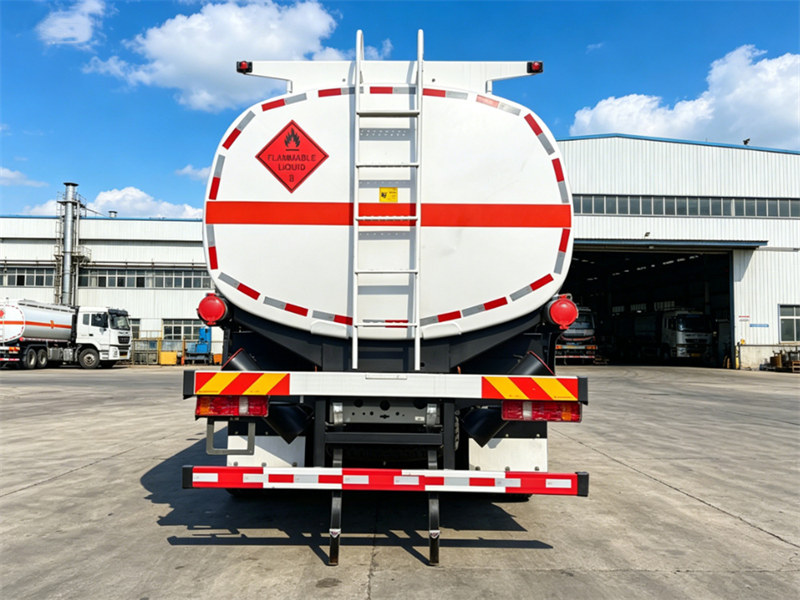

♦ It features a bottom sediment tank and rear drain valve, alongside ladders and walkways for safe operation.

♦ Internal cross baffles effectively reduce liquid sloshing during driving and enhance transport stability.

♦ The oil pump is driven by the engine power, output through the power take-off (PTO), and then via a drive shaft.

♦ The oil pump is connected to the chassis via a pump mounting bracket.

♦ Depending on the specific application of the tanker truck, centrifugal pumps, gear pumps, stainless steel pumps, and high-polymer nylon pumps can be selected.

♦ Customers can also choose other models of self-priming pumps, and we can design and manufacture according to specific customer requirements.
