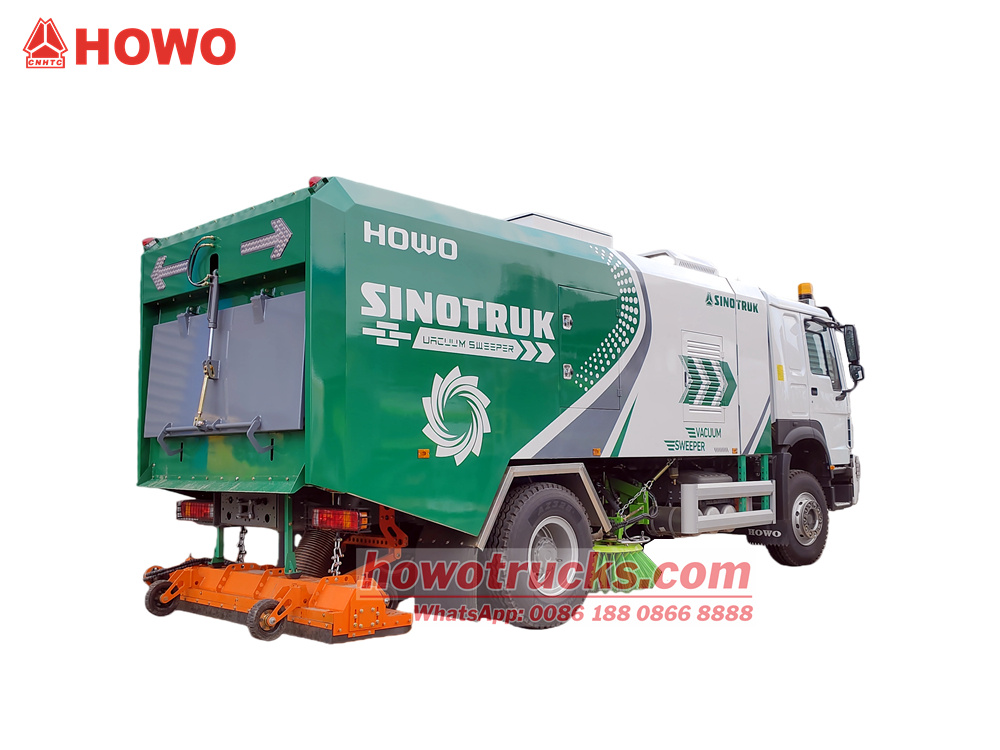

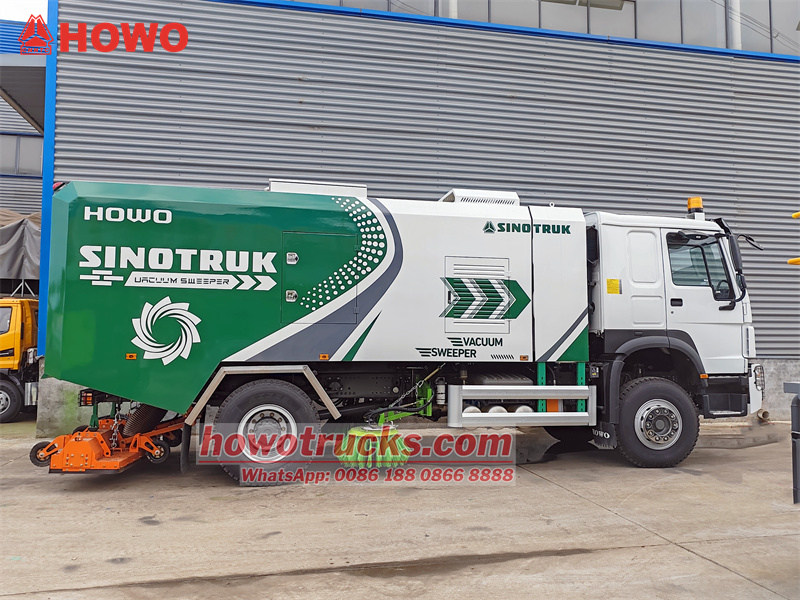

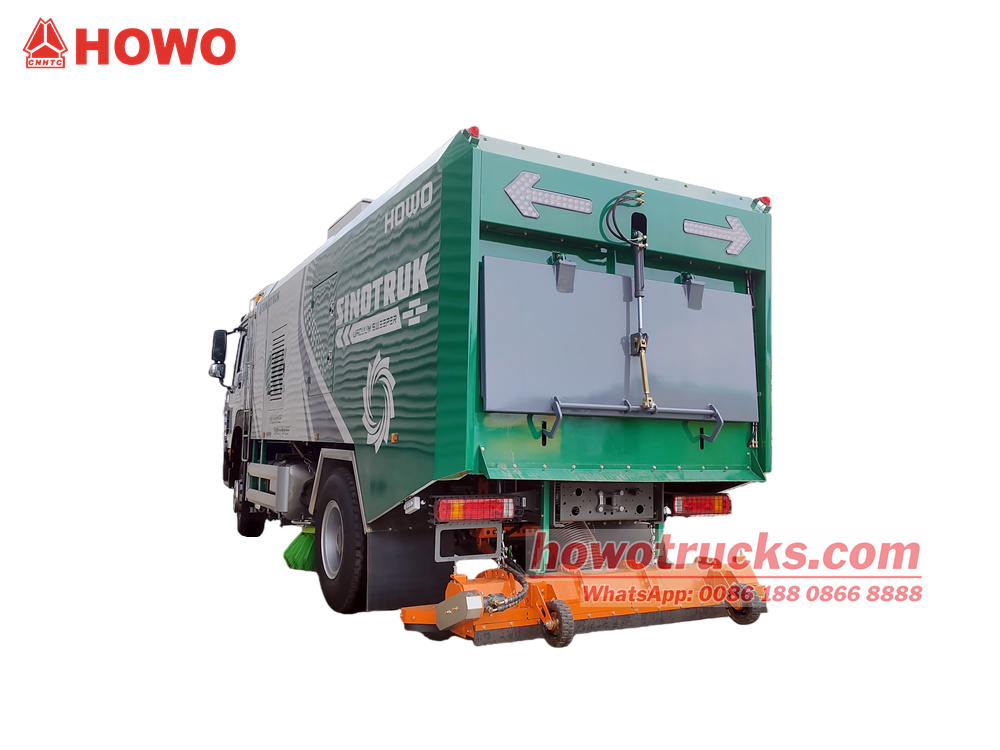

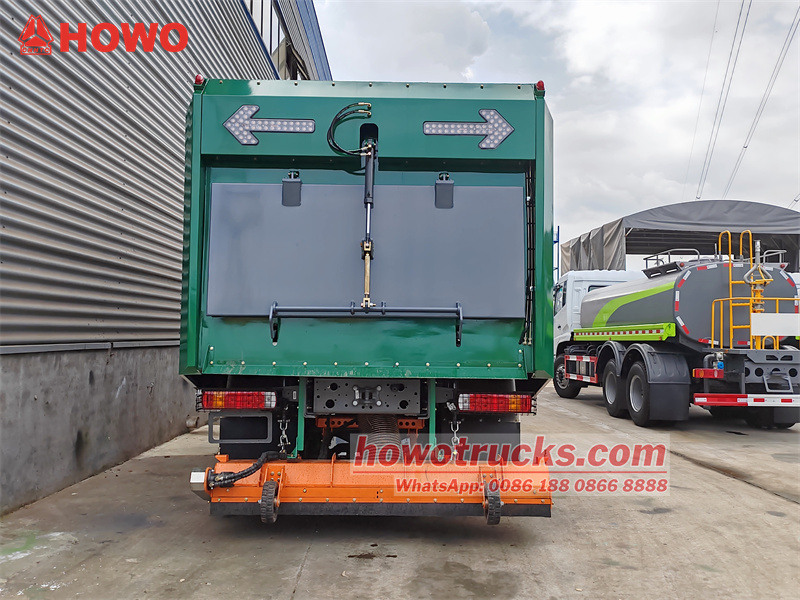

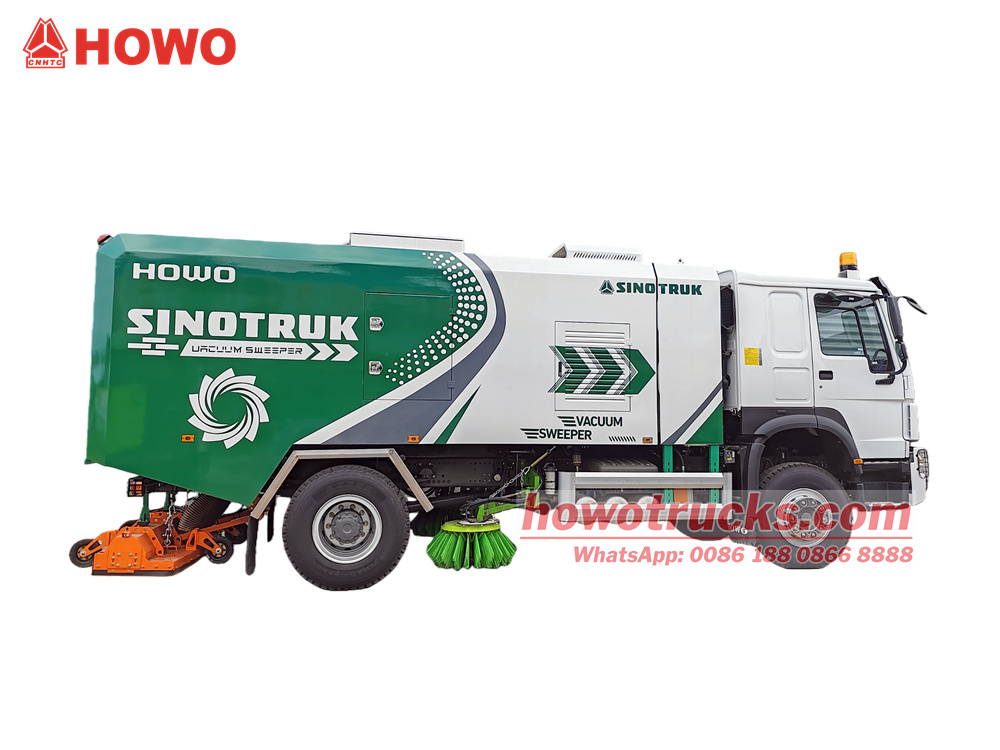

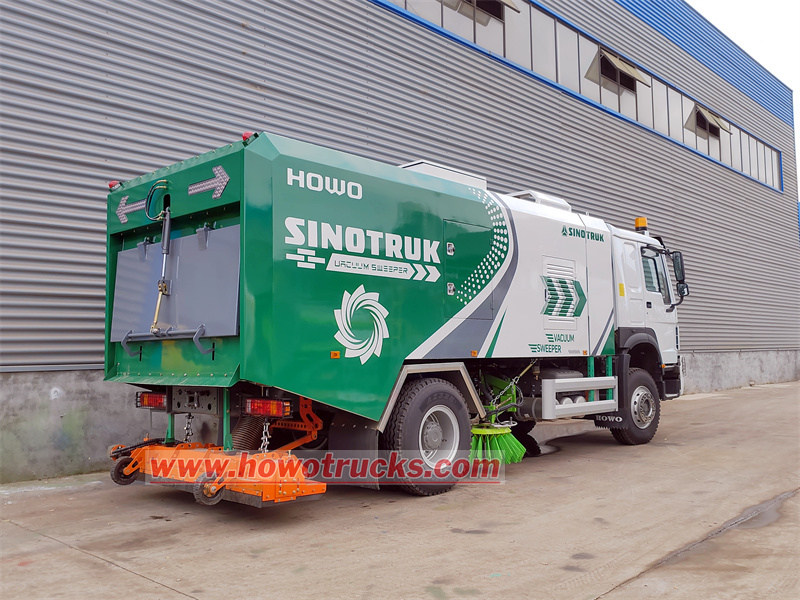

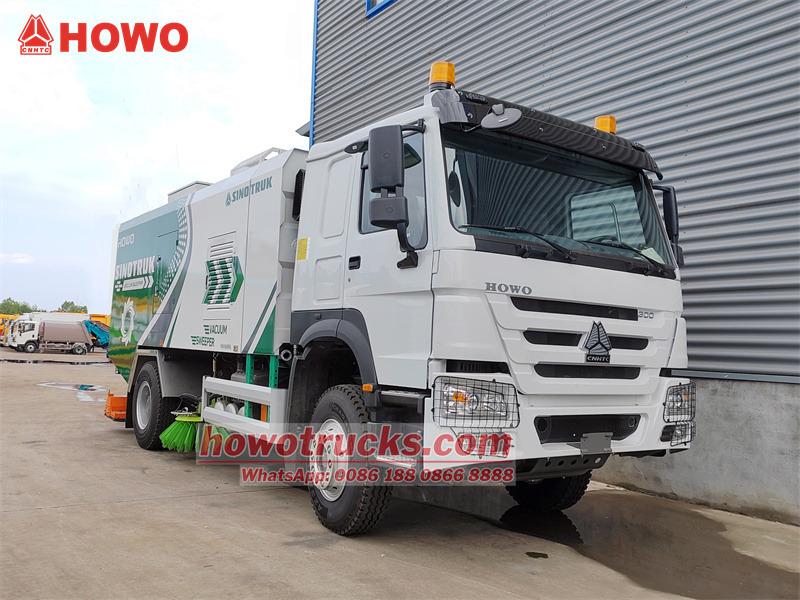

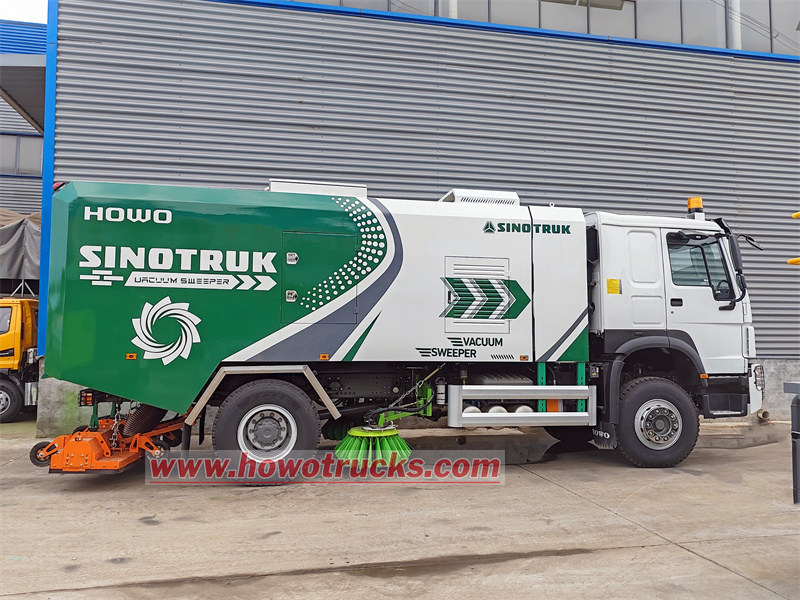

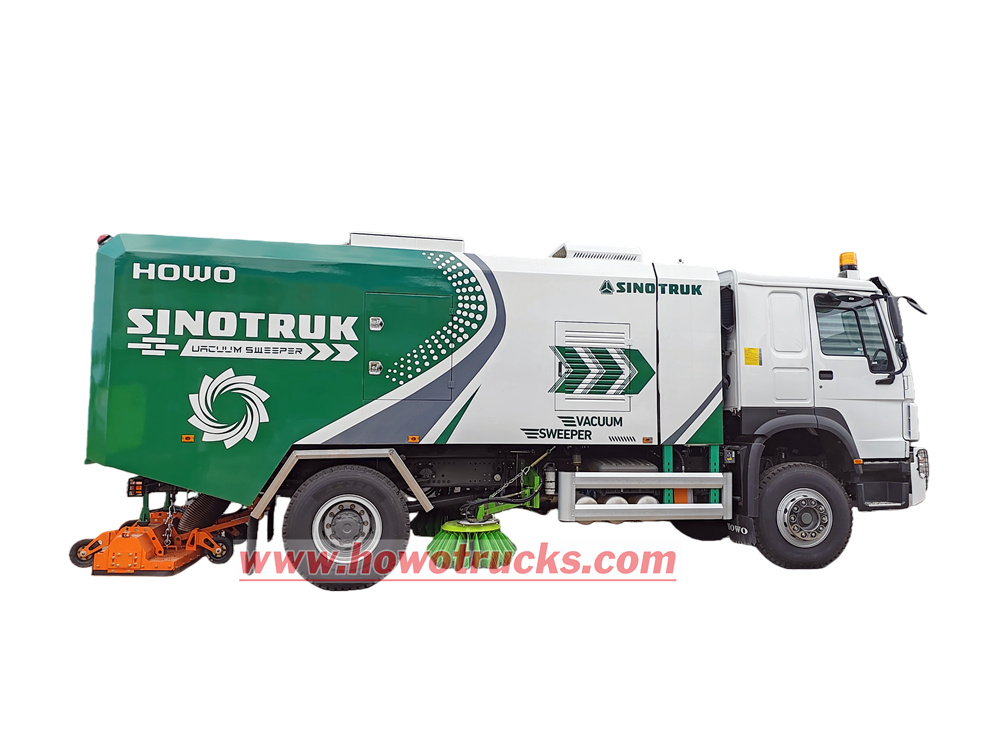

The HOWO 10 cubic meter sweeper truck features an HW76 cab, a WEICHAI WP10.300E22 diesel engine, an HW19710 gearbox, a Dongfeng Cummins B140 33 auxiliary engine (140HP), an 8 cubic meter garbage bin, a 2 cubic meter water tank, a Weiye blower, two centrally mounted sweeping brushes, and a rear-mounted sucker. It boasts a sweeping width exceeding 3.5 meters and an operating speed of 5-20 km/h. The cab is equipped with an electrical control box, and the rear features a tailgate switch and a control box for lifting and lowering the garbage bin.
工作能力 :
2000L water tank，8000L dust bin舱型 :
HOWO HW76尺寸（毫米） :
8260x2500x3100驱动系统 :
4x2轴距（毫米） :
4600发动机专用 :
300HP/WEICHAI WP10.300E22变速箱 :
SINOTRUK HW19710 10-shift, Manual前轴（公斤） :
6500后轴（公斤） :
11500评论 :

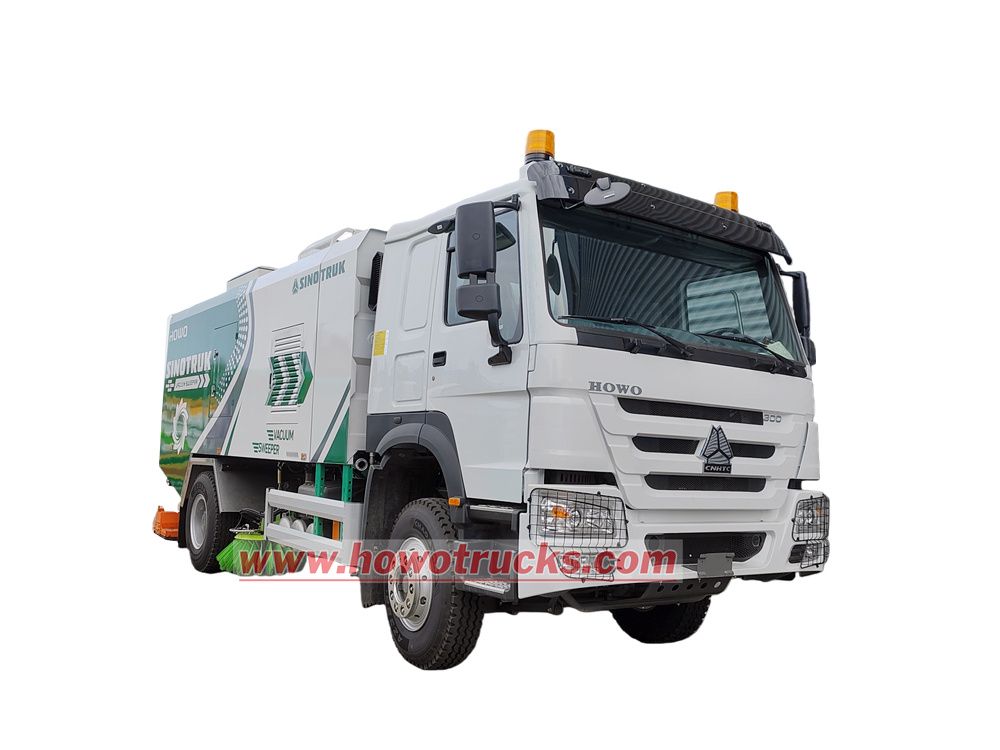

work capacity availableThe HOWO 300HP 10cbm vacuum sweeping truck is a multi-functional sanitation vehicle integrating sweeping, washing, and vacuuming. It is suitable for mechanized cleaning operations on large areas of paved roads, such as urban main roads, national and provincial highways, and industrial parks. The vehicle is equipped with a Weichai 300hp main engine and a Cummins 140hp auxiliary engine, with independent power systems ensuring no interference between driving and operation. The upper structure features an 8-cubic-meter garbage bin and a 2-cubic-meter water tank, with two centrally located sweeping brushes and a rear suction nozzle, achieving a sweeping width of over 3.5 meters and an operating speed of 5-20 km/h.
▶ Product Parameters:
|
HOWO 10cbm vacuum sweeper truck |
||
|
Sweeper Truck Main Specification |
||
|
Chassis Brand |
SINOTRUK HOWO |
|
| Overall dimensions (L x W x H) |
8260x2500x3100 mm |
|
| Drive Type |
4x2 Left hand drive, 6 wheels |
|
| Wheelbase |
4600mm |
|
|
Cabin |
HOWO HW76 chassis cab, with A/C, 2 seats and a sleeper, |
|
|
Weight |
GVW |
18000kg |
|
Kerb weight |
9530kg |
|
|
Engine |
Model |
WEICHAI WP10.300E22 |
|
Horsepower |
300HP/220Kw@2200rpm |
|
|
Emission standard |
Euro 2,9.7L |
|
| Transmission |
Manual |
SINOTRUK HW19710 10-speed |
| Tire |
295/80R22.5 |
6+1 spare tire |
|
Upper Structure Parameter |
||
| Volume of water tank |
2000L |
|
| Volume of Dustbin |
8000L |
|
|
Material |
water tank: carbon steel |
|
|
garbage tank: inner stain steel,outer carbon steel |
||
| Hydraulic valve |
Taiwan famous brand |
|
| Hydraulic motor |
Domestic famous brand |
|
| Switch |
Schneider control switch |
|
|
Auxiliary engine |
Brand |
Dongfeng Cummins B140 33 |
|
Type |
Inline 4 cylinders, supercharged and intercooled,diesel |
|
|
Horsepower |
140HP |
|
|
Rated Power/Max Net Power |
103/101Kw |
|
|
Allowed altitude limit |
3000m |
|
|
Rated speed |
2500rpm |
|
|
Ldle Speed |
750r/min |
|
|
Max torque |
502N.m |
|
|
Displacement |
3.9L |
|
|
Fuel rate at rated HP |
88mm³/strcke |
|
|
Emission standard |
Euro 3 |
|
|
Sweeping Technical |
Max sweeping width (mm) |
3.5m |
|
Max. sweeping capacity |
60000m3/h |
|
|
Sweeping speed |
3-20km/h |
|
|
Cleaning efficiency |
≥98% |
|
|
Max. particle inhalation |
110mm |
|
|
Disc plate brush extension size |
≥400mm |
|
|
Garbage tank door max. discharge angle |
≥50° |
|
|
Sweeping system |
Type |
2 pcs brushes mounted in the medium, and 1 sucking disc at the rear,it is driven by the hydraulic motor, speed is adjustable, can be independently controlled, has automatic avoidance function |
|
Sweeping brush diameter |
Φ850mm |
|
|
Sweeping disk speed |
110r/min high-speed, 80r/min medium speed,50r/min low-speed |
|
|
Sweeping disk dip angle adjust |
forward 4 ° ~ 6 ° extroversion 4 ° ~ 7 ° |
|
|
Sucking disc |
Type |
Double suction hole, hydraulic control, spring suspension |
|
Suction hole diameter |
180mm |
|
|
Suction disc width |
2400mm |
|
|
Hydraulic system |
Type |
Open type, electrical control |
|
Main components |
Gear pump, hydraulic motor, hydraulic cylinder, solenoid valve |
|
|
Pressure |
16Mpa |
|
|
Hydraulic oil volume |
60L |
|
|
Oil temperature |
60°C |
|
|
Water spraying system |
Components |
Pump, nozzle(front flush and back sprinkle), water filter, etc. |
|
Low pressure water system |
Model |
Hangzhou Weilong 60/90 |
|
Flow rate |
60m3/h |
|
|
Lift |
90m |
|
▶ Core Power System:
• Main Engine: Equipped with a Weichai WP10.300E22 diesel engine, 9.726L displacement, 300HP maximum horsepower, meeting China II emission standards, and matched with an HW19710 gearbox with 10 forward gears + 2 reverse gears.
• Auxiliary Engine: Equipped with a Dongfeng Cummins B140 33 diesel engine, with a power of 140 hp (103kW), providing an independent power source specifically for sweeping and cleaning operations. The separate design of the main and auxiliary engines ensures that driving and operation do not interfere with each other. The auxiliary engine independently drives the fan, water pump, and other upper structure components, resulting in high operating efficiency and strong reliability.
▶ Tank Capacity:
• Dust Bin: 8 cubic meters, for collecting a mixture of garbage, dust, and wastewater generated during sweeping operations.
• Water Tank: 2 cubic meters, providing water for cleaning operations.
▶ Operating Device and Core Components:

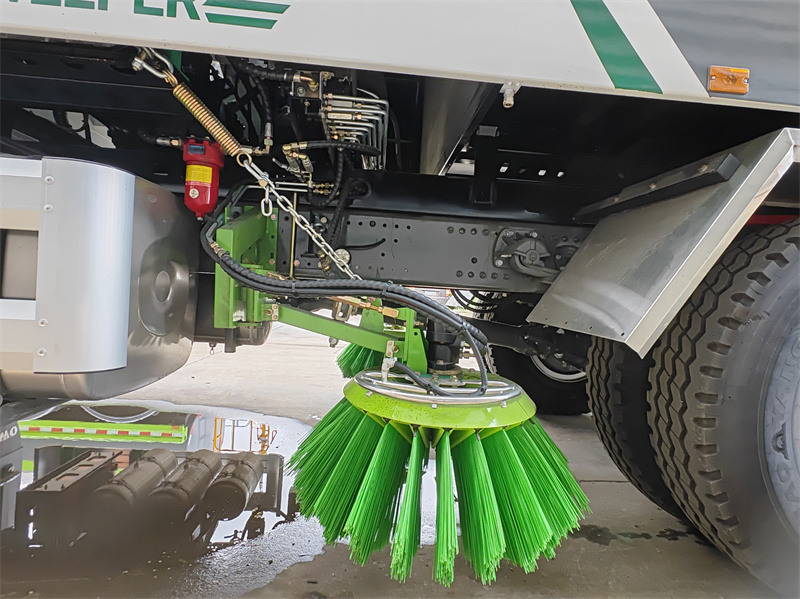

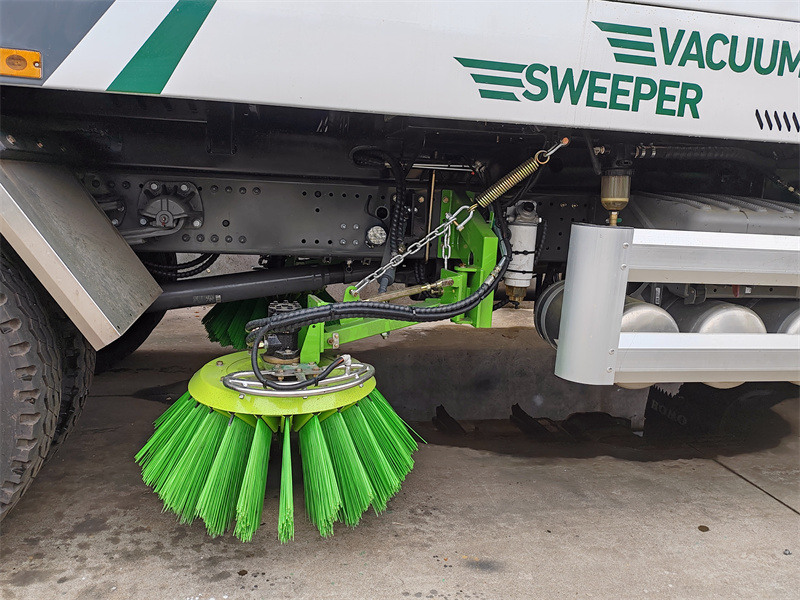

• Sweeping Brushes: Two centrally located brushes with adjustable angles; sweeping width: ≥3.5 meters; large coverage area per operation; operating speed: 5-20 km/h; equipped with a spray system on the brushes.

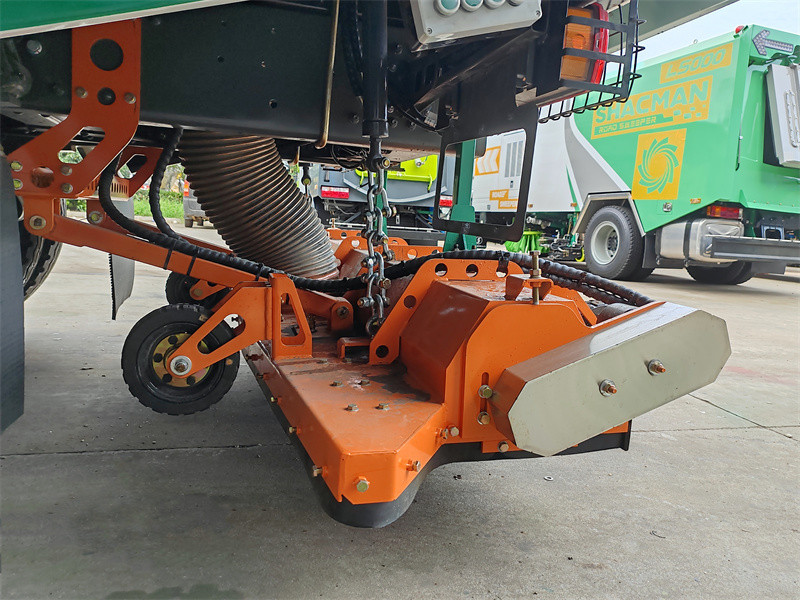

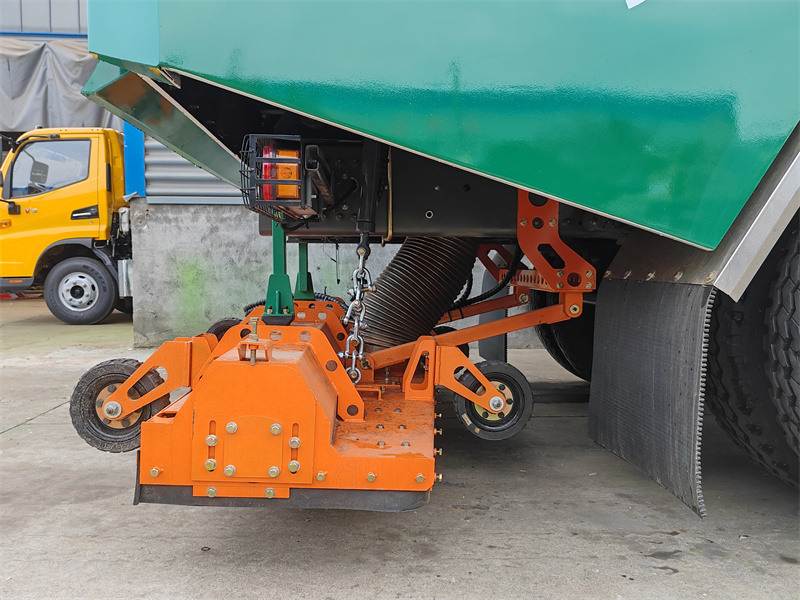

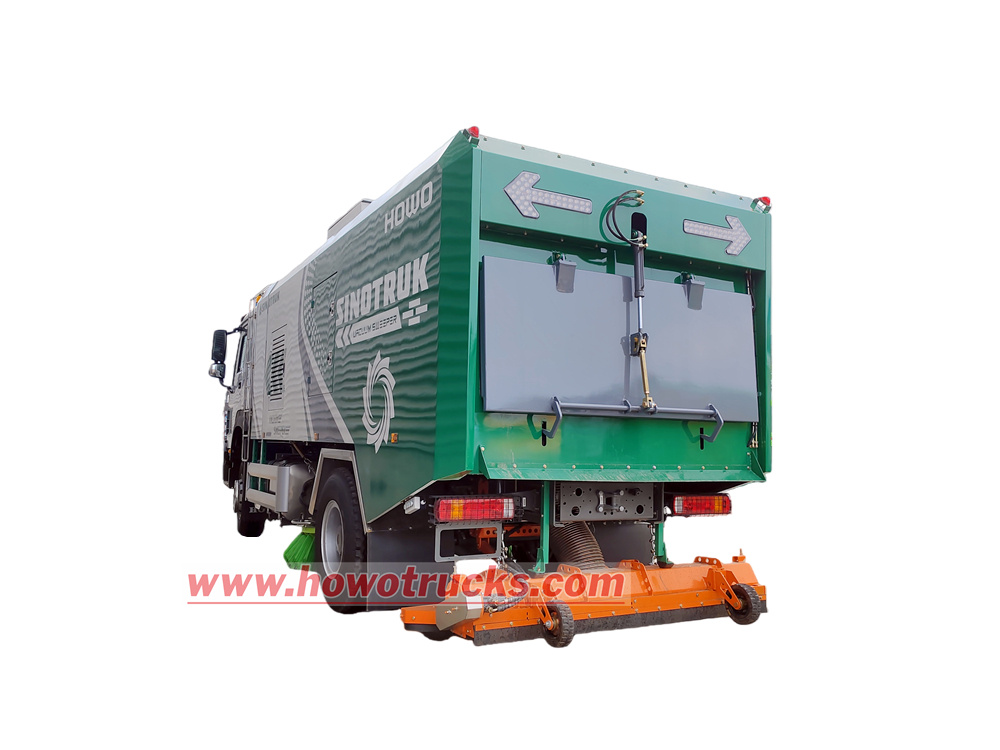

• Suction Cup Device: One suction cup at the rear for negative pressure suction of garbage and wastewater collected by the brushes.
• Fan: Utilizes a Weiye fan, providing strong suction for the negative pressure dust collection system, ensuring efficient extraction of garbage and wastewater into the garbage bin.
• Low-Pressure Water System: Equipped with a Hangzhou Weilong 60/90 low-pressure water pump, providing water flow to the brushes to effectively wash away stubborn stains and attachments from the road surface.

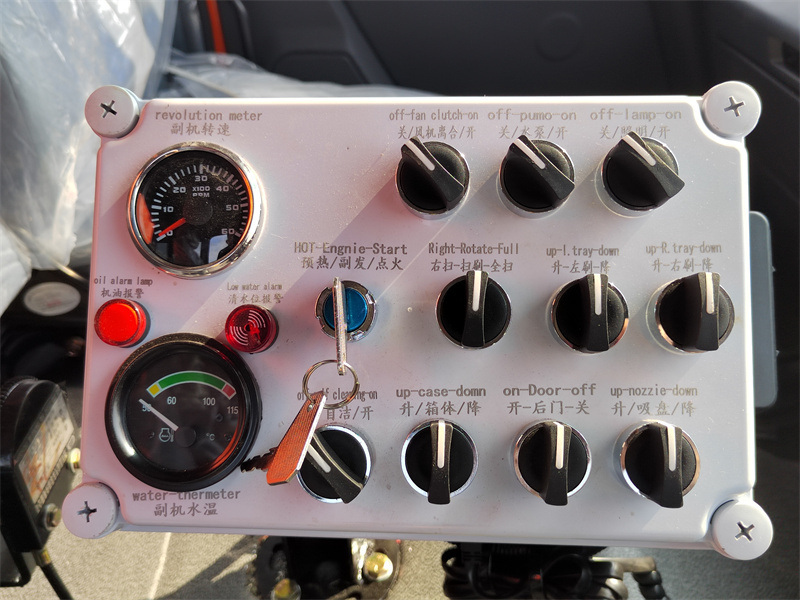

▶ Cab Electronic Control System:
The cab integrates an electronic control box with a logically laid-out, easily accessible function button layout. Key control functions include:
• Fan clutch on/off
• Water pump on/off
• Lights on/off
• Auxiliary engine preheating/ignition
• Left and right sweeping brush lifting
• Right sweep/full sweeping mode switching
• Sucker lifting
• Dust canister lifting
• Rear door opening/closing
• Dust canister self-cleaning on/off
• Auxiliary engine tachometer/coolant temperature gauge
• Oil level alarm, coolant level alarm, and other warning functions

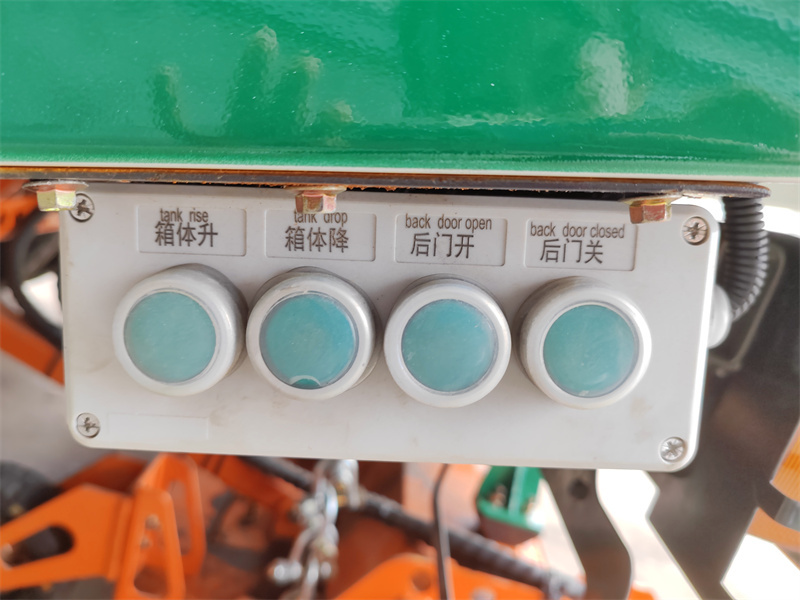

▶ Rear control box:

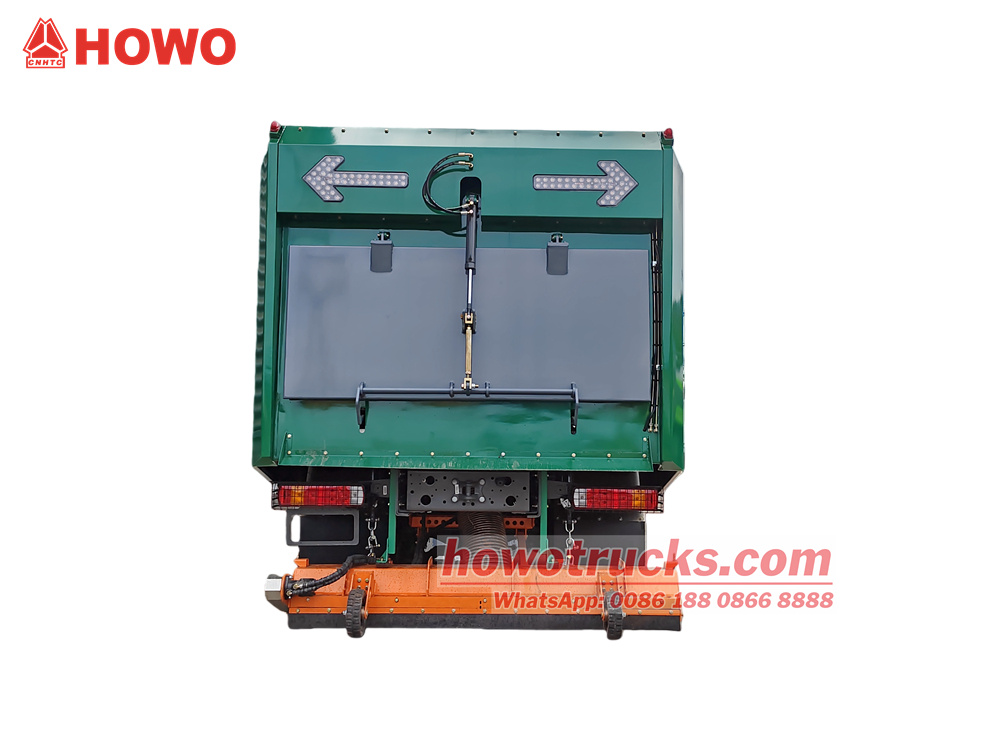

An independent control box is located under the rear of the vehicle, supporting operations such as raising/lowering the cargo box and opening/closing the rear door.
▶ Working Principle:
This vehicle employs an integrated "sweeping-washing-vacuuming" operation process. During operation, the auxiliary engine drives the Weiye blower to create a negative pressure environment inside the garbage bin, simultaneously powering the water pump and sweeping brushes.
The sweeping brushes first gather road debris and gravel to the center of the vehicle's underside. A low-pressure water system sprays water to flush away stubborn stains. Under the strong negative pressure generated by the blower, the gathered wastewater, garbage, and dust mixture is instantly sucked in by the suction cups and transported along pipes into the garbage bin for storage and settling. Cleaning water is supplied by a two-cubic-meter water tank and filtered before being discharged to prevent secondary dust generation. The entire process is integrated into the cab's electronic control system; one-button operation completes cleaning, sweeping, and wastewater recovery. The operating width is ≥3.5 meters, offering high efficiency and thorough cleaning.
We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.
Manufactured at our professional heavy-duty vehicle factory, this Sinotruk HOWO 10 cubic meter sweeper truck is a professional sanitation vehicle that integrates efficient sweeping, intelligent control, and durability. It is suitable for various urban and factory road sweeping and cleaning operations
