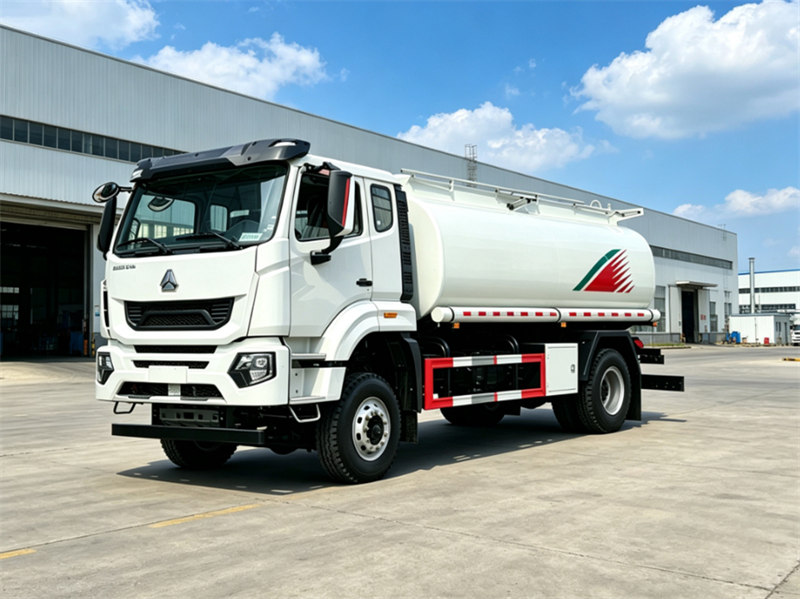

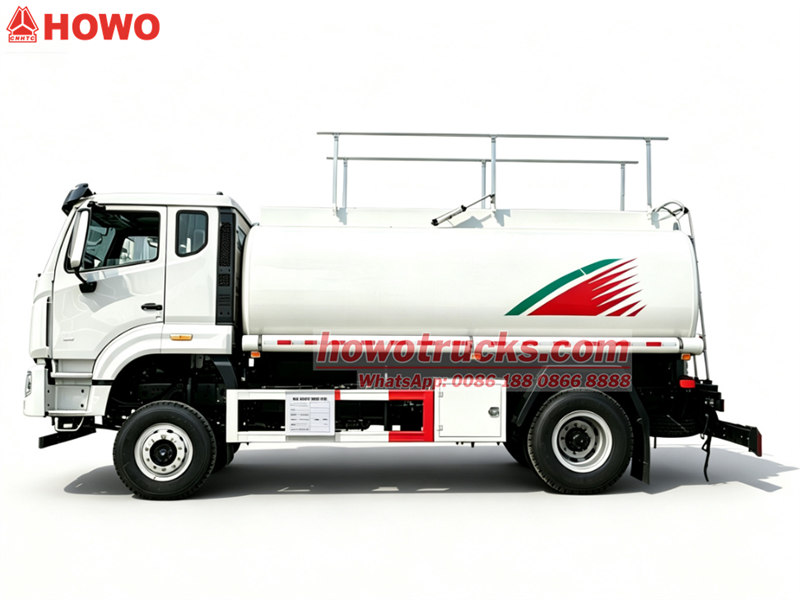

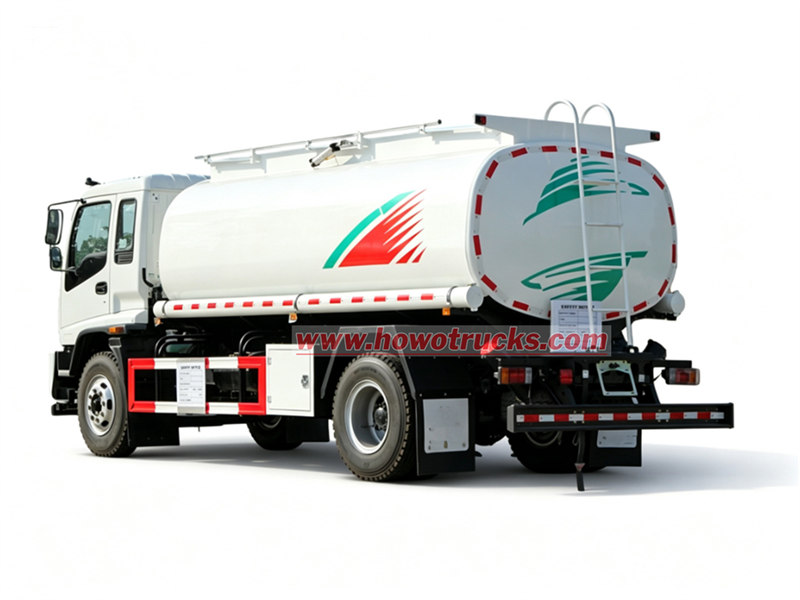

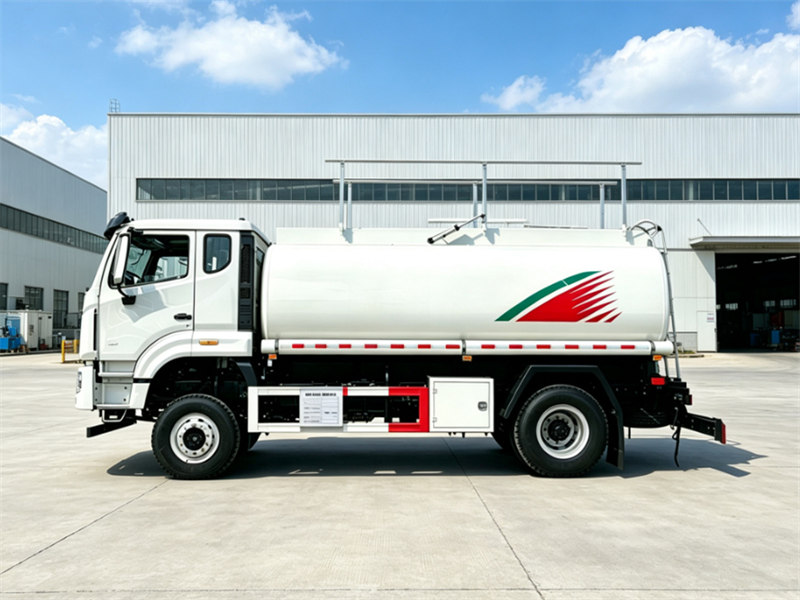

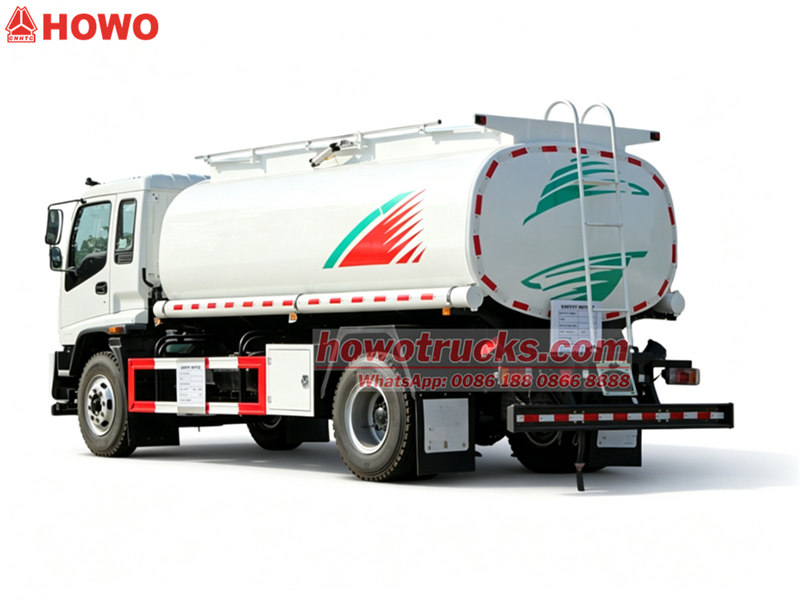

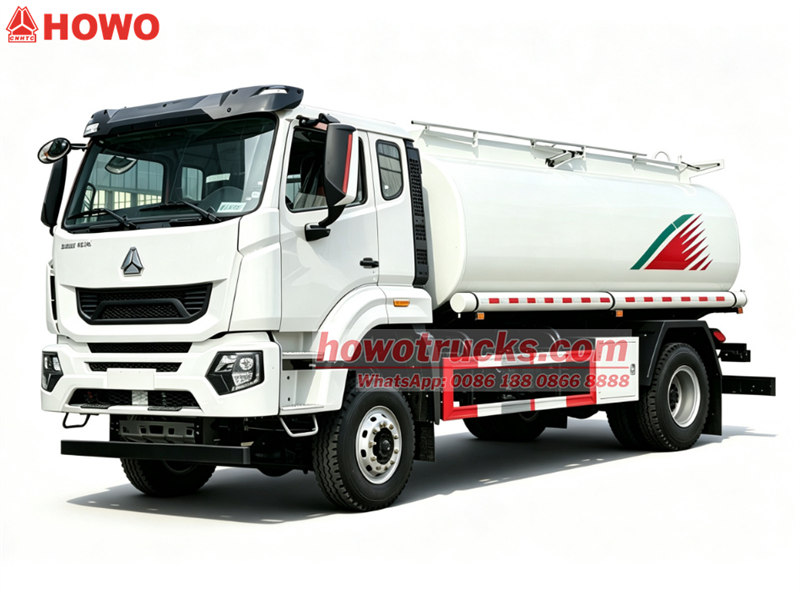

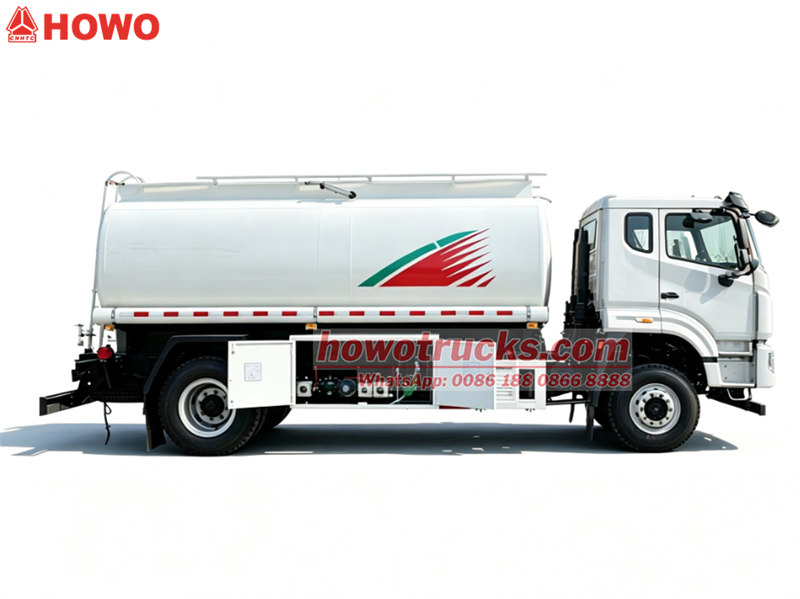

Dubai HOWO M7 12000L refined oil bowser truck

Equipped with a high-performance YC6J220-33 6-cylinder in-line water-cooled turbocharged intercooled diesel engine, this HOWO fuel tanker delivers a maximum power of 220 horsepower. It is paired with a 10-forward and 2-reverse transmission system and a reinforced diaphragm clutch assembly, forming a premium powertrain that offers sufficient power reserve and precise, responsive control. This configuration enables the truck to smoothly adapt to various complex road conditions and complete fuel transportation tasks efficiently and stably.

Designed for large-volume fuel transport needs, the tanker has a genuine actual tank capacity of 12,000 liters. The tank body is made of high-quality Q235 carbon steel with a wall thickness of no less than 4mm, ensuring excellent durability, pressure resistance and corrosion resistance for long-term use. Fitted with top-tier Chinese brand fuel pumps, valves, pipeline systems and a full set of professional fuel distribution devices, the truck ensures stable fuel delivery, high working efficiency and reliable operational safety.

*HOWO M7 Fuel Bowser Tank Truck*

------------------------------------------------------------------

CS Trucks Group is professional manufacturer in HOWO truck area,

guarantee all products Brand-New and High-Quality.



✦Ⅰ.Product Definition and Introduction « « «

Manufacturer: CS Trucks Group

Features:





✅ Chassis: SINOTRUK 4x2 heavy duty chassis, equipped with a 220HP WEICHAI diesel engine, ensuring strong power and stable performance for heavy-duty operations.

✅ Tank Capacity: 12 CBM, available in 3 compartment or multi-compartment design, meeting diverse storage and transportation needs for different fuel types.

✅ Tank Construction: Made of 5mm Q235 carbon steel plate with anti-corrosion coating, and reinforced with internal baffles to effectively suppress liquid surge during transportation, enhancing safety and durability.

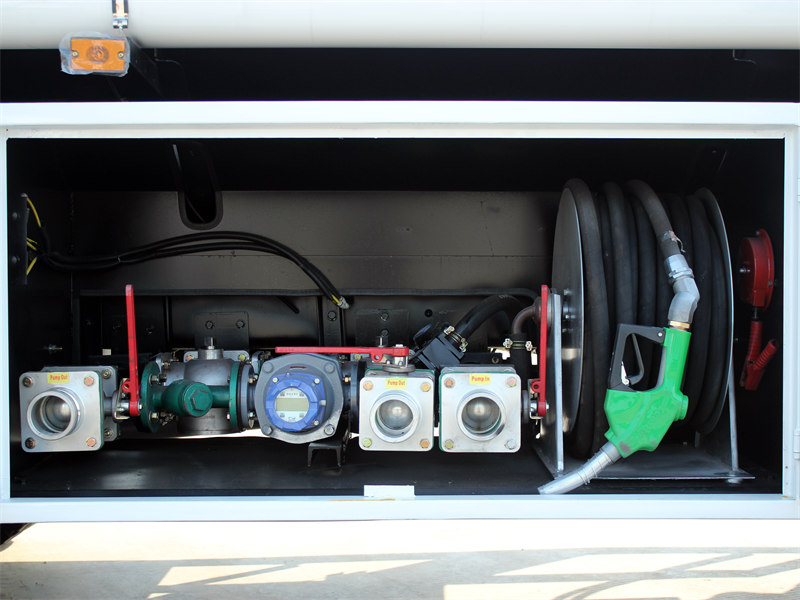

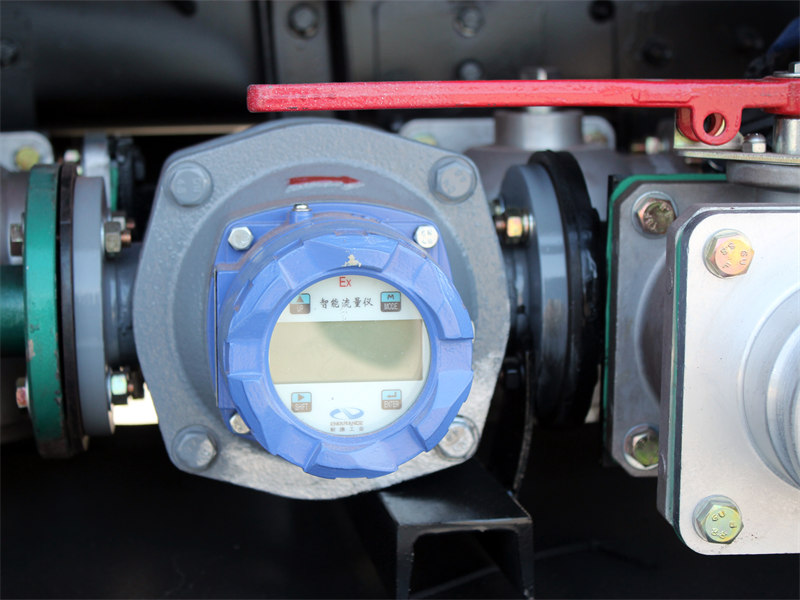

✅ Pumping & Dispensing System: Features a China famous brand pump driven by PTO, complete with a professional fuel dispenser and complete pipeline system, ensuring efficient and reliable fuel transfer and dispensing.

✅ Operation Scope: Specifically designed for the transportation of gasoline, diesel, and fuel oil, as well as fuel station distribution and industrial fuel logistics, suitable for various commercial and industrial scenarios.







✦ Ⅱ.Product Parameter For HOWO M7 Fuel Tank Truck  « « «

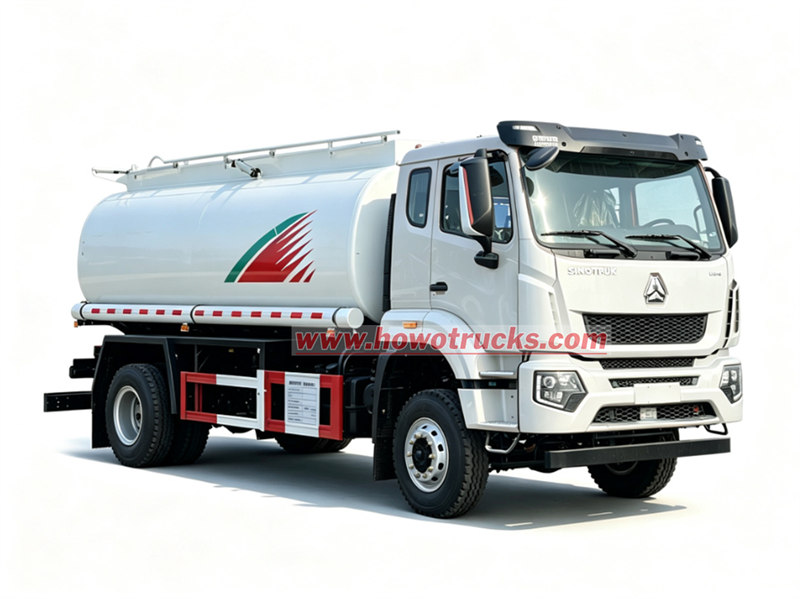

HOWO 4x2 Fuel Tank Truck
Drive system	4X2
Chassis	HOWO M7
Vehicle Main Dimensions	Dimensions(L x W x H)mm	8300*2580*3350
	Wheel base (mm)	4700
	Overhang (front/rear) (mm)	1380/1820
	Approach/Departure angle(°)	22/17
Weight in KGS	Curb Weight	8800
	GVW.	18000
Max. driving speed(km/h)		105
Engine	Model	YC6J220-33
	Type	4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)	220 HP
	Emission standard	Euro 2
Gearbox	HW19710, 10 forwards & 2 reverse
Clutch	Reinforced diaphragm clutch
Steering Gear	Power steering, hydraulic steering with power assistance
Fuel tank (L)	200L
Tire	10.00R20  6 pcs+1 spare tire
Upper Body
Fact cubage	12000Liters
Protective material	Q235 carbon steel
Tank meterial	<5mm> carbon steel
Equipment	1.Equipped with China famous brand pump, valves and pipes, a set of Fuel Dispenser 2.Equipped  with a ladder on tank 3.It can be design to have several compartments according to your requirements 4.Equipped with speed limiter. The speed limit of 95 km/h

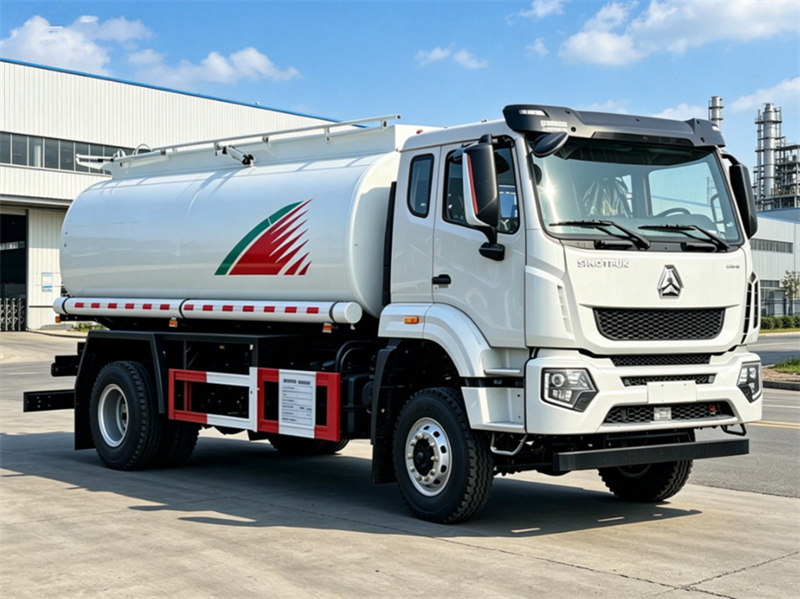

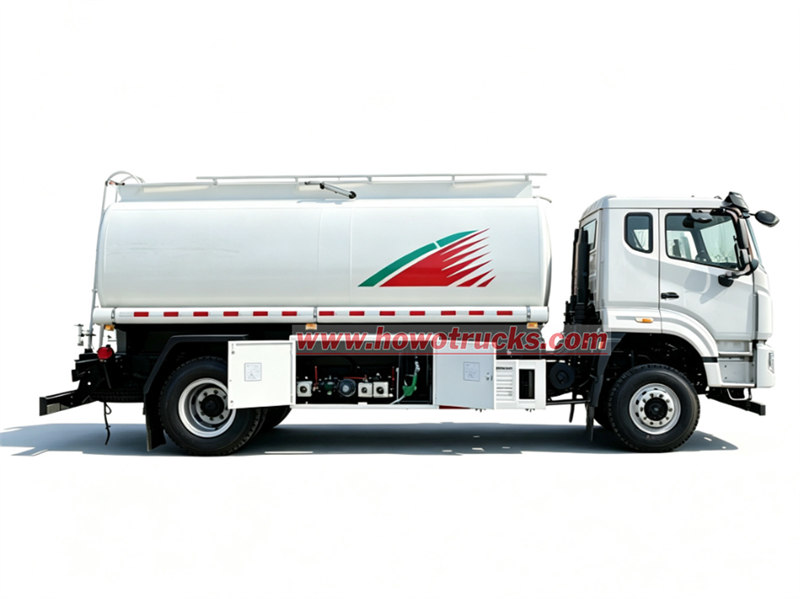

✦ Ⅲ. HOWO Heavy 12000L Fuel Pump Truck  « « «



♦ Custom‑built tank profiles are available upon request, including round, oval, rectangular and trapezoidal configurations to match varied project requirements.

♦ Tank top is fitted with essential safety components: manhole cover, breather valve, oil‑vapor recovery unit and protective guardrail.

♦ A sediment sump is integrated at the tank bottom, alongside a drain valve mounted at the rear for easy waste‑liquid discharge.

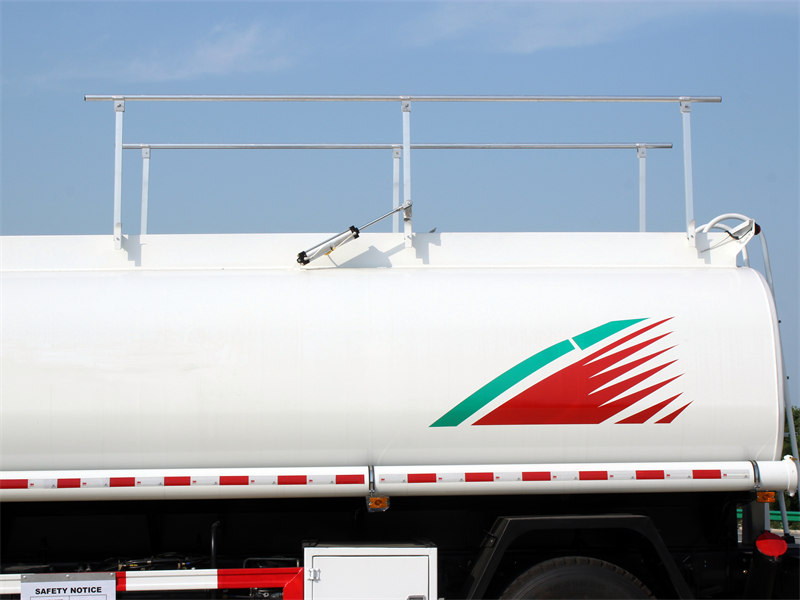

♦ Built‑in access ladders and walkways provide safe movement for operators to climb onto and off the tank.



♦ Internal horizontal and vertical baffles are installed inside the tank, which effectively minimize liquid surges when the vehicle accelerates or decelerates.

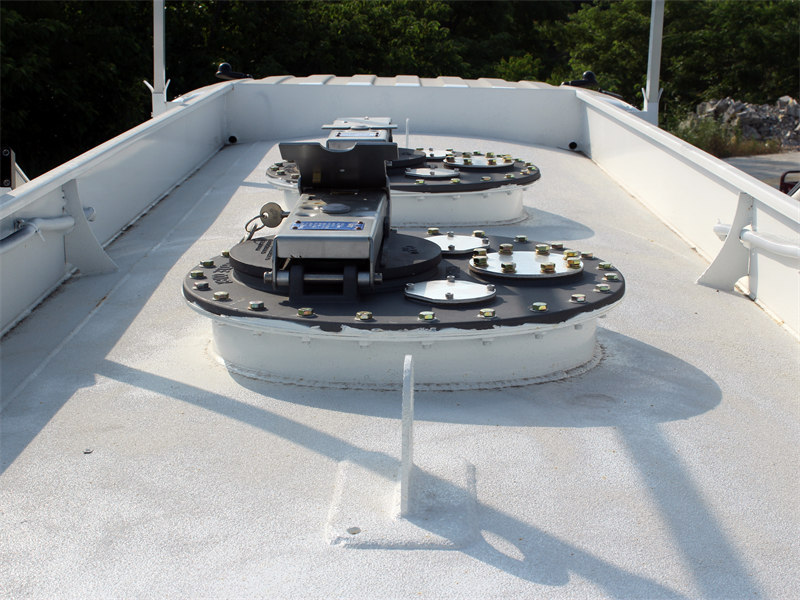

♦ The tank top assembly includes key components: tank manhole opening, breather valve, and oil‑vapor recovery system.

♦ The φ500‑mm diameter manhole opening facilitates routine inspection and maintenance work.

The gear pump is the core component of an oil truck, acting as its "heart" for efficient fluid transfer. It operates via a pair of meshing gears inside the pump body, which work together to create pressure differentials and move oil.

When the drive gear shaft rotates counterclockwise, it turns the driven gear clockwise. This expands the right cavity (suction side) between the meshing gears, lowering pressure and forming a partial vacuum. Atmospheric pressure then pushes oil from the reservoir into the pump’s suction port, filling the gaps between gear teeth.

As the gears rotate, oil trapped in the tooth spaces is carried to the left cavity (discharge side). Here, gear meshing reduces the cavity volume, increasing pressure to force oil out through the discharge port. This continuous suction-discharge cycle delivers a steady oil flow to machinery lubrication points.

This simple, durable mechanism makes gear pumps highly reliable for oil truck use, ensuring consistent performance even in demanding conditions.
