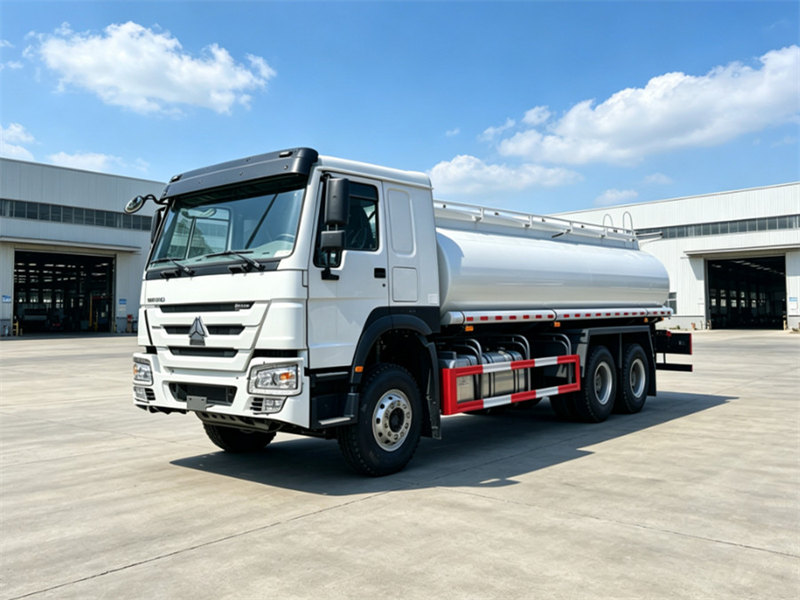

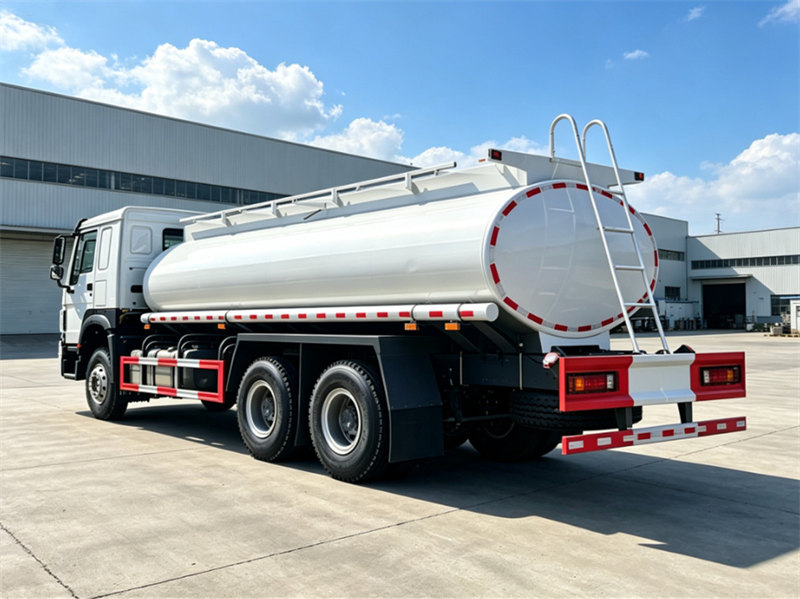

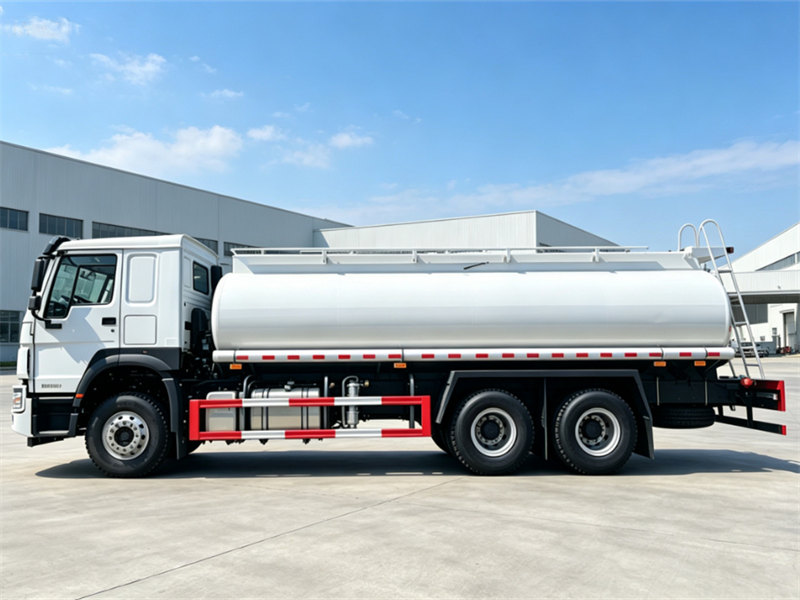

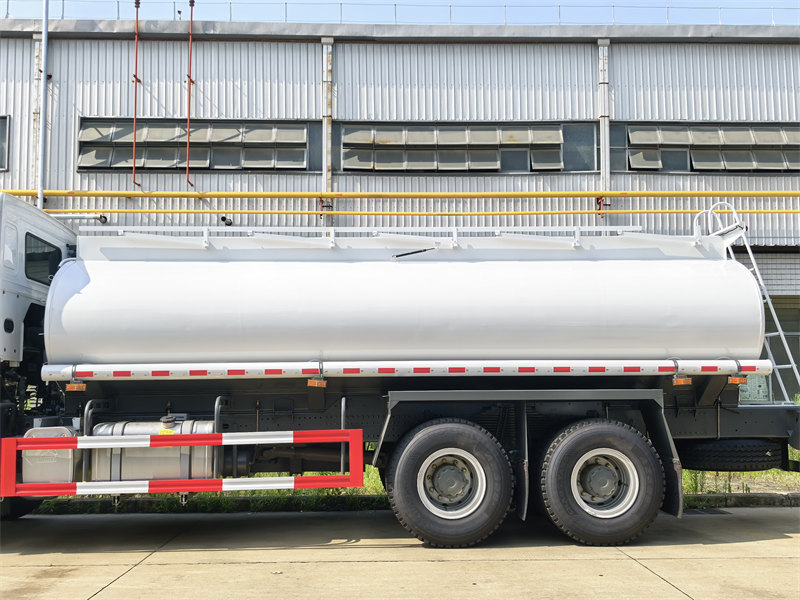

Ghana HOWO 15000L crude oil tanker truck

Powered by a high-performance WP12S400E201 6-cylinder in-line water-cooled turbocharged intercooled diesel engine, this HOWO fuel tanker boasts a maximum power output of 400 horsepower. It is matched with a 10-forward and 2-reverse speed transmission system and a reinforced diaphragm clutch assembly. This premium powertrain configuration provides robust power reserve and precise, responsive control, enabling the truck to adapt seamlessly to various complex road conditions and complete fuel transportation tasks efficiently and stably.

The tanker features a genuine 15,000 liter actual tank capacity to meet large-volume fuel transport demands. The tank body is constructed from high-quality Q235 carbon steel with a wall thickness of no less than 4mm, ensuring outstanding durability, pressure resistance and corrosion resistance for long-term service. Fitted with top-tier Chinese brand fuel pumps, valves and pipeline systems, along with a complete set of professional fuel distribution devices, the truck guarantees stable fuel delivery, high working efficiency and reliable operational safety.

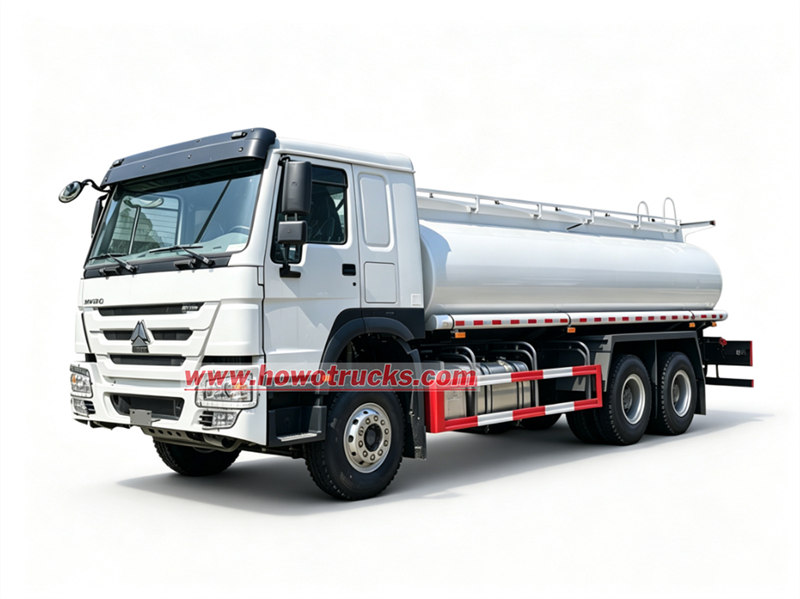

*HOWO Heavy 6x4 Fuel Pump Tank Truck*

------------------------------------------------------------------

CS Trucks Group is professional manufacturer in Howo truck area,

guarantee all products Brand-New and High-Quality.





✦Ⅰ.Product Definition and Introduction « « «

Manufacturer: CS Trucks Group

Features:



▶ Chassis: SINOTRUK 6x4 heavy-duty chassis powered by 371HP WEICHAI diesel engine.



▶ Tank Capacity: 25 CBM single-compartment or multi-compartment design (customizable up to 6 compartments.



▶ Tank construction: 5mm Q235 carbon steel plate with anti-corrosion coating, reinforced with internal baffles for surge suppression.

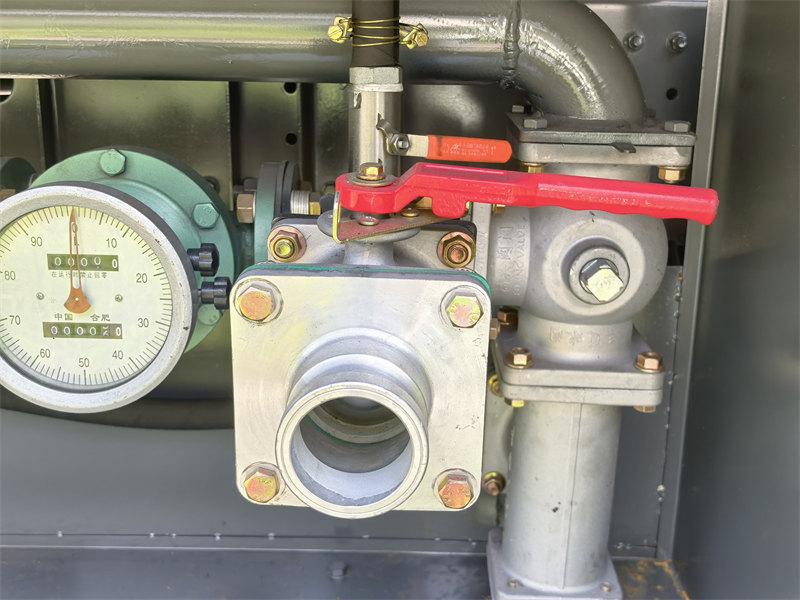

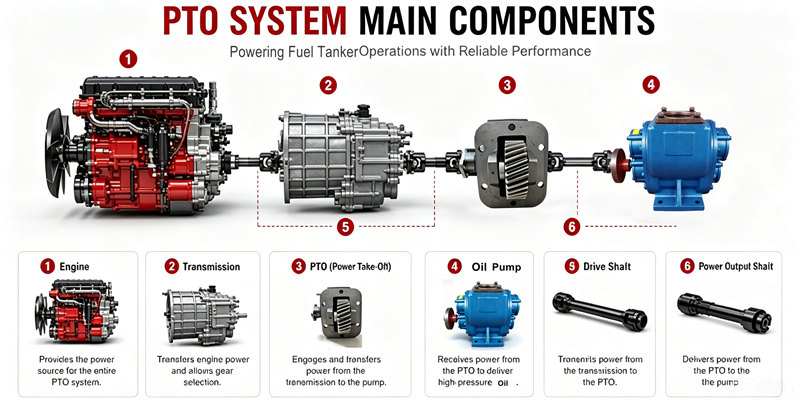

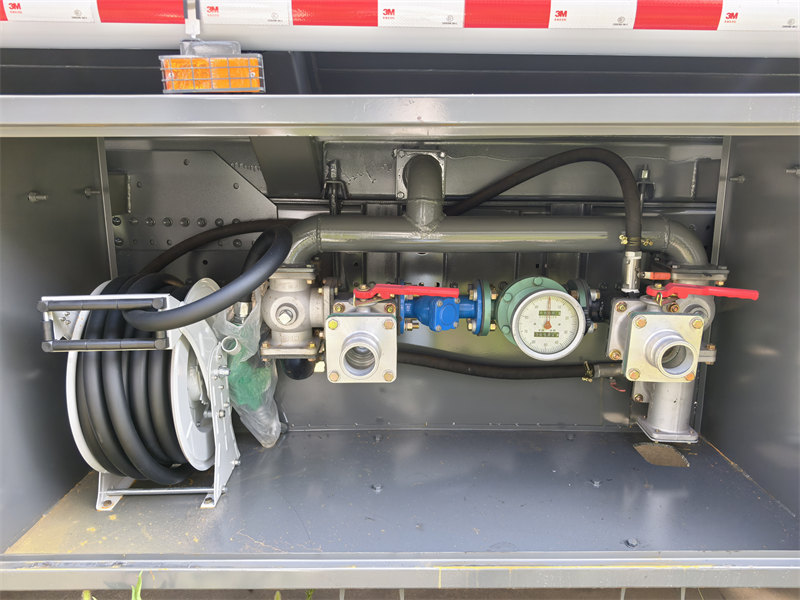

▶ Pumping & Dispensing System: China's famous brand pump with PTO drive, complete with fuel dispenser and pipeline system.



▶ Operation Scope: Designed for gasoline, diesel, and fuel oil transportation, fuel station distribution, and industrial fuel logistics.







✦ Ⅱ.Product Parameter For HOWO Fuel Pump Truck  « « «

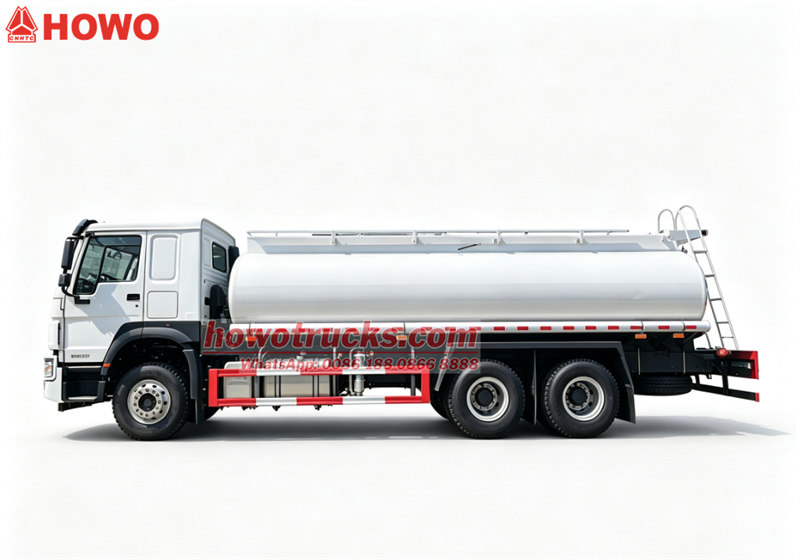

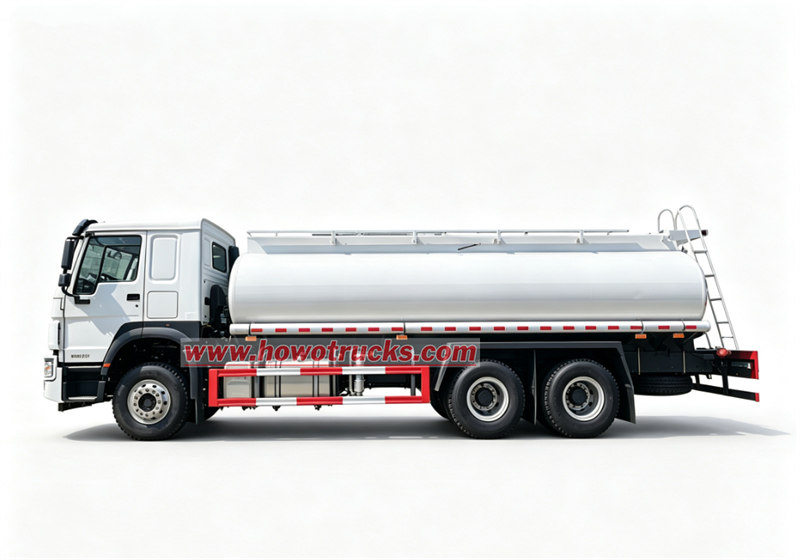

HOWO 6x4 Fuel Tank Truck
Drive system	6X4
Chassis	HOWO
Vehicle Main Dimensions	Dimensions(L x W x H)mm	10300*2580*3350
	Wheel base (mm)	4600+1370
	Overhang (front/rear) (mm)	1380/1820
	Approach/Departure angle(°)	22/17
Weight in KGS	Curb Weight	13500
	GVW.	33000
Max. driving speed(km/h)		105
Engine	Model	WP12S400E201
	Type	4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)	400 HP
	Emission standard	Euro 2
Gearbox	HW19710, 10 forwards & 2 reverse
Clutch	Reinforced diaphragm clutch
Steering Gear	Power steering, hydraulic steering with power assistance
Fuel tank (L)	400L
Tire	12.00R20  12 pcs+1 spare tire
Upper Body
Fact cubage	15000Liters
Protective material	Q235 carbon steel
Tank meterial	<6mm> carbon steel
Equipment	1.Equipped with China famous brand pump, valves and pipes, a set of Fuel Dispenser 2.Equipped  with a ladder on tank 3.It can be design to have several compartments according to your requirements 4.Equipped with speed limiter. The speed limit of 95 km/h

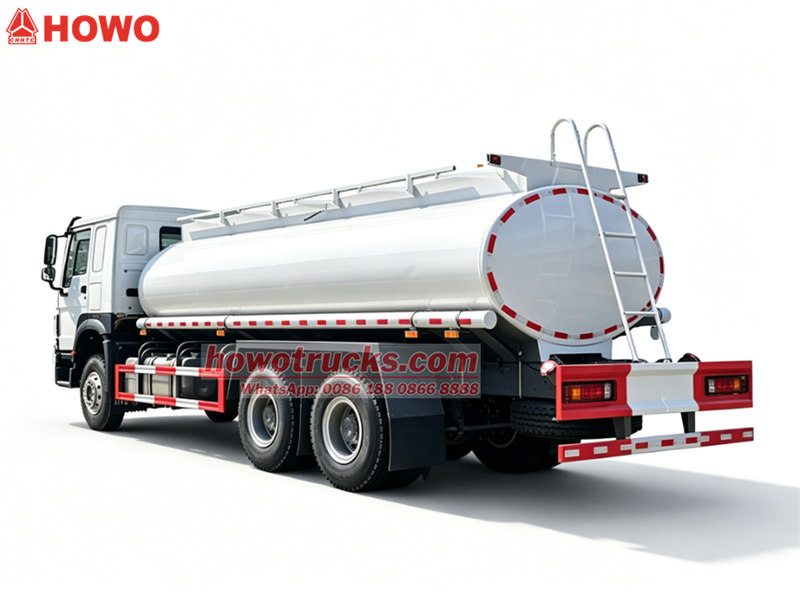

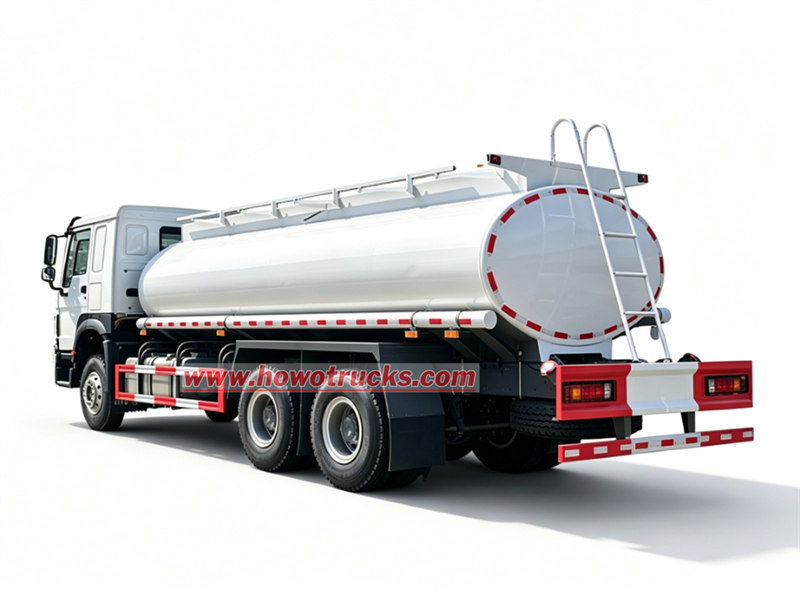

✦ Ⅲ. HOWO Heavy 15000L Fuel Pump Truck  « « «



♦ The tank body shape can be customized to meet different customer needs, including round, oval, rectangular, and trapezoidal shapes.

♦ The top of the tank is equipped with a manhole cover, breather valve, oil vapor recovery system, and guardrail.

♦ The bottom of the tank has a sedimentation tank, and the rear has a drain valve.

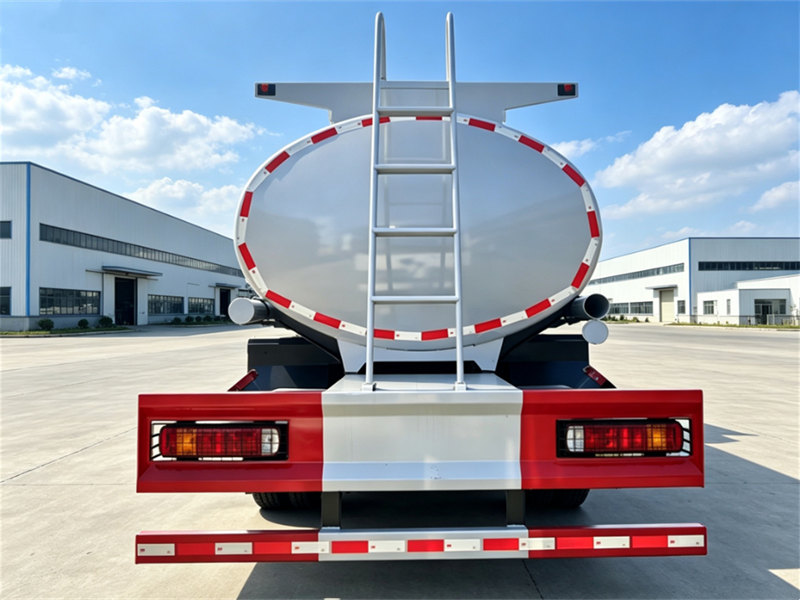

♦ The tank body is equipped with ladders and walkways for accessing the upper and lower tanks.



♦ The interior of the tank has horizontal and vertical baffles to reduce fluctuations in the liquid inside the tank during vehicle acceleration and deceleration.

♦ The top mainly consists of the tank opening, breather valve, and oil vapor recovery system.

♦ The tank opening is a φ500 diameter hole for maintenance and repair.

The gear pump is the core component of an oil truck, acting as its "heart" for efficient fluid transfer. It operates via a pair of meshing gears inside the pump body, which work together to create pressure differentials and move oil.

When the drive gear shaft rotates counterclockwise, it turns the driven gear clockwise. This expands the right cavity (suction side) between the meshing gears, lowering pressure and forming a partial vacuum. Atmospheric pressure then pushes oil from the reservoir into the pump’s suction port, filling the gaps between gear teeth.

As the gears rotate, oil trapped in the tooth spaces is carried to the left cavity (discharge side). Here, gear meshing reduces the cavity volume, increasing pressure to force oil out through the discharge port. This continuous suction-discharge cycle delivers a steady oil flow to machinery lubrication points.

This simple, durable mechanism makes gear pumps highly reliable for oil truck use, ensuring consistent performance even in demanding conditions.
