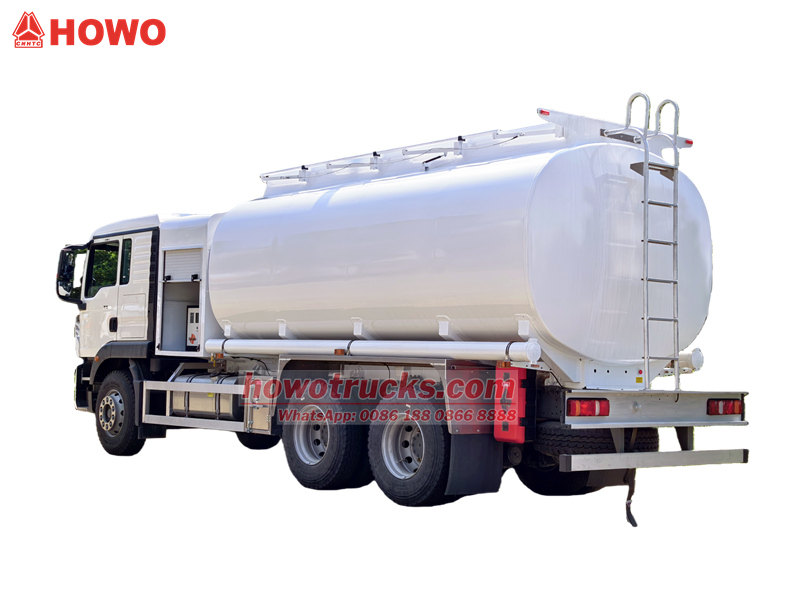

HOWO oil tanker truck with double refueling system

The HOWO oil tanker truck with double refueling system is a professional urban special refueling tank truck tailored for diversified fuel transportation and mobile refueling scenarios. Powered by a reliable MC07.34-30 6-cylinder in-line water-cooled turbocharged intercooled diesel engine, this fuel tanker delivers a maximum power output of 340 HP, bringing robust and stable power performance for daily operation.

Matched with a 10-forward and 2-reverse speed gearbox and a reinforced diaphragm clutch, the truck features flexible gear shifting, precise control and excellent driving stability. It adapts seamlessly to all kinds of complex road conditions, perfectly meeting long-distance and daily fuel transportation demands in urban and suburban areas.

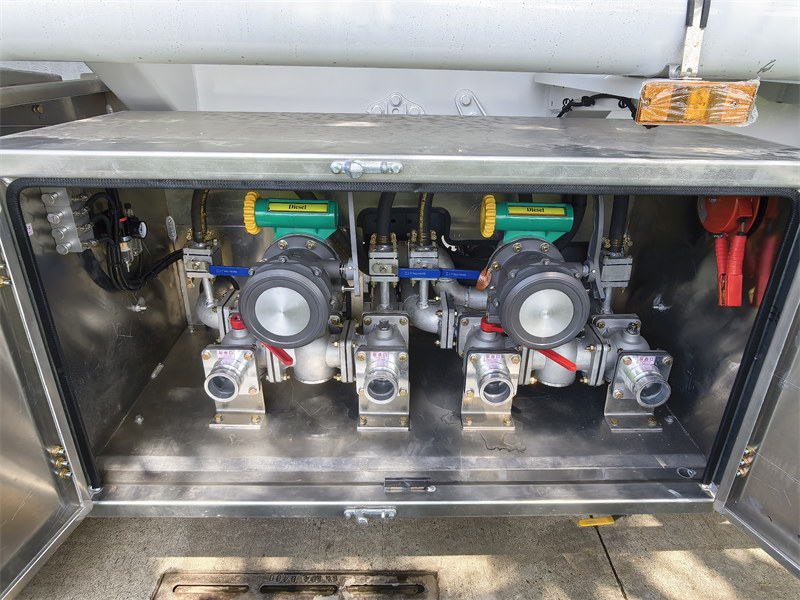

This HOWO fuel tanker boasts a standard actual tank volume of 20,000 liters, with outstanding tank body durability and safety. The tank is constructed of high-quality Q345 carbon steel with a wall thickness of no less than 4mm, ensuring high strength, corrosion resistance and long service life. Equipped with full sets of renowned Chinese brand fuel pumps, valves and piping systems, as well as a complete fuel distribution device, the truck realizes efficient, stable and safe fuel suction, transmission and refueling operations.

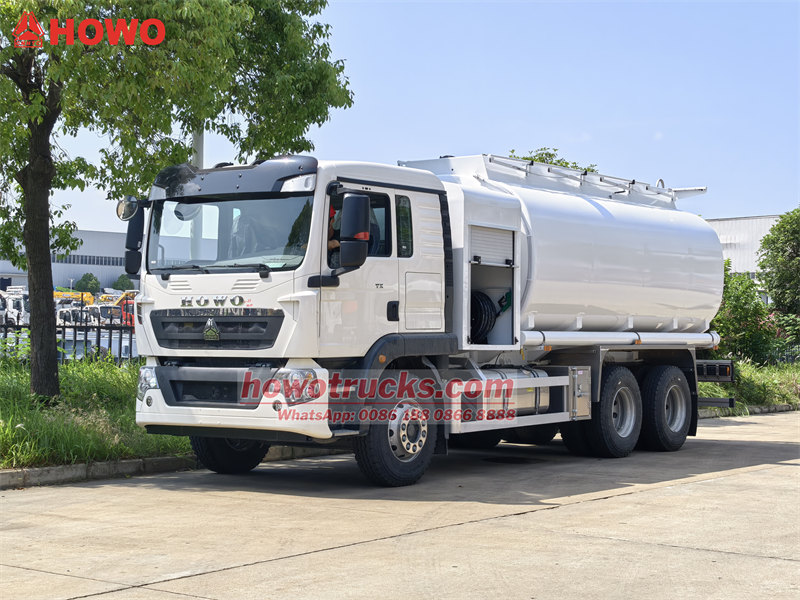

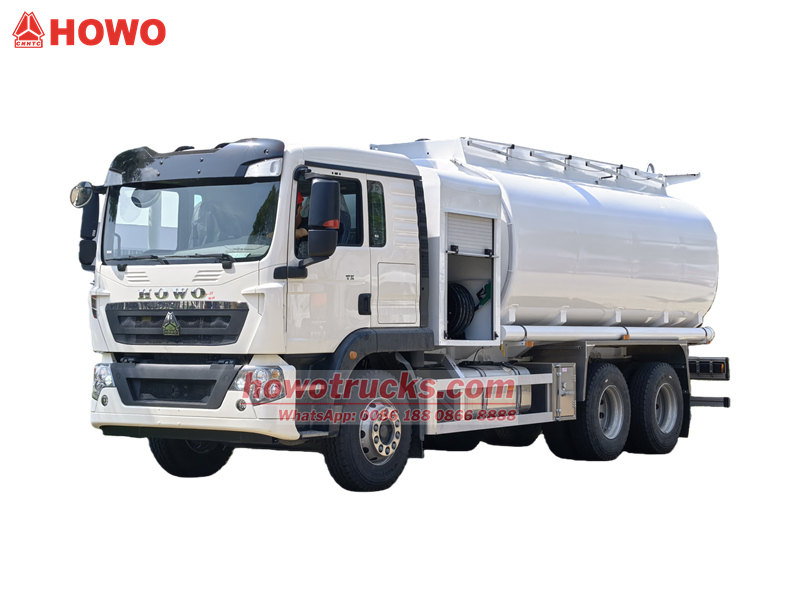

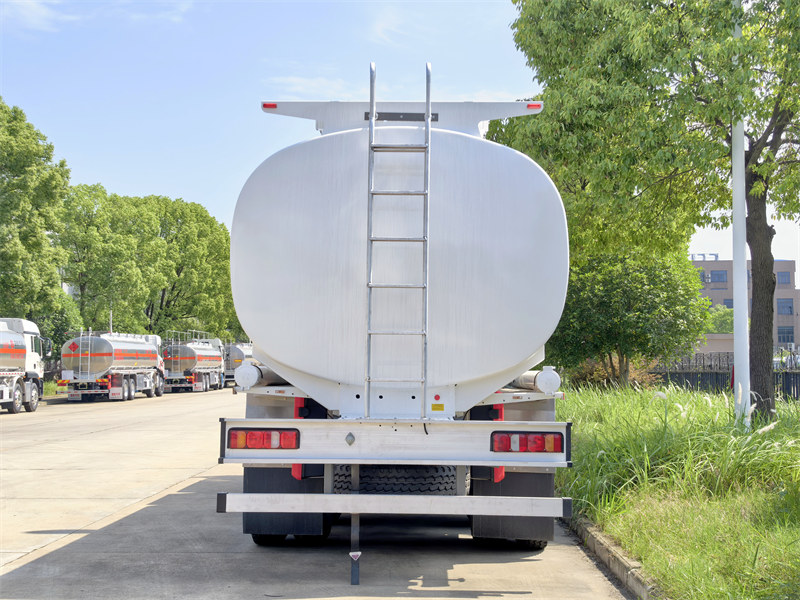

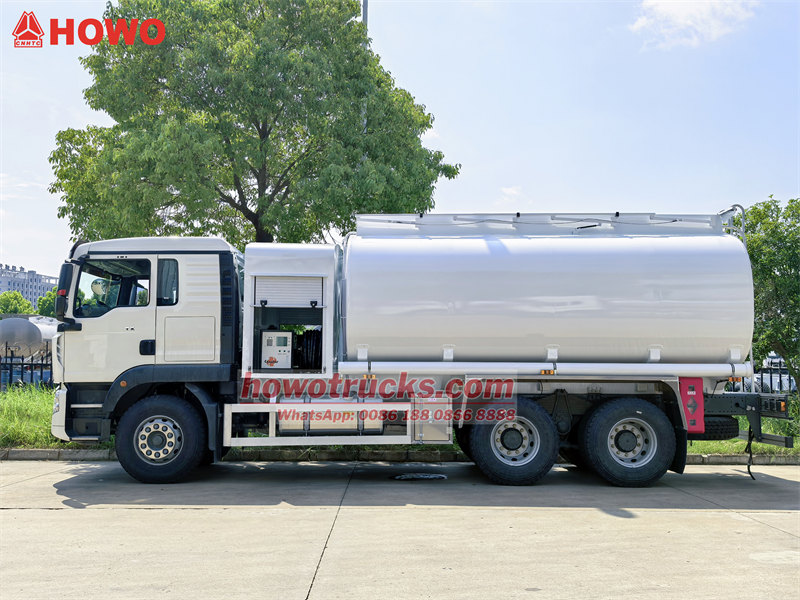

*HOWO TX 20000L Fuel Tank Truck*

------------------------------------------------------------------

CS Trucks Group is professional manufacturer in Howo truck area,

guarantee all products Brand-New and High-Quality.



✦Ⅰ.Product Definition and Introduction « « «

Manufacturer: CS Trucks Group

Features:

▶ Truck Chassis: Sinotruk Howo truck chassis,6x4, 6x6 model, MC model with 300HP,340HP,380HP,400HP... Euro 2,3



▶ Tank material: 6mm thick high-quality steel for prolonged service lier, carbon steel, aluminum alloy or stainless steel can be choose.



▶ Professional Compartment：The tank is divided into 6 compartments, which can simultaneously load oils of different grades or categories to avoid cross contamination and meet the transportation needs of multiple categories.







✦ Ⅱ.Product Parameter For HOWO TX Fuel Tank Truck  « « «





HOWO TX 4x2 Fuel Tank Truck
Drive system	4X2
Chassis	HOWO TX
Vehicle Main Dimensions	Dimensions(L x W x H)mm	10300*2350*2950
	Wheel base (mm)	4600+1370
	Overhang (front/rear) (mm)	1380/1820
	Approach/Departure angle(°)	22/17
Weight in KGS	Curb Weight	14500
	GVW.	25000
Max. driving speed(km/h)		105
Engine	Model	MC07.34-30
	Type	4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)	340 HP
	Emission standard	Euro 2
Gearbox	HW19710, 10 forwards & 2 reverse
Clutch	Reinforced diaphragm clutch
Steering Gear	Power steering, hydraulic steering with power assistance
Fuel tank (L)	100L
Tire	12.00R20  10 pcs+1 spare tire
Upper Body
Fact cubage	20000Liters
Protective material	Q345 carbon steel
Tank material	<5mm> carbon steel

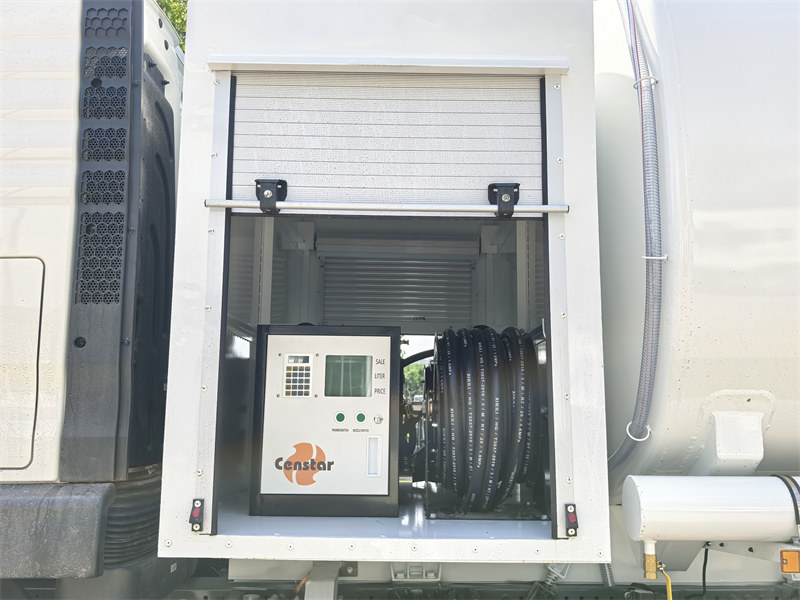

Equipment	1.Equipped with China famous brand pump, valves and pipes, a set of Fuel Dispenser 2.Equipped  with a ladder on tank 3.It can be design to have several compartments according to your requirements 4.Equipped with speed limiter. The speed limit of 95 km/h



✦ Ⅲ. Advantage For HOWO Fuel Tank Truck « « «



 Power and Heavy-Duty Performance Advantages:

♦ Powerful Engine for Complex Working Conditions: Equipped with an MC07.34-30 engine, delivering ample 340 horsepower, providing strong starting and climbing capabilities even on muddy, steep, and unpaved roads in regions like Africa.

♦ Compliant Heavy-Duty and Stable Load Bearing: With a gross vehicle weight of 25 tons and a tank volume of 20,000 liters, featuring a Q345 carbon steel tank body and 5mm thickened tank walls, it boasts strong load-bearing capacity and structural stability, meeting the needs of large-scale oil transfer.

♦ Highly Reliable Transmission System: The HW19710 10-speed gearbox with a reinforced clutch offers high transmission efficiency, durability, and a low failure rate under frequent start-stop and heavy-duty conditions.



Tank Body and Operational Safety Advantages:

♦ Safe and Compliant Tank Design: Constructed with Q345 carbon steel and 5mm thickened tank walls, offering excellent impact and corrosion resistance. Suitable for transporting various fuels such as diesel and gasoline, and can be configured with multiple compartments for oil separation.

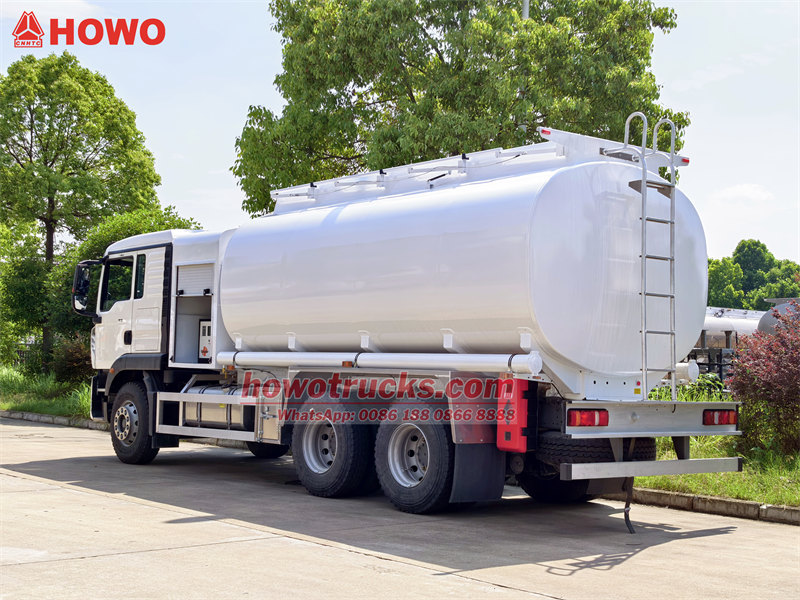

♦ Comprehensive Safety Features: Equipped with a speed limiter (maximum speed limit 95km/h), dedicated oil pump, valve pipelines, and refueling nozzles, ensuring safe and controllable operation. A non-slip ladder on the top of the tank facilitates daily inspection and maintenance.

♦ Meets Hazardous Goods Transportation Industry Standards: The tank material, sealing structure, and protective design all meet the regulations for hazardous chemical transportation, making it suitable for oil transportation operations in oil fields, mines, construction sites, and other similar environments.

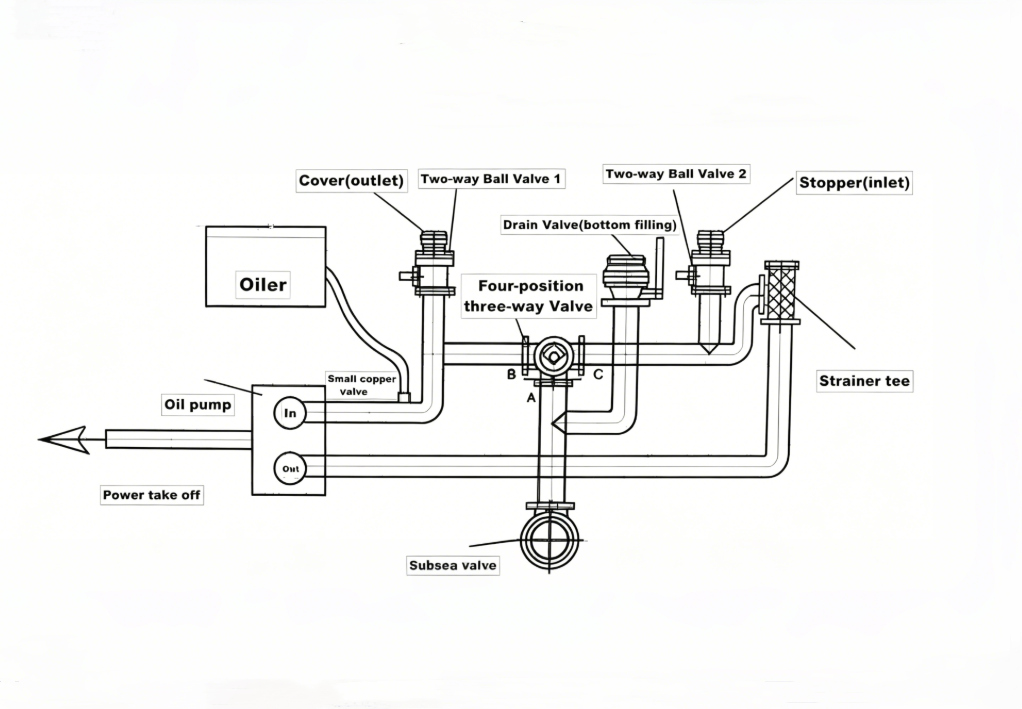

♦ The oil pump is driven by the engine power, output through the power take-off (PTO), and then via a drive shaft.

♦ The oil pump is connected to the chassis via a pump mounting bracket.

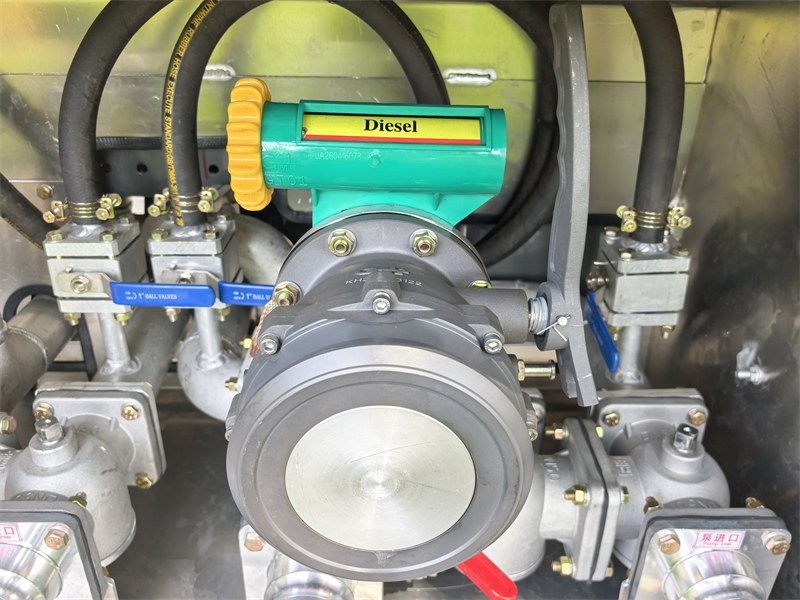

♦ Depending on the specific application of the tanker truck, centrifugal pumps, gear pumps, stainless steel pumps, and high-polymer nylon pumps can be selected.

♦ Customers can also choose other models of self-priming pumps, and we can design and manufacture according to specific customer requirements.
