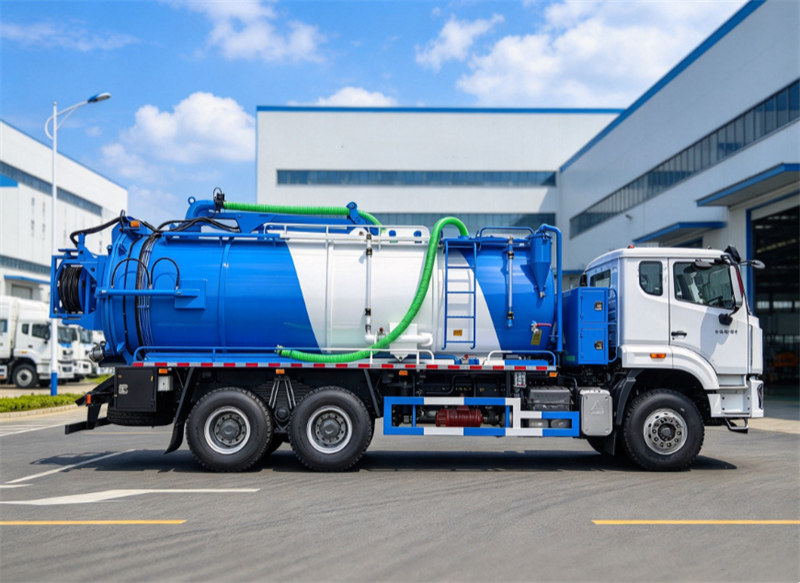

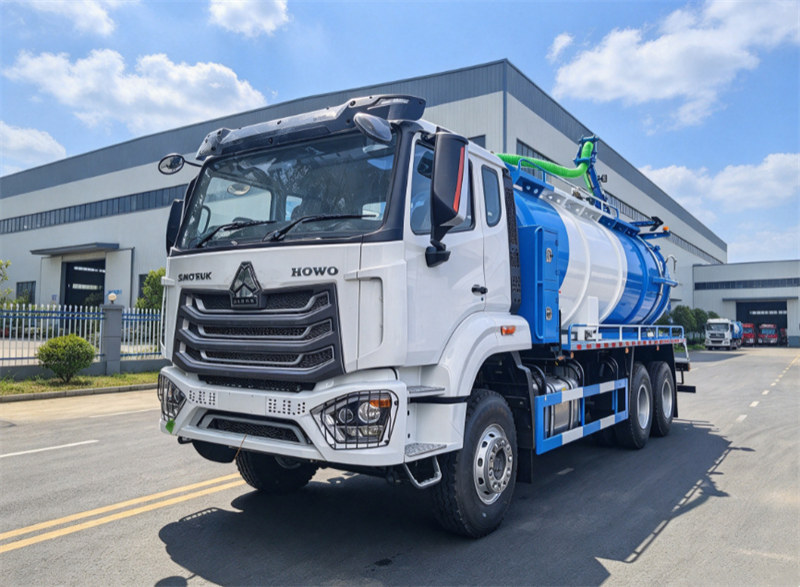

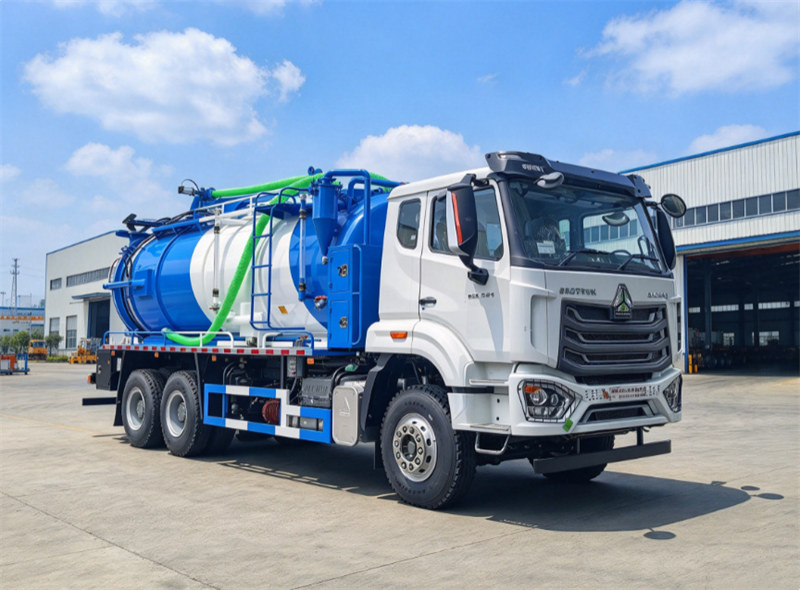

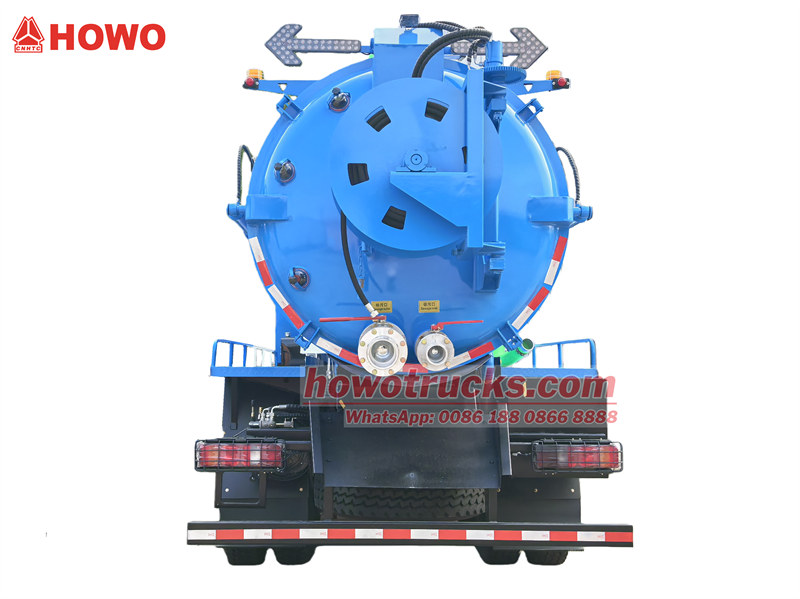

HOWO NX 16000L Combined Sewer Cleaner Truck

HOWO NX 370HP Vac-Jet Truck with jetting

HOWO NX 370HP 6x4 Vacuum Tank Truck with jetting

HOWO NX 370HP 16000L Vac-Jet Truck with jetting

HOWO NX 16000L Combined Sewer Cleaner Truck

The HOWO 6×4 septic tanker truck, built for efficient sewage suction and high-pressure cleaning. Fitted with a 16m³ combined carbon steel vacuum tank (10m³+6m³), 370HP Euro 3 engine and PN106D vacuum pump, this heavy duty unit delivers strong vacuum performance, fast suction and reliable dumping. It supports left hand or right hand drive, with multiple optional upgrades including stainless steel tank and imported vacuum pump, ideal for sewer cleaning, sludge collection and wastewater disposal projects.

工作能力 :
16000 liters
舱型 :
HOWO NX single cabin with sleeper and A/C
驱动系统 :
6×4
轴距（毫米） :
9600*2530*3250 mm
发动机专用 :
370HP/WD615.47
变速箱 :
HW19710, 10 Forward & 2Reverse
前轴（公斤） :
7.5T
后轴（公斤） :
13 T*2

产品详情
客户案例

The HOWO 6×4 septic tanker truck, built for efficient sewage suction and high-pressure cleaning. Fitted with a 16m³ combined carbon steel vacuum tank (10m³+6m³), 370HP Euro 3 engine and PN106D vacuum pump, this heavy duty unit delivers strong vacuum performance, fast suction and reliable dumping. It supports left hand or right hand drive, with multiple optional upgrades including stainless steel tank and imported vacuum pump, ideal for sewer cleaning, sludge collection and wastewater disposal projects.

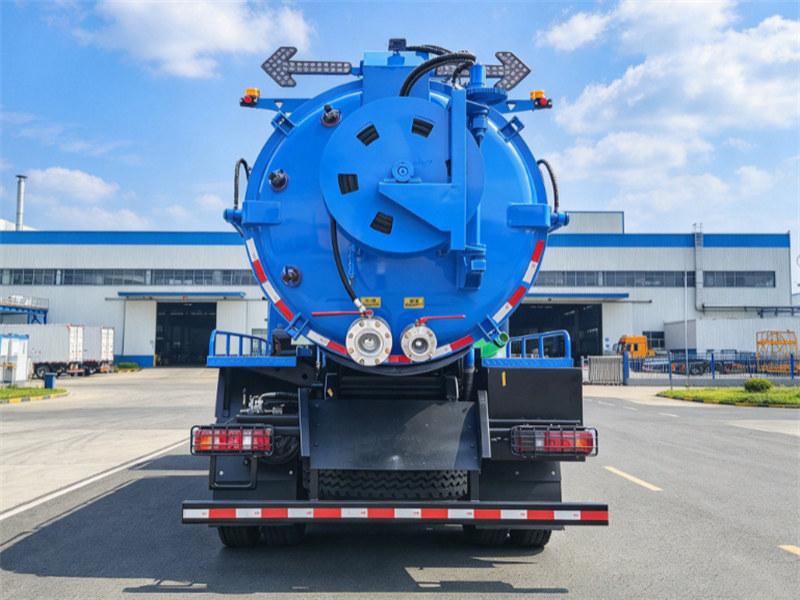

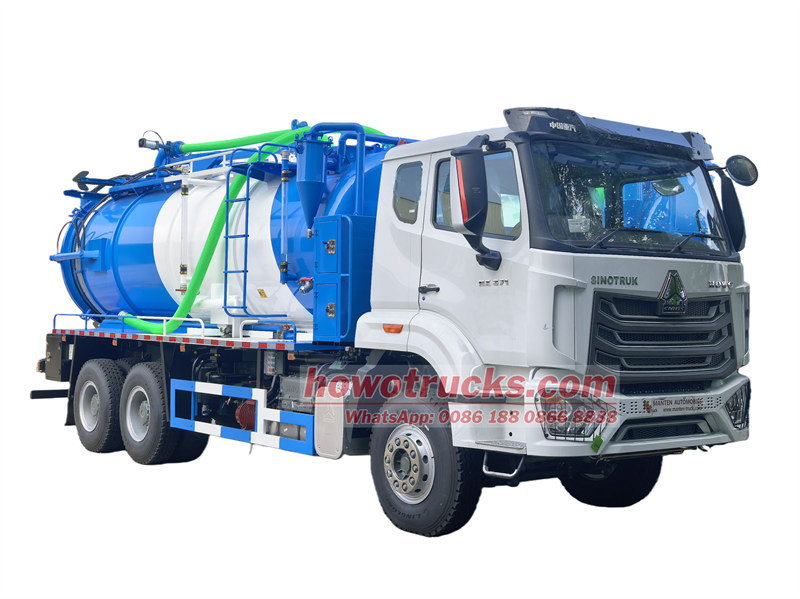

HOWO NX cleaning sewage tank truck

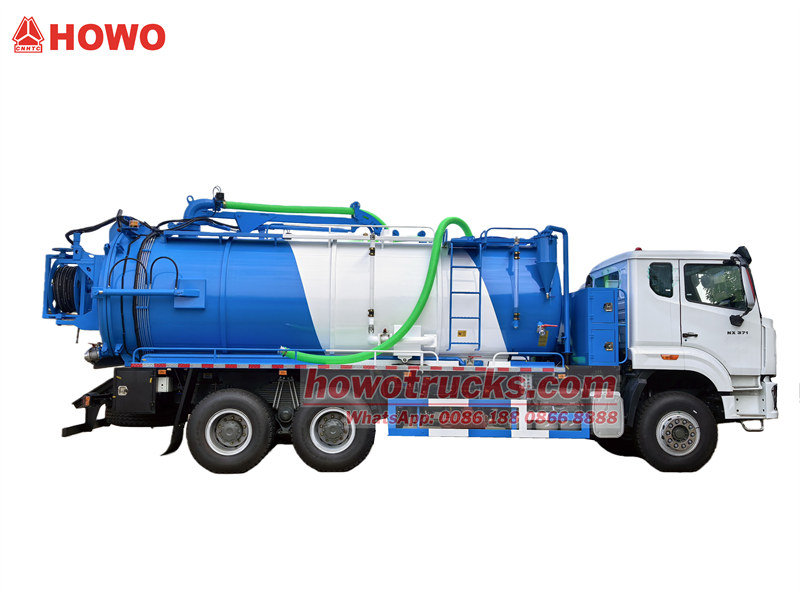

*HOWO NX Cleaning Sewage Tanker Truck

SINOTRUK HOWO 16000L Vacuum Sewage Truck*

-----------------------------------------------------------------

CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

✦Ⅰ.Product Defination and Introduction «««

Manufacturer: CS TRUCKS Group

Features:

✅ Dual-compartment vacuum tank: 10m³ + 6m³, total 16m³ capacity

✅ HOWO NX single-row cab with air conditioning, comfortable operation

✅ 370HP Euro 3 WD615.47 diesel engine, strong power output

✅ Fast suction: ≤5 mins, effective suction range over 8m

✅ Hydraulic tipping tank (40–45°), hydraulically operated rear door

✅ Complete standard fittings: inspection window, suction hose, overflow valve etc

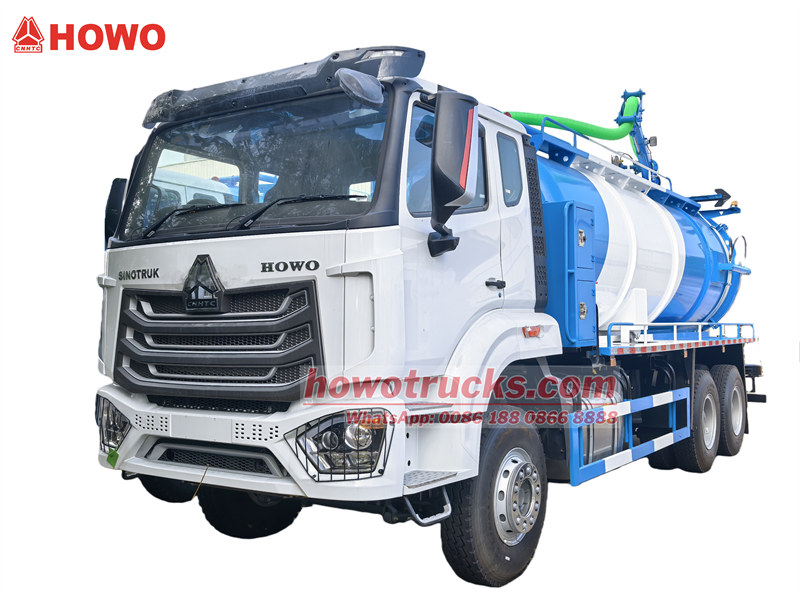

HOWO NX cleaning sewage tank truck

✦Ⅱ.Parameter for HOWO Sewage With Jetting Truck «««

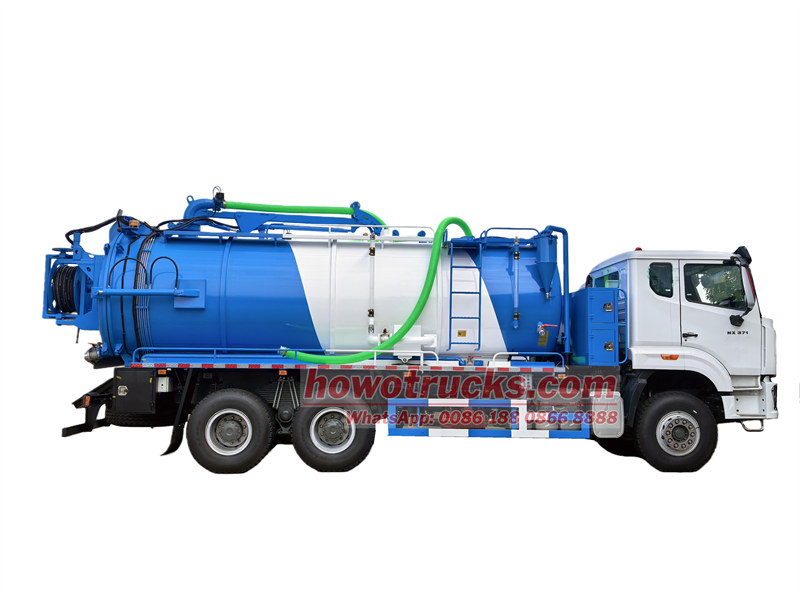

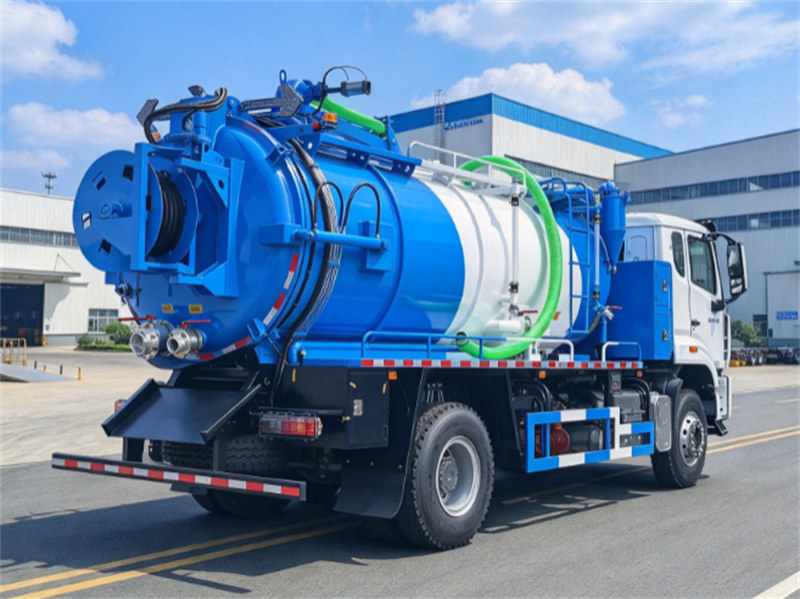

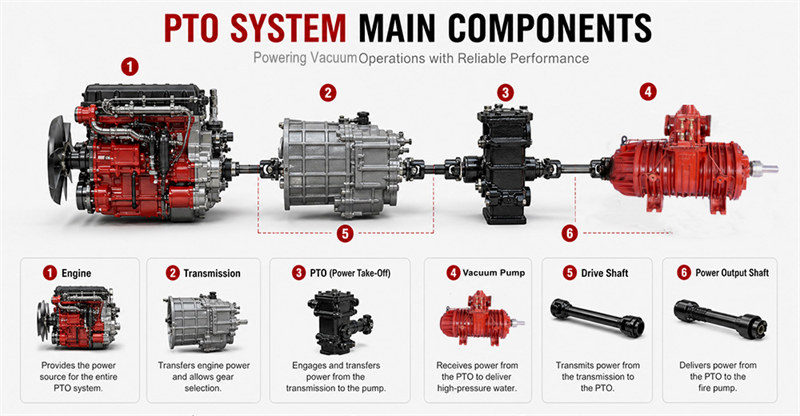

HOWO 6x4 Vac-Jet Truck

HOWO 6x4 Vac-Jet Truck
Vehicle Description
Overall dimensions	980025303350mm
GVW	28000kg
Curb weight	14800kg
Sewage tank (m3)	10+6
Drive system	6*4
Chassis Description
Chassis brand	HOWO
Steering	LHD/RHD
Cab	HOWO NX,single row, 2 seats,with A/C
Wheelbase	4600+1350mm
Tire specification	12.00R20
Tire quantity	10 tires and 1 spare tire
Engine	Engine model	WD615.47
	Emission level	EURO 3
	Displacement	9.8L
	Horse power	370HP
	Maximum torque	1500N·m
	Fuel	Diesel
Gear box	Model	HW19710
Gear box	Number of gears	10 speed
Brake system	Air break
Axle	Front	7.5T
Axle	Rear	13T*2
Fuel tanker	Type	Stainless steel
Fuel tanker	Capacity	400L
Tanker Description
Tanker	Capacity	10000+6000 Liters
	Material	6mm thickness, high quality carbon steel
	Structure	Welding, vacuum tank, Cylindrical
Vacuum Pump	Model	PN 106D
	Max Speed	1300(r.p.m)
	Max Pressure	1,5 ABS
	Max Vacuum Level	-0.095
	Features	Low speed, low fuel consumption, low noise, high vacuum, high efficiency
High Pressure Water Pump	Pump Type	3N2
	Max Pressure	240 Bar/PSI
	Pump Speed	405 R/MIN
	Max Flow	170 L/min/GPM
	Plunger DIA	45 MM/INCH
	Plunger Stroke	95 MM/INCH
Special function	Suction time ≤ 5min, effective suction range ≥ 8, Max vacuum degree ≤ 15 KPa, dump angle ≥ 45°
Standard configuration	Equipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators,overflow valve,etc. Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically.
Optional configuration	Tanker material: stainless steel. Vacuum pump: China or Spain vacuum pumps. Anti-rust coating inside tank

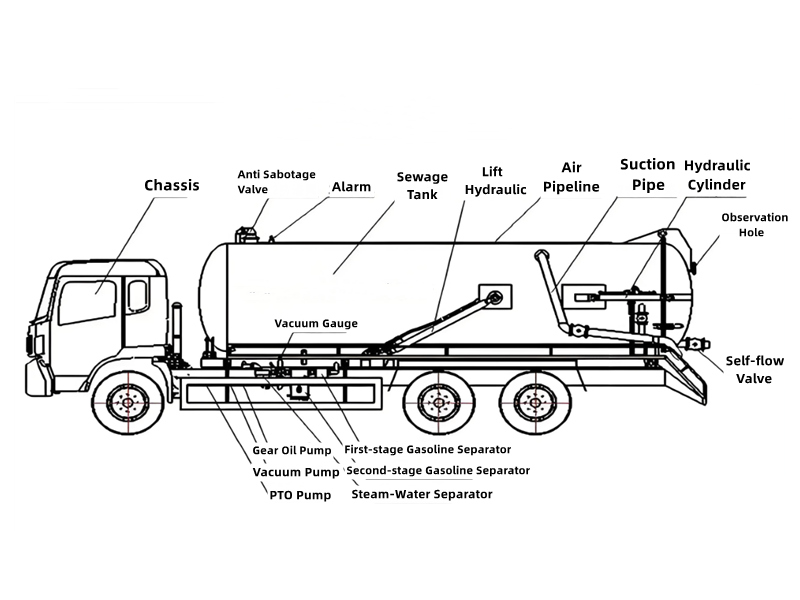

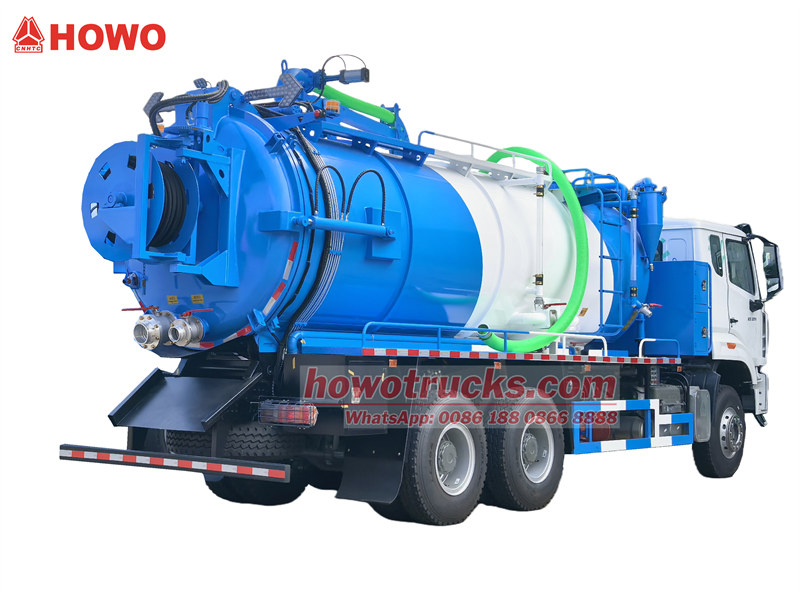

HOWO heavy 16CBM vacuum sewage tank truck

✦Ⅲ.Sewage Tank Manufacturing Feature «««

1. Powerful Suction & Cleaning System:

♦ PN106D vacuum pump: high vacuum, low noise and low fuel consumption

♦ 3N2 high-pressure water pump, up to 240Bar for pipeline dredging

♦ Fast suction within 5 minutes, long effective suction distance

♦ Stable vacuum degree, excellent for sludge and sewage collection

2. Large Capacity Tank:

♦ 10m³ + 6m³ separate tank design, total 16m³ volume

♦ 6mm thick carbon steel tank, optional stainless steel material

♦ Hydraulic tipping up to 45°, hydraulic rear door for quick discharge

♦ Equipped with inspection window, overflow valve and oil-water separator for safety

3. Reliable HOWO Heavy Duty Chassis:

♦ 370HP WD615.47 Euro 3 diesel engine, strong power

♦ 10-speed HW19710 gearbox, stable transmission

♦ 6×4 drive layout, GVW 28000kg, great load capacity

♦ Air brake system, reliable braking performance on tough sites

✦Ⅳ.Suction Capacity and Sealing Performance «««

HOWO 6x4 Vac-Jet Truck

1. JUROP pumps utilize optimized flow path design and precision rotor machining technology to establish extremely high vacuum levels.

2. Key components of JUROP pumps, are made of high-strength, wear-resistant alloys or treated with special coatings, providing exceptional resistance to wear and corrosion.

3. JUROP pumps are designed with thermal management in mind. An optimized structure promotes heat dissipation, preventing performance degradation or damage due to excessive temperatures.

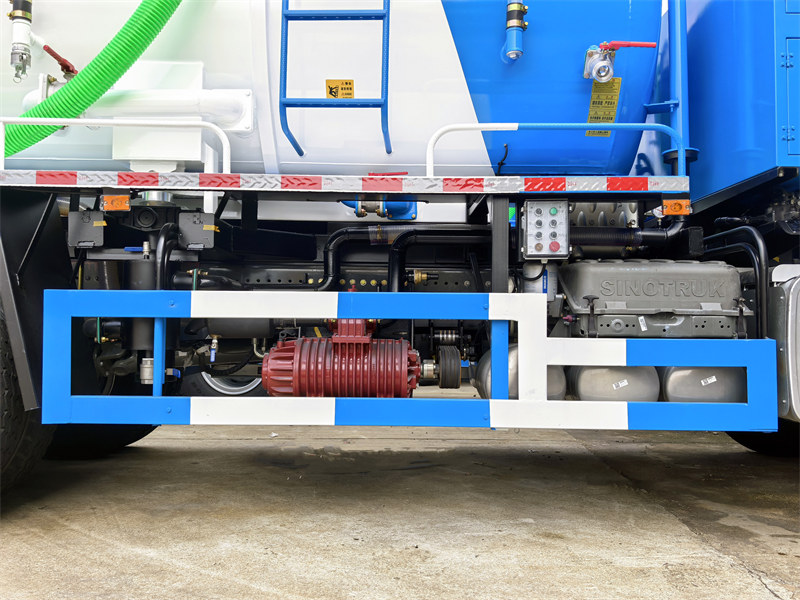

vacuum pump truck

JUROP (PNR 106D) rotary vacuum pump
Specification	Unit	Value
Free air capacity	cfm	424
Air capacity at 15" Hg/50% vacuum	cfm	312
Max. Vacuum	Hg (in.)	28
Continuous Duty Vacuum	Hg (in.)	18
Max. Pressure	Bar	1.5
Power required at 15" of vacuum	hp	15.5
Power required at max. pressure	hp	41
Rotation speed	rpm	1300
Oil tank capacity	quart(us)	4
Suggested Tank Size	Gallons	1000-4000
Oil consumption	gal (US)/Hr	0.05
Sound pressure at 7 meters (23 ft) 60% vacuum	dB	79
Hose	in	3
Flange	in	-
Weight	lbs	357

vacuum pump truck

HOWO M7 sewage tank truck

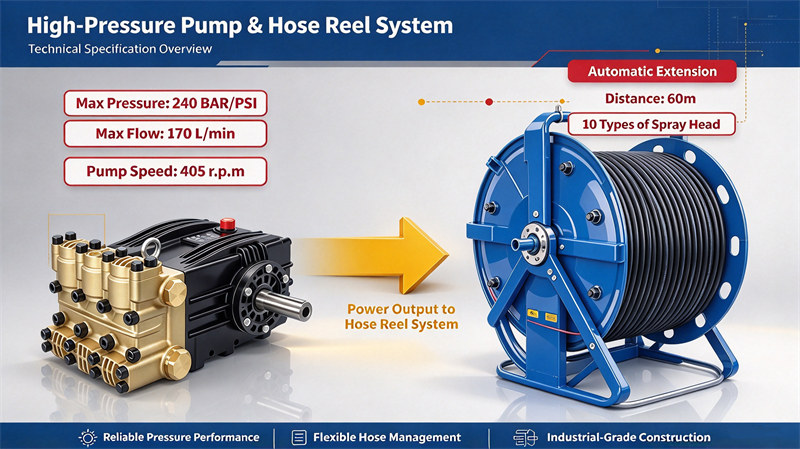

✦Ⅴ.Cleaning Pump For HOWO Vac-Jet Truck «««

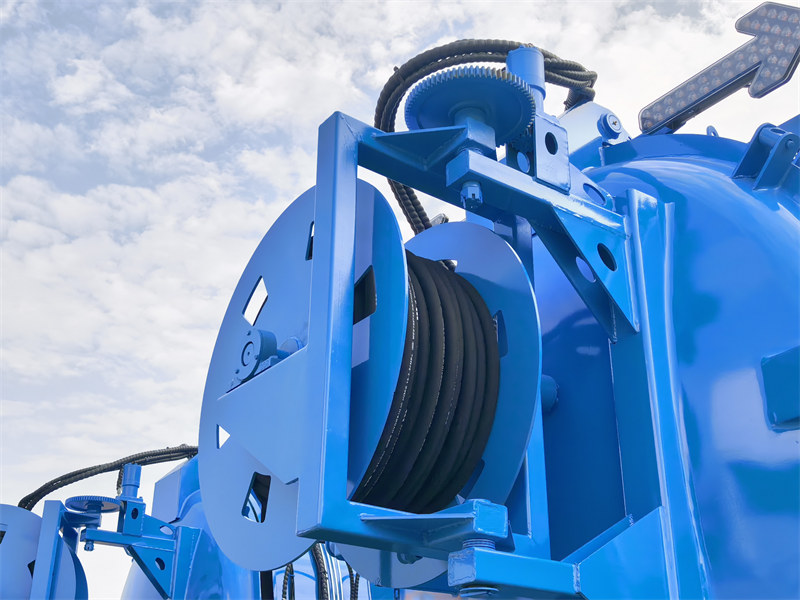

High-pressure cleaning module for vacuum sewage trucks delivers powerful jetting to break up hardened sludge, flush blocked pipelines and thoroughly clean tank interiors. Paired with the auto-retracting 60m hose reel, it extends operating range flexibly. With stable high pressure and multiple nozzle options, it improves cleaning efficiency, cuts manual work and keeps the vacuum truck ready for repeated suction operations.

HOWO NX cleaning sewage tank truck

⇒ The production capacity of over 4,000 trucks every year.

⇒ Over 100 countries worldwide.

⇒ Complete after-sales service system.

We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.

China professional HOWO special truck supplier and exporter, we supply high quality HOWO special truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our HOWO trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.

♦ Maximize save your sea freight.

♦ Professional guidance on your importing documents.

♦ Safety, Quickly, Timely

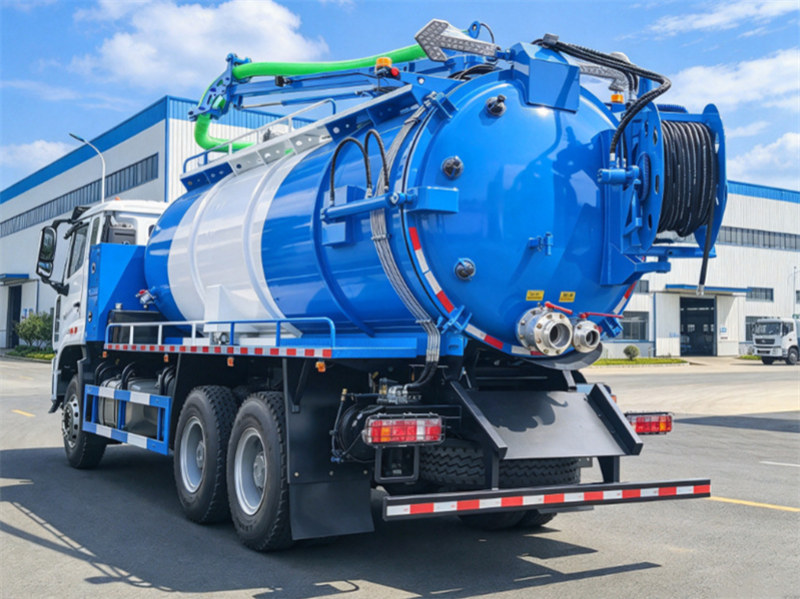

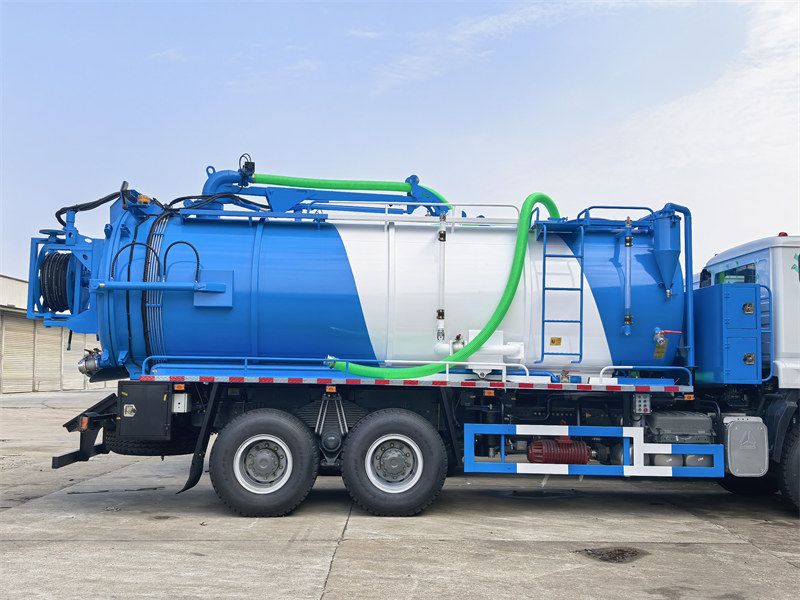

HOWO 16000L sewage vacuum tank truck

Howo 16000L sewage vacuum tank truck
