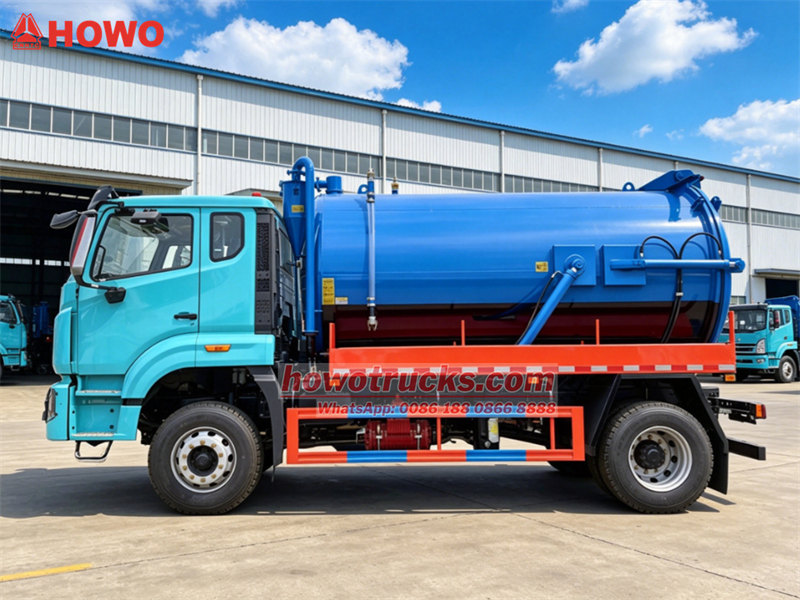

HOWO M7 10000L drainage sewer cleaning truck

HOWO 10 CBM drainage sewer cleaning truck

HOWO M7 220HP drainage sewer cleaning truck

HOWO M7 10CBM drainage sewer cleaning truck

HOWO M7 10000L drainage sewer cleaning truck

The HOWO 10 CBM drainage sewer cleaning truck is a heavy duty equipment designed for high-volume, high-load sewage cleaning scenarios. It integrates efficient suction, stable transportation, and intelligent unloading, and can cover diverse scenarios such as urban pipe network dredging, port cargo yard sludge removal, and industrial waste liquid treatment. With its high load-bearing capacity, powerful suction system, and refined manufacturing process, it has become a core sewage cleaning equipment in the sanitation, municipal, and industrial fields.

工作能力 :
10000 liters
舱型 :
HOWO single cabin with sleeper and A/C
驱动系统 :
4×2
轴距（毫米） :
8300*2580*3250 mm
发动机专用 :
220HP/YC6J220-33
变速箱 :
HW19710, 10 Forward & 2Reverse
前轴（公斤） :
7.5T
后轴（公斤） :
13 T

产品详情
客户案例

The HOWO 10 CBM drainage sewer cleaning truck is a heavy duty equipment designed for high-volume, high-load sewage cleaning scenarios. It integrates efficient suction, stable transportation, and intelligent unloading, and can cover diverse scenarios such as urban pipe network dredging, port cargo yard sludge removal, and industrial waste liquid treatment. With its high load-bearing capacity, powerful suction system, and refined manufacturing process, it has become a core sewage cleaning equipment in the sanitation, municipal, and industrial fields.

HOWO M7 10000L sewage tank truck

*HOWO M7 220HP Sewage Tanker Truck

SINOTRUK HOWO 10000L Vacuum Sewage Truck*

-----------------------------------------------------------------

CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

✦Ⅰ.Product Defination and Introduction «««

Manufacturer: CS TRUCKS Group

Features:

1. Truck Chassis: HOWO heavy truck chassis, 4X2 or 4x4 model

YC model with 220HP and Euro 2,3

2. Tank material: 6mm thick stainless steel for prolonged service lier
carbon steel, aluminum alloy can be choose

3. Vacuum Pump: China TOP water pump, flow rate 40L/s, working distance over 40m
Optional famous Imported pump

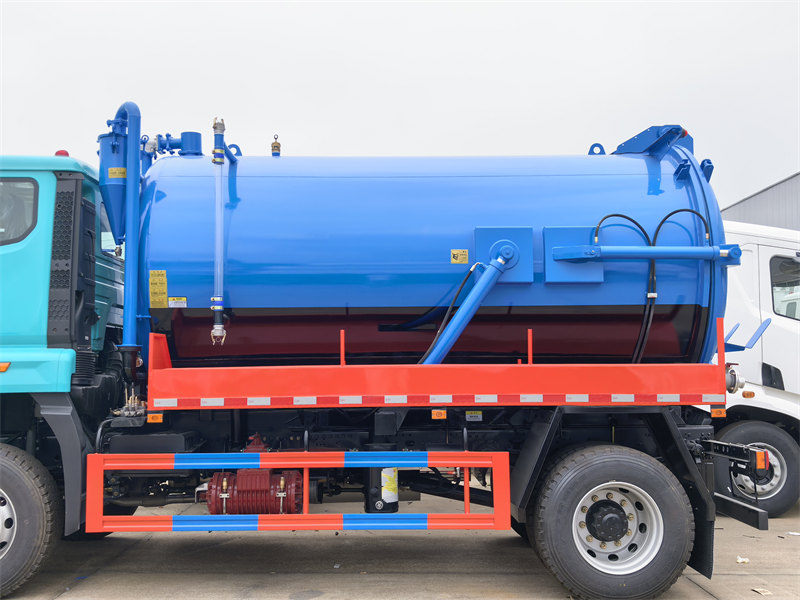

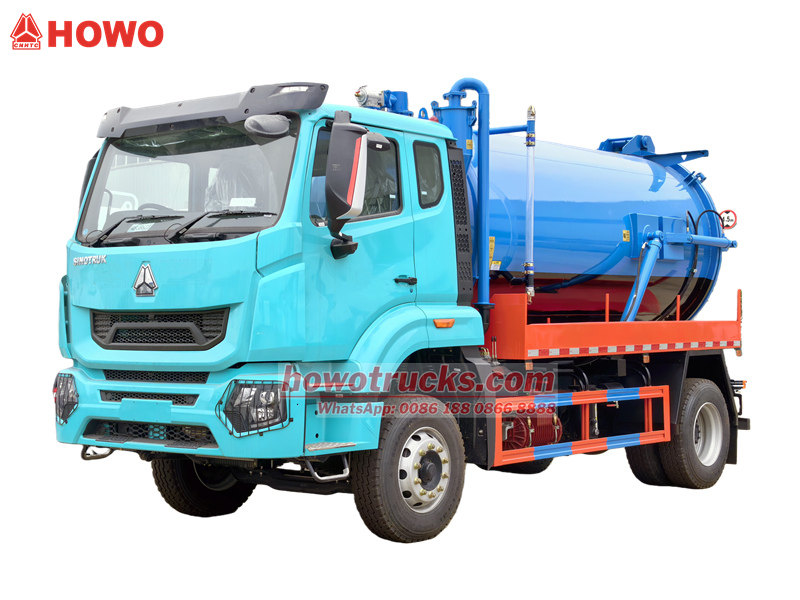

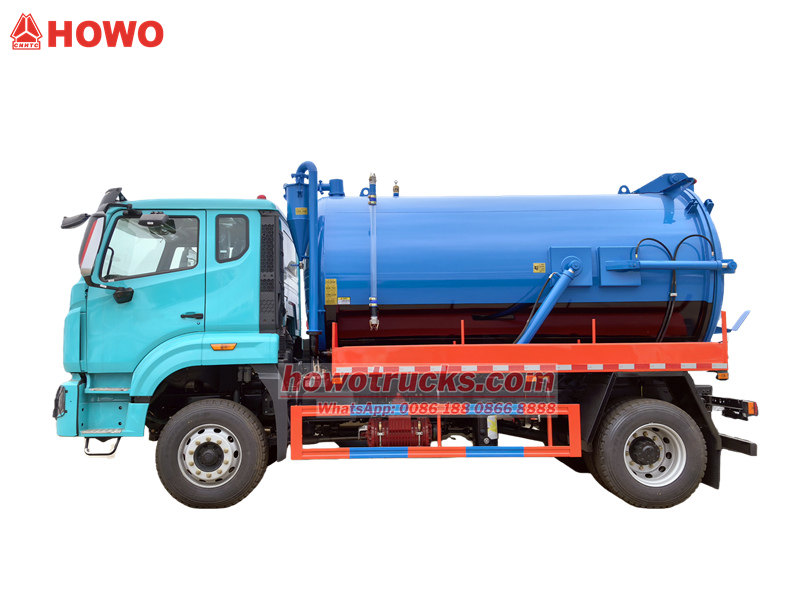

HOWO M7 10000L sewage tank truck

✦Ⅱ.Parameter for Howo Vacuum Suction Pump Truck «««

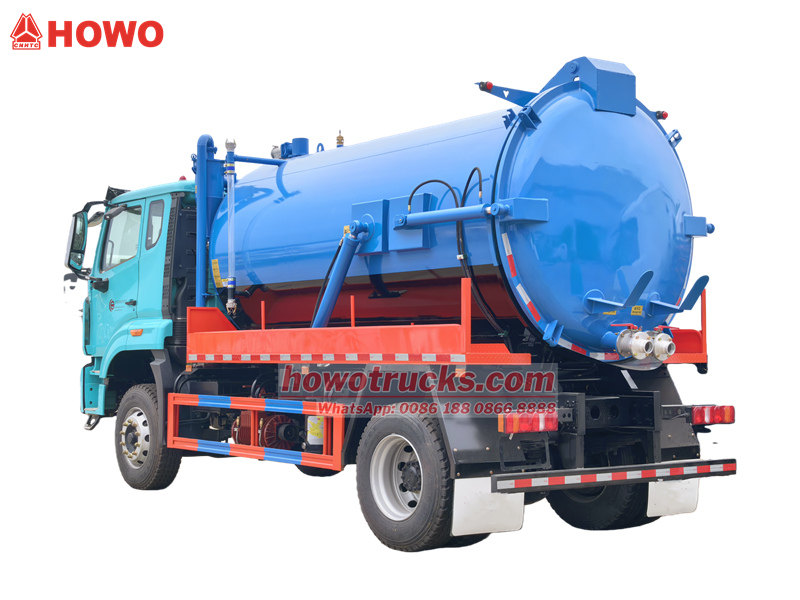

HOWO M7 10000L sewage tank truck

Howo M7 10000L Sewage Tanker Truck
Vehicle Description
Overall dimensions	1060025503360mm
GVW	18000kg
Curb weight	7850kg
Sewage tank (m3)	10
Drive system	4*2
Chassis Description
Chassis brand	HOWO
Steering	LHD
Cab	HOWO,single row, 2 seats,with A/C
Wheelbase	4600 mm
Tire specification	10.00 R20
Tire quantity	6 tires and 1 spare tire
Engine	Engine model	YC6J220-33
	Emission level	EURO 2
	Displacement	6.5 L
	Horse power	220 HP
	Weight	1065 Kg
	Fuel	Diesel
Gear box	Model	HW19710
	Number of gears	10 speed
Brake system	Air break
Axle	Front	7.5T
	Rear	13T
Fuel tanker	Type	Stainless steel
	Capacity	200L
Tanker Description
Tanker	Capacity	10000 Liters
	Material	6mm thickness, high quality carbon steel
	Structure	Welding, vacuum tank, Cylindrical
Pump	Type	Water circulation pump
	Flux	40 (L/S)
	Rating speed	800~1200(r/min)
	Shaft power	7(kw)
	Features	Low speed, low fuel consumption, low noise, high vacuum, high efficiency

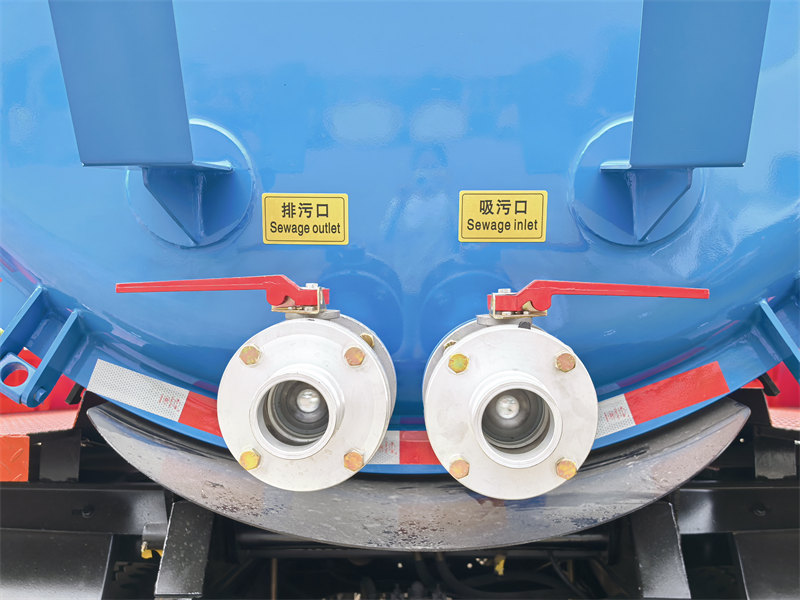

Pipe	Suction and discharge pipe
Special function	Suction time ≤ 3min, effective suction range ≥ 9, Max vacuum degree ≤ 18 KPa, dump angle ≥ 45°
Standard configuration	Equipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators, overflow valve,etc. Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically.
Optional configuration	Tanker material: stainless steel. Vacuum pump : China or Spain vacuum pumps. Anti-rust coating inside tank

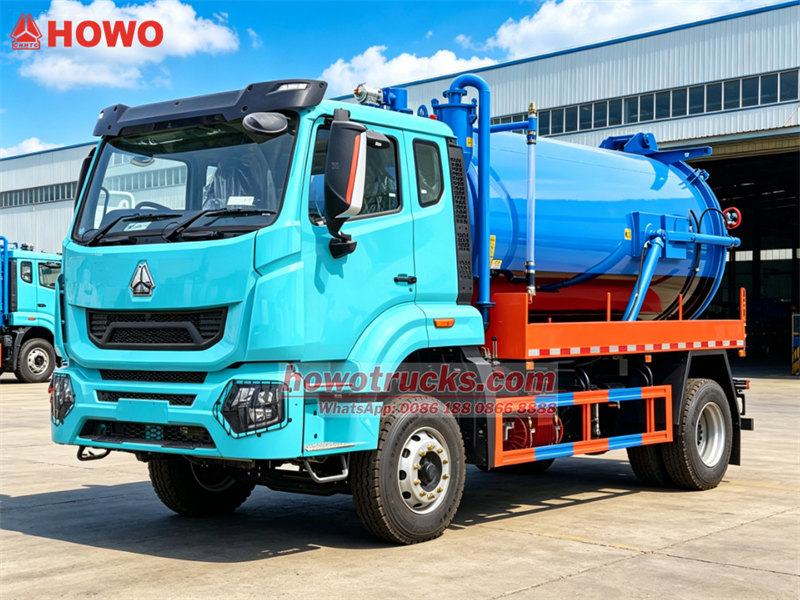

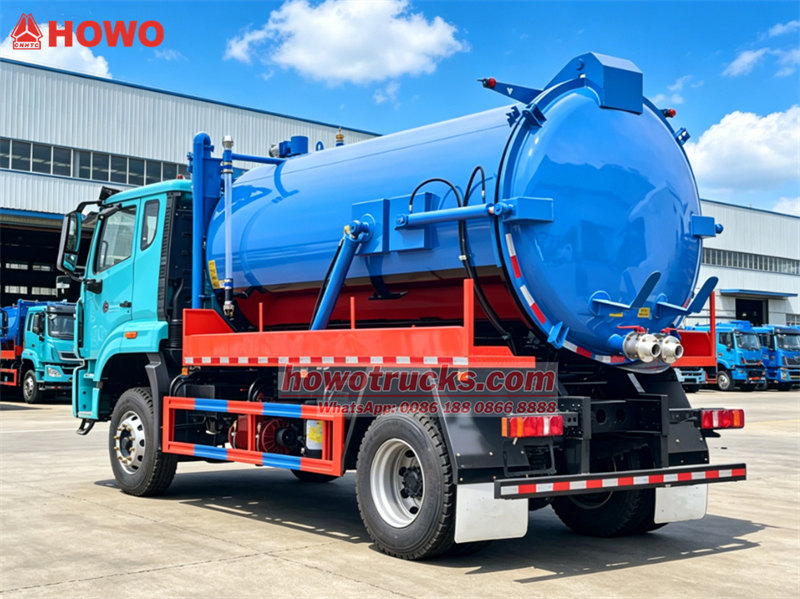

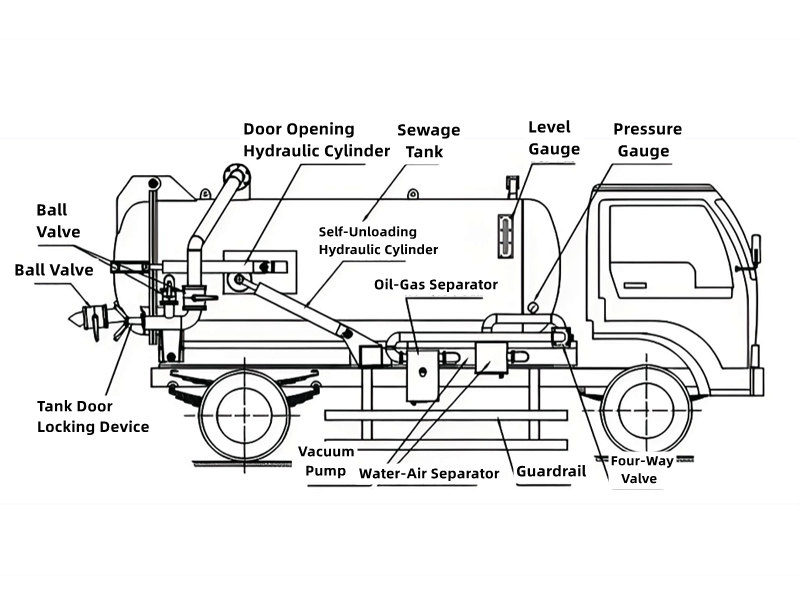

Howo heavy 10CBM vacuum sewage tank truck

✦Ⅲ.Sewage Tank Manufacturing Feature «««

♦ Tank Manufacturing Process:

1. High-Precision Cutting: Computer-controlled plasma cutting, accuracy ±0.1mm, eliminating plate deformation.

2. High-Quality End Cap Process: Spin-forming integral molding, no splicing, uniform stress distribution.

3. Precision Welding: Robotic automatic welding + manual precision repair, two-person symmetrical synchronous welding, strict control of welding deformation.

4. Rigorous Flaw Detection: 100% non-destructive testing of welds, no welding defects, strength matching the base material.

5. Strong Corrosion Protection: Overall sandblasting treatment, internal and external anti-corrosion coating thickness meets standards, resistant to salt spray and corrosion.

♦ System Assembly Process:

1. Piping Pre-treatment: Cleaning and pressure testing before assembly, clean and free of impurities, leak-free throughout.

2. Organized Layout: Scientific and stable pipeline layout, does not interfere with moving parts.

3. Precise Electrical Control: Accurate instrument sensor positioning, standardized wiring, stable signal transmission, eliminating false faults.

✦Ⅳ.Suction Capacity and Sealing Performance «««

1. JUROP pumps utilize optimized flow path design and precision rotor machining technology to establish extremely high vacuum levels.

2. Key components of JUROP pumps, are made of high-strength, wear-resistant alloys or treated with special coatings, providing exceptional resistance to wear and corrosion.

3. JUROP pumps are designed with thermal management in mind. An optimized structure promotes heat dissipation, preventing performance degradation or damage due to excessive temperatures.

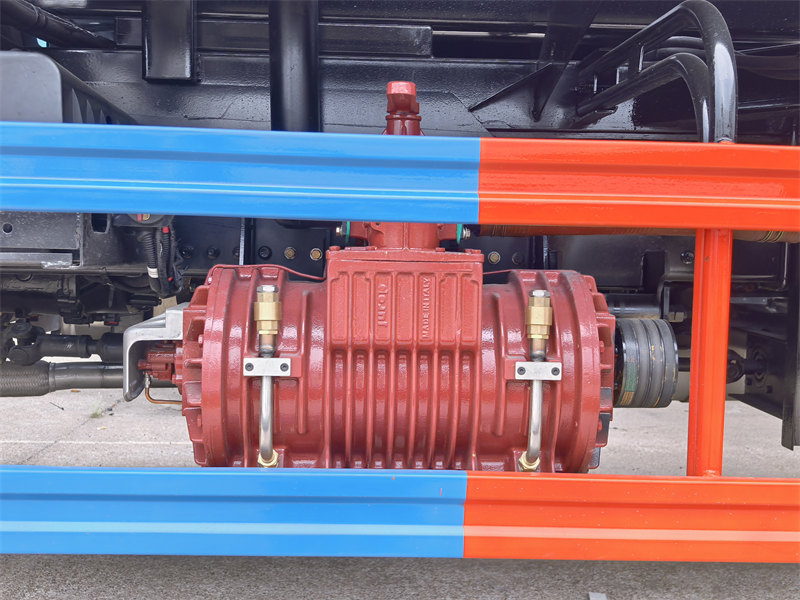

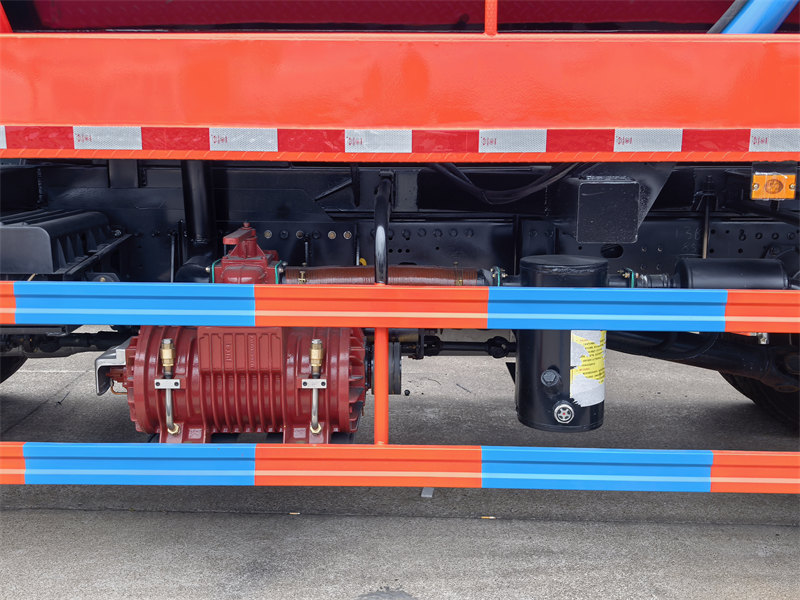

vacuum pump truck

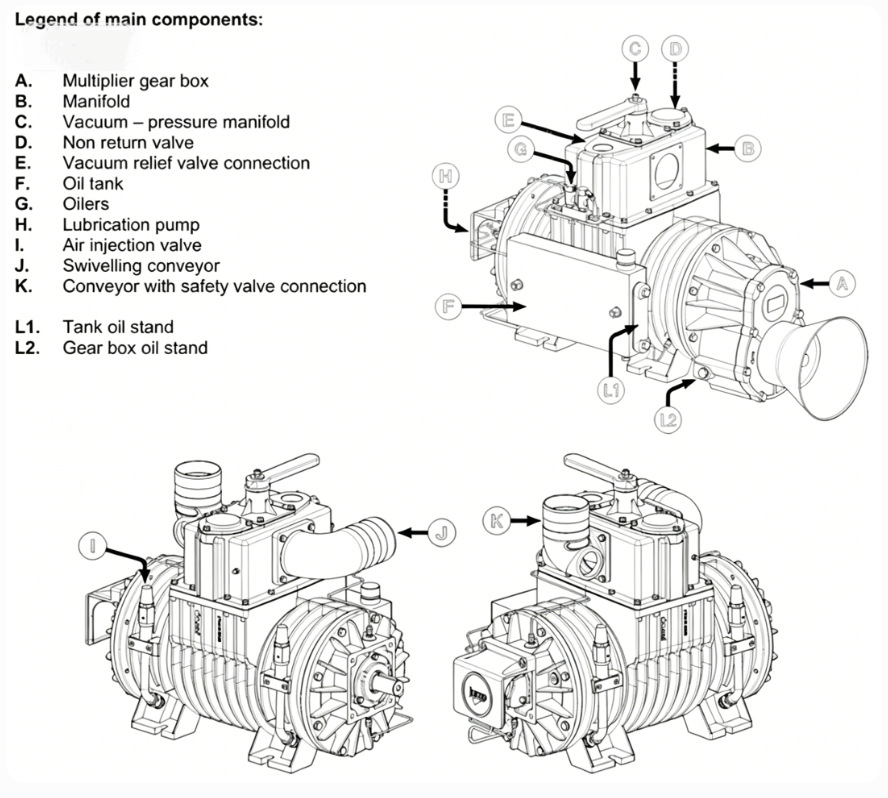

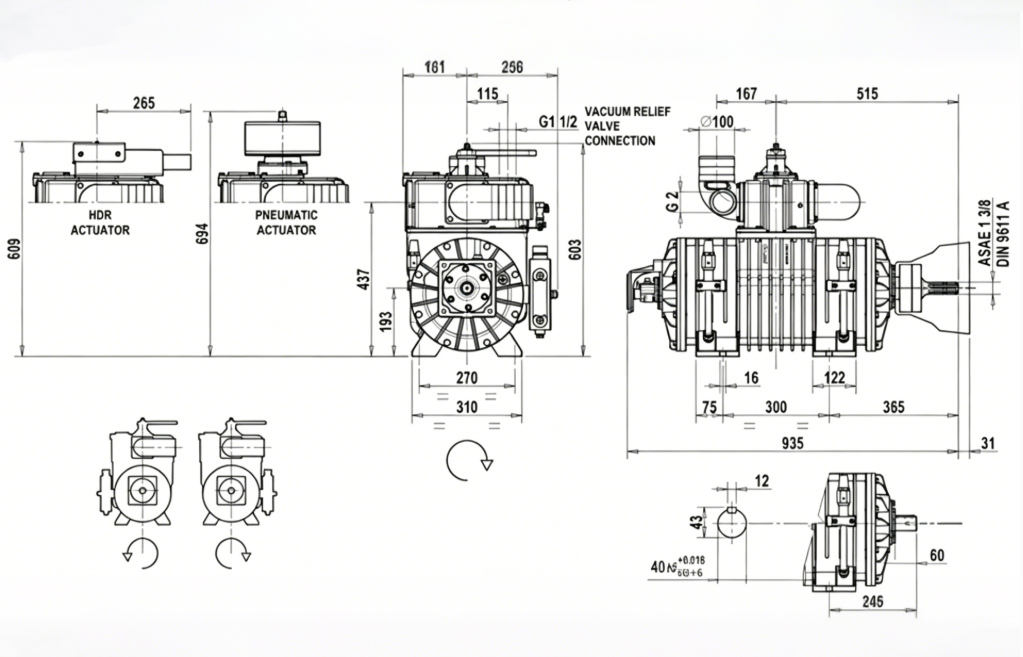

JUROP (PNR 155D) rotary vacuum pump
Specification	Unit	Value
Free air capacity	cfm	424
Air capacity at 15" Hg/50% vacuum	cfm	312
Max. Vacuum	Hg (in.)	28
Continuous Duty Vacuum	Hg (in.)	18
Max. Pressure	psig	29
Power required at 15" of vacuum	hp	15.5
Power required at max. pressure	hp	41
Rotation speed	rpm	1150
Oil tank capacity	quart(us)	4
Suggested Tank Size	Gallons	1000-4000
Oil consumption	gal (US)/Hr	0.05
Sound pressure at 7 meters (23 ft) 60% vacuum	dB	79
Hose	in	3
Flange	in	-
Weight	lbs	357

vacuum pump truck

HOWO M7 sewage tank truck

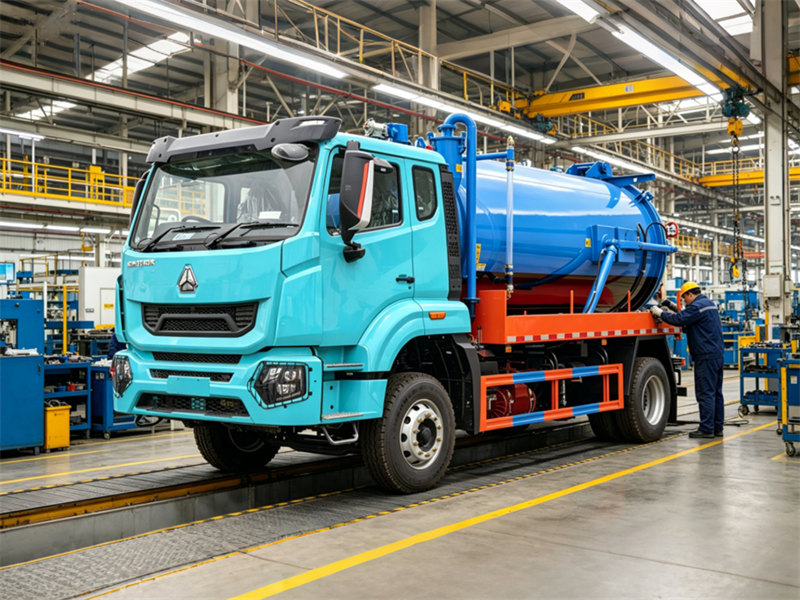

✦Ⅴ.Factory Inspection HOWO M7 Sewage Tank Truck «««

♦ Appearance Inspection: Check tank flatness, coating integrity, and weld quality; no wrinkles, paint peeling, or incomplete welds are allowed.

♦ Performance Testing: Vacuum system test (vacuum degree ≥ -0.09MPa, pressure holding for 20 minutes with no significant drop), hydraulic system test (smooth lifting without jamming, no leakage), unloading test (smooth unloading at 45°, no leakage).

♦ Sealing Test: Tank body pressure stabilized at 80kPa for 5 minutes with no leakage; suction and discharge system pressure held at 15kPa absolute pressure for 20 minutes, leakage rate <0.1%.

HOWO M7 vacuum sewage tank truck

⇒ The production capacity of over 4,000 trucks every year.

⇒ Over 100 countries worldwide.

⇒ Complete after-sales service system.

We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.

China professional Howo special truck supplier and exporter, we supply high quality HOWO special truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our HOWO trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.

♦ Maximize save your sea freight.

♦ Professional guidance on your importing documents.

♦ Safety, Quickly, Timely

HOWO 10000L sewage vacuum tank truck

Howo 10000L sewage vacuum tank truck
