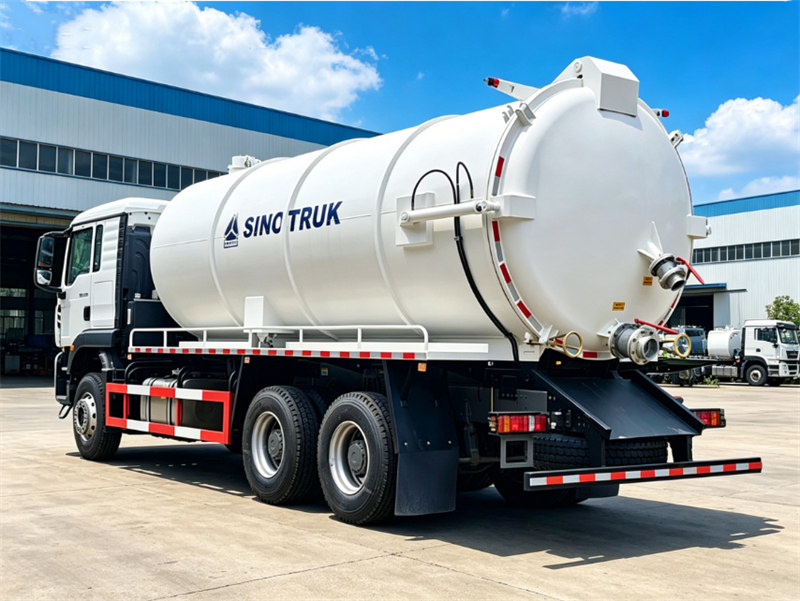

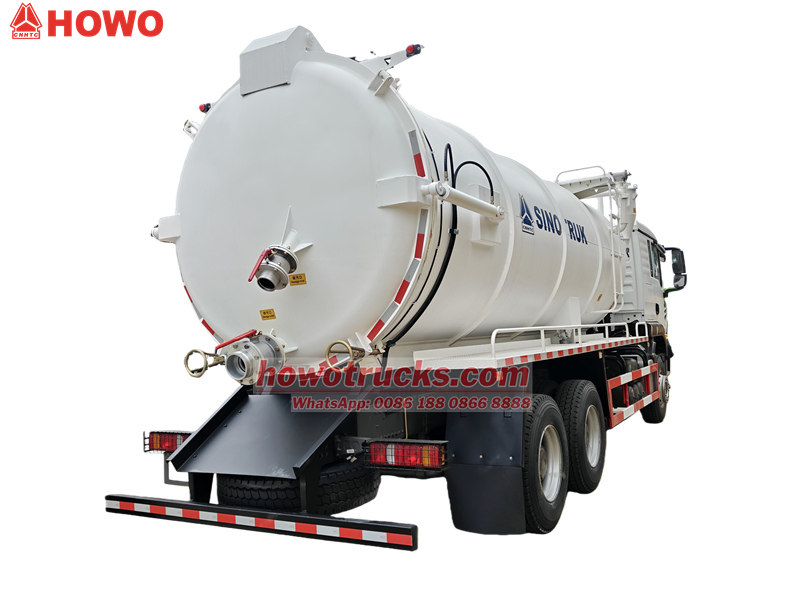

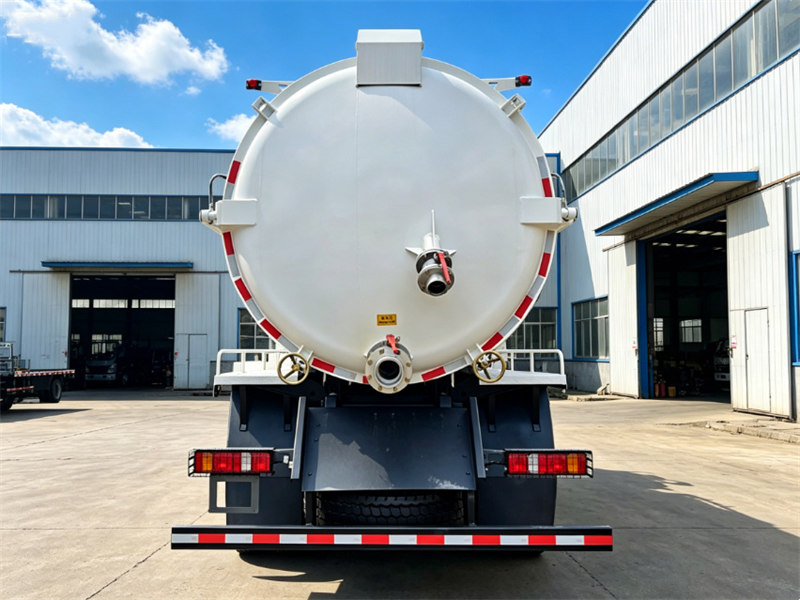

HOWO 371HP Debris Vacuum Suction Pump Truck

The HOWO 371HP Debris Vacuum Suction Pump Truck designed for efficiency, durability, and adaptability, it is the go-to choice for cities seeking reliable solutions for underground pipeline maintenance and waste management.Equipped with the high-quality WD615.47 engine, this truck delivers an impressive 371 horsepower, paired with a robust vacuum suction system that excels in tackling complex scenarios.

工作能力 :
20000 liters
舱型 :
HOWO single cabin with sleeper and A/C
驱动系统 :
6×4
轴距（毫米） :
10300*2580*3250 mm
发动机专用 :
371HP/WD615.47
变速箱 :
HW19710, 10 Forward & 2Reverse
前轴（公斤） :
7.5T
后轴（公斤） :
13 T*2

产品详情
客户案例

The HOWO 371HP Debris Vacuum Suction Pump Truck designed for efficiency, durability, and adaptability, it is the go-to choice for cities seeking reliable solutions for underground pipeline maintenance and waste management.Equipped with the high-quality WD615.47 engine, this truck delivers an impressive 371 horsepower, paired with a robust vacuum suction system that excels in tackling complex scenarios.

Whether it’s unclogging sewers, cleaning septic tanks, or removing debris from underground pipelines, the powerful suction capability ensures fast, thorough results—saving you time and labor costs. With a large 20 CBM tank capacity, it minimizes the need for frequent emptying, significantly boosting work efficiency even during long-hour operations.

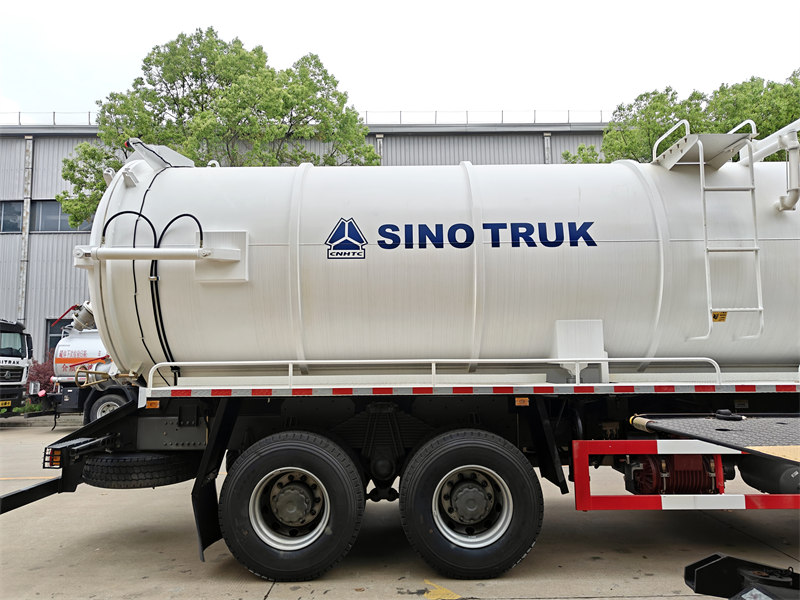

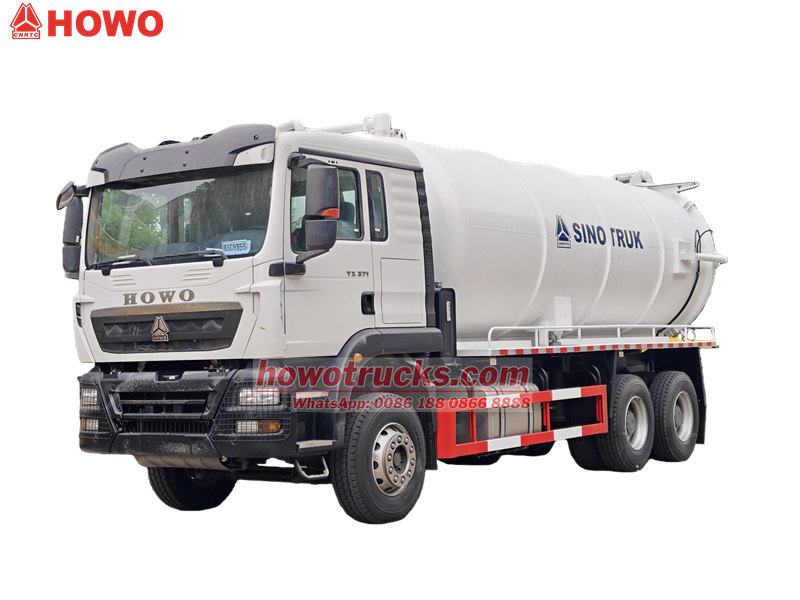

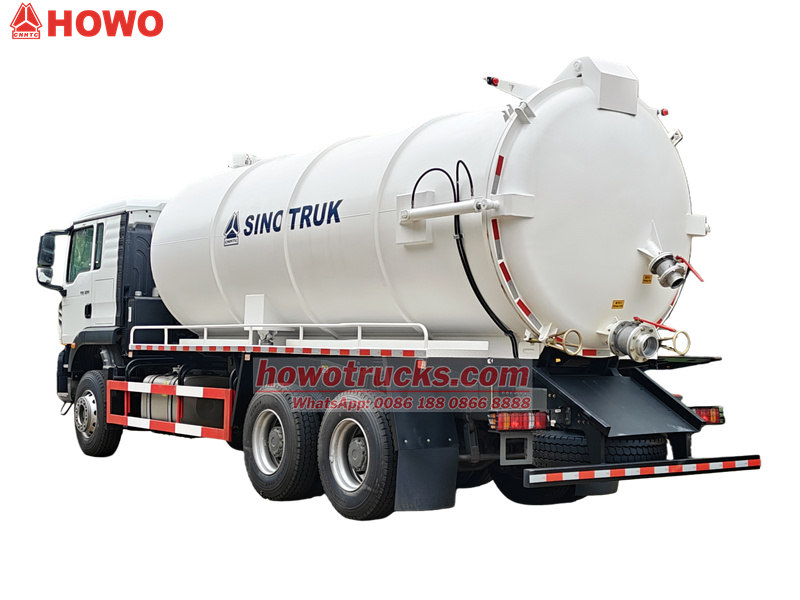

HOWO 6x4 sewage tank truck

*HOWO 6x4 Heavy Sewage Tanker Truck

SINOTRUK HOWO 20000L Vacuum Sewage Truck*

-----------------------------------------------------------------

CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

✦Ⅰ.Product Defination and Introduction «««

Manufacturer: CS TRUCKS Group

Features:

1. Truck Chassis: HOWO heavy truck chassis, 6X4 or 6x6 model

WD model with 371HP and Euro 2,3

2. Tank material: 6mm thick stainless steel for prolonged service lier
carbon steel, aluminum alloy can be choose

3. Vacuum Pump: China TOP water pump, flow rate 60L/s, working distance over 40m
Optional famous Imported pump

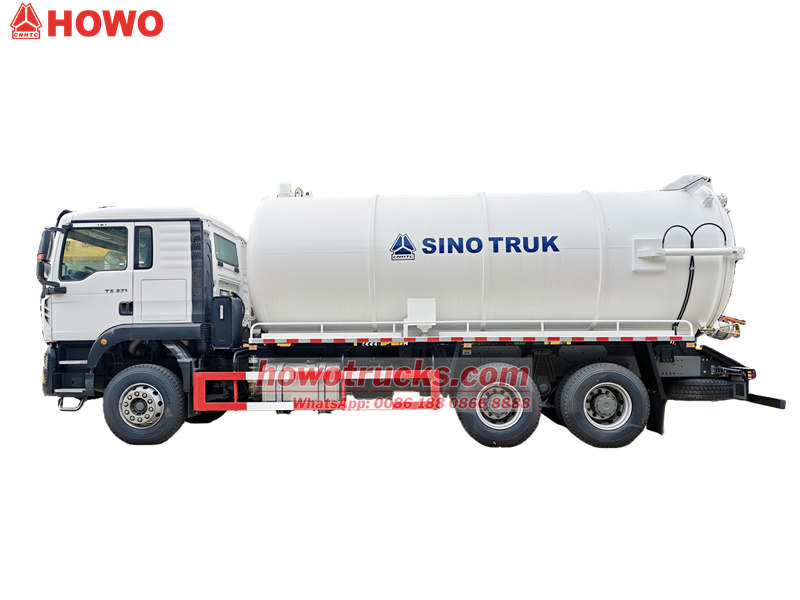

Howo 6x4 sewage tank truck

✦Ⅱ.Parameter for Howo Vacuum Suction Pump Truck «««

Howo 6x4 heavy sewage tank truck

Howo heavy 20000L septic tanker truck
Vehicle Description
Overall dimensions	1030025303150mm
GVW	2500kg
Curb weight	12350kg
Sewage tank (m3)	20
Drive system	6*4
Chassis Description
Chassis brand	Howo
Steering	LHD
Cab	Howo,single row, 2 seats,with A/C
Wheelbase	4600+1350 mm
Tire specification	12.00 R 20
Tire quantity	10 tires and 1 spare tire
Engine	Engine model	WD615.47
	Emission level	EURO 2
	Displacement	10L
	Horse power	371HP
	Weight	1360Kg
	Fuel	Diesel
Gear box	Model	HW19710
	Number of gears	10-speed
Brake system	Air break
Axle	Front	7.5T
	Rear	13T*2
Fuel tanker	Type	Stainless steel
	Capacity	400L
Tanker Description
Tanker	Capacity	20000 Liters
	Material	6mm thickness, high quality carbon steel
	Structure	Welding, vacuum tank, Cylindrical
Pump	Type	vacuum pump
	Brand(Model)	JUROP (PNR 155 D)
	Flux	88(L/S)
	Max speed	1150 (r.p.m)
	Max pressure	2 Bars
	Features	Low speed, low fuel consumption, low noise, high vacuum, high efficiency
Pipe	Suction and discharge pipe
Special function	Suction time ≤ 5min, effective suction range ≥ 8, Max vacuum degree ≤ 15 KPa, dump angle ≥ 45°

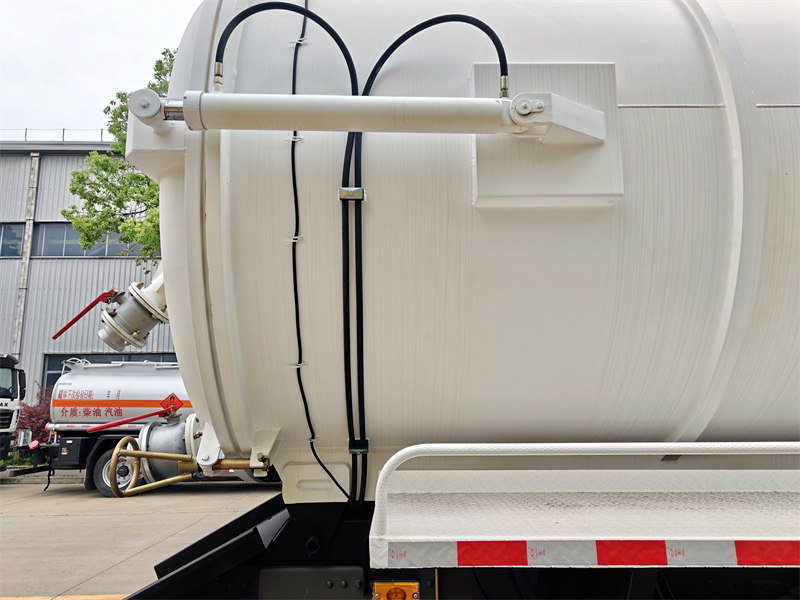

Standard configuration	Equipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators, overflow valve,etc. Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically.
Optional configuration	Tanker material: stainless steel. Vacuum pump : China or Spain vacuum pumps. Anti-rust coating inside tank

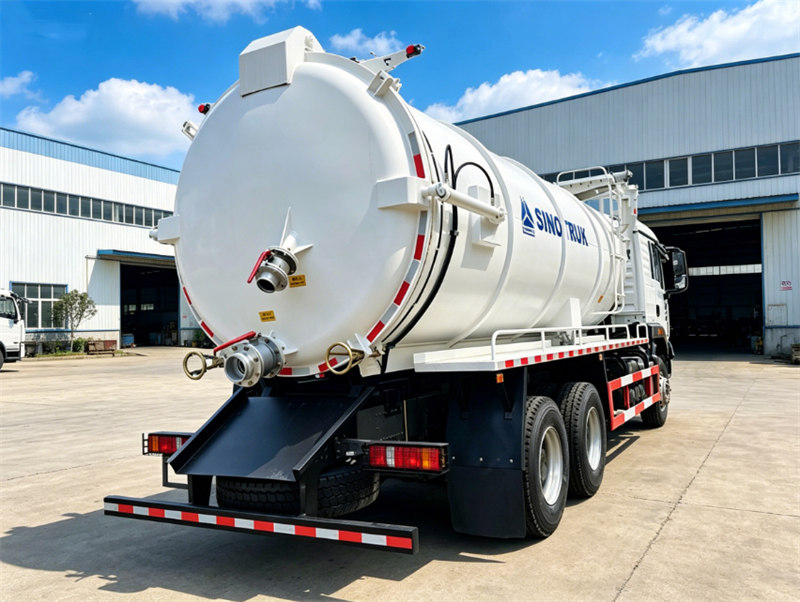

Howo heavy 20CBM vacuum sewage tank truck

✦Ⅲ.Sewage Tank Manufacturing Feature «««

♦ Use corrosion-resistant materials (such as stainless steel, carbon steel + anti-corrosion coating).

♦ Inner wall treatment, spray epoxy resin or polyurethane coating, thickness ≥ 200μm.

♦ Sandblasting and rust removal, spray anti-rust primer + polyurethane topcoat.

♦ The tank body welding use argon arc welding or laser welding.

♦ Annealing treatment is required after welding to eliminate welding stress.

The weld pass flaw detection (X-ray or ultrasonic testing).

♦ Wave breaking plates (bulkheads) are installed to reduce the impact of liquid sloshing.

✦Ⅳ.Suction Capacity and Sealing Performance «««

1. JUROP pumps utilize optimized flow path design and precision rotor machining technology to establish extremely high vacuum levels.

2. Key components of JUROP pumps, are made of high-strength, wear-resistant alloys or treated with special coatings, providing exceptional resistance to wear and corrosion.

3. JUROP pumps are designed with thermal management in mind. An optimized structure promotes heat dissipation, preventing performance degradation or damage due to excessive temperatures.

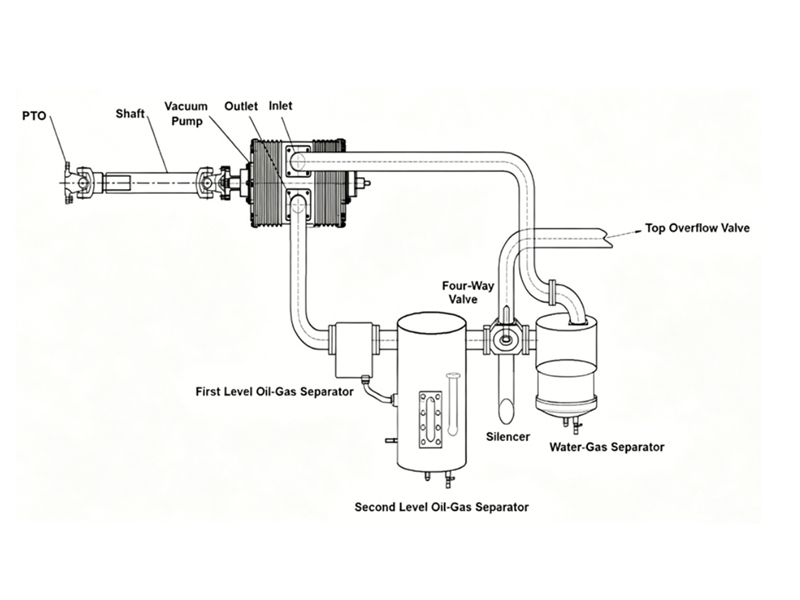

vacuum pump truck

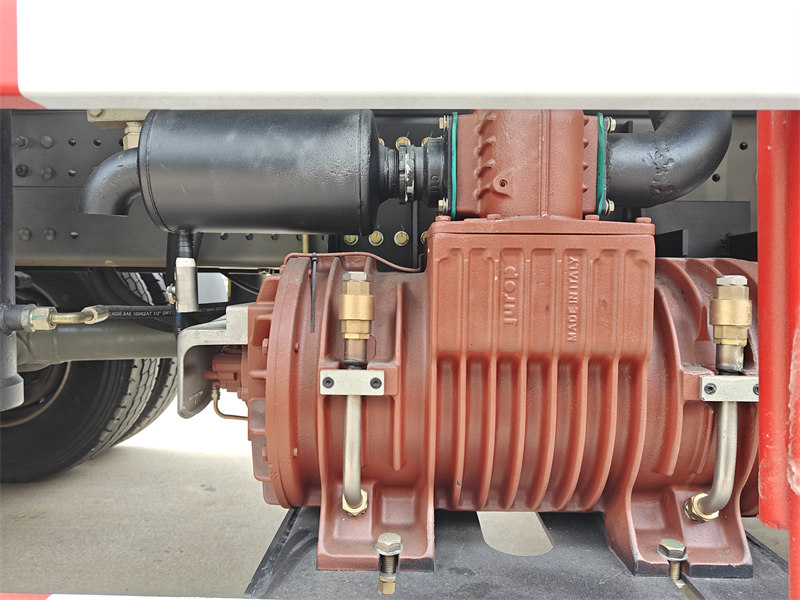

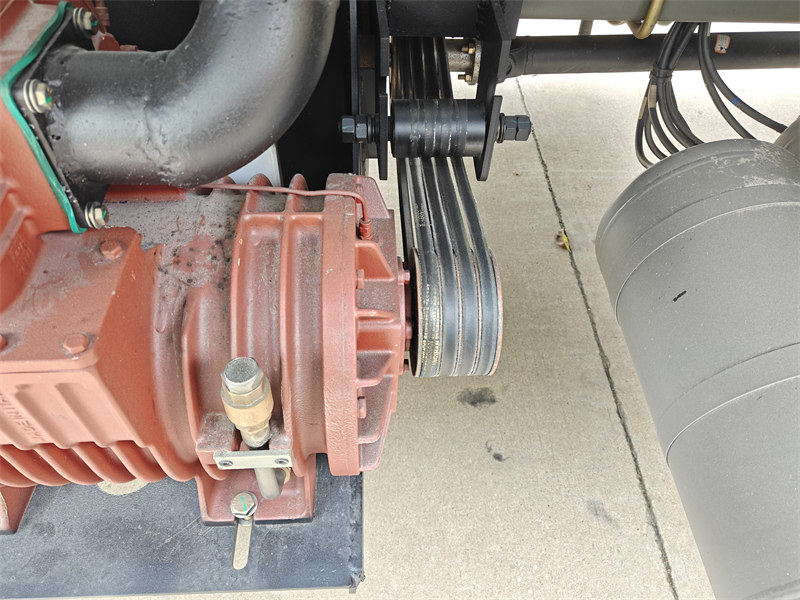

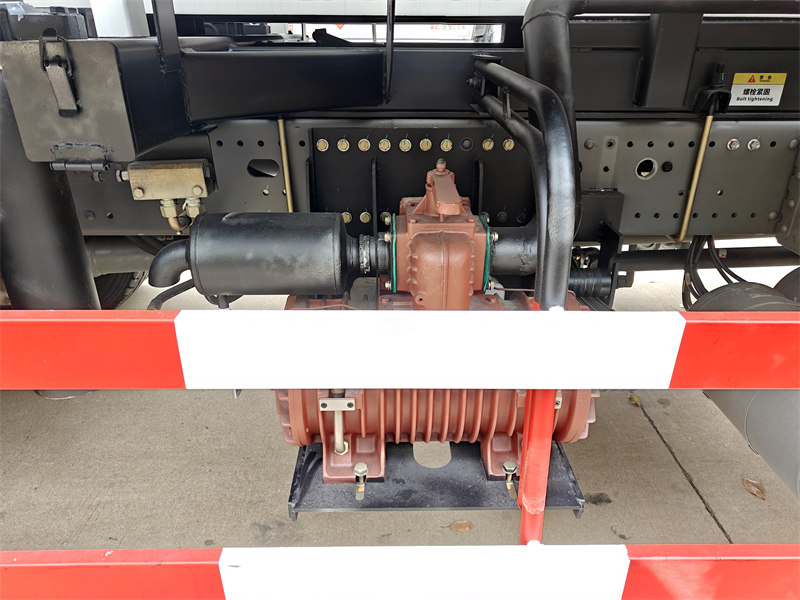

JUROP (PNR 155D) rotary vacuum pump
Specification	Unit	Value
Free air capacity	cfm	424
Air capacity at 15" Hg/50% vacuum	cfm	312
Max. Vacuum	Hg (in.)	28
Continuous Duty Vacuum	Hg (in.)	18
Max. Pressure	psig	29
Power required at 15" of vacuum	hp	15.5
Power required at max. pressure	hp	41
Rotation speed	rpm	1150
Oil tank capacity	quart(us)	4
Suggested Tank Size	Gallons	1000-4000
Oil consumption	gal (US)/Hr	0.05
Sound pressure at 7 meters (23 ft) 60% vacuum	dB	79
Hose	in	3
Flange	in	-
Weight	lbs	357

vacuum pump truck

✦Ⅴ.Application For Howo Heavy TX Sewage Tank Truck «««

The Sinotruk HOWO rear dual-axle sewage suction truck boasts four core performance features: strong negative pressure suction, heavy-duty large capacity, corrosion-resistant sealed tank, and heavy-duty off-road chassis. It covers three core scenarios: municipal sanitation, industrial plants, and rural emergency response, making it a versatile and multi-functional sewage transportation equipment suitable for all working conditions.

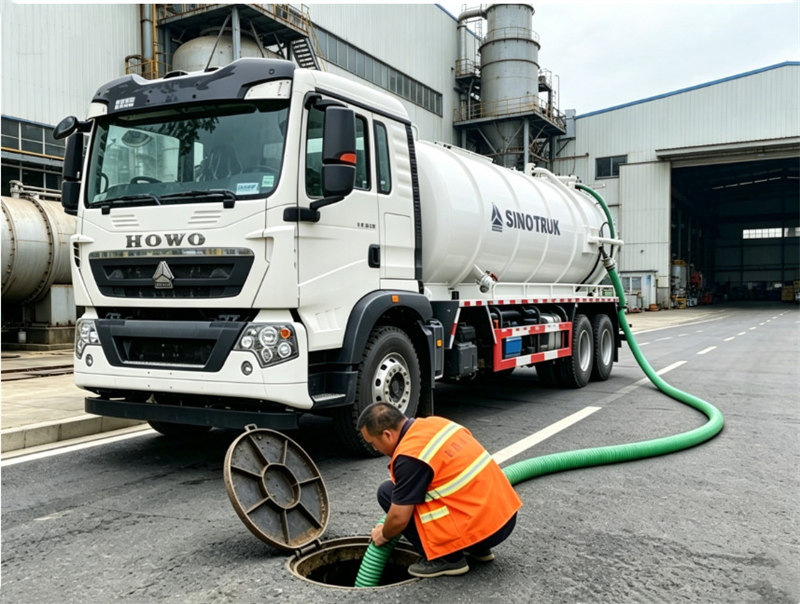

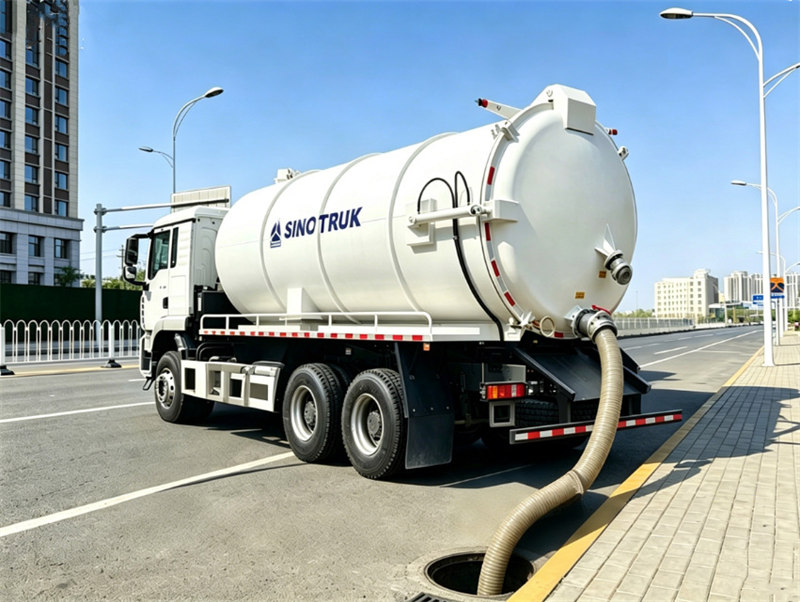

Howo TX vacuum sewage tank truck

⇒ The production capacity of over 4,000 trucks every year.

⇒ Over 100 countries worldwide.

⇒ Complete after-sales service system.

We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.

China professional Howo special truck supplier and exporter, we supply high quality Howo special truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our Howo trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.

♦ Maximize save your sea freight.

♦ Professional guidance on your importing documents.

♦ Safety, Quickly, Timely

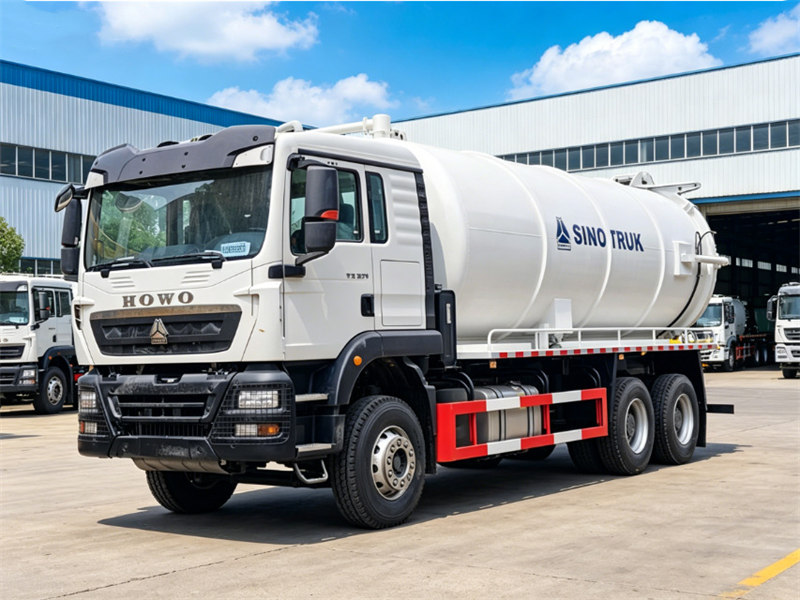

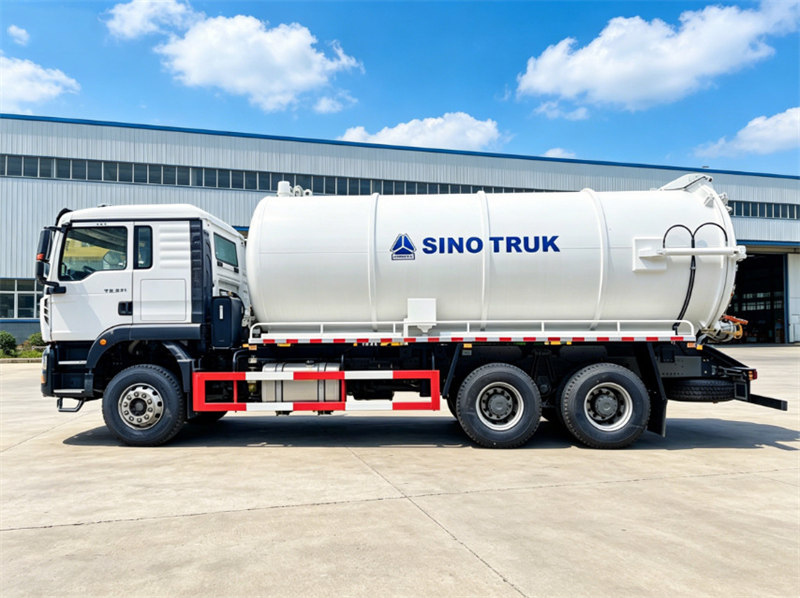

Howo 20000L sewage vacuum tank truck
