Howo 20 CBM drainage sewer cleaning truck

Howo heavy drainage sewer cleaning truck

Howo 20 CBM drainage sewer cleaning truck

The Howo 20 CBM sewer tank truck is a heavy duty equipment designed for high-volume, high-load sewage cleaning scenarios. It integrates efficient suction, stable transportation, and intelligent unloading, and can cover diverse scenarios such as urban pipe network dredging, port cargo yard sludge removal, and industrial waste liquid treatment. With its high load-bearing capacity, powerful suction system, and refined manufacturing process, it has become a core sewage cleaning equipment in the sanitation, municipal, and industrial fields.

工作能力 :
20000 liters
舱型 :
HOWO single cabin with sleeper and A/C
驱动系统 :
6×4
轴距（毫米） :
10300*2580*3250 mm
发动机专用 :
340HP/WP10.340E22
变速箱 :
HW19710, 10 Forward & 2Reverse
前轴（公斤） :
7.5T
后轴（公斤） :
13 T*2

产品详情
客户案例

The Howo 20 CBM drainage sewer cleaning truck is a heavy duty equipment designed for high-volume, high-load sewage cleaning scenarios. It integrates efficient suction, stable transportation, and intelligent unloading, and can cover diverse scenarios such as urban pipe network dredging, port cargo yard sludge removal, and industrial waste liquid treatment. With its high load-bearing capacity, powerful suction system, and refined manufacturing process, it has become a core sewage cleaning equipment in the sanitation, municipal, and industrial fields.

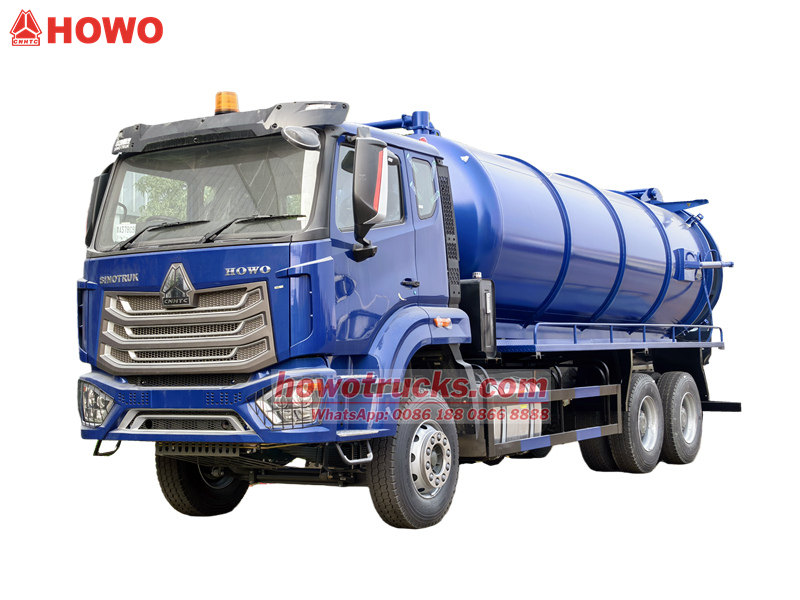

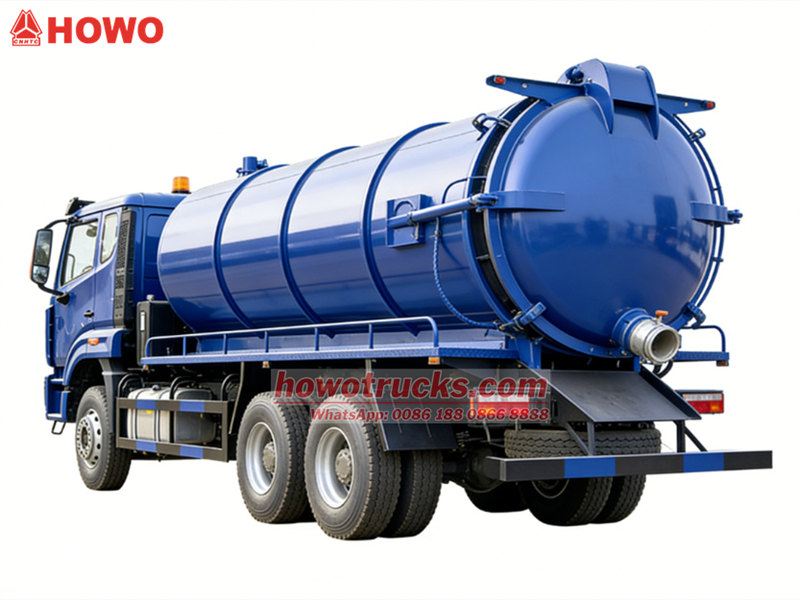

HOWO 6x4 sewage tank truck

*HOWO 6x4 Heavy Sewage Tanker Truck

SINOTRUK HOWO 20000L Vacuum Sewage Truck*

-----------------------------------------------------------------

CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

✦Ⅰ.Product Defination and Introduction «««

Manufacturer: CS TRUCKS Group

Features:

1. Truck Chassis: Howo heavy truck chassis, 6X4 or 6x6 model

WP model with 340HP and Euro 2,3

2. Tank material: 6mm thick stainless steel for prolonged service lier
carbon steel, aluminum alloy can be choose

3. Vacuum Pump: China TOP water pump, flow rate 60L/s, working distance over 40m
Optional famous Imported pump

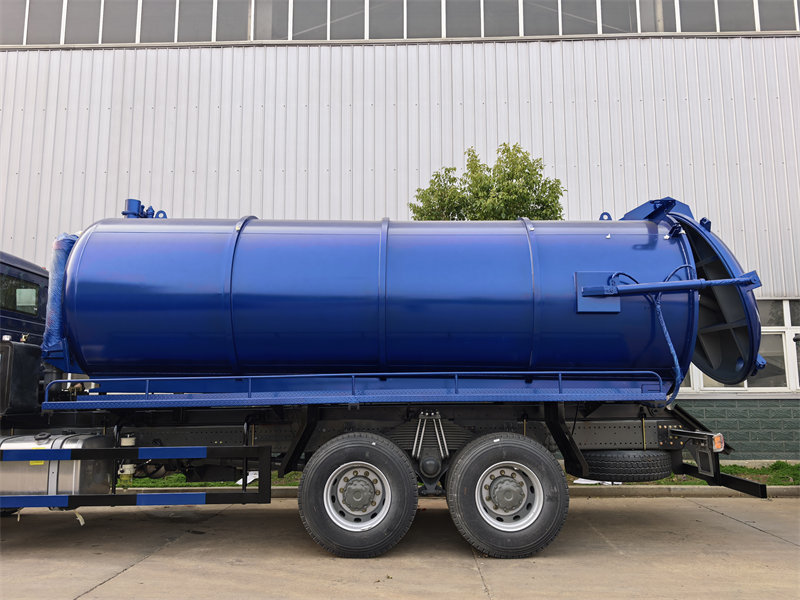

Howo 6x4 sewage tank truck

✦Ⅱ.Parameter for Howo 20000L Vacuum Sewage Tanker «««

Howo 6x4 heavy sewage tank truck

Howo heavy 20000L sewage tanker truck
Vehicle Description
Overall dimensions	860023503360mm
GVW	25000kg
Curb weight	9850kg
Sewage tank (m3)	20
Drive system	6*4
Chassis Description
Chassis brand	Howo
Steering	LHD
Cab	Howo,single row, 2 seats,with A/C
Wheelbase	4600+1350 mm
Tire specification	12.00 R20
Tire quantity	10 tires and 1 spare tire
Engine	Engine model	WP10.340E22
	Emission level	EURO 2
	Displacement	9.8 L
	Horse power	340HP
	Weight	1365Kg
	Fuel	Diesel
Gear box	Model	HW19710
	Number of gears	10 speed
Brake system	Air break
Axle	Front	7.5T
	Rear	13T*2
Fuel tanker	Type	Stainless steel
	Capacity	400L
Tanker Description
Tanker	Capacity	20000 Liters
	Material	6mm thickness, high quality carbon steel
	Structure	Welding, vacuum tank, Cylindrical
Pump	Type	Water circulation pump
	Flux	60 (L/S)
	Rating speed	800~1200(r/min)
	Shaft power	7(kw)
	Features	Low speed, low fuel consumption, low noise, high vacuum, high efficiency
Pipe	Suction and discharge pipe
Special function	Suction time ≤ 3min, effective suction range ≥ 9, Max vacuum degree ≤ 18 KPa, dump angle ≥ 45°
Standard configuration	Equipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators, overflow valve,etc. Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically.
Optional configuration	Tanker material: stainless steel. Vacuum pump : China or Spain vacuum pumps. Anti-rust coating inside tank

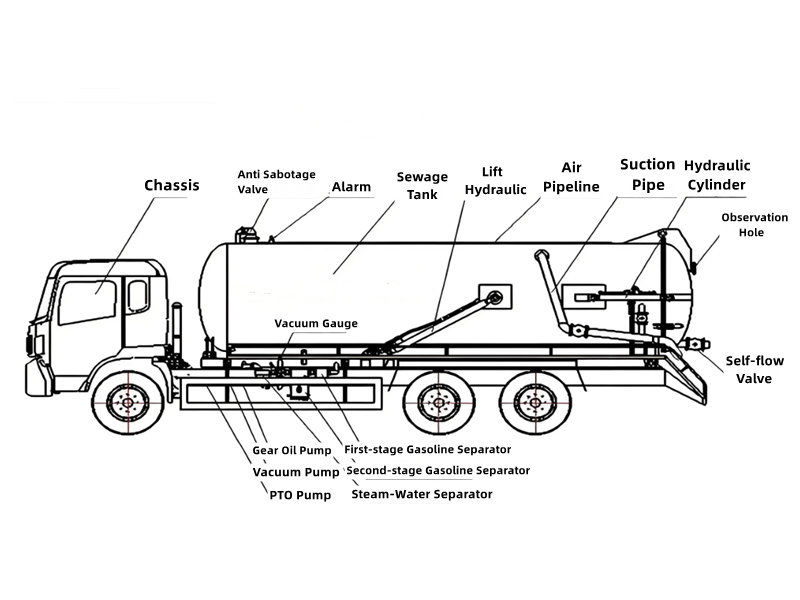

Howo heavy 20CBM vacuum sewage tank truck

✦Ⅲ.Sewage Tank Manufacturing Process «««

♦ Steel plates are cut using a fully computerized plasma cutting machine with a cutting accuracy of ±0.1mm, preventing plate deformation.

♦ The end caps are formed using a spin-forming process, resulting in a seamless, one-piece molding process with uniform stress distribution.

♦ A combined robotic automated welding and manual repair welding approach is employed.

♦Longitudinal and circumferential welds are welded symmetrically by two people simultaneously, maintaining a consistent welding speed and heat input to control welding deformation.

♦ Welds undergo 100% non-destructive testing, ensuring the absence of defects such as slag inclusions, porosity, cracks, and undercut. Weld strength is no less than that of the base material.

♦ After sandblasting, the entire tank body is coated with an anti-corrosion coating.

♦The thickness of both the inner and outer coatings meets standards (outer coating ≥80μm, inner coating ≥100μm), verified by salt spray testing.

✦Ⅳ.Suction Capacity and Sealing Performance «««

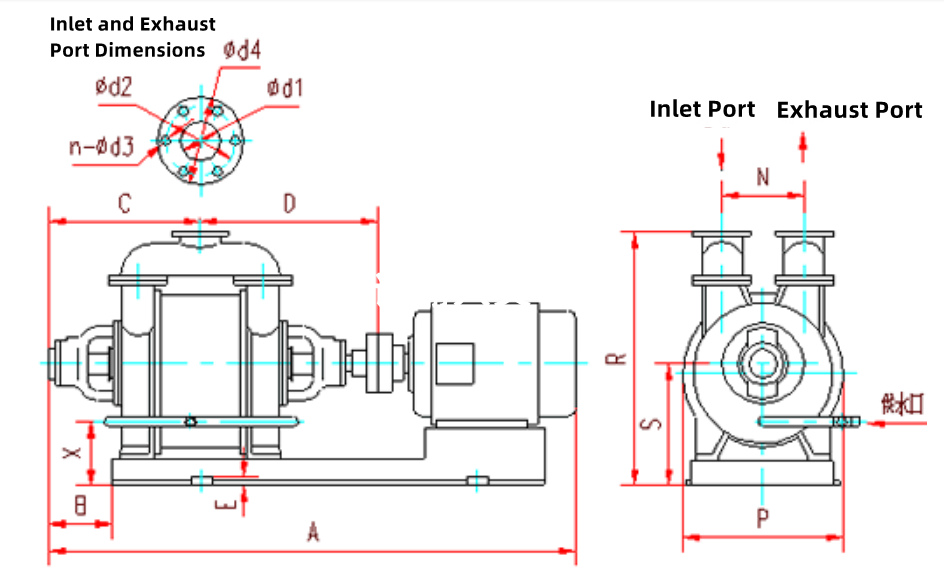

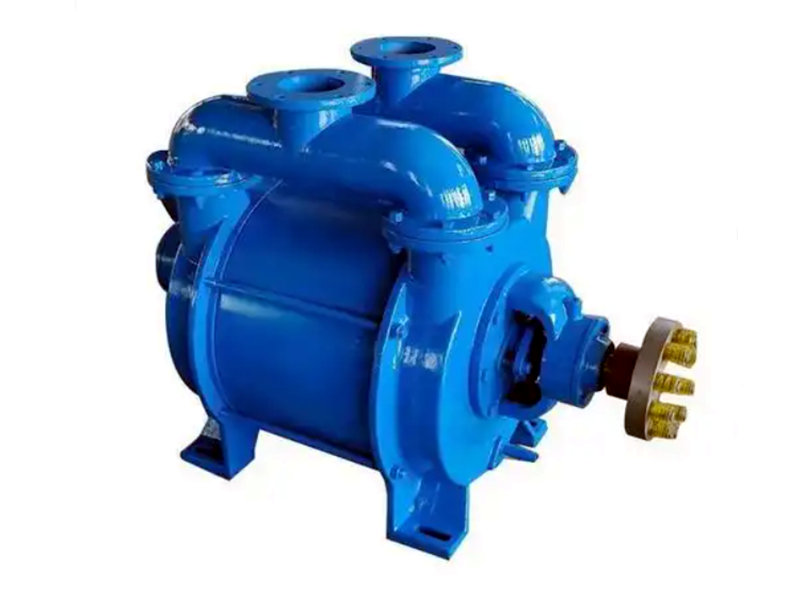

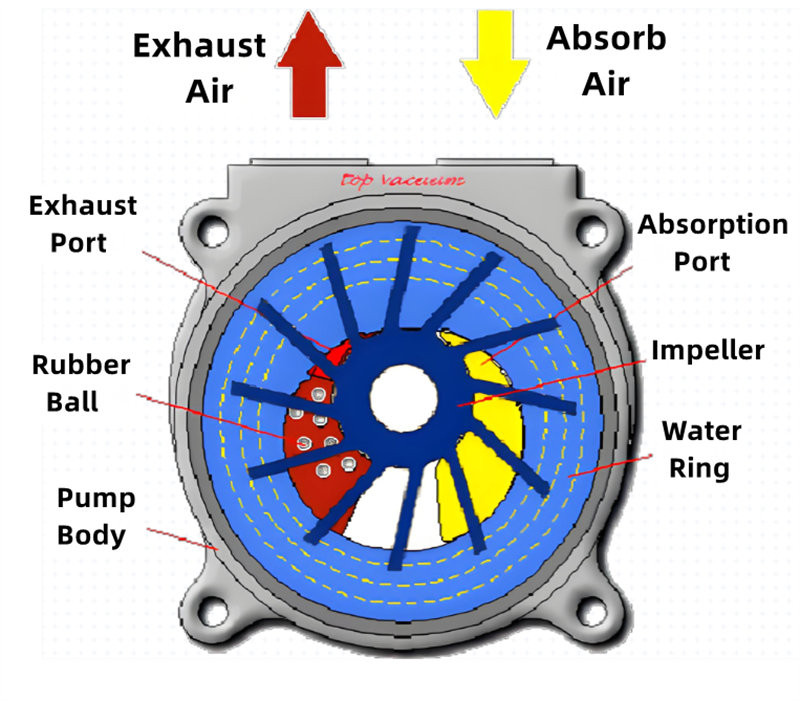

1. Equipped with an SK water-circulating vacuum pump, achieving a vacuum level ≥-0.09MPa, enabling rapid extraction of high-concentration sludge and viscous waste liquids. The vacuum level decreases by no more than 10% within 30 minutes, meeting the needs of high-level waste liquid extraction.

vacuum pump truck

Specification	Unit	Value
Free air capacity	cfm	489
Air capacity at 15" Hg/50% vacuum	cfm	512
Max. Vacuum	Hg (in.)	28
Max. Pressure	psig	29
Power required at 15" of vacuum	hp	20
Power required at max. pressure	hpa	38
Max. speed	rpm	1400
Working speed	rpm	1200
Oil tank capacity	lt	4.8
Oil consumption	Gr/h	210
Sound pressure at 7 meters (23 ft) 60% vacuum	dB	80
Hose	in	3/4
Flange	in	-
Weight	lbs	585

vacuum pump truck

2. The piping system utilizes high-strength, corrosion-resistant materials with an inner wall smoothness Ra≤0.8μm, reducing fluid resistance.

3. Quick-connect fittings achieve an IP67 sealing rating, with a leakage rate of <0.1% at the connection point. It is also equipped with an anti-backflow device and an emergency shut-off system to prevent sewage backflow and secondary pollution.

vacuum pump truck

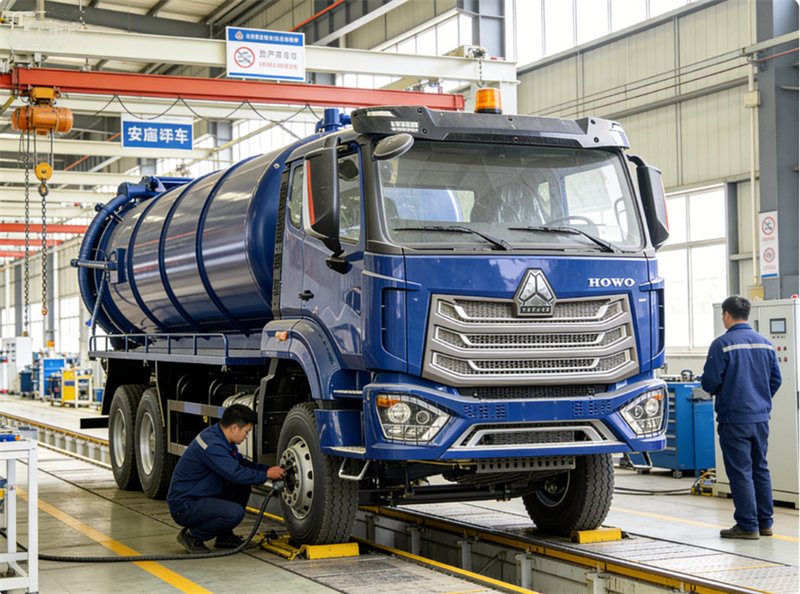

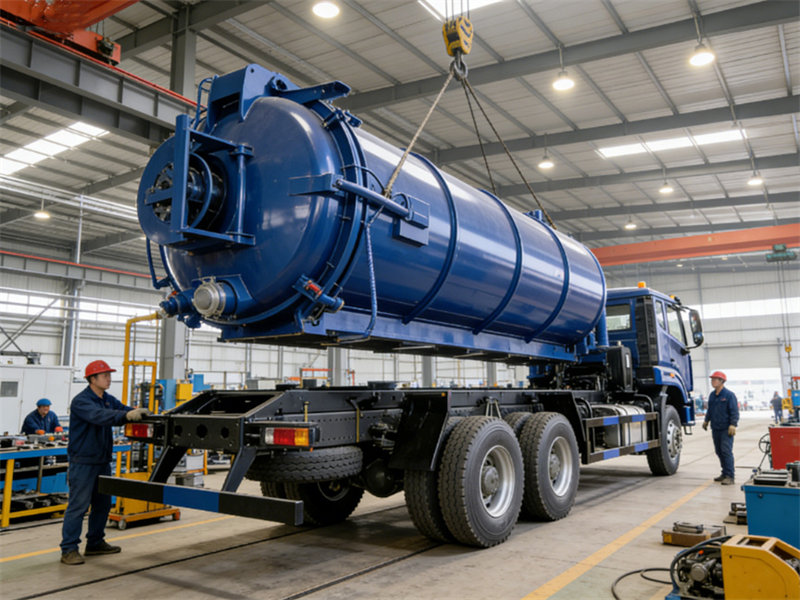

✦Ⅴ.Factory Inspection For Howo Heavy Vacuum Sewage Truck «««

♦ Appearance Inspection: Check tank flatness, coating integrity, and weld quality; no wrinkles, paint peeling, or incomplete welds are allowed.

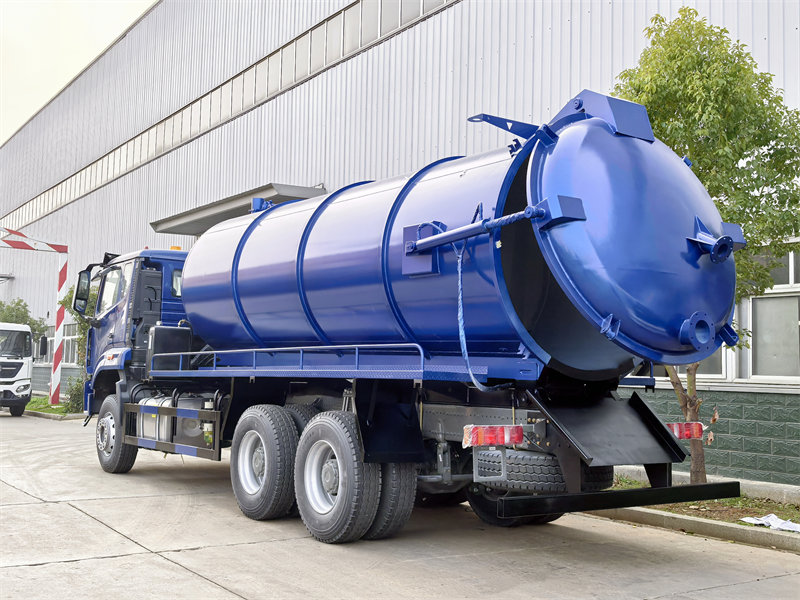

Howo vacuum sewage tank truck

♦ Performance Testing: Vacuum system test (vacuum degree ≥ -0.09MPa, pressure holding for 20 minutes with no significant drop), hydraulic system test (smooth lifting without jamming, no leakage), unloading test (smooth unloading at 45°, no leakage).

Howo vacuum sewage tank truck

♦ Sealing Test: Tank body pressure stabilized at 80kPa for 5 minutes with no leakage; suction and discharge system pressure held at 15kPa absolute pressure for 20 minutes, leakage rate <0.1%.

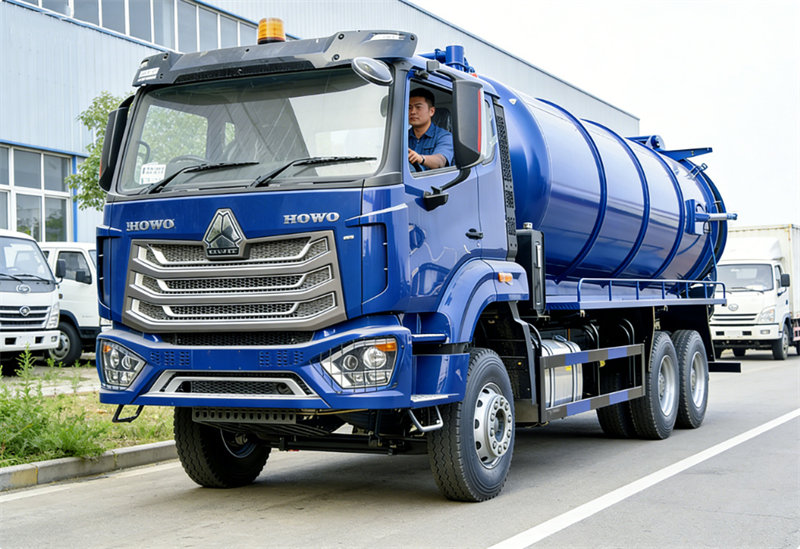

Howo sewage vacuum tank truck

⇒ The production capacity of over 4,000 trucks every year.

⇒ Over 100 countries worldwide.

⇒ Complete after-sales service system.

We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.

China professional Howo special truck supplier and exporter, we supply high quality Howo special truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our Howo trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.

♦ Maximize save your sea freight.

♦ Professional guidance on your importing documents.

♦ Safety, Quickly, Timely

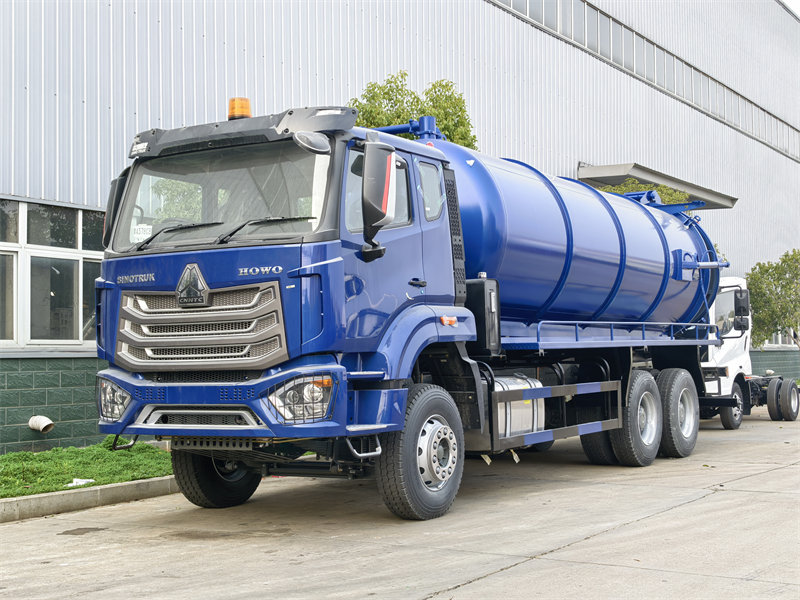

Howo 20000L sewage vacuum tank truck
