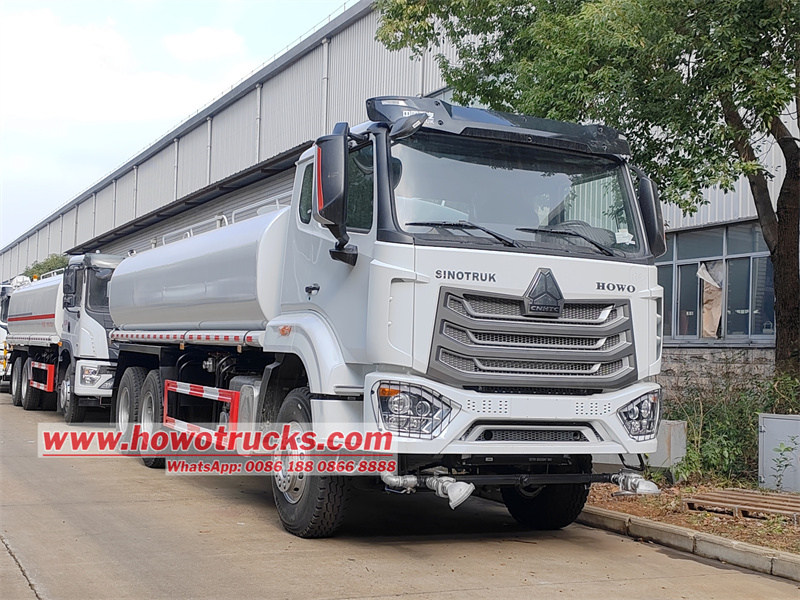

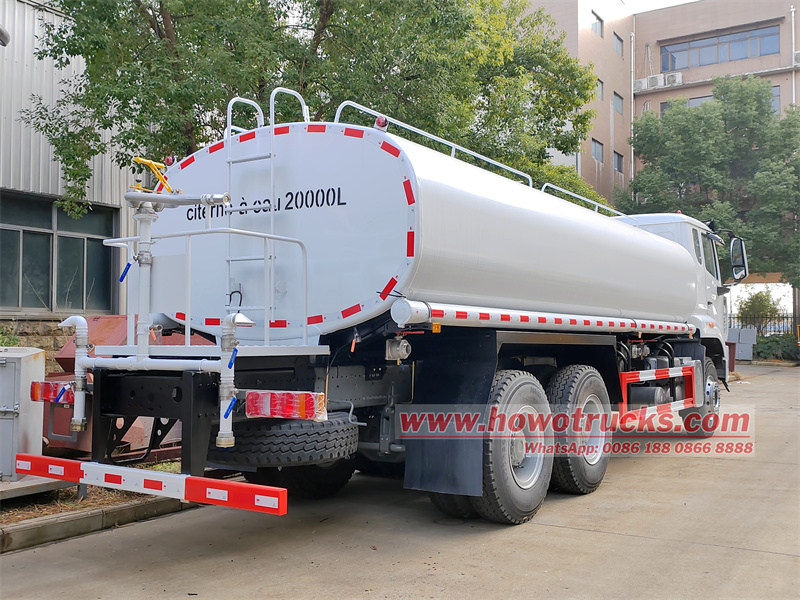

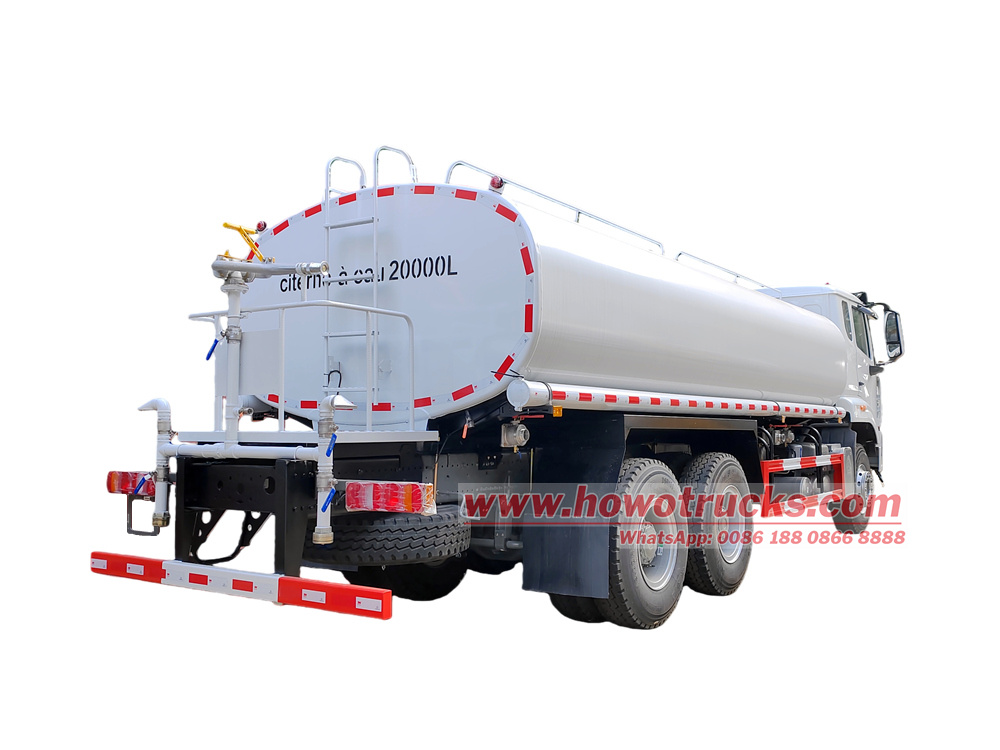

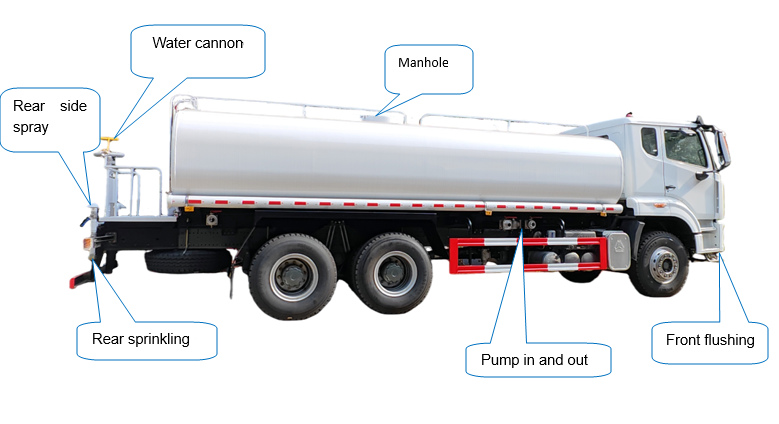

The HOWO 20cbm water sprayer truck, with 4600+1350mm wheelbase, Weichai WD615.47 engine and HW19710 gearbox. The upper includes a 20cbm curved carbon steel water tank, equipped with four devices: front flushing, rear side spraying, rear water sprinkling, and rear water cannon. It is fitted with an 80QZF-60/90 centrifugal water pump, with a flow rate of 60 m³/h and a lift of 90 m. The pump is equipped with inlet and outlet pipelines, a tail discharge valve, a platform ladder, a guardrail, a tank top guardrail, and a manhole.
工作能力 :
20000 liters舱型 :
Howo NX one and half row cabin驱动系统 :
6x4,LHD轴距（毫米） :
4600+1350 mm发动机专用 :
371 HP / Sinotruk WD615.47变速箱 :
Sinotruk HW19710 10-speed, manual前轴（公斤） :
9500后轴（公斤） :

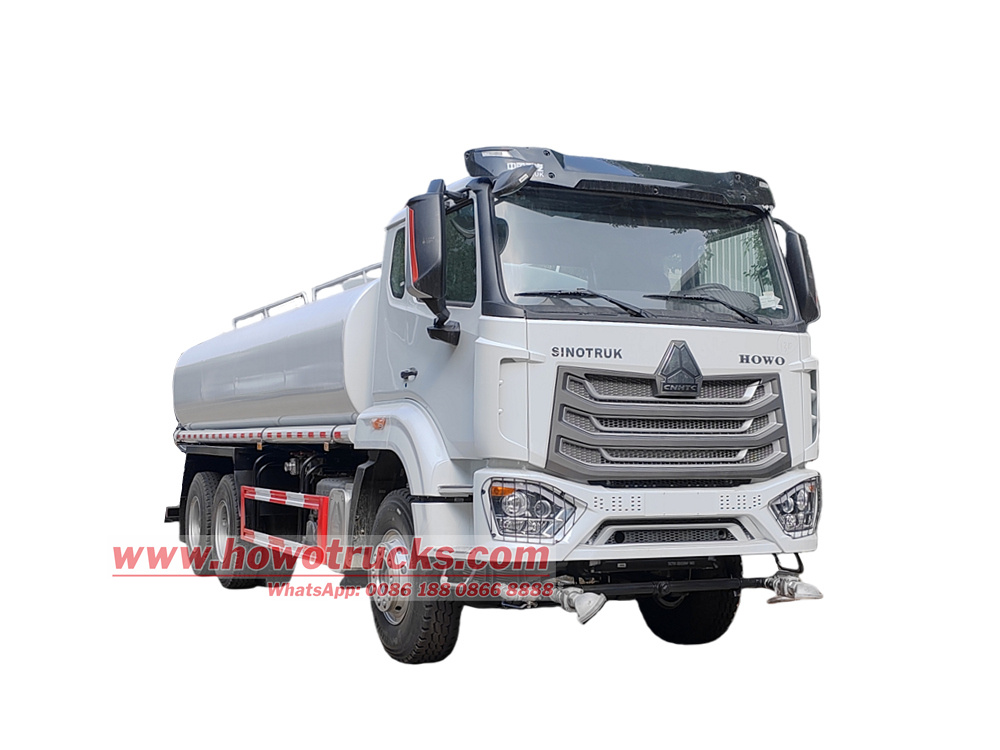

16000*2The HOWO diesel delivery tanker truck for Congo, centered around the HOWO NX371 chassis and equipped with a Weichai WD615.47 engine, is specifically designed for scenarios such as road cleaning and green irrigation. With its large 20cbm water tank capacity, equipped with a high-flow 80QZF-60/90 sprinkler pump and various nozzles including front flushing, rear side spraying, rear sprinkling, and high-pressure water cannon, covering scenarios such as road cleaning, green irrigation, and emergency firefighting
◆ Product Technological Parameters:
|
HOWO 6X4 20CBM water tanker truck |
||
|
General |
Chassis brand |
HOWO H77L |
|
Overall dimension (L*W*H) |
9850x2500x3150mm |
|
|
Wheelbase |
4600+1350mm |
|
|
Curb weight |
11250kg |
|
|
Gross weight |
25000kg |
|
|
Axles loading |
VGD95 front axle/MCX16ZG (2 axles) |
|
|
Max speed |
82 km/h |
|
|
Chassis |
Drive mode |
6x4 |
|
Cabin type |
HOWO H77L cabin,one and half row, A/C |
|
|
Steering |
LHD |
|
|
Tires |
10+1 |
|
|
Tires specification |
12.00R20 |
|
|
Gear box |
HW19710 10-speed,manual |
|
|
Fuel tank |
300L |
|
|
Engine |
Engine model |
WD615.47 |
|
Fuel and engine Type |
Inline 6-cylinder, water-cooled, four-stroke, with exhaust valve braking, direct injection, turbocharged and intercooled. |
|
|
Horse power |
371HP/ 273kW |
|
|
Displacement |
9.726L |
|
|
Max torque |
1500N.m |
|
|
Rated speed |
2200rpm |
|
|
Max torque speed |
1100-1600rpm |
|
|
Emission standard |
Euro 2 |
|
|
Tops Parameters |
Volume of Water Tank |
20,000 Liters |
|
Tanker material |
Carbon steel, Tanker thinckness : 6mm. |
|
|
Loading System |
Top loading |
|
|
Body material |
High performance wear-resisting carbon steel with anti-corrosion treatment paint, SS304 stainless steel for option |
|
|
Compartment |
1 with internal anti-wave baffles |
|
|
Manhole |
1, European Standards |
|
|
Spray |
Front and rear spray nozzle, rear water cannon |
|
|
The spray gun shape can be adjustable: heavy rain, moderate rain, drizzling rain or haze |
||
|
Sprinkling width |
≥14m |
|
|
Water cannon spray width |
≥28m |
|
|
Equipment |
Ladder,tool box,side pipe storage, Pump in and out valve |
|
|
Artesian valve,flter, distribution valve, sprinkler head, with self-suction and discharge function |
||
|
Water pump |
Model |
80QZF-60/90 centrifugal pump |
|
Flow rate |
60 m3/h |
|
|
Lift |
90 m |
|
|
Head |
6.5 m |
|
|
Input speed |
1180 r/min |
|
|
Self-priming performance |
1.5 min/4m |
|
|
Equipped power |
22.2 kW |
|
◆ Chassis:

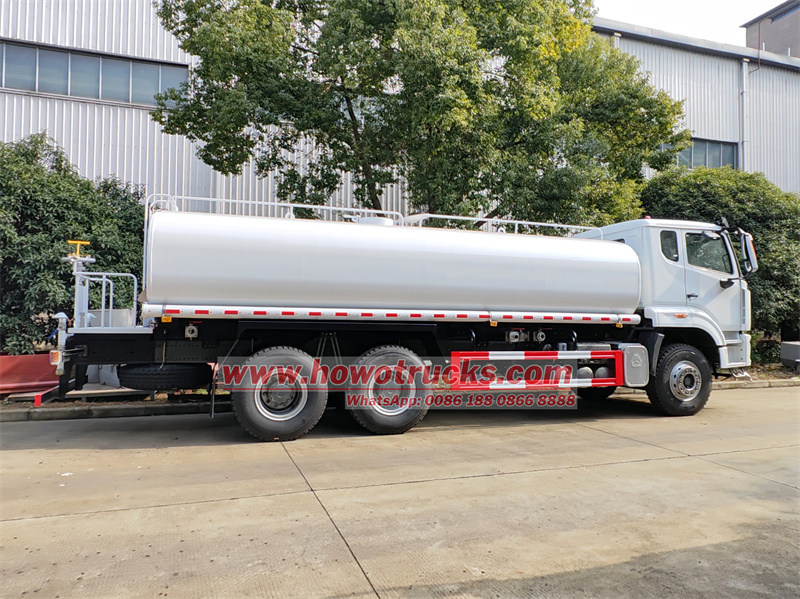

◆ Water tank structure:
Material: Made of Q235B carbon steel plate, with a 20 cubic meter curved tank body, with a thickness of 4-6mm, and treated with anti-corrosion measures,
Capacity: High volumetric utilization rate, with wave-proof boards installed inside the tank to reduce the impact of liquid sloshing on the vehicle during operation.

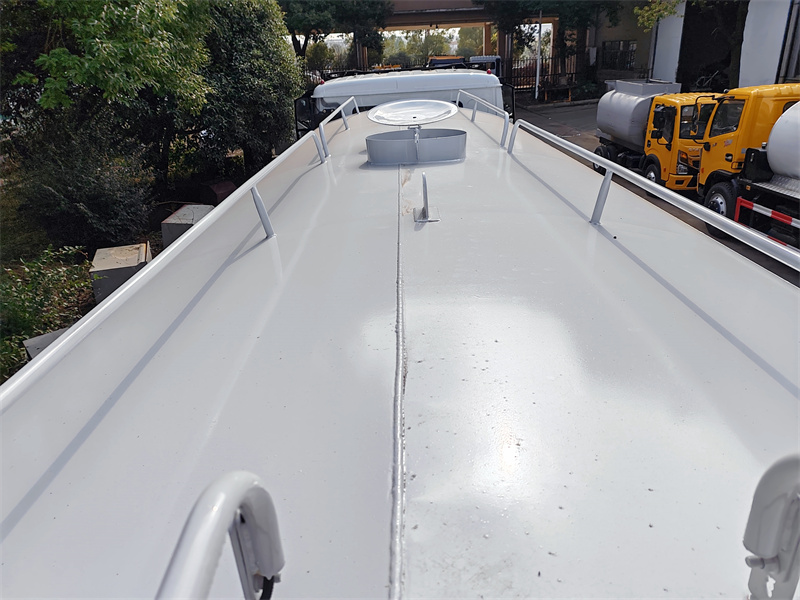

Manhole and ladder: The tank top is equipped with one Φ500mm manhole for maintenance and cleaning; a ladder at the tail and a guardrail on the tank top facilitate operators to get on and off the tank.
◆ Water sprinkler system:

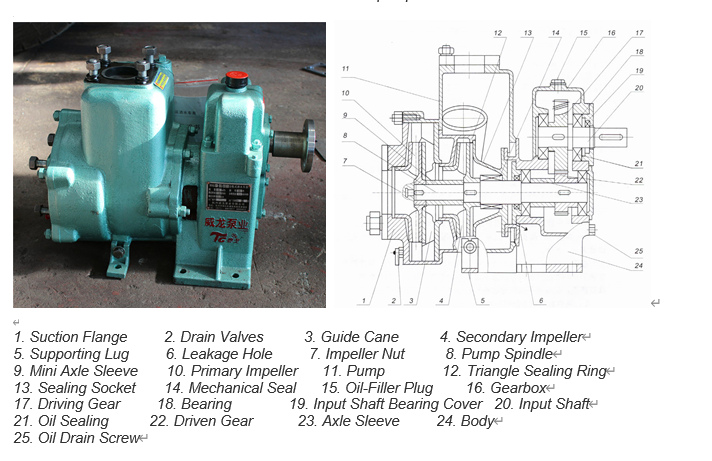

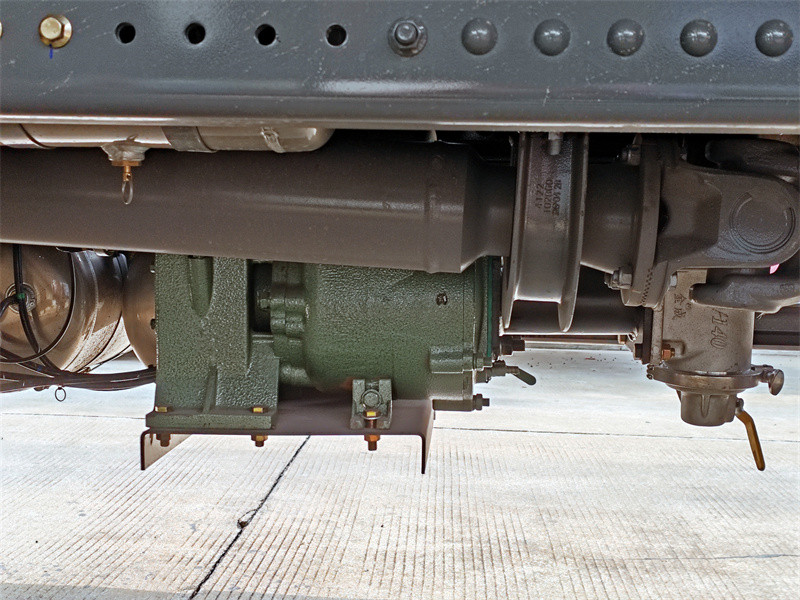

• Water pump: 80QZF-60/90 type centrifugal water pump, with a flow rate of 60m³/h, a head of 90m, an input speed of 1180r/min, a self-priming performance of 1.5min/4m, a pump inlet and outlet design, supporting self-priming and self-discharge, and a suction lift of ≥7m.
• Sprinkler system:

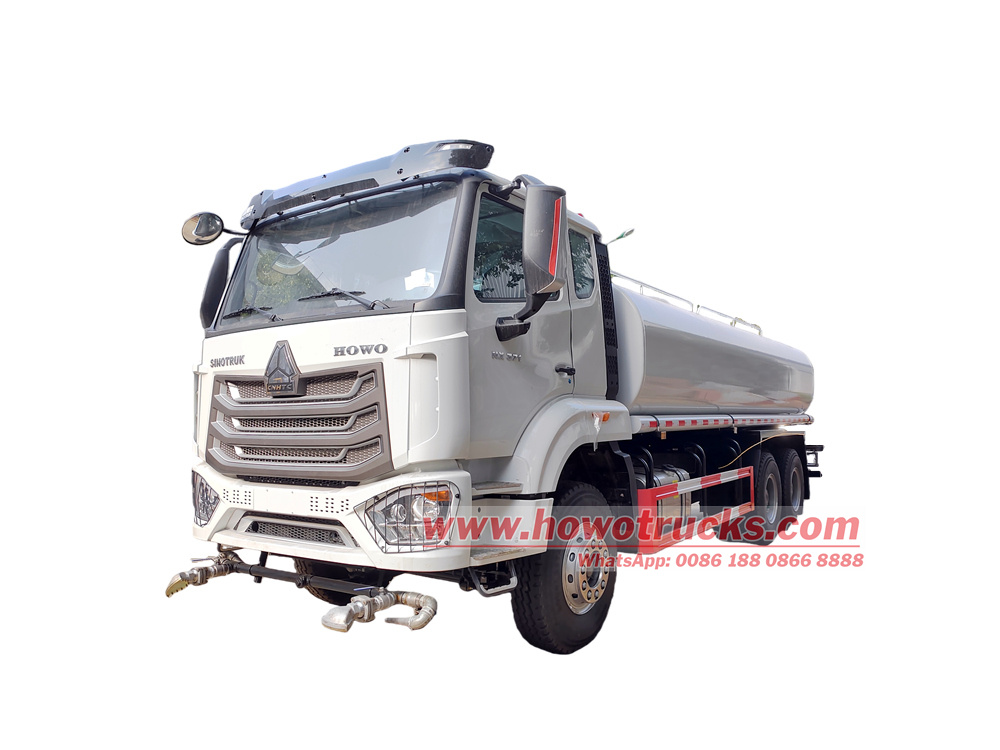

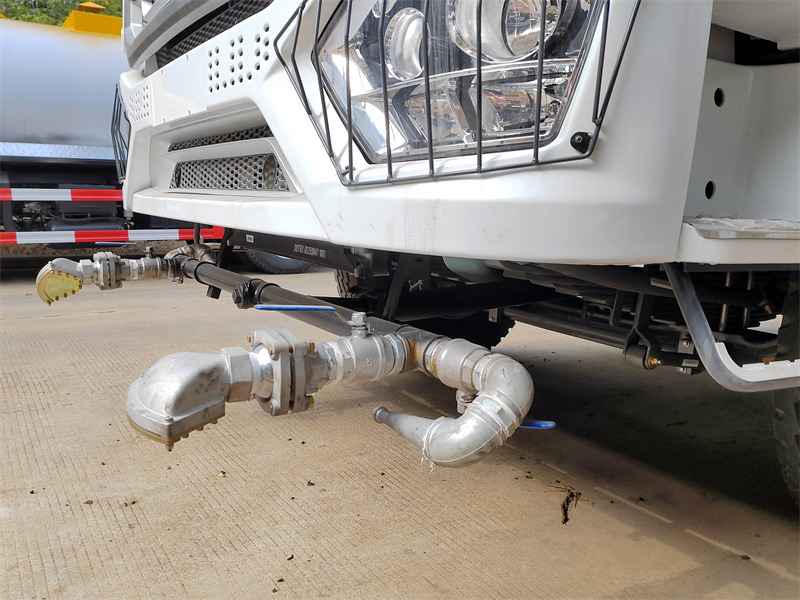

Forward thrust: With dual nozzles arranged symmetrically, the flushing width is ≥14m, making it suitable for rapid road cleaning.
Rear spray: duckbill nozzle, with a coverage width of ≥8m, used for watering green belts or dust suppression on roads.
Rear sprinkling: With a circular nozzle, the water is sprinkled evenly to avoid localized ponding.

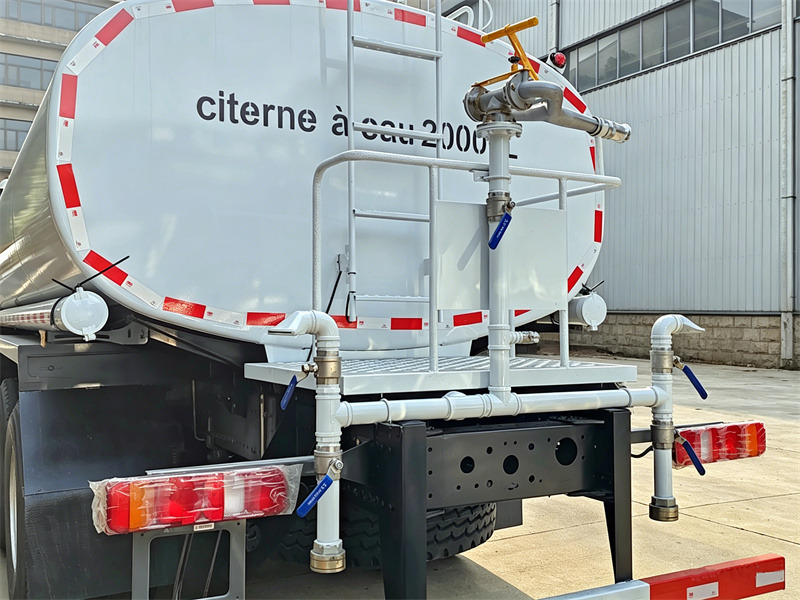

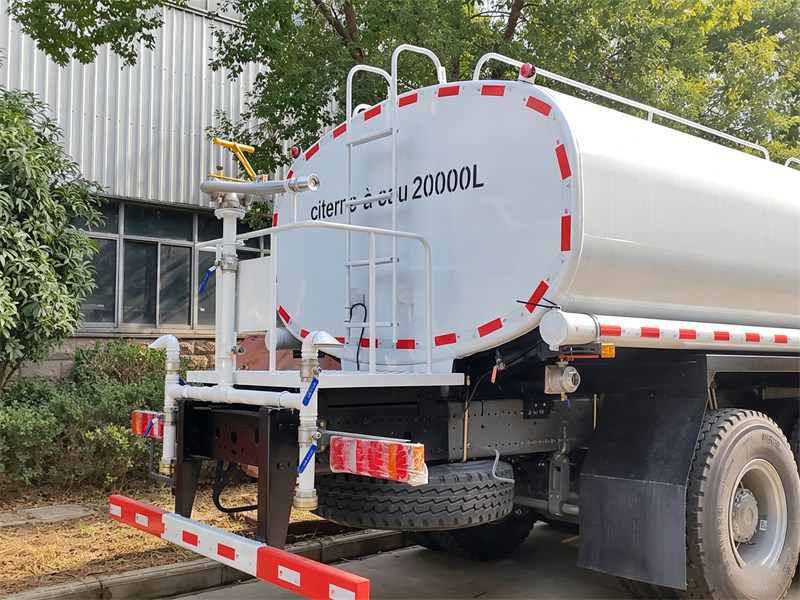

Rear water cannon: It can rotate 360°, with a shooting range of ≥28m. It supports switching between direct flow and spray modes, meeting the needs of long-distance flushing or emergency firefighting.

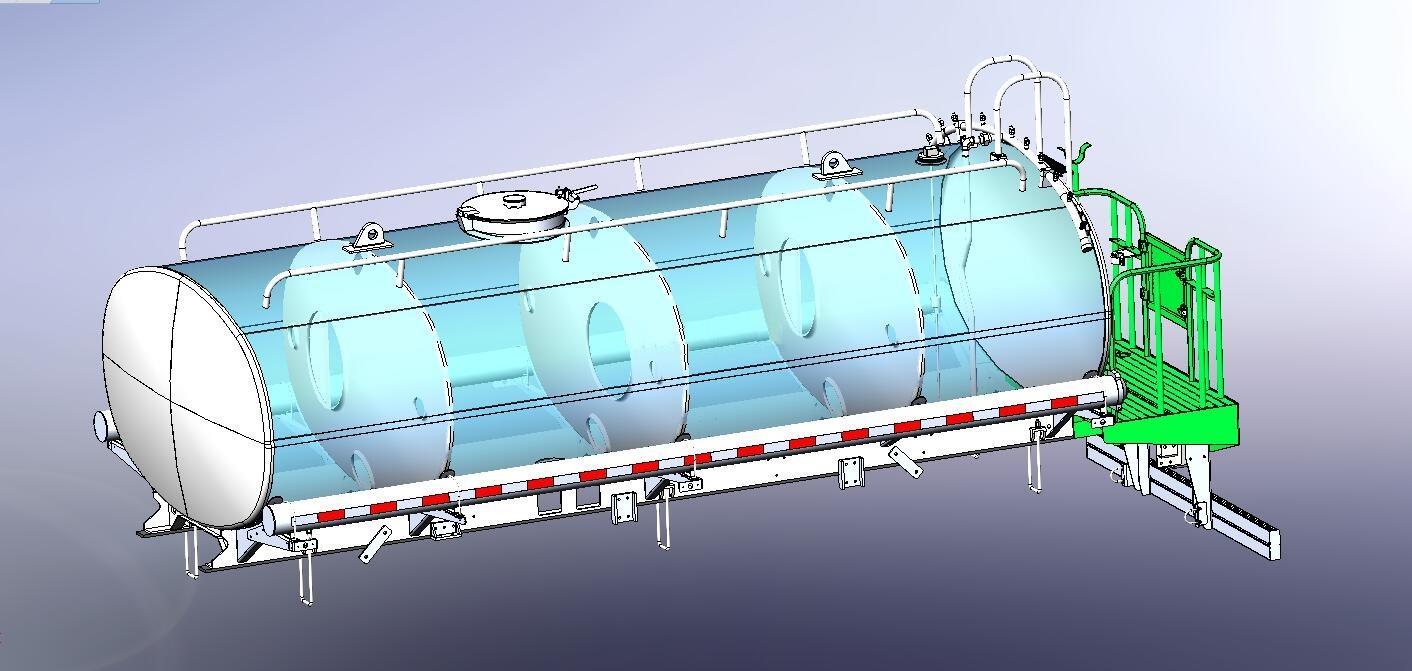

water tanker truck tanker system

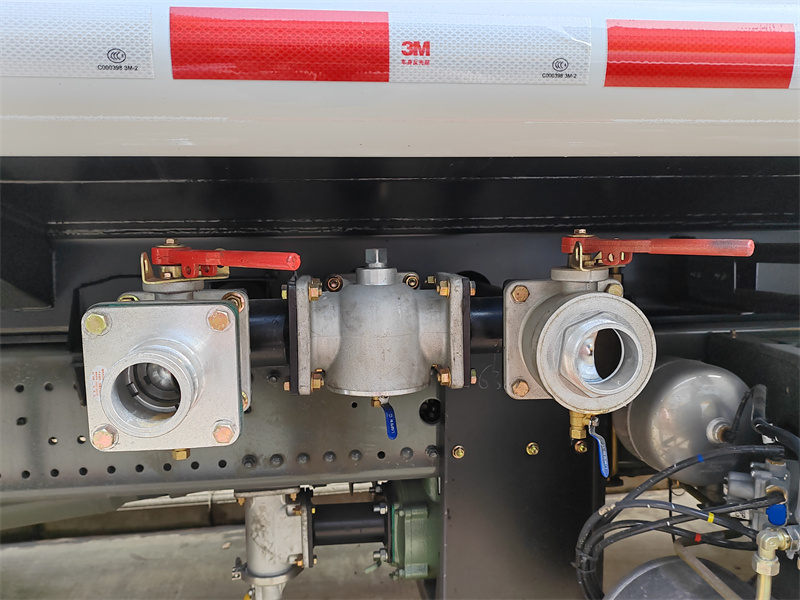

• Tail drain valve: used to quickly drain the remaining water in the tank to prevent freezing in winter

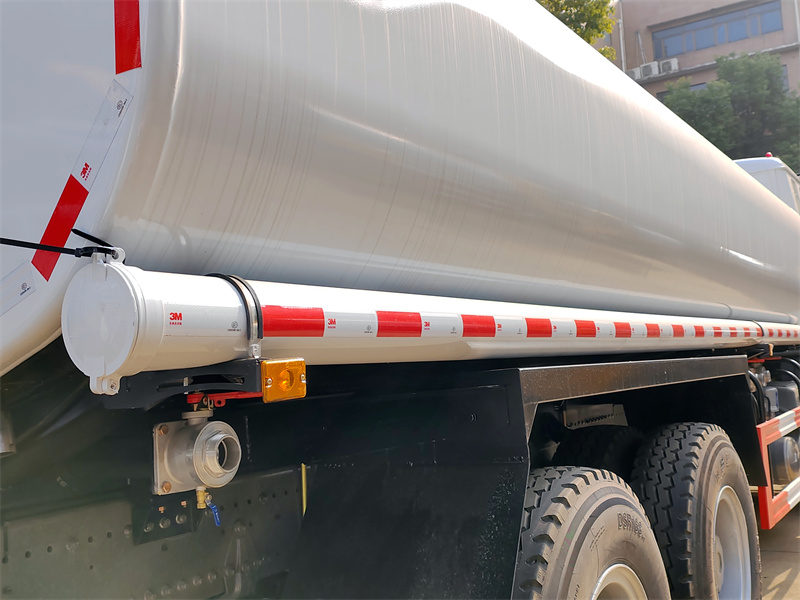

• Pipe system: High pressure resistance, corrosion resistance, equipped with quick connectors, and compatible with external fire hoses.
• Control method: Pneumatic ball valve control, with one-button operation in the cab, saving time and effort.

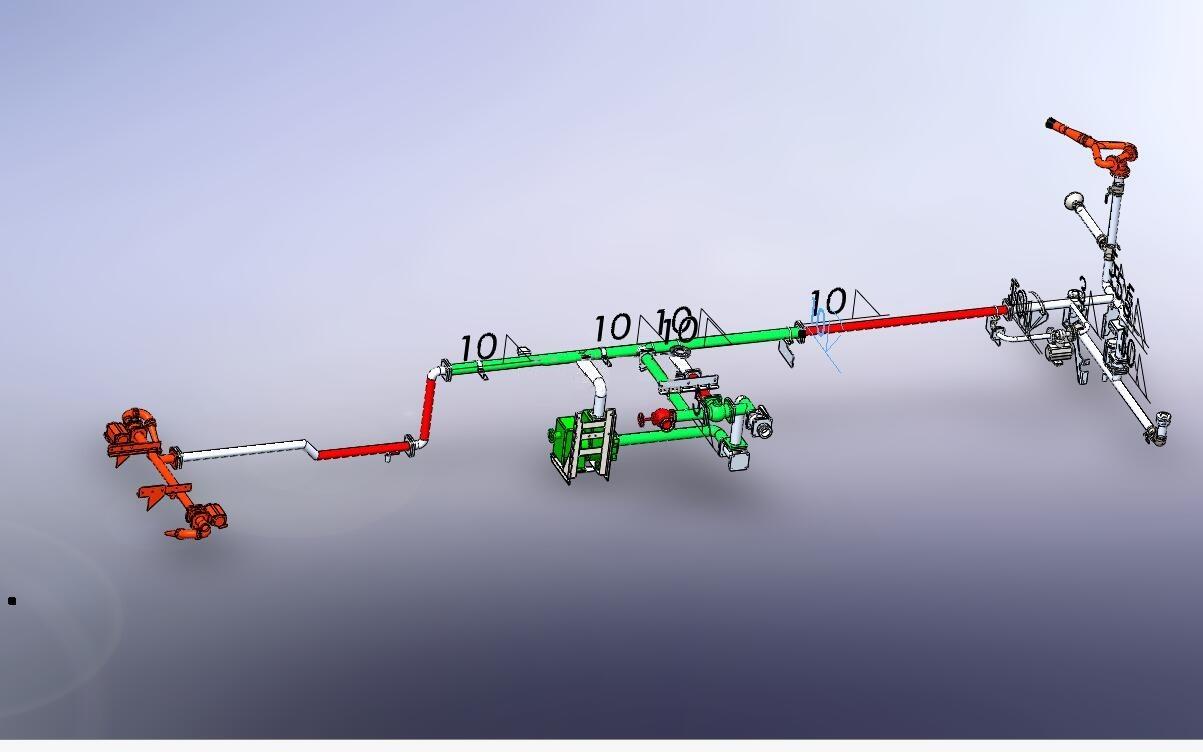

water tanker truck pipeline system
◆ Working principle:
The water sprinkler utilizes the chassis engine as its power source, and transfers the engine power to a dedicated water sprinkler pump through a power take-off device, forming complete functions of water suction, pressurization, and spraying.
• Pumping/water filling principle (pump inlet)
After the pump is started, the impeller rotates, creating negative pressure, which draws external water sources (such as fire hydrants, rivers, ponds, and water towers) into the tank through the pump inlet pipeline. By relying on negative pressure suction and pump pressure delivery, rapid water injection is achieved.
• Spraying operation principle (pumping out)
The water in the tank enters the water pump under the action of gravity, and after being pressurized by the pump, it is transported to various working devices through pipelines.
◆ Applications in CONGO:
• Washing and watering for dust suppression on urban roads, national highways, and expressways
• Watering the green belts and spraying the nursery
• Dust suppression at construction sites, mining areas, coal yards, and docks
• Emergency firefighting, temporary water supply
The HOWO 20cbm water sprayer truck, with 4600+1350mm wheelbase, Weichai WD615.47 engine and HW19710 gearbox. The upper includes a 20cbm curved carbon steel water tank, equipped with four devices: front flushing, rear side spraying, rear water sprinkling, and rear water cannon. It is fitted with an 80QZF-60/90 centrifugal water pump, with a flow rate of 60 m³/h and a lift of 90 m. The pump is equipped with inlet and outlet pipelines, a tail discharge valve, a platform ladder, a guardrail, a tank top guardrail, and a manhole.
