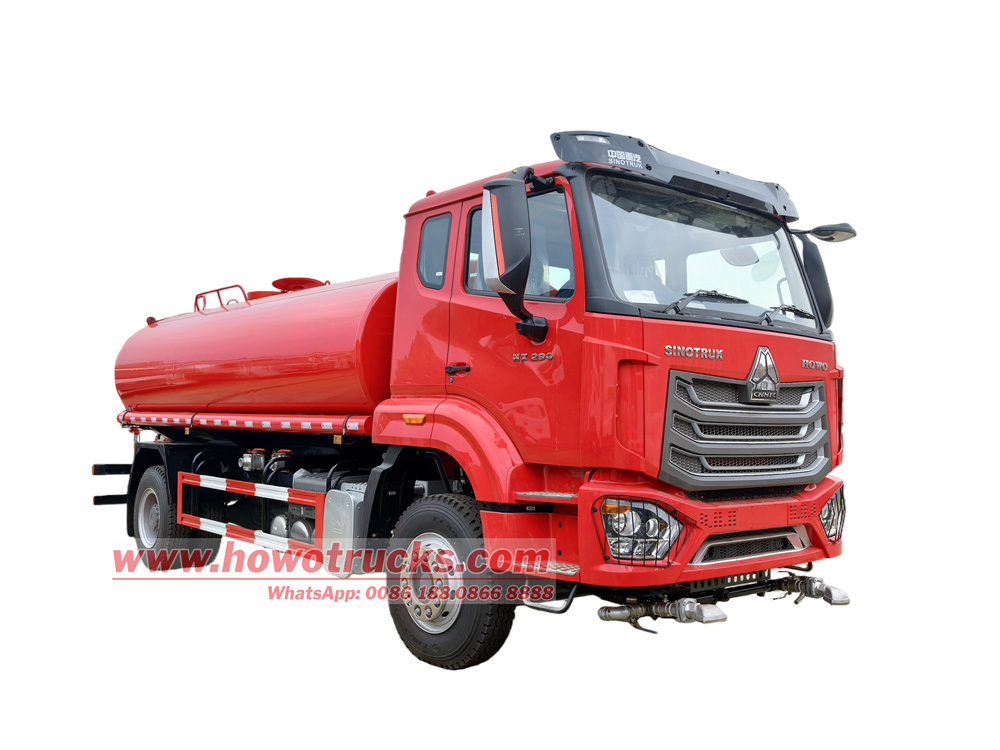

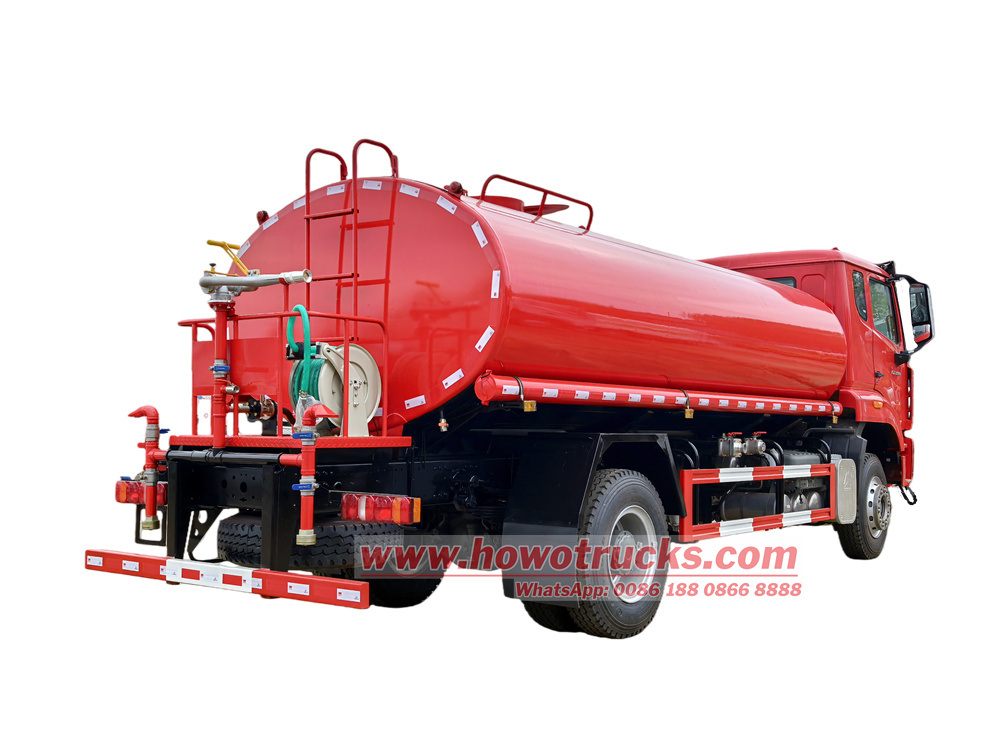

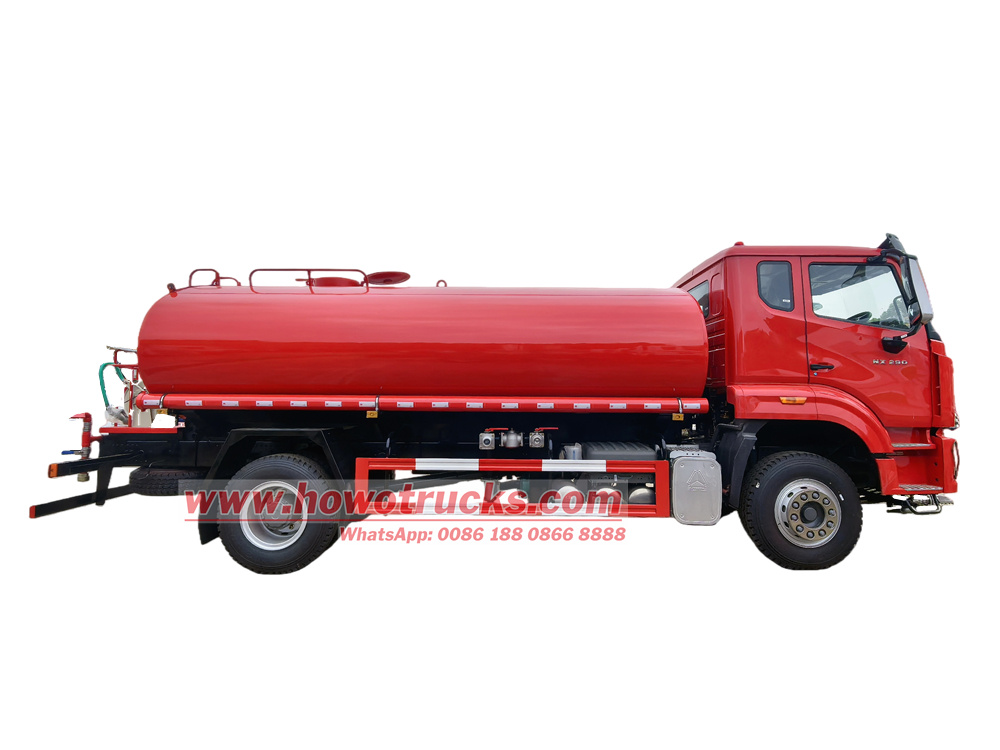

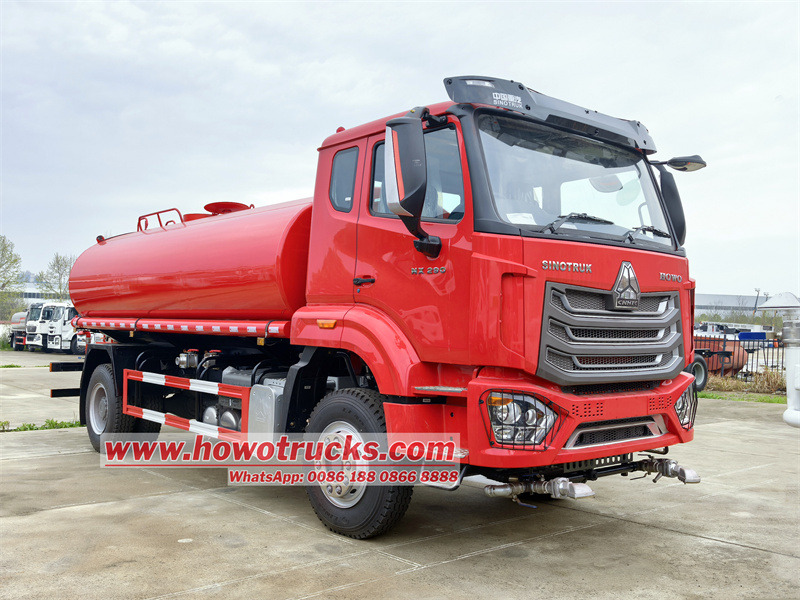

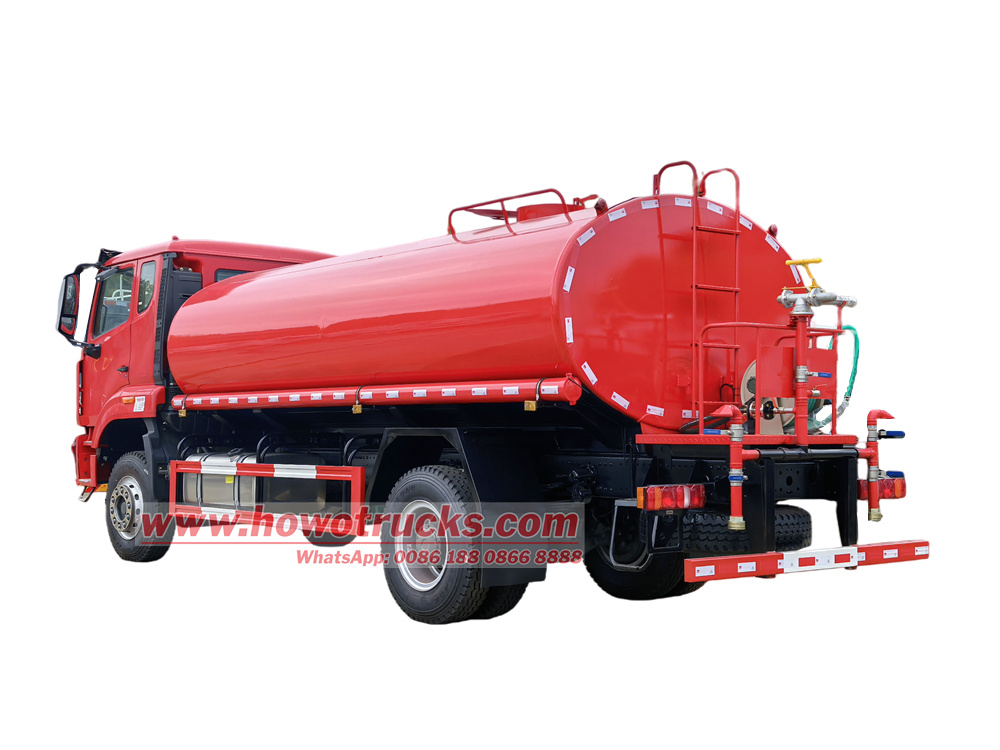

Howo 4x2 drive water delivery tanker bowser

HOWO NX RHD 12000L water sprinkler truck

HOWO 4X2 RHD 12cbm bulk water carrier truck

Howo 4x2 drive water delivery tanker bowser

The Howo 12 cbm water sprinkler truck features a Howo NX right-hand drive cab, a 4500mm wheelbase, a Sinotruk MC07.29-60 engine, an 8-speed gearbox, a 12 cubic meter carbon steel water tank (5mm thick), a Weilong 80QZF-60/90 water pump with a flow rate of 60 m³/h, and is equipped with front spray, rear platform side spray, rear sprinkler, water cannon, hose reel, pump inlet and outlet valves, storage tanks on both sides of the tank, and a ladder.

工作能力 :
12000 liters
舱型 :
Howo NX one and half row cabin
驱动系统 :
4x2,RHD
轴距（毫米） :
4500 mm
发动机专用 :
290 HP / Sinotruk MC07.29-60
变速箱 :
Sinotruk 8-speed, manual
前轴（公斤） :
6500
后轴（公斤） :
11500

产品详情

The Howo 4x2 drive water delivery tanker bowser uses a Sinotruk NX series chassis and is specifically developed for the right-hand drive market. The vehicle is equipped with a Sinotruk high-efficiency powertrain and a 12-cubic-meter large-capacity carbon steel tank, a high-flow water pump, and features front spray, rear side spray, high-pressure water gun, and hose reel. It can be used for road washing, dust suppression, garden irrigation, and emergency firefighting.

HOWO 12000L RHD Water Tank Truck

-----------------------------------------------------------------

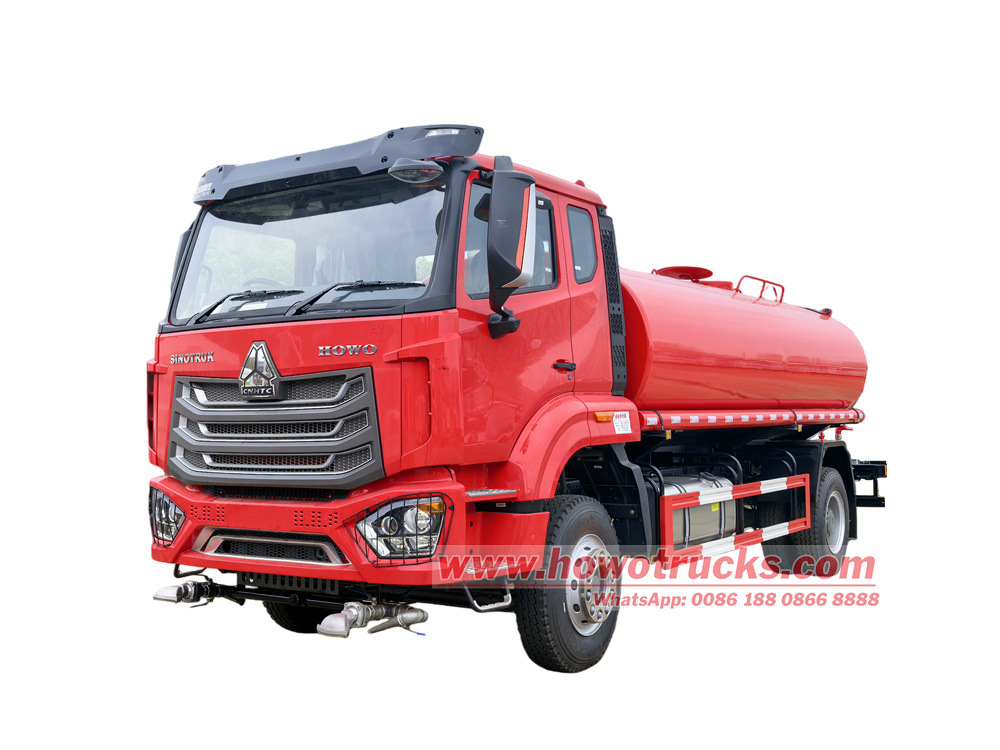

Howo 4x2 drive water delivery tanker bowser

◆ Product Technological Parameters:

Product name	HOWO NX 12cbm water tanker truck
Vehicle Dimensions, Weights & Capacities	Chassis brand	HOWO NX290
	Overall dimension (LWH)	7800x2500x3150mm
	Wheelbase	4500mm
	Curb weight	8970kg
	Gross weight	18000kg
	Axles loading	6500/11500kg
Chassis	Drive mode	4x2,RHD
	Tires specification	10.00R20
	Gear box	Sinotruk 8-speed，manual
Engine	Engine model	Sinotruk MC07.29-60
	Fuel and engine Type	Diesel, 6 cylinders in-line
	Horse power	290 HP/ 213kW
	Displacement	6.87L
	Max torque	1150N·m
	Rated speed	2200rpm
	Emission standard	Euro 6
Tops Parameters	Volume of Water Tank	12000 Liters
	Tanker material	Carbon steel, Tanker thinckness : 5mm.
	Spray	Front and rear side spray nozzle, rear water cannon
	Spray	The spray gun shape can be adjustable: heavy rain, moderate rain, drizzling rain or haze
	Sprinkling width	≥14m
	Water cannon spray width	≥28m
	Equipment	Ladder,tool box,side pipe storage, Pump in and out valve
	Equipment	Artesian valve,flter, distribution valve, sprinkler head, with self-suction and discharge function, hose reel.
Water pump	Model	WEILONG 80QZF-60/90 centrifugal pump
	Flow rate	60 m3/h
	Lift	90 m
	Head	6.5 m
	Input speed	1180 r/min
	Self-priming performance	1.5 min/4m
	Equipped power	22.5 kW

HOWO 4X2 12CBM water sprayer truck

◆ Chassis:

• Cab: Howo NX right-hand drive cab.

• Wheelbase: 4500mm.

• Engine: Sinotruk MC07.29-60 China VI emission standard engine. Inline 6-cylinder, 6.87L displacement, 290 horsepower; torque reaches 1150 N·m, with significant low-speed, high-torque characteristics.

• Transmission: Sinotruk 8-speed transmission.

◆ Upper Structure Configuration:

• Water Tank: 12 cubic meter carbon steel water tank, welded from 5mm thick high-strength steel plate, corrosion-resistant and impact-resistant. Internal baffle design reduces water flow impact, ensuring driving safety.

• Water Pump: Matched with Weilong 80QZF-60/90 dedicated water pump, with a flow rate of up to 60m³/h, high head and large suction lift, enabling rapid pumping and drainage operations.

• Piping System: Pump inlet and outlet valve design, supporting self-priming and self-draining functions.

HOWO NX RHD 12000L water sprinkler truck ◆ Operating Equipment:

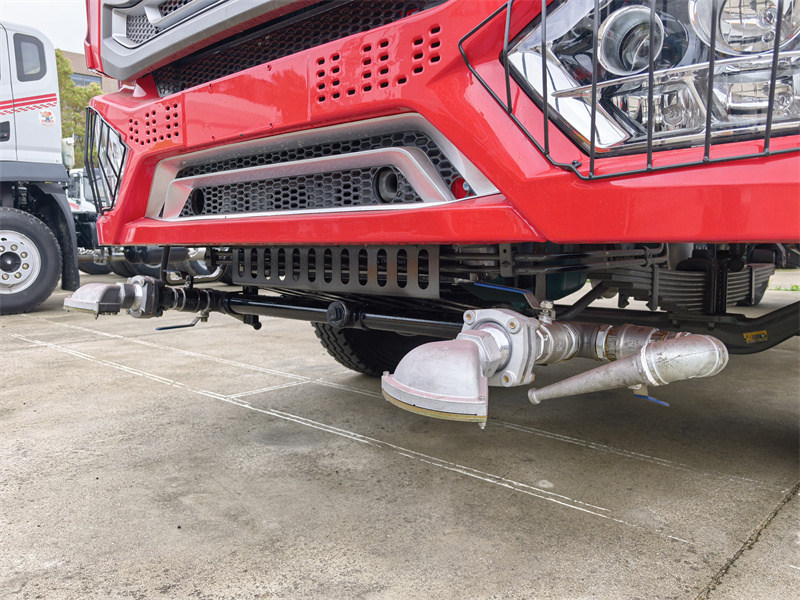

• Front Flushing Device: Dual-nozzle design, spray width up to 14 meters, suitable for rapid road washing and dust suppression.

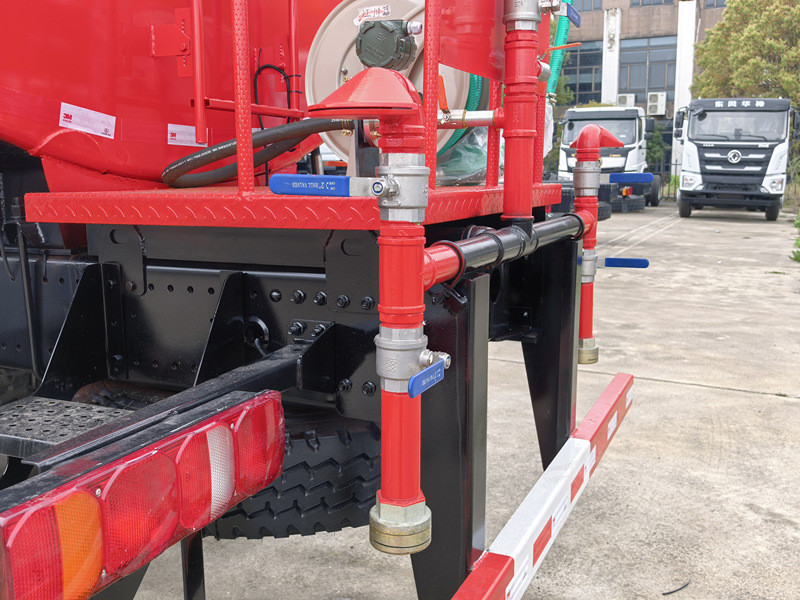

• Rear Platform Side Spray: Duckbill nozzles, suitable for watering roadside green belts, providing a large spray area and dispersed water flow.

• Rear Platform Rear Sprayer: Primarily used for engineering road surfaces, dust suppression on newly paved roads, and watering maintenance. The operating angle can be adjusted as needed.

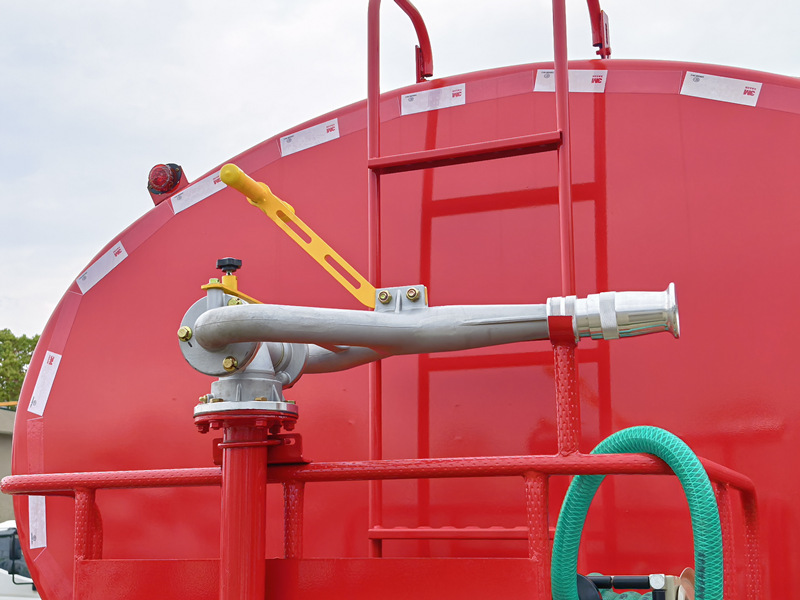

• High-Pressure Water Cannon: Adjustable to jet, rain, and mist spray patterns, with a spray width exceeding 28 meters. It achieves all the functions of rear and side spraying and can also be used for firefighting.

• Rear Platform Hoist: Suitable for long-distance green belt irrigation and firefighting.

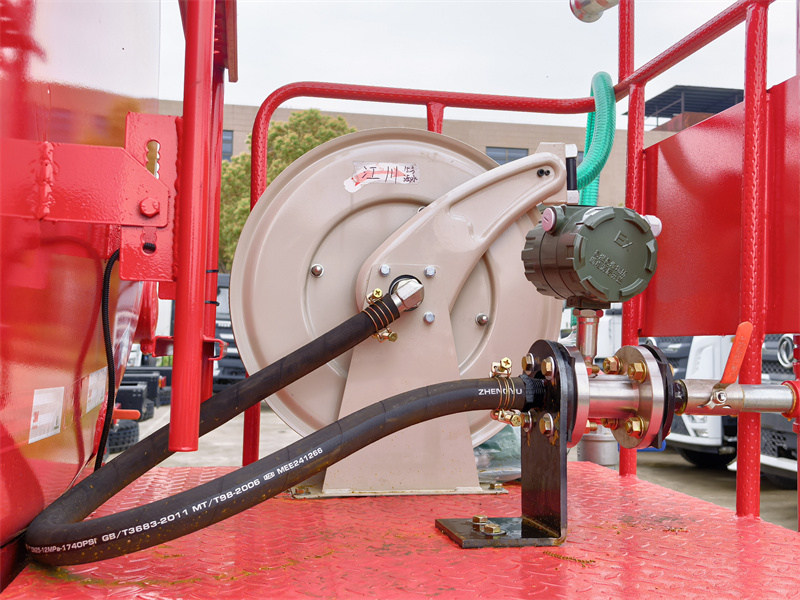

hose reel

◆ Other features:

Include storage boxes on both sides of the tank for storing suction hoses; a rear ladder; a manhole; and safety railings.

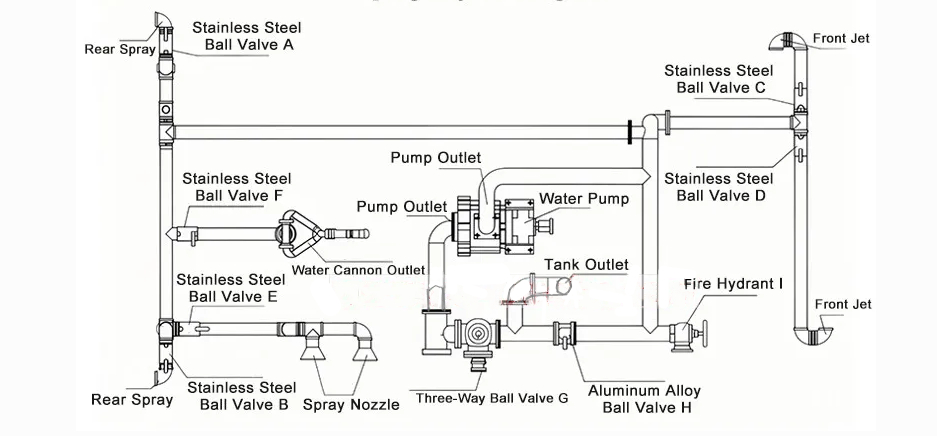

Piping Layout Diagram

◆ Applicable Scenarios:

1. Municipal Sanitation: Cleaning and watering to suppress dust on urban roads, national highways, and expressways.

2. Construction Sites: Suppressing construction dust and curing concrete.

3. Landscaping: Remotely irrigating green belts using water cannons or side-spraying devices.

4. Emergency Firefighting: Can be used for fire extinguishing.

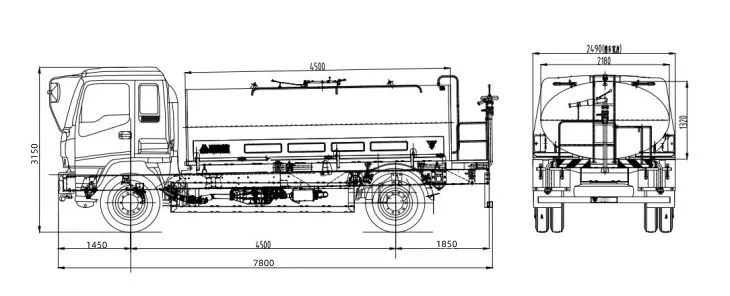

technical drawing of HOWO NX 12cbm water tank truck
