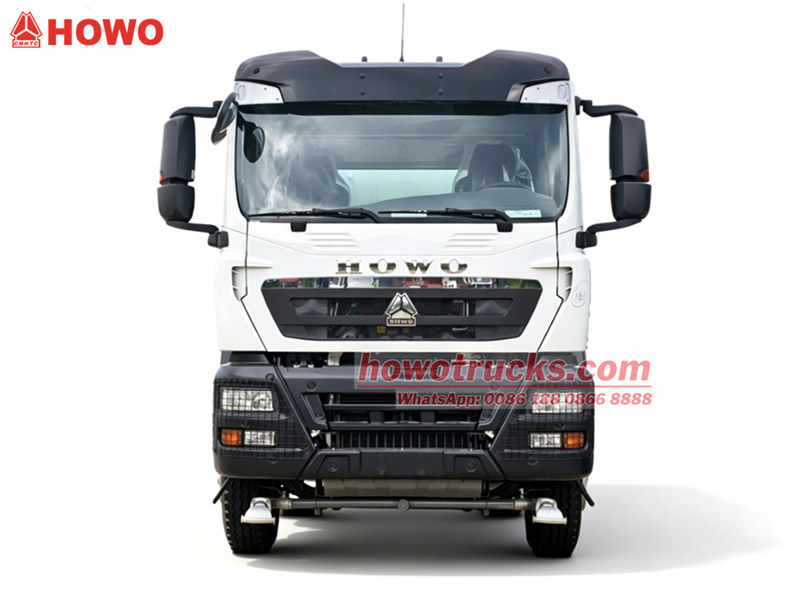

HOWO TX 6x4 water bowser truck

HOWO heavy 370HP 20000L water tank truck

HOWO TX heavy 20000L water transport truck

HOWO TX 6x4 20000L water transport truck

HOWO TX 370HP 20000L water transport truck

HOWO TX 6x4 water bowser truck

The HOWO TX 6x4 water bowser is a robust multi‑purpose sanitation vehicle built to handle tough urban and job site conditions.Engineered mainly for effective dust suppression, it also handles road washing, equipment cooling and a wide range of site maintenance tasks, combining multiple functions into one reliable work unit.Mounted on a heavy duty 6×4 chassis, it brings superior off‑road performance and high‑load stability compared to regular sprinkler trucks, operating dependably even over rough, uneven terrain. Equipped with a large capacity 20,000 liter water tank and complete integrated spray assemblies, it delivers full‑range spraying and dust‑control capability for diverse working scenarios. It is an essential heavy‑duty special‑purpose truck for municipal environmental protection and construction‑site management.

工作能力 :
20000 liters
舱型 :
HOWO single cabin with sleeper and A/C
驱动系统 :
6×4
轴距（毫米） :
10300*2580*3250 mm
发动机专用 :
371HP/WD615.47
变速箱 :
HW19710, 10 Forward & 2Reverse
前轴（公斤） :
7.5T
后轴（公斤） :
13 T*2

产品详情
客户案例

The HOWO TX 6x4 water bowser is a robust multi‑purpose sanitation vehicle built to handle tough urban and job site conditions.Engineered mainly for effective dust suppression, it also handles road washing, equipment cooling and a wide range of site maintenance tasks, combining multiple functions into one reliable work unit.

Mounted on a heavy duty 6×4 chassis, it brings superior off‑road performance and high‑load stability compared to regular sprinkler trucks, operating dependably even over rough, uneven terrain. Equipped with a large capacity 20,000 liter water tank and complete integrated spray assemblies, it delivers full‑range spraying and dust‑control capability for diverse working scenarios. It is an essential heavy‑duty special‑purpose truck for municipal environmental protection and construction‑site management.

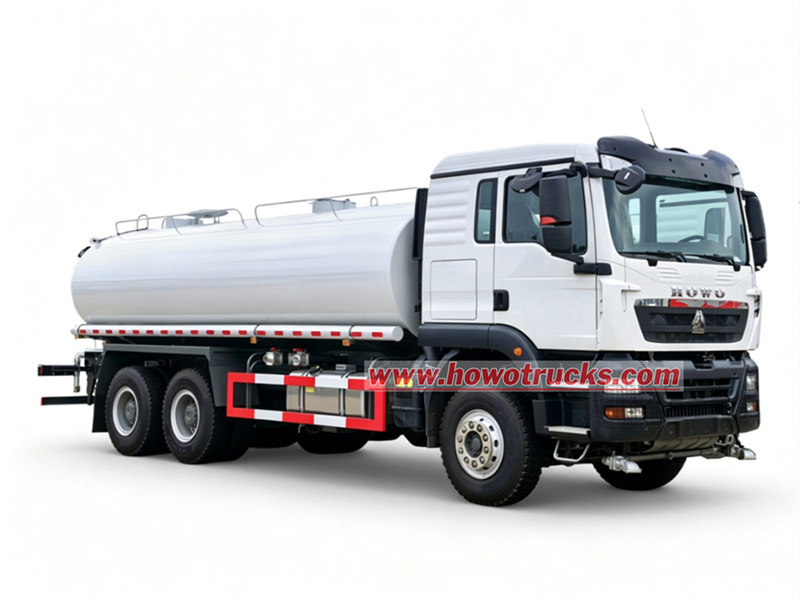

HOWO 6x4 water truck

*HOWO 6x4 Heavy Water Tanker Truck

HOWO TX 20000L Water Transport Truck*

-----------------------------------------------------------------

CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

✦Ⅰ.Product Defination and Introduction «««

Manufacturer: CS TRUCKS Group

Features:

1. Truck Chassis: HOWO 6x4 heavy chassis model

WP model with 370HP and Euro 2,3,4

2. Tank material: 6mm thick stainless steel for prolonged service lier
carbon steel, aluminum alloy can be choose

3. Water Pump: China TOP water pump, flow rate 60L/s, working distance over 40m
Optional famous Imported pump

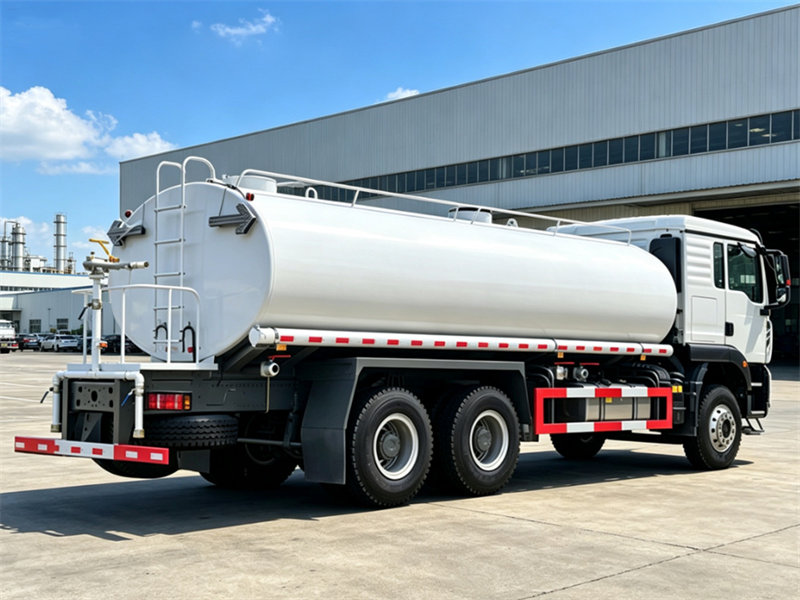

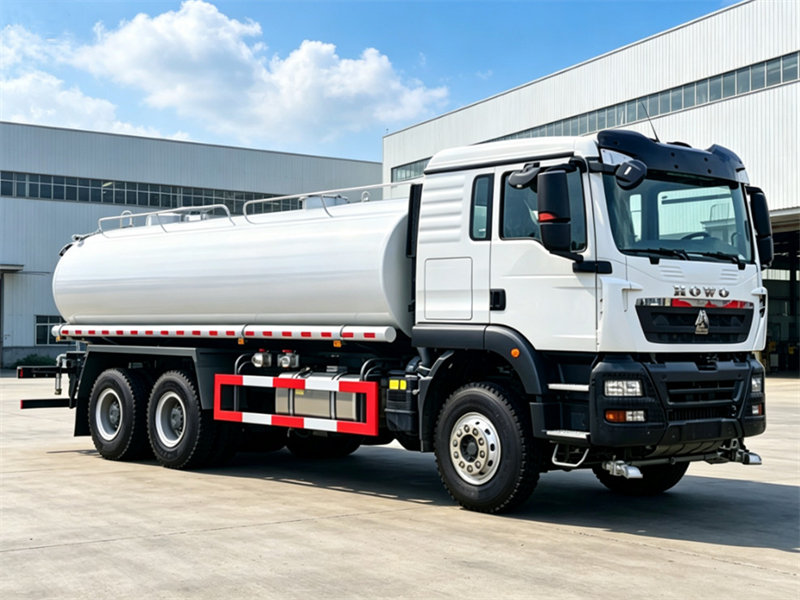

HOWO TX 20000L water tank truck

✦Ⅱ.Parameter for HOWO Mining Water Tank Bowser «««

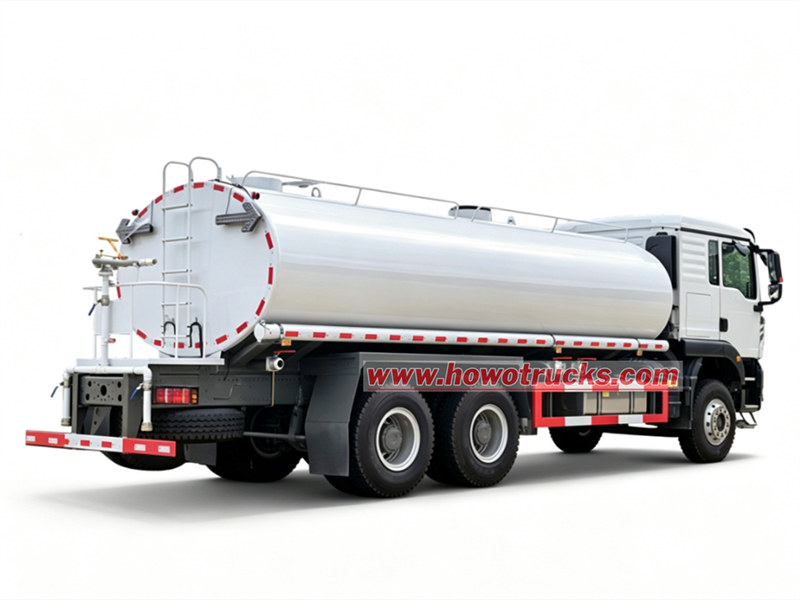

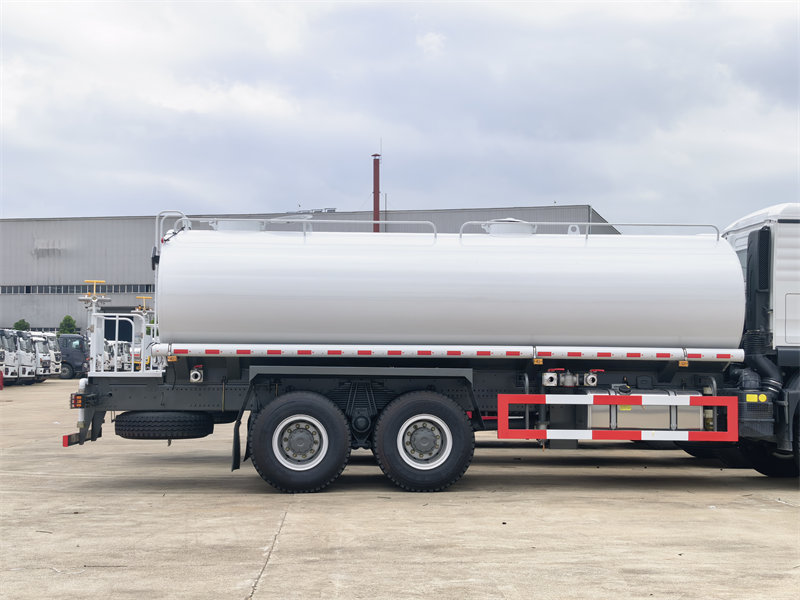

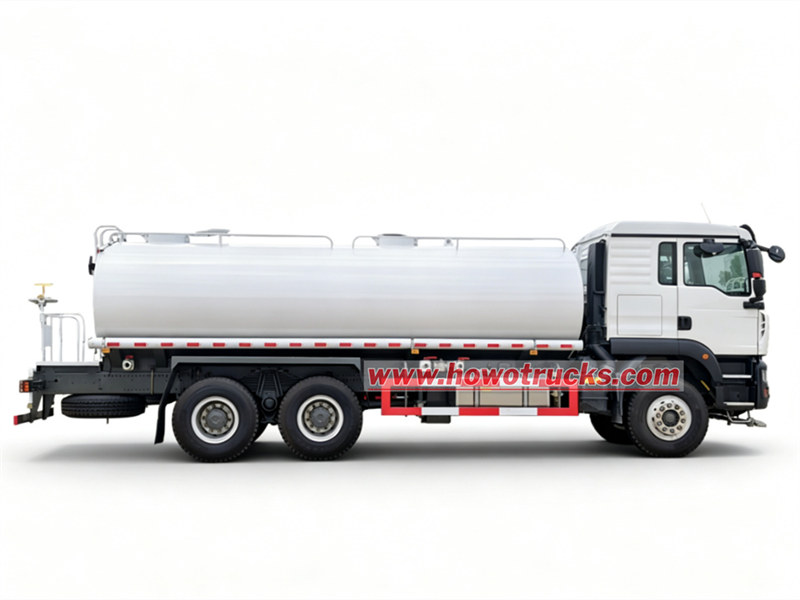

HOWO 6x4 heavy water tank truck

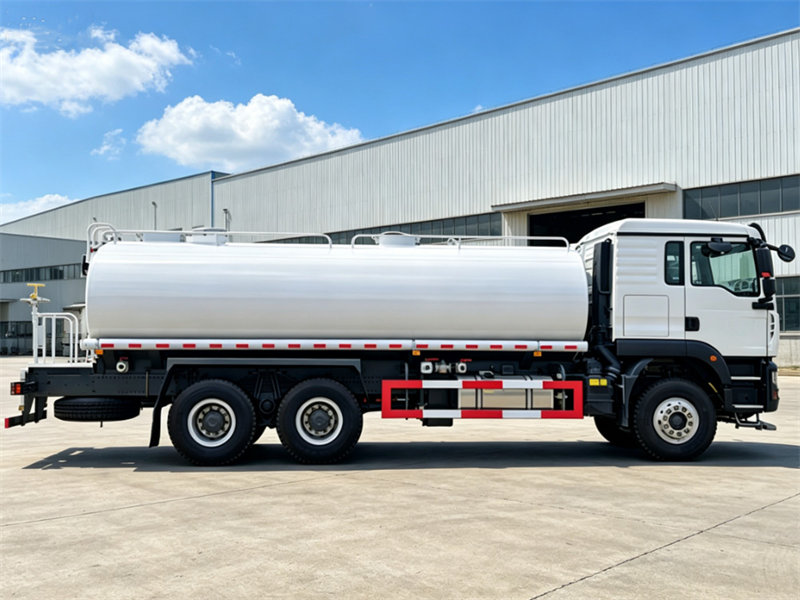

HOWO TX 6x4 20000L Water Tank Truck
Main parameter	Overall dimension (LxWxH)		1030025803350 mm
	Wheel base(mm)		4600+1350 mm
	Driving Type		6×4,left hand drive
	Color		White,blue,green,color can choose
	Front/rear overhang		1535/2215
	Max speed		100 km/h
Weight in KGS	GVW		25000 kg
	Curb weight		11500 kg
	Loading capacity		20 tons
	Front axles loading capacity		7.5T
	Rear axles loading capacity		13 T*2
Engine	Engine model		WD615.47
	Engine type		Inline 6-cylinder 4-stroke, supercharged, intercooled, water-cooled
	Horsepower		370 HP
	Max. output (kw)		273 Kw
	Rated speed		2200rpm
	Maximum Torque		1500N.m
	Displacement(L)		9.7 L
	Emission standard		Euro 2
Transmission	HW19710,10 forward ,2 reserve
Tire	12.00R20 standard tire,10 tires+1 spare tire
Brake	Air brake
Steering	Power steering
Body	Capacity		20000L
	Structure	TANK MATERAIL	5mm,Q235 stee
		Pipe	Galvanized pipe

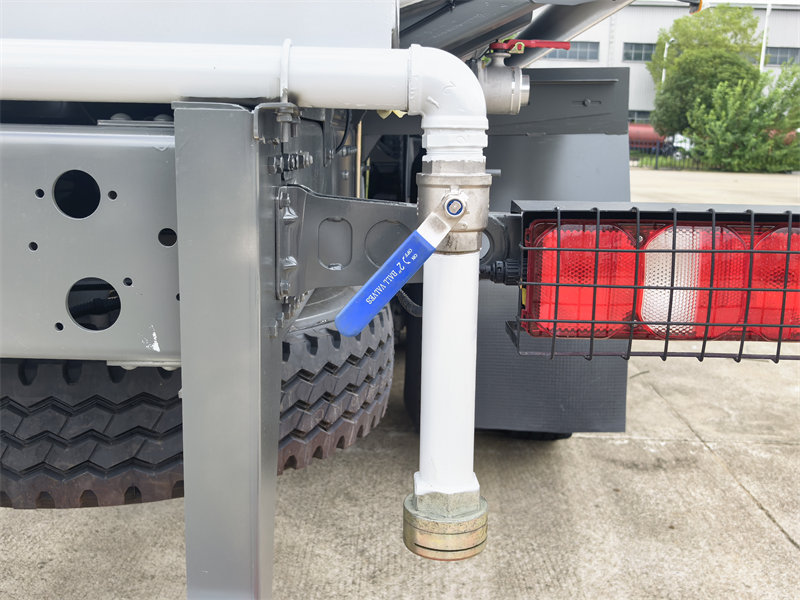

		Discharge nozzle	SS,at side bottom of tank,quick coupling
		Discharge nozzle option	Stainless steel faucet
Water pump	Model		WEILONG 80QZF-60/90S pump
	Flow rate(L/m):		60m3/h
	Head of delivery(m)		90m
	Self-priming function(min/4m)		1.5
	Efficiency(%)		95%
	Related rotate speed(r/min)		1180
	Matched power(kw)		22

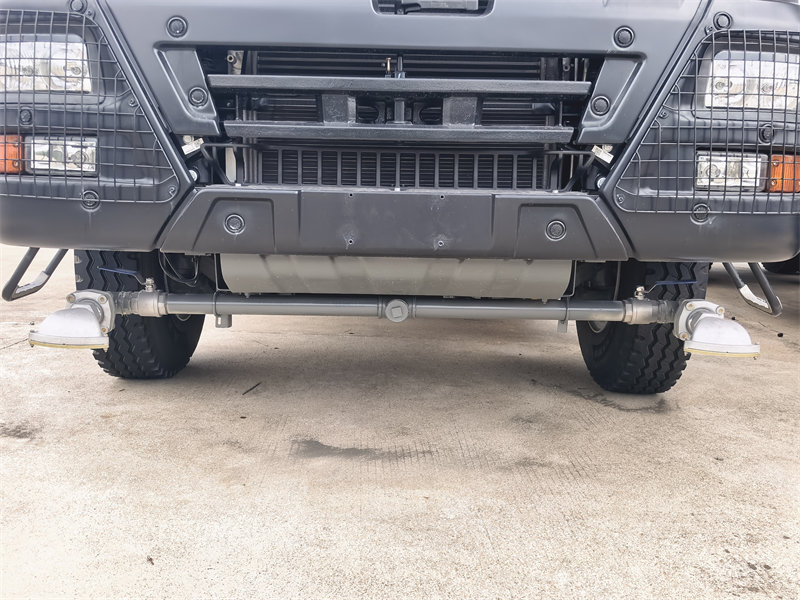

Water sprinkler system	Front sprinkler jet		14m
	Rear sprinkler jet		13m
	Rear sprinkler nozzle range		12m
	Water cannon range		45m
	Water time		＞5 minutes
	Working condition		Flow≥60L/m, 1.55Mpa
	Max working pressure		≥0.9Mpa

✦Ⅲ.Water Pump of Howo Heavy Water Sprinkler Truck «««

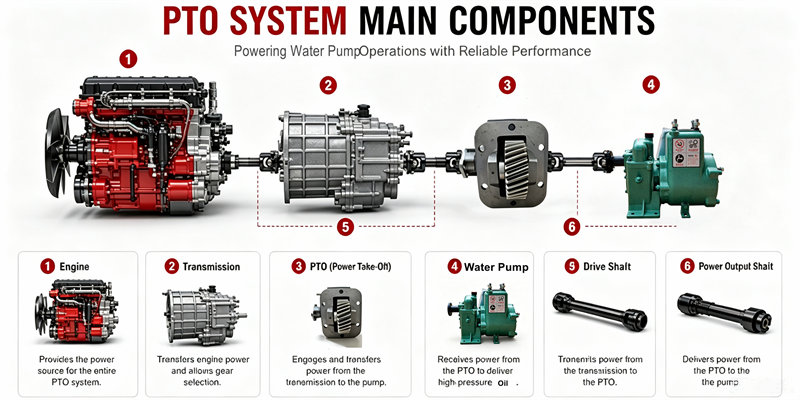

This water sprinkler truck adopts a chassis driven PTO power system to drive its water pump unit. Power is transferred sequentially from the vehicle engine through the transmission, power take off and drive shafts to the water pump, delivering stable power for all water related operations.

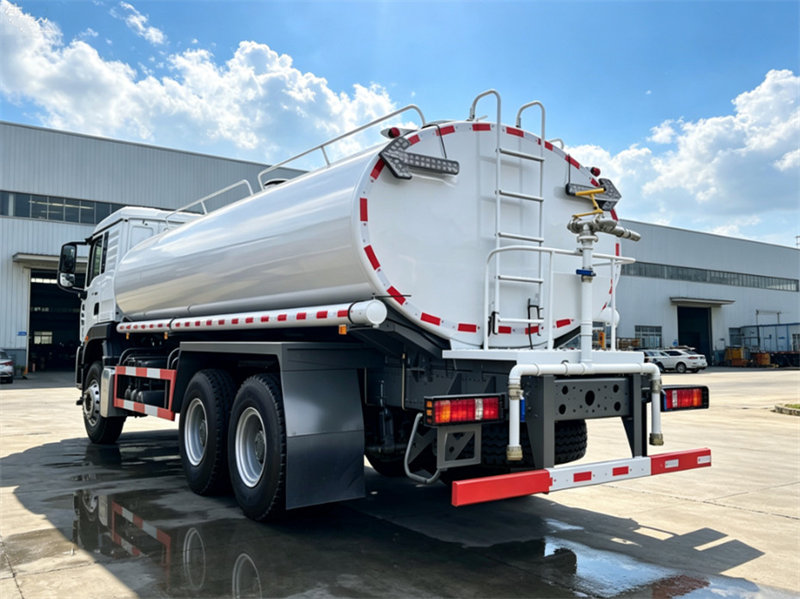

HOWO water tank truck

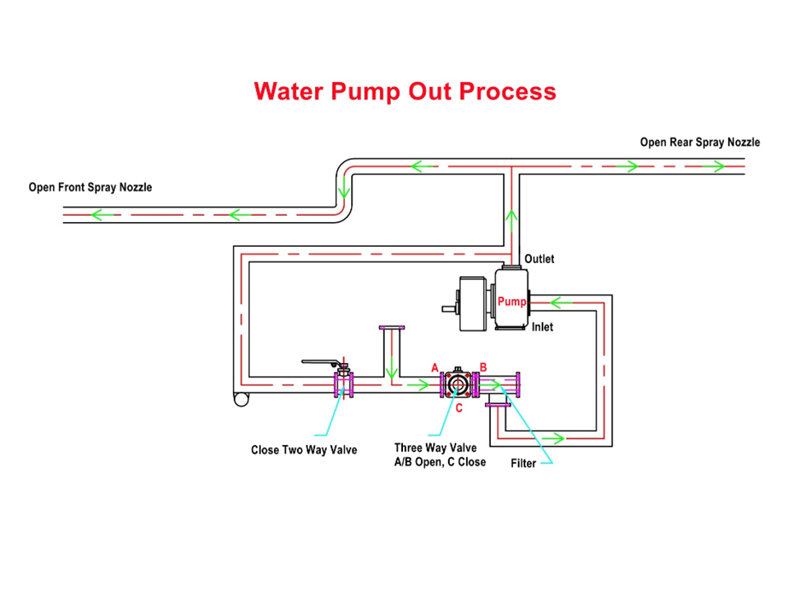

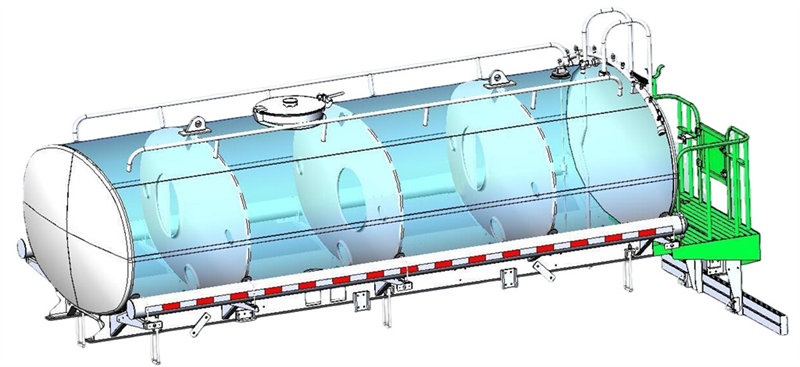

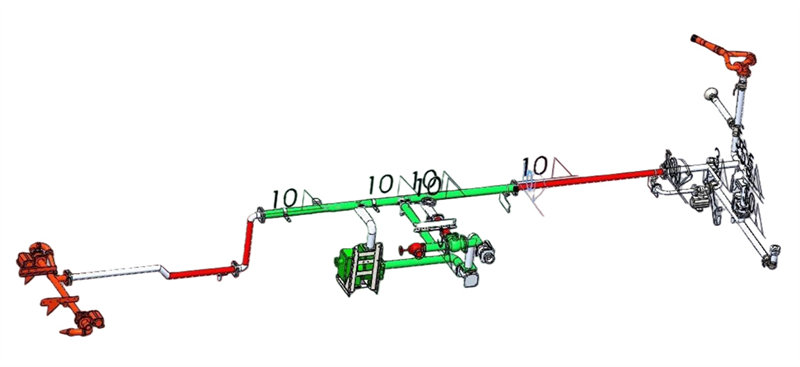

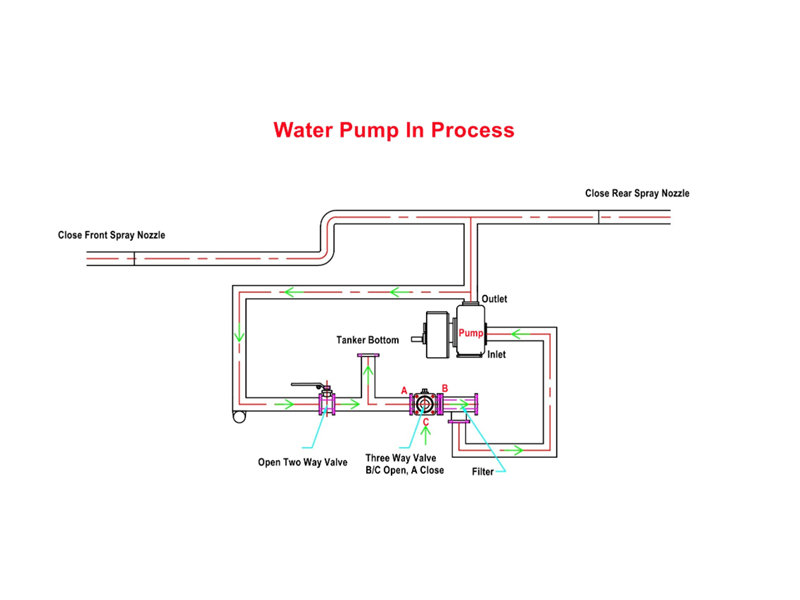

The integrated tank assembly features internal anti surge baffles that suppress liquid sloshing during driving, protecting piping and pump components. A complete pipeline network, filter elements and multi way control valves enable two core working modes: water intake and water discharge. While in water intake mode, the pump draws external water into the tank through the pipeline filter; in water discharge mode, pressurized water flows to front and rear spray nozzles for road washing, dust suppression and irrigation tasks.

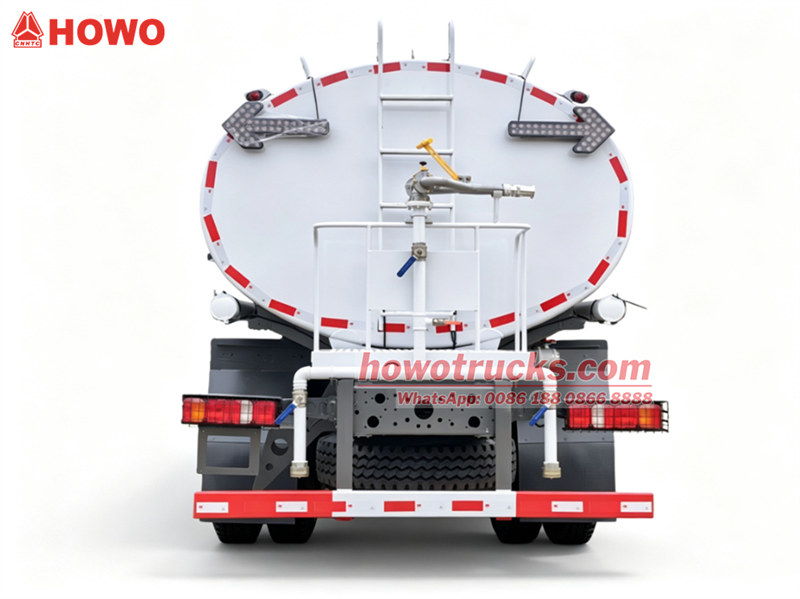

HOWO water tank truck

Every valve and pipe fitting is precisely matched for smooth switching between working states. This well engineered pump and piping layout ensures reliable performance, easy operation and long term service life for daily municipal grade sprinkler work.

Model	Flow rate (m³/h)	Head (m)	Speed (r/min)	Shaft power (KW)	NPSHr (m)	Self-priming time (min/4m)	Efficiency (%)
80QZBF-60/90N(S)	60	90	1180	22.5	4.5	1.5	70
65QZ-40/45N(S)	40	45	1450	9.25	4.5	1.5	72
65QZ-50/50N	50	50	1180	10.5	4.5	1.5	70
65QZBF-50/110N(S)	50	110	1450	24	-	-	70

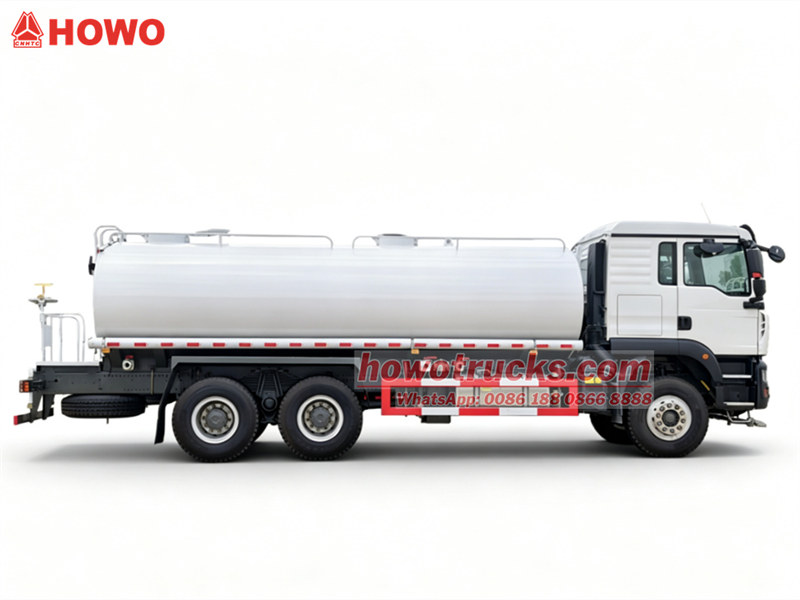

HOWO water tank truck

✦Ⅳ.Advantage for HOWO TX Heavy Water Tank Truck «««

1. Power & Transmission Advantages

♦ Strong power output: 370HP / 273kW, 9.7L large-displacement 6-cylinder engine with 1500N.m torque

♦ Stable continuous operation: Turbocharged intercooled design supports long-hour heavy-duty work

♦ Reliable gear control: 10-forward & 2-reverse transmission for smooth shifting and flexible speed adjustment

♦ Standard compliant: Euro 2 emission standard for wide regional adaptability

2. Chassis & Load Capacity Advantages

♦ Heavy-duty 6×4 chassis: Superior stability and off-road performance than ordinary 4×2 sprinkler trucks

♦ Large loading capacity: 20-ton water loading volume, 25000kg GVW for high-efficiency bulk operation

♦ Reasonable axle load: 7.5T front axle + dual 13T rear axles, anti-deformation for long service life

♦ High mobility: Max 100km/h speed ensures fast site transit

♦ Complete driving config: Air brake + power steering for safe and easy operation

3. Core Water Pump Performance Advantages

♦ High-efficiency dedicated pump: WEILONG professional self-priming sprinkler pump

♦ Fast water absorption: Finishes 4m self-priming in only 1.5 minutes

♦ Large flow & high lift: 60m³/h flow rate, 90m delivery head

♦ Ultra-high efficiency: 95% working efficiency with stable 22kW matched power

♦ Durable continuous work: No pressure drop during long-time spraying operation

4. Full-Range Spraying System Advantages

♦ Multi-angle full coverage: 14m front spray, 13m rear spray, 12m rear nozzle range

♦ Long-distance water cannon: 45m ultra-long shooting range for wide-area dust suppression

♦ Stable high pressure: 0.9Mpa max working pressure, 1.55Mpa standard working condition

♦ Long endurance spraying: Continuous working time over 5 minutes

5. Tank Body & Structural Advantages

♦ Thickened durable tank: 5mm Q235 steel plate for anti-corrosion and anti-wear performance

♦ Premium pipeline system: Galvanized pipes + stainless steel quick-coupling discharge nozzle

♦ Customizable appearance: Multiple color options (white/blue/green)

♦ Complete tire configuration: 12.00R20 standard tires with 1 spare tire for road adaptability

⇒ The production capacity of over 4,000 trucks every year.

⇒ Over 100 countries worldwide.

⇒ Complete after-sales service system.

We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.

China professional HOWO special truck supplier and exporter, we supply high quality Howo special truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our HOWOtrucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.

♦ Maximize save your sea freight.

♦ Professional guidance on your importing documents.

♦ Safety, Quickly, Timely

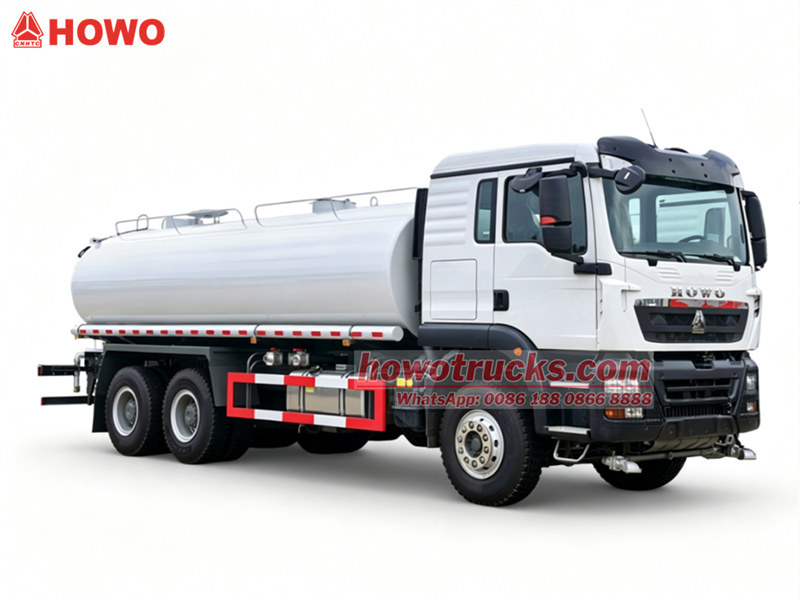

HOWO TX 20000L water tank truck
