HOWO multi-function dust suppression water tanker truck

HOWO heavy dust suppression water tanker truck

HOWO 350HP multi-function dust suppression water tanker truck

HOWO 18000L dust suppression water tanker truck

HOWO heavy 350HP dust suppression water tanker truck

HOWO heavy 6x4 dust suppression water tanker truck

HOWO multi-function dust suppression water tanker truck

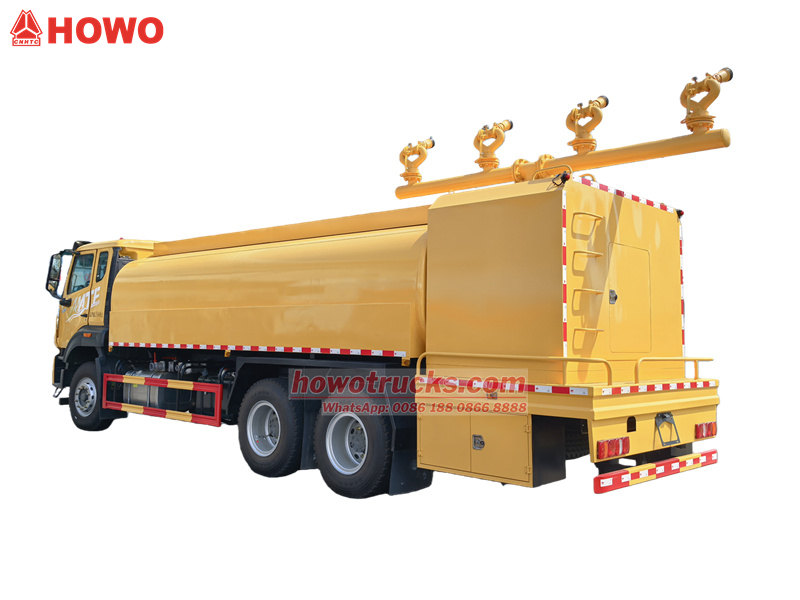

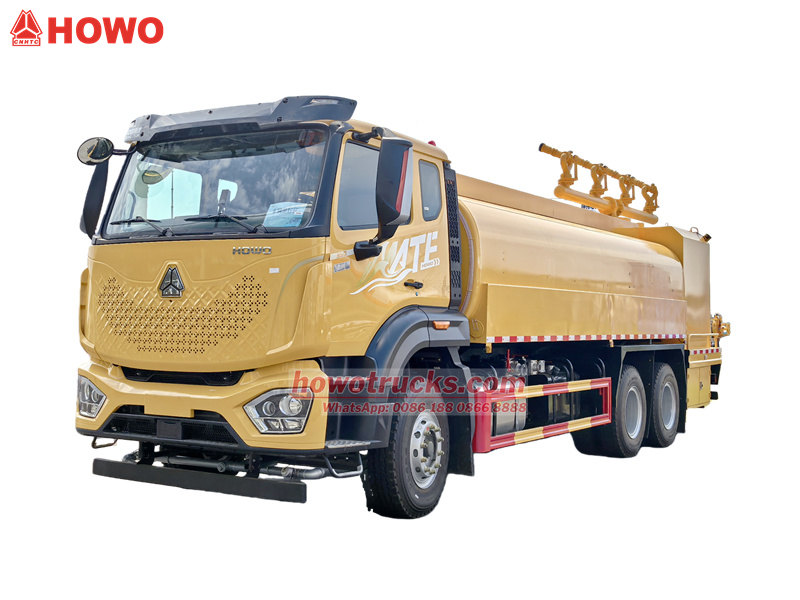

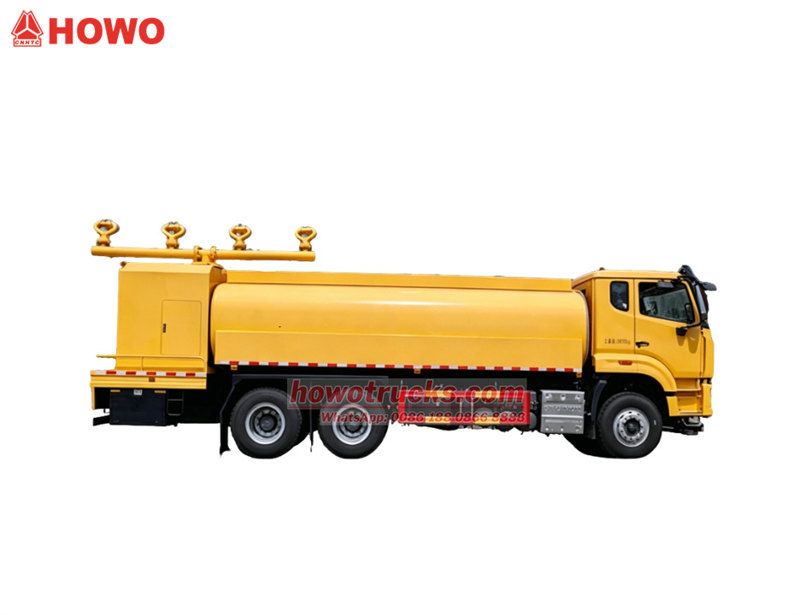

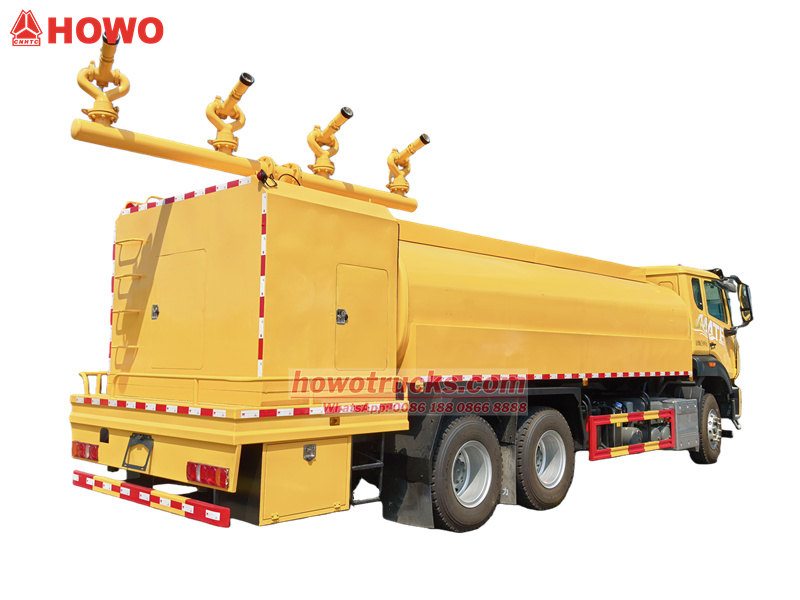

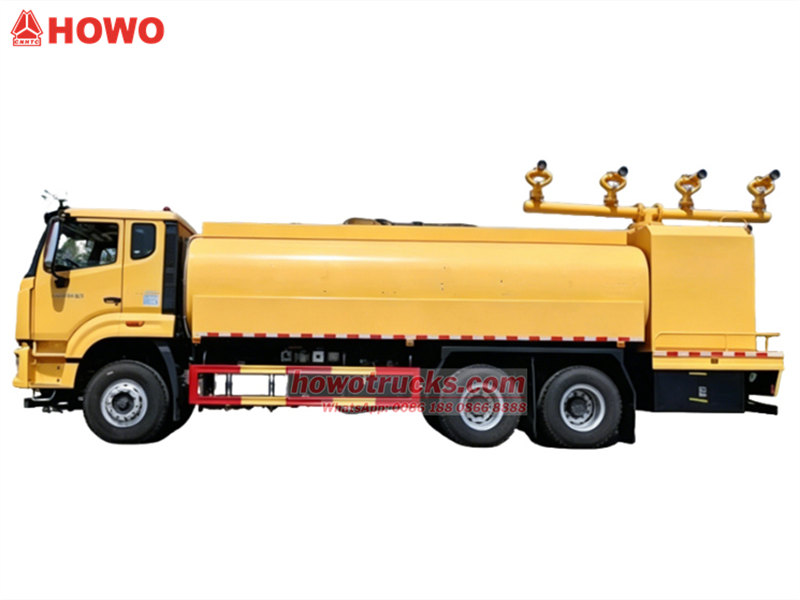

HOWO multi-function dust suppression water tanker truck.Purpose-built for harsh mine sites to eliminate heavy dust during mining & haulage operations, with extra functions for site washing and equipment cooling.Built on reliable HOWO 6x4 heavy-duty chassis, upgraded for superior off-road capability and stable heavy-load performance vs standard sanitation water trucks.Fitted with a large 17,000L water tank + hydraulic rotatable multi-angle water cannons, delivering long working hours and wide coverage for all-around mine dust control.An essential heavy special vehicle for mine environmental management.

工作能力 :
20000 liters
舱型 :
HOWO single cabin with sleeper and A/C
驱动系统 :
6×4
轴距（毫米） :
10750x2550x3650 mm
发动机专用 :
350HP/MC07H.35-61
变速箱 :
HW19710, 10 Forward & 2Reverse
前轴（公斤） :
7.5T
后轴（公斤） :
13 T*2

产品详情
客户案例

HOWO multi-function dust suppression water tanker truck.Purpose-built for harsh mine sites to eliminate heavy dust during mining & haulage operations, with extra functions for site washing and equipment cooling.Built on reliable HOWO 6x4 heavy-duty chassis, upgraded for superior off-road capability and stable heavy-load performance vs standard sanitation water trucks.Fitted with a large 17,000L water tank + hydraulic rotatable multi-angle water cannons, delivering long working hours and wide coverage for all-around mine dust control.An essential heavy special vehicle for mine environmental management.

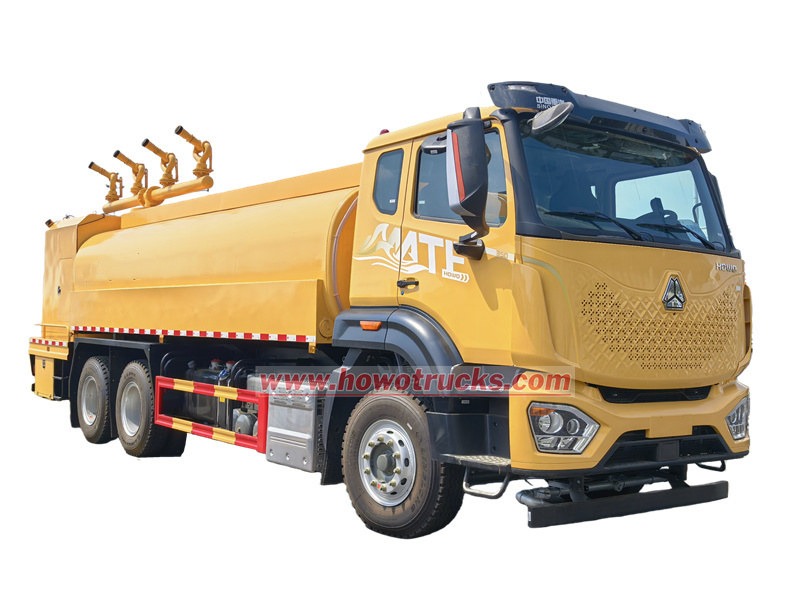

HOWO 6x4 water truck

*HOWO TX 6x4 Water Tanker Truck

Sinotruk HOWO Dusty Suppression Water Truck*

-----------------------------------------------------------------

CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

✦Ⅰ.Product Defination and Introduction «««

Manufacturer: CS TRUCKS Group

Features:

1.High flow & long spraying range: Flow ≥6m³/min, effective shooting distance 70–80m

2.Efficient continuous operation: Single spray lasts 2–3 mins for high productivity

3.Hydraulic drive system: Easy operation, low failure rate & minimal maintenance cost

4.Tank capacity:17m³ large tank, supports secondary blasting dust suppression

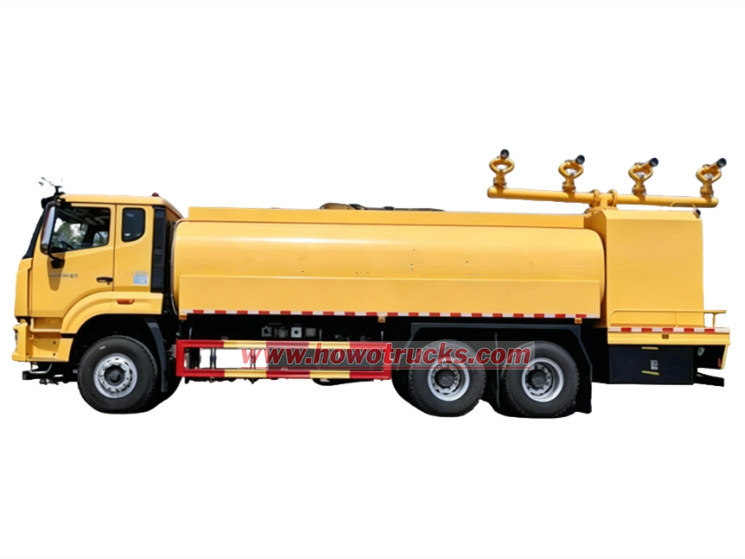

HOWO 6x4 water tank truck

✦Ⅱ.Parameter for HOWO TX Water Dust Truck «««

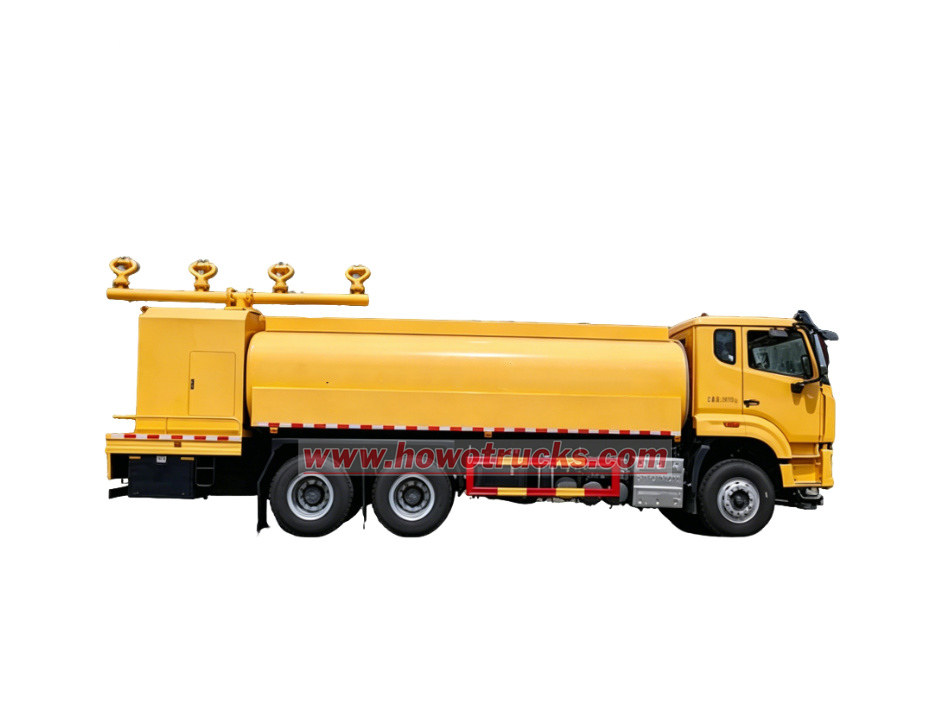

HOWO 6x4 heavy water tank truck

HOWO multi-function dust suppression water tanker truck
Main parameter	Overall dimension(LxWxH)		10750x2550x3650 mm
	Wheel base(mm)		4600+1350mm
	Driving Type		6×4,left hand drive
	Color		White,blue,green,color can choose
	Front/rear overhang		1535/2215
	Max speed		100 km/h
Weight in KGS	GVW		25000 kg
	Curb weight		15000 kg
	Loading capacity		17000L
	Front axles loading capacity		7.5T
	Rear axles loading capacity		13 T*2
Engine	Engine model		MC07H.35-61
	Engine type		Inline 6-cylinder 4-stroke, supercharged, intercooled, water-cooled
	Horsepower		350HP
	Max. output (kw)		254Kw
	Rated speed		1700rpm
	Maximum Torque		1460N.m
	Displacement(L)		7.36 L
	Emission standard		Euro 6
Transmission	HW19710,10 forward ,2 reserve
Tire	11.00R20 18PR standard tire,10 tires+1 spare tire
Brake	Air brake
Steering	Power steering
Body	Capacity		17000L
	Structure	TANK MATERAIL	6mm,Q235 steel
		Pipe	Galvanized pipe
		Discharge nozzle	SS,at side bottom of tank,quick coupling
		Discharge nozzle option	Stainless steel faucet
Water pump	Model		CB10/60 fire water pump
	Flow rate(L/m):		3Tons/min
	Head of delivery(m)		90m
	Self-priming function(min/4m)		1.5
	Efficiency(%)		95%
	Related rotate speed(r/min)		1680

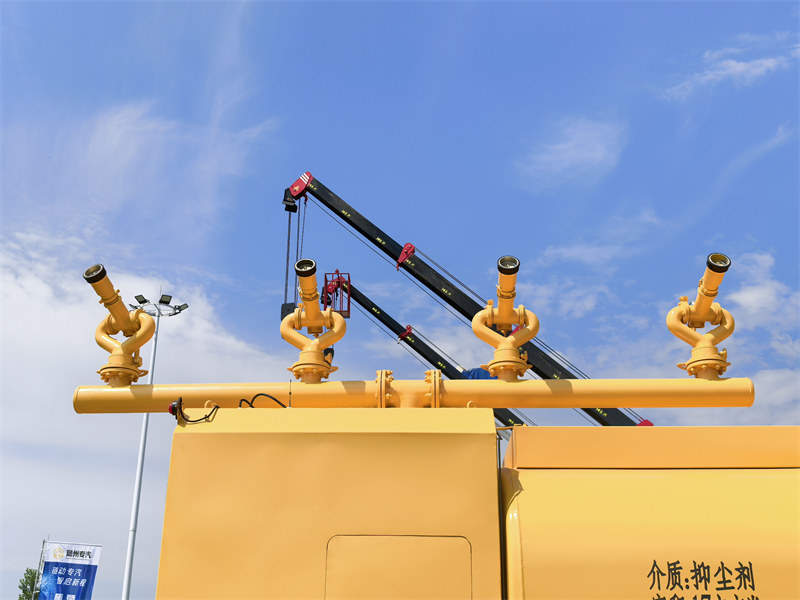

Water cannon system	Canon NO.		Adjustable water cannon head with 4 fixed single-sided installations
	Water cannon range		50-80 m
	Coverage area		2500 ㎡
	Water time		＞5 minutes
	Max working pressure		≥0.9Mpa
	Rotation type		Hydraulic

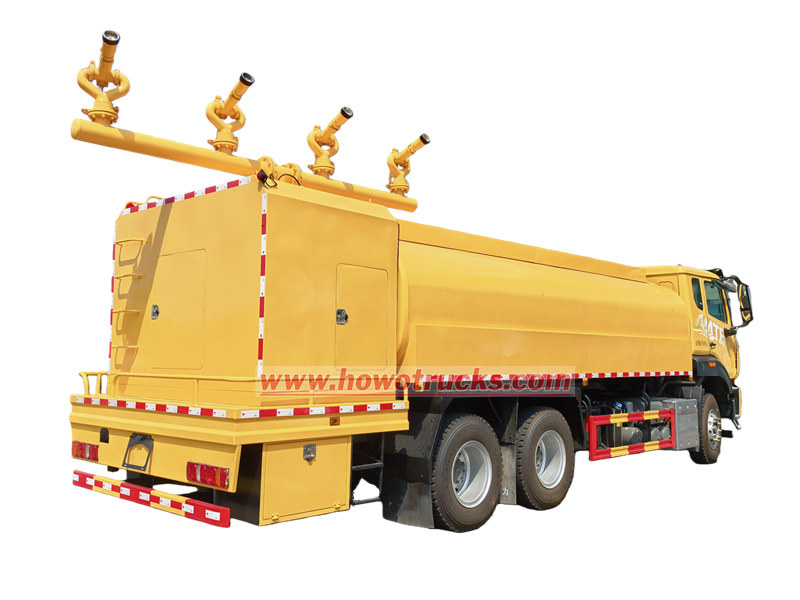

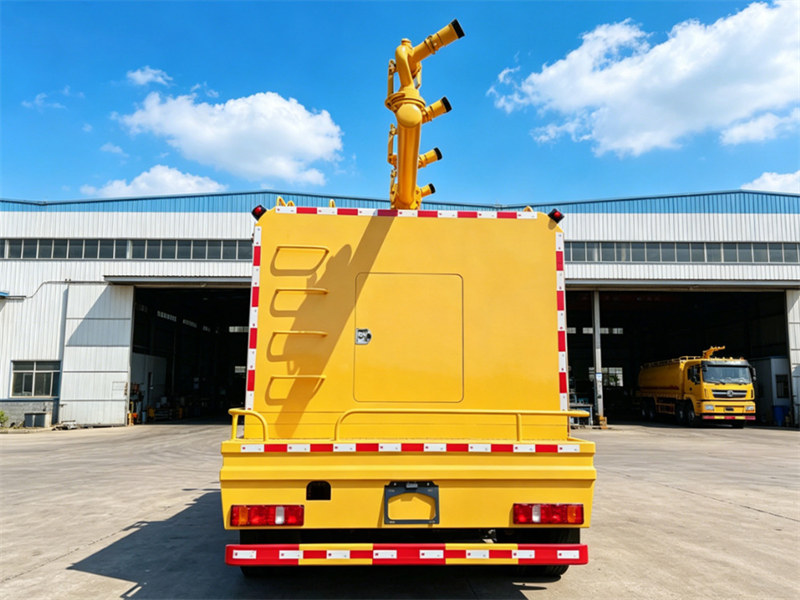

HOWO water tank truck

✦Ⅲ.Advantage for HOWO Heavy Dusty Suppression Water «««

1. Heavy-Duty HOWO 6x4 Chassis

♦ Strong load-bearing capacity, stable driving on rugged mining roads.

♦ MC07H 350HP inline 6-cylinder turbo engine, peak torque 1460N·m, powerful climbing & hauling performance.

♦ HW19710 10-speed manual transmission + air brake + power steering, easy control under heavy load

♦ 11.00R20 18PR heavy-duty tires, durable for harsh mine terrain

♦ Max speed 100km/h, matched 4600+1350mm wheelbase for balanced weight distribution

2. 17m³ Multi-Function Dust Suppression Upper Body

♦ 17000L large Q235 steel tank paired with hydraulic rotating 4 water cannons;

effective spray range 50–80m, single continuous working time over 5 mins

♦ Wide 2500㎡ coverage for blasting dust suppression, site washing & equipment cooling.

♦ 6mm thick Q235 steel tank + full galvanized pipeline, anti-corrosion &

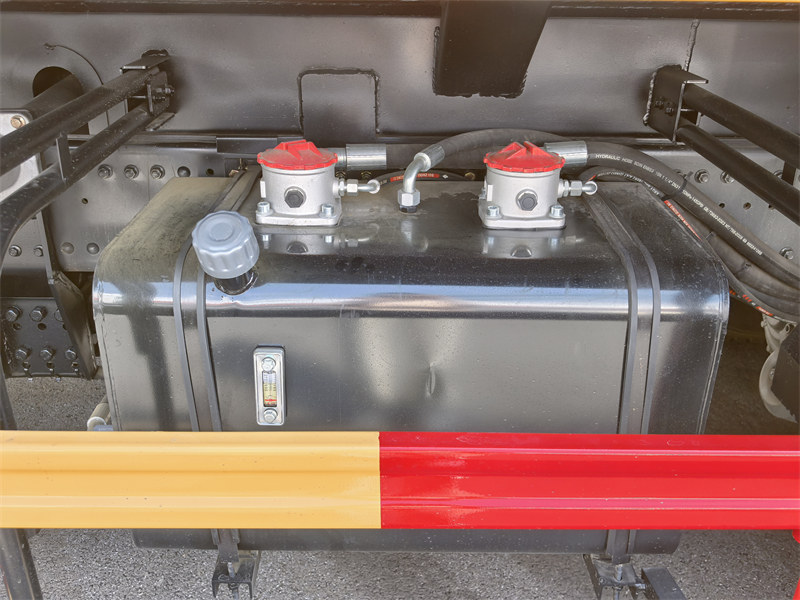

♦ Hydraulic cannon rotation system, low failure rate & minimal maintenance cost.

✦Ⅳ.Operation system of HOWO dust suppression water tanker truck «««

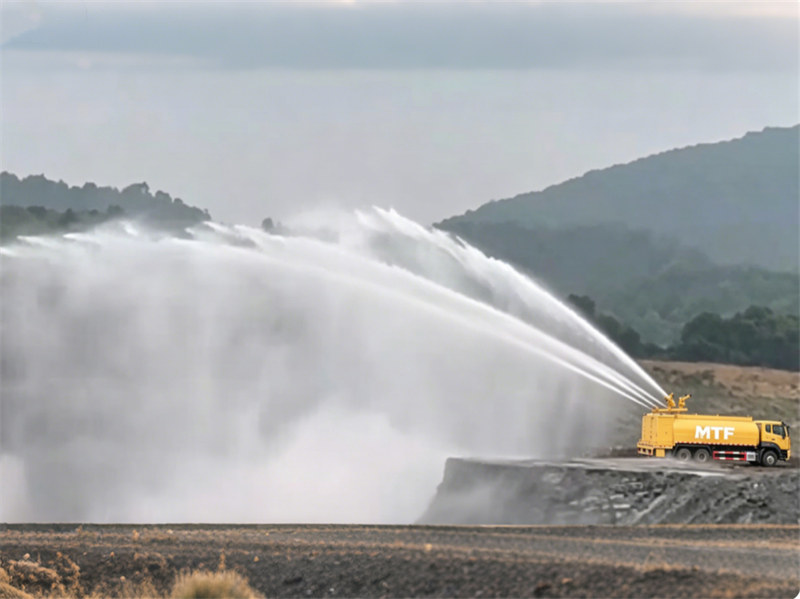

This HOWO multi-functional dust suppression truck boasts outstanding practical working performance for mining scenarios. It is fitted with four hydraulically rotatable water cannons and a high-flow CB10/60 water pump, delivering a long spraying range of 50–80 meters, sustained spraying over 5 minutes and wide coverage up to 2500㎡, which efficiently eliminates heavy dust generated during secondary blasting, ore transportation and pit excavation.

HOWO multi-function dust suppression water tanker truck

Canon NO.	Adjustable water cannon head with 4 fixed single-sided installations
Water cannon range	50-80 m
Coverage area	2500 ㎡
Water time	＞5 minutes
Max working pressure	≥0.9Mpa
Rotation type	Hydraulic

⇒ The production capacity of over 4,000 trucks every year.

⇒ Over 100 countries worldwide.

⇒ Complete after-sales service system.

We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.

China professional HOWO special truck supplier and exporter, we supply high quality Howo special truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our Howo trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.

♦ Maximize save your sea freight.

♦ Professional guidance on your importing documents.

♦ Safety, Quickly, Timely

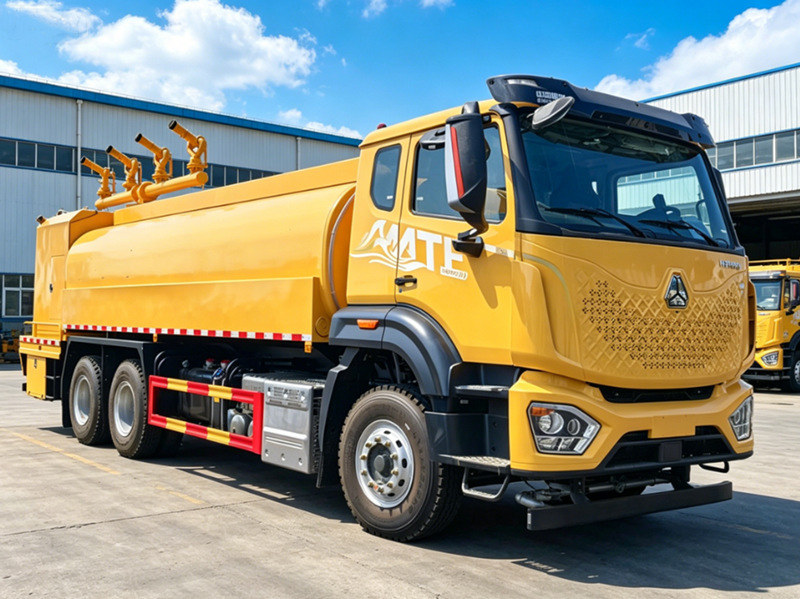

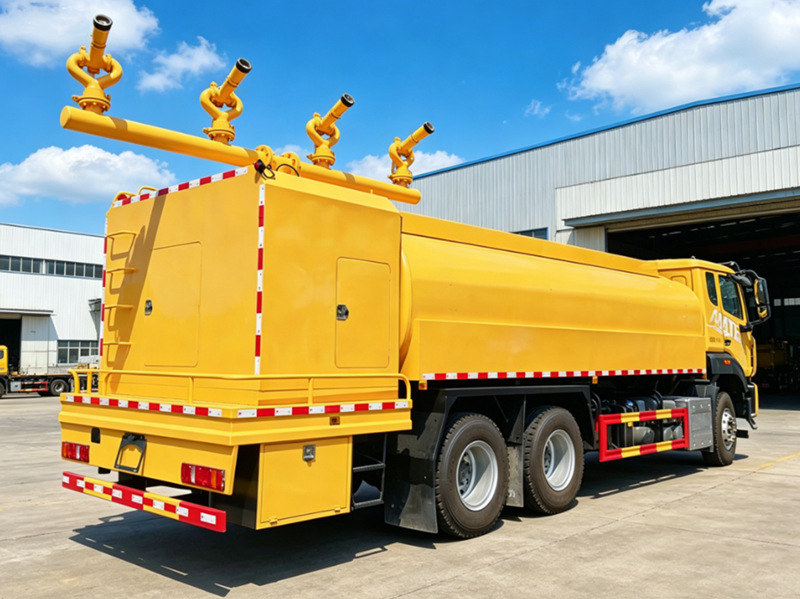

Howo TX heavy 20000L water tank truck
