HOWO rescue fire water tank truck

HOWO light quick attack emergency fire truck

HOWO rescue fire water tank truck

The HOWO Light Fire Truck is a highly agile, fully functional emergency rescue vehicle engineered for urban fire response. Powered by a 140HP Yuchai engine, paired with a 4x2 light duty drive system and 6-speed transmission, it delivers outstanding flexibility to traverse narrow, congested urban roads and respond rapidly to small-scale fire incidents.It features a 4000L water tank to cover diverse firefighting scenarios. Fitted with a premium Chinese-brand fire pump, it achieves a working pressure of 1.3–2.5 MPa and a maximum flow rate of 20 L/s, capable of tackling most common fire types efficiently. The 360° rotatable fire monitor boasts a 55m shooting range, greatly boosting on-site firefighting effectiveness.

工作能力 :
4000L
舱型 :
HOWO light single cabin (3)
驱动系统 :
4x2
轴距（毫米） :
3800
发动机专用 :
140 HP / YC4E140-32
变速箱 :
WLY, 6 forwards & 1 reverses
前轴（公斤） :
2800
后轴（公斤） :
5500

产品详情
客户案例

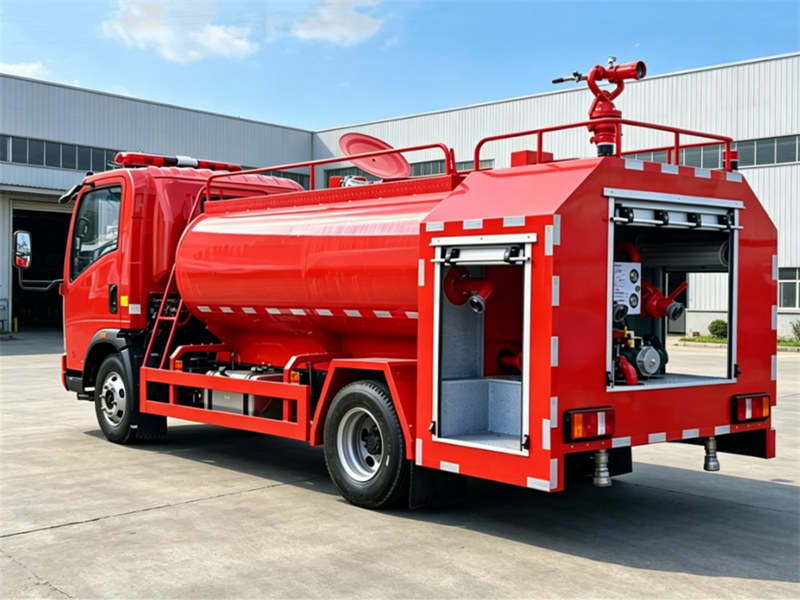

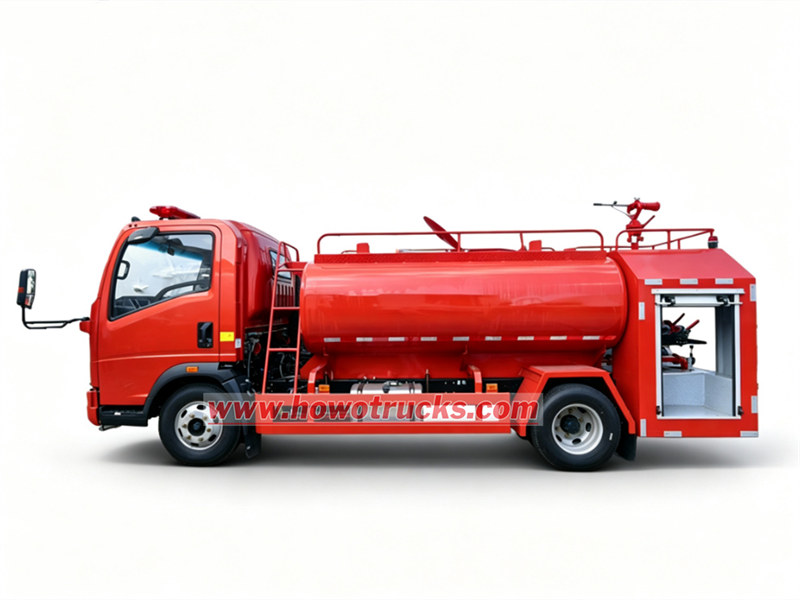

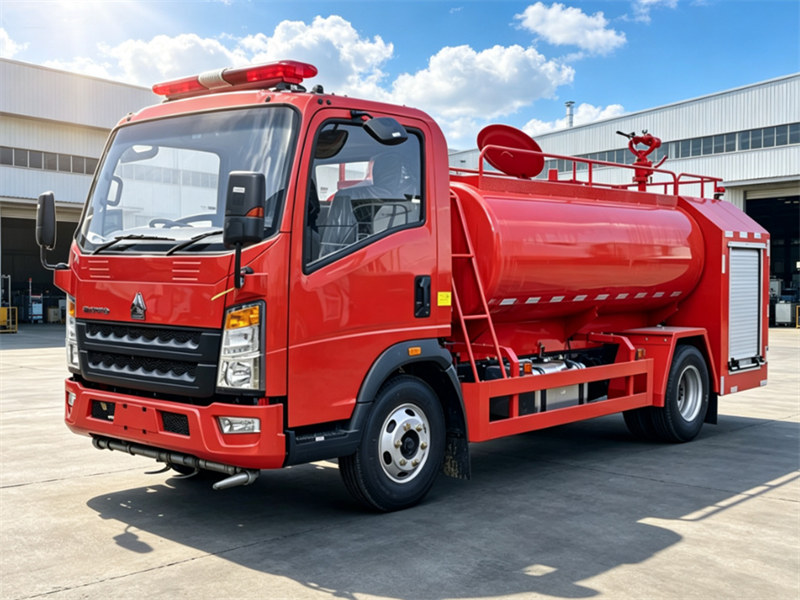

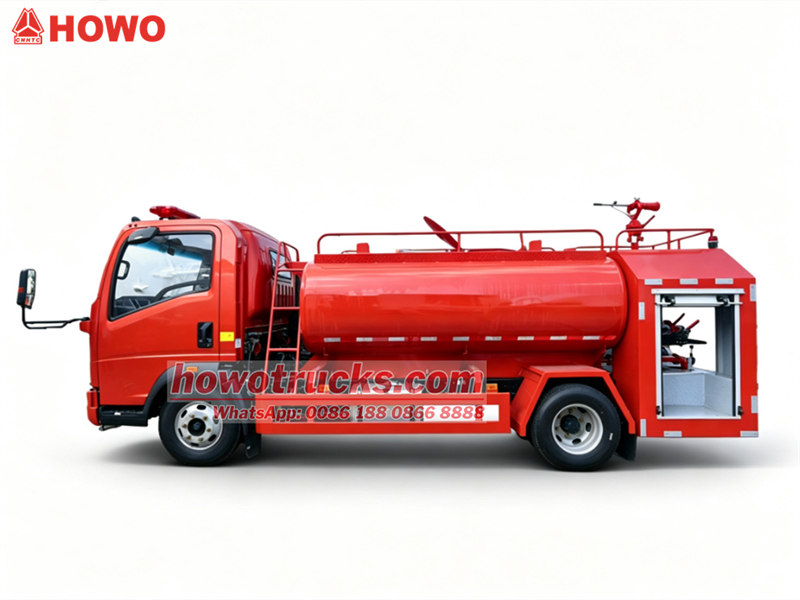

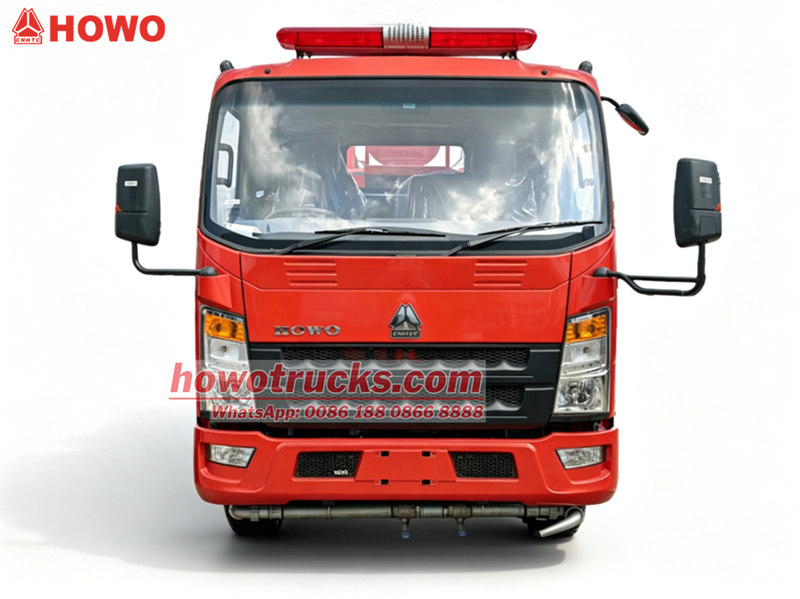

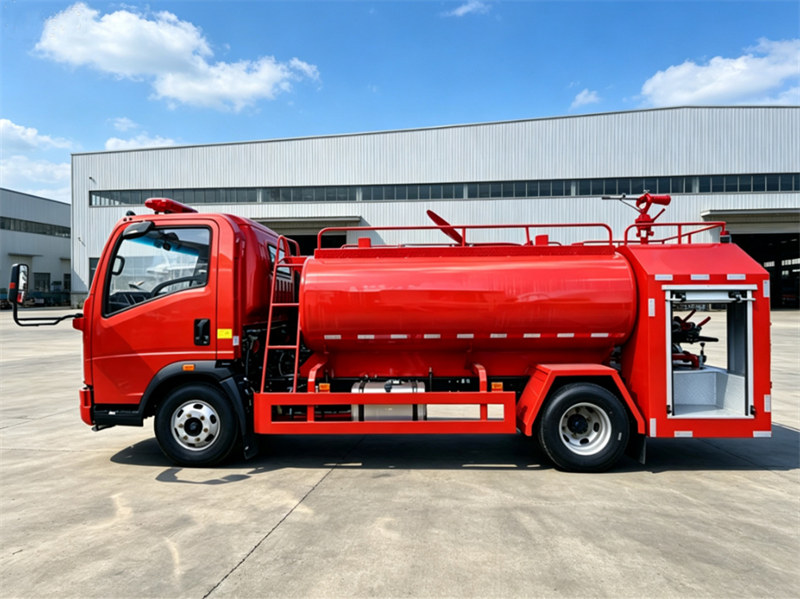

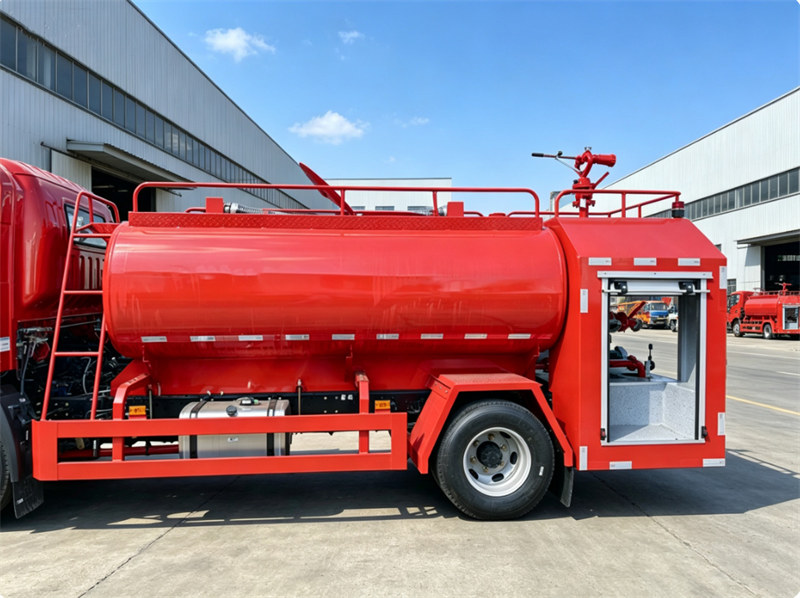

The HOWO Light Fire Water Tank Truck is a highly agile, fully functional emergency rescue vehicle engineered for urban fire response. Powered by a 140HP Yuchai engine, paired with a 4x2 light duty drive system and 6-speed transmission, it delivers outstanding flexibility to traverse narrow, congested urban roads and respond rapidly to small-scale fire incidents.

It features a 4000L water tank to cover diverse firefighting scenarios. Fitted with a premium Chinese-brand fire pump, it achieves a working pressure of 1.3–2.5 MPa and a maximum flow rate of 20 L/s, capable of tackling most common fire types efficiently. And equiped with the protection water spraying system. The 360° rotatable fire monitor boasts a 55m shooting range, greatly boosting on-site firefighting effectiveness.

Built with a high-strength steel chassis and aluminum alloy superstructure, this 140HP HOWO fire truck balances lightweight design with long-lasting durability. Full LED warning and lighting systems guarantee safe nighttime driving and operation.

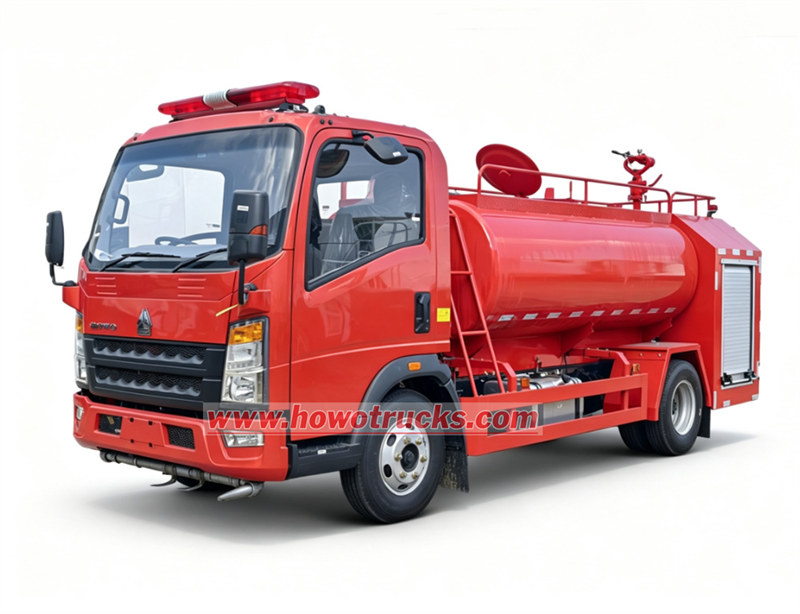

HOWO fire fighting truck

*HOWO Light 4x2 Fire Water Truck*

------------------------------------------------------------------

CS Trucks Group is professional manufacturer in Howo truck area,

guarantee all products Brand-New and High-Quality.

✦Ⅰ.Product Defination and Introduction «««

Manufacturer: CS Trucks Group

Features:

✅ Compact HOWO light chassis, outstanding urban passability

✅ 140HP Euro 6 Yuchai power, rapid emergency response

✅ Lightweight aluminum upper body, long service life

✅ Hight load 4000L water tank design

✅ High-flow auto-priming fire pump + 55m 360° rotating fire monitor

✅ Full LED warning & working lighting system

✅ Complete rescue tools included, ladders & floodlights optional

HOWO light fire fighting truck

✦Ⅱ.Product Parameter For HOWO Fire Foam Truck «««

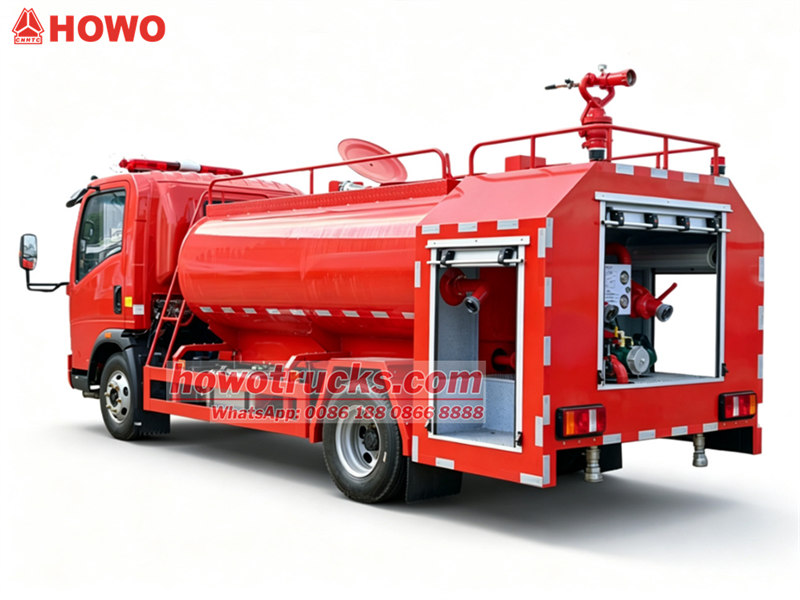

HOWO fire water tank truck

Best Choice,HOWO Fire Trucks

⇓ ⇓ ⇓

HOWO Light Duty Fire Truck
General	Vehicle Brand	CS Trucks Group
	Chassis Brand	HOWO
	Overall Dimension	630024502550mm
	GWW/ Kerb Weight	9,300kg/4,080kg
	Painting	Red
Cab	Cab Capacity	3 persons allowed
	Air Conditioner	air conditioner
Engine	Fuel Type	Diesel
	Engine Model	YC4E140-32
	Engine type	Inline 4-cylinder, turbocharged, inter-cooled diesel engine
	Power	140HP
	Displacement	3.86L
	Emission Standard	Euro 3
Chassis	Drive Type	4X2,left hand drive
	Transmission	Manual 6-speed forward, 1 reverse
	Wheelbase/No.of axle	3800 mm / 2
	Tyre Specification	8.25R20
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	95km/h
	Fuel tank capacity	100L
	PTO	Full power sandwich type
Superstructure	Liquid Tank	Capacity	Water 4000L
	Tank Material	Carbon steel (optional stainless steel)
	Standardized Sub-frame	Material	High-strength rectangular tube made of special steel
		Structure	Aluminum alloy welded structure. Roof railing with LED light. With aluminum alloy ladder in the rear
	Fire Pump	Brand	China TOP brand
		Drive mode	PTO
		Priming Manner	Automatic
		Pressure range	1.3-2.5 MPa
		Flow rate	20 L/s
		Suction Height	7m
	Fire Cannon	Horizontal rotation angle	360 º
		Range	45 m
	Superstructure Electric Appliance	Warning Light and Siren	Long-row warning light and siren are mounted above cabin. The controller is installed in the driver's cabin.
		Strobe Light	Mounted on the both sides of the compartment
		External Lighting	LED lights are mounted on the both sides of the compartment
		Roof Lighting	LED lights are mounted on the inside of the roof
		Side Indicator Light	Inline yellow warning light is mounted on the side of the compartment and pedals
	All standard accessories.Typical modern fire apparatu scarries equipment for a wide range of fire fighting and rescue tasks.These include shovel,pike poles,axes and cutting equipment, halligan bars...
Optional	Ladders,floodlight

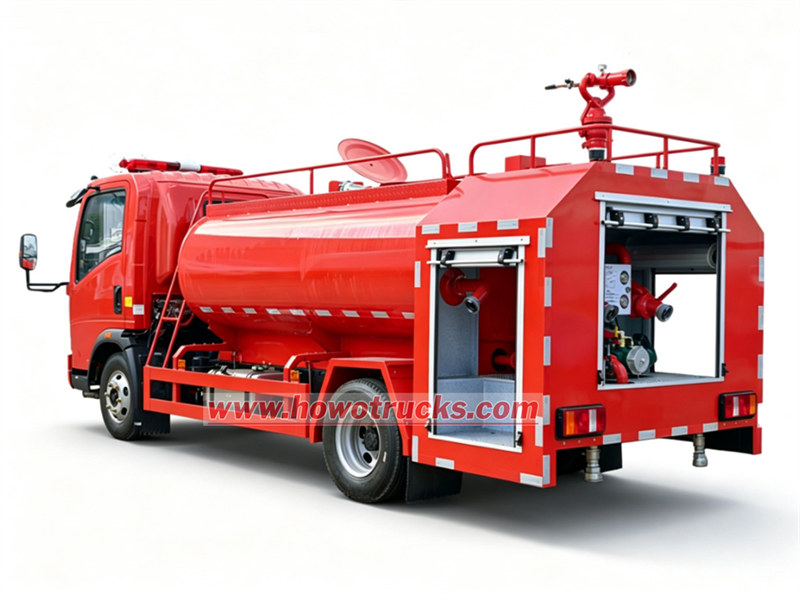

HOWO fire water tank truck

✦Ⅲ.Advantage Of HOWO Fire Water Truck «««

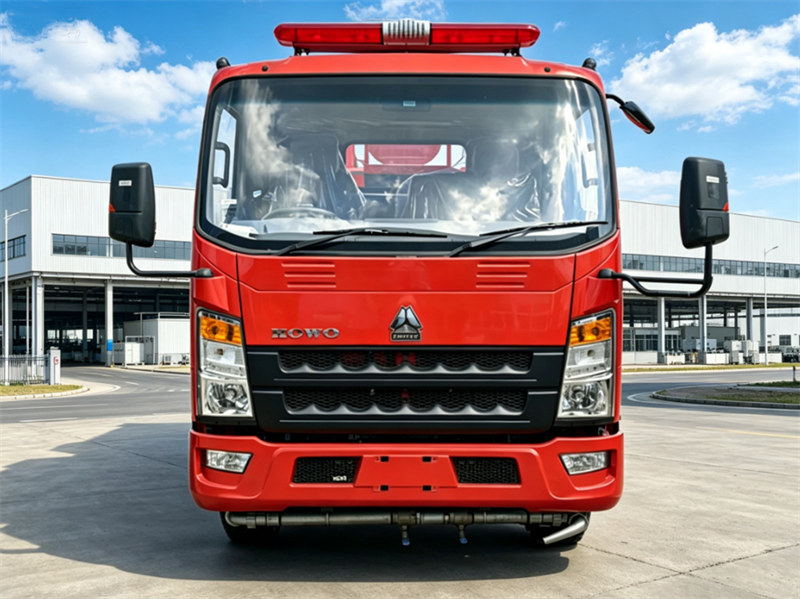

1. Agile & Reliable HOWO Light Chassis

♦ Original HOWO 4×2 LHD chassis with compact 6300×2450×2550mm overall size, easily navigating narrow streets and tight job sites

♦ 140HP Yuchai Euro 6 diesel engine + 6-speed manual transmission, max speed 95km/h for fast emergency dispatch

♦ 3 person cab, seats 3 firefighters for full team operation; cab-mounted control panel for warning lights & siren

♦ Light curb weight (4,080kg) with 9,500kg GVW, stable load capacity; 8.25R20 tires + full power sandwich PTO for steady pump power output

2. High-Performance Fire Suppression System

♦ Top-brand automatic priming fire pump driven by chassis PTO, 7m suction height, 1.3–2.5 MPa pressure, 40 L/s steady flow.

♦ 360° full rotation roof fire monitor with 45m maximum jet range, zero blind angle for efficient fire knockdown without repositioning the truck.

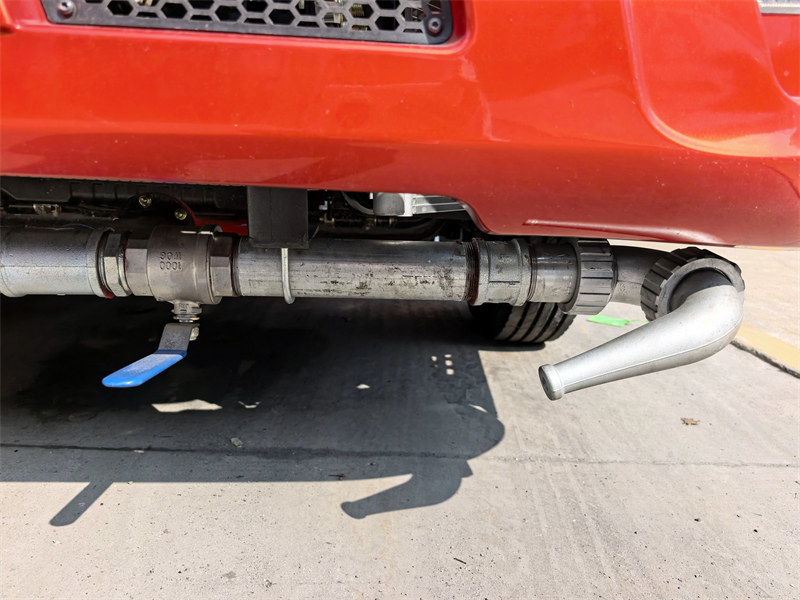

♦ Equipped with a self-protecting sprinkler system

✦Ⅳ.Protection System Of HOWO Fire Water Truck «««

This HOWO water‑tender fire truck is fitted with an integrated self‑protection sprinkler system. When operating under intense heat and flame radiation, the onboard sprinkler setup sprays cooling water over the truck body, chassis and pump compartment. It shields critical piping, valves and hydraulic assemblies from high‑temperature damage, prevents overheating of core firefighting components, and allows the vehicle to stay safely close to fire scenes for sustained fire‑suppression work. This built‑in protection greatly improves crew safety and extends usable service life even in harsh high‑heat emergency conditions.

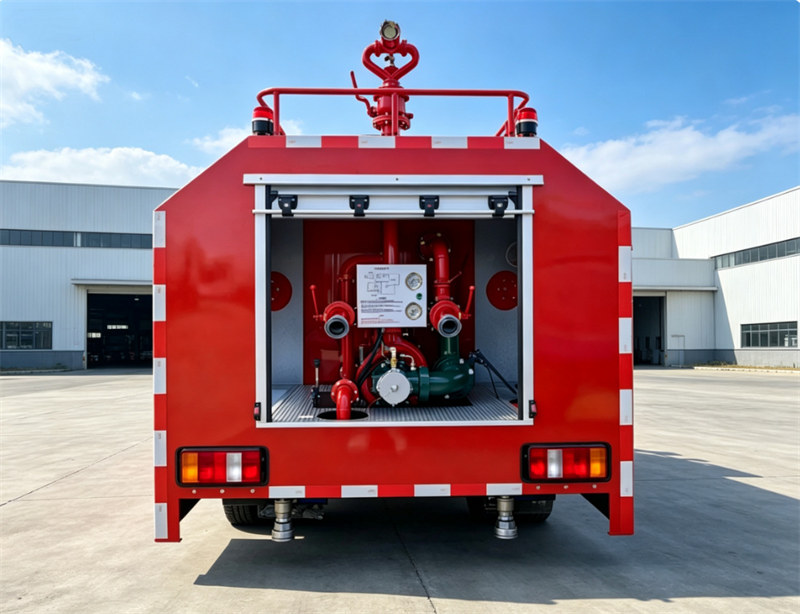

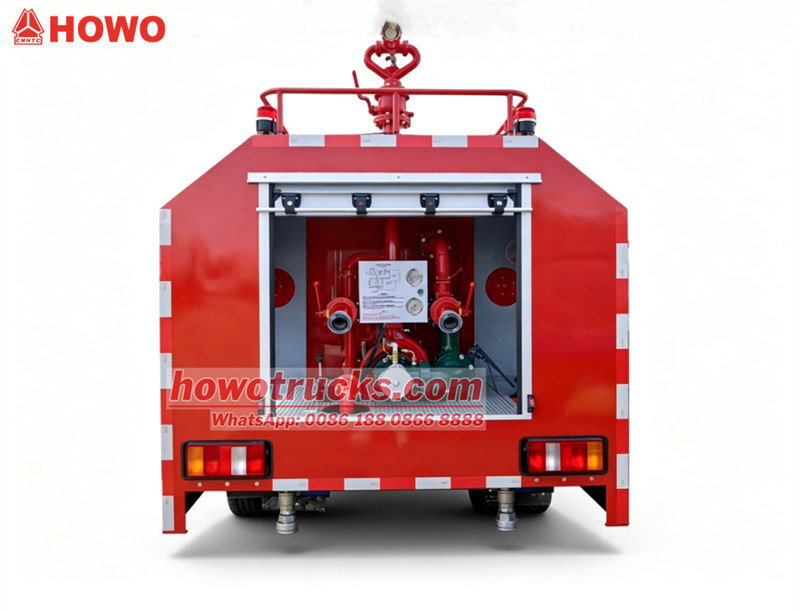

✦Ⅴ.Fire Pump System Of HOWO Fire Water Truck «««

HOWO fire pump truck

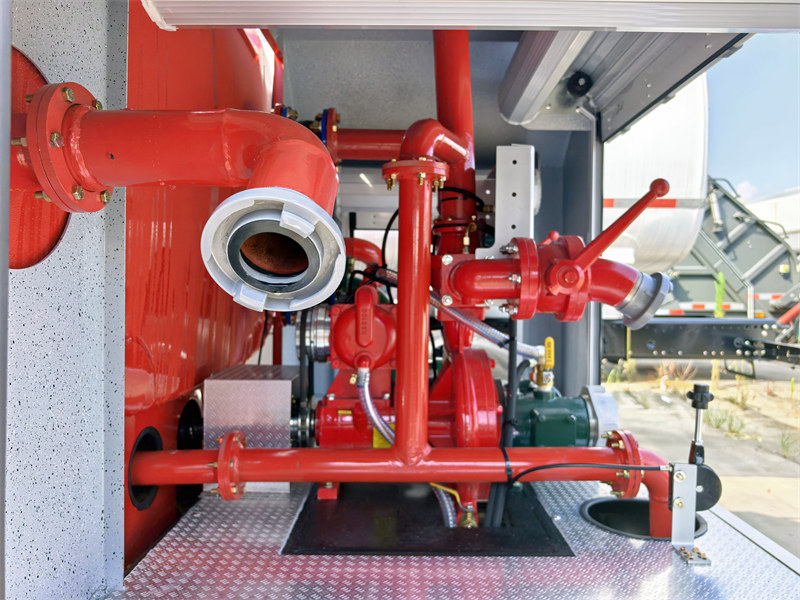

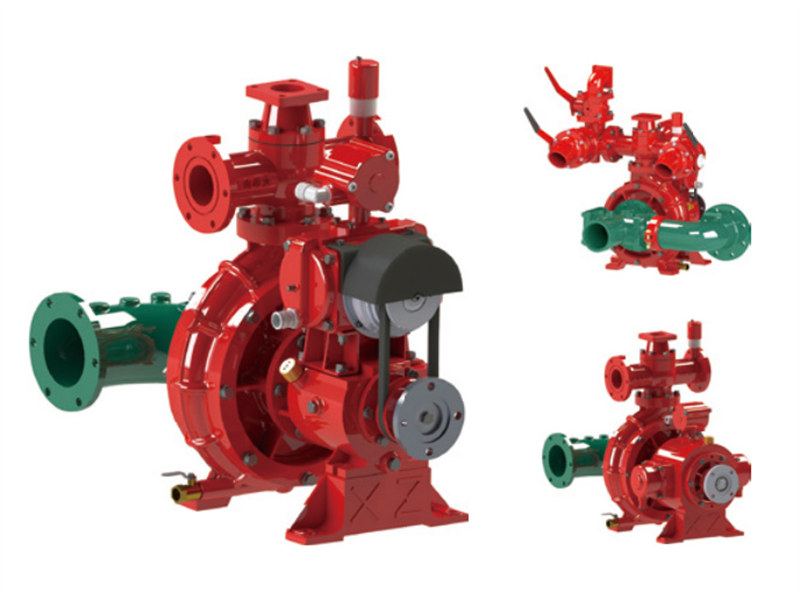

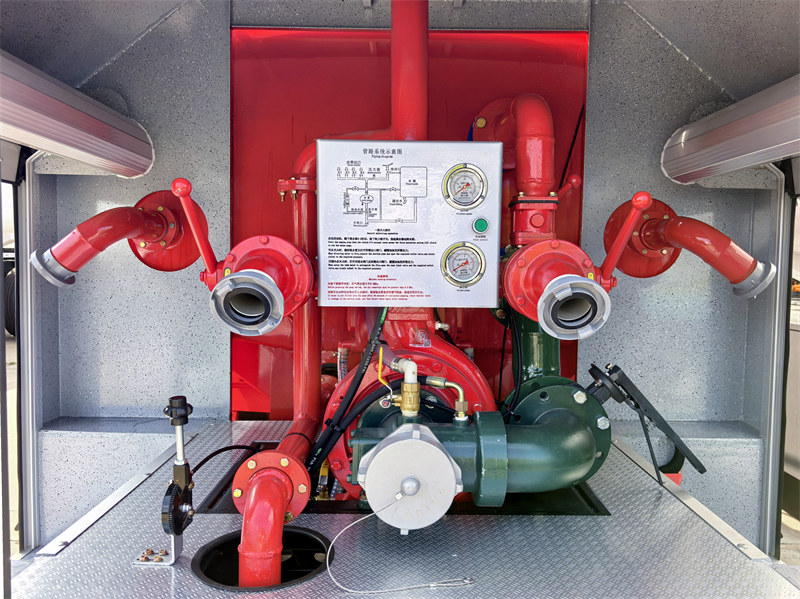

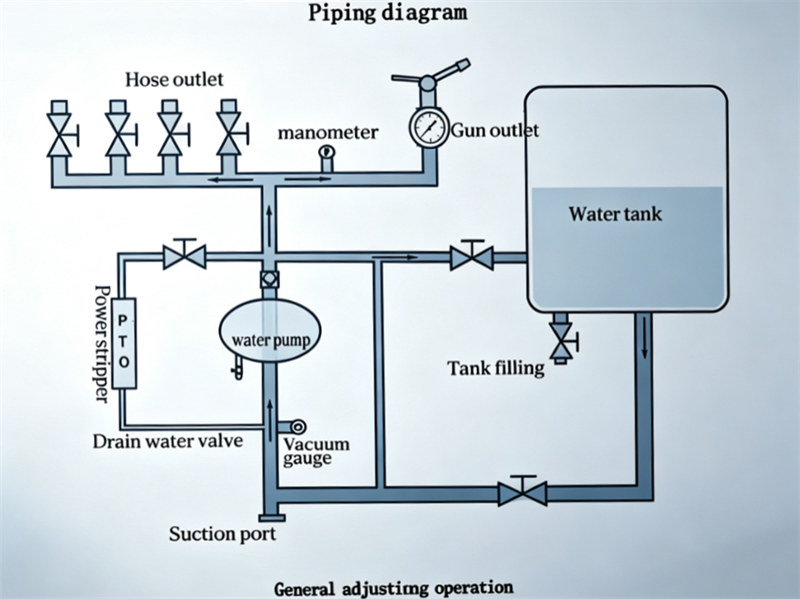

Powered by the truck’s PTO unit, this professional fire pump system serves as the core power source of the HOWO water‑tender fire truck. Supported by a complete, well‑designed piping network, it enables multi‑mode operations including tank‑to‑gun discharge, external water suction, tank refilling and multi‑hose outlet supply. Equipped with pressure and vacuum gauges for real‑time condition monitoring, the robust fire pump delivers stable high‑pressure water output. It supports simultaneous work of multiple outlets, allowing firefighters to carry out fire suppression, cooling and water supply tasks reliably, even under demanding emergency conditions.

HOWO fire pump truck

HOWO fire water tank truck

Fire pump Model	Flux（L/s）	Pressure（MPa）	Pump shaft speed（rpm）	Power(kw)	Suction depth(m)	Max working pressure
CB10/20-XZ	20	1.0	3135±50r/min	34	3	1.082MPa
	14	1.3	3440±50r/min	35	3	-
	10	1.0	3059±50r/min	22	7	-

⇒ Products--100% Customized Level One!

⇒ Transportation--100% Safety, Convenience, Efficient!

⇒ Services--7days + 24hours Safetify Service!

»»» CS trucks factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.

China professional HOWO special truck supplier and exporter, we supply high quality HOWO special truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our HOWO trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.

♦ Maximize save your sea freight.

♦ Professional guidance on your importing documents.

♦ Safety, Quickly, Timely

HOWO fire pump truck

HOWO fire water truck
