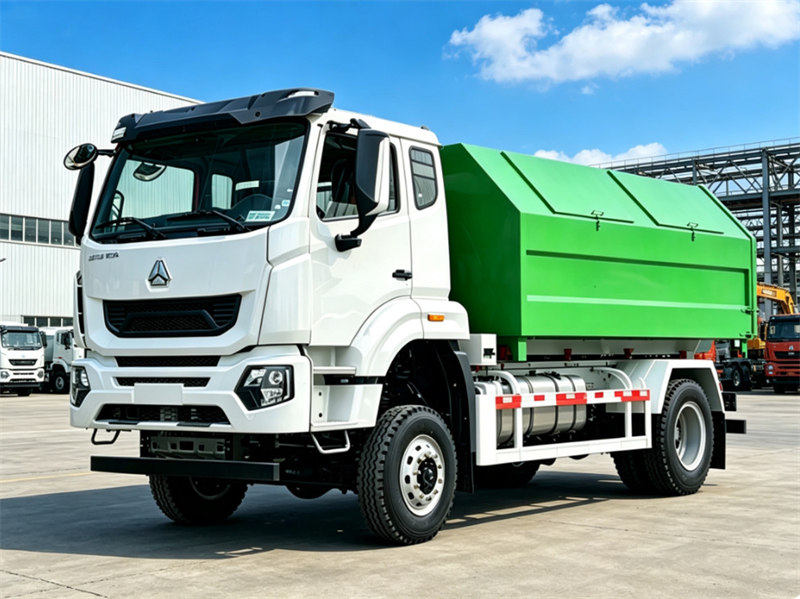

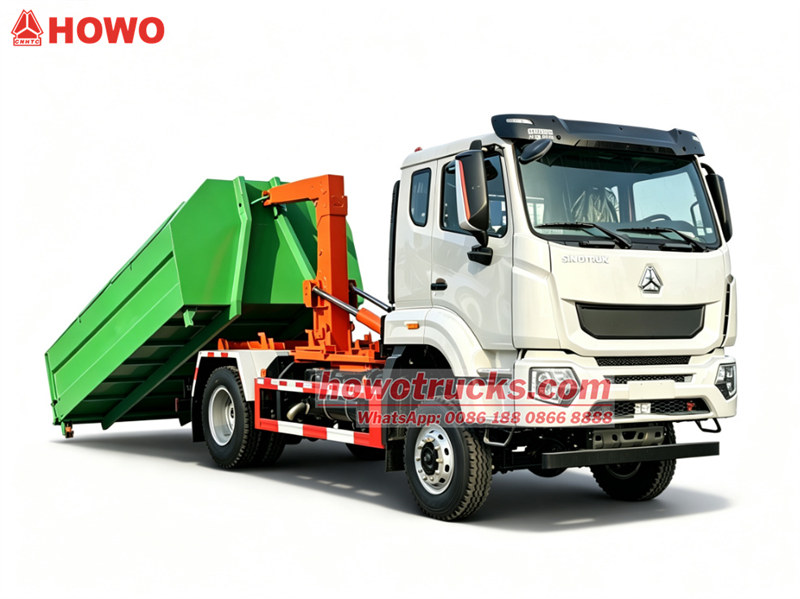

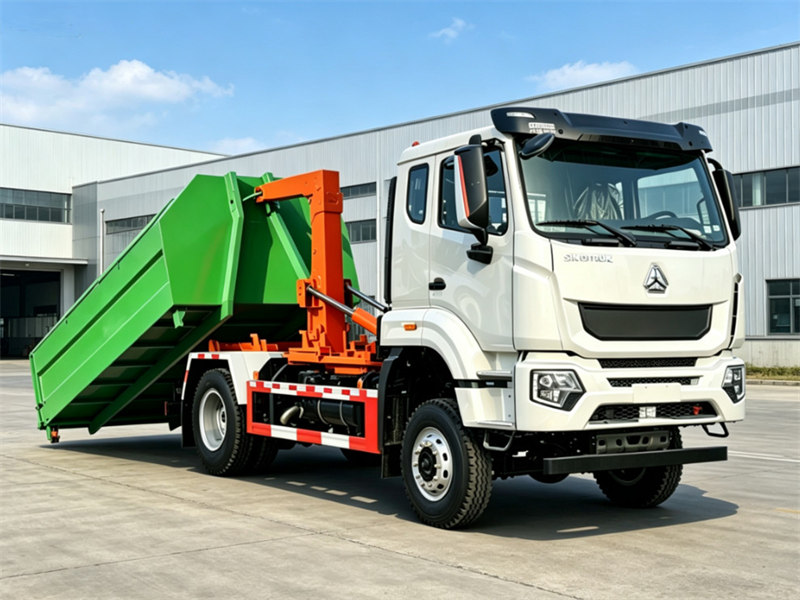

HOWO M7 10 Ton Hook dumpster truck

HOWO 10 Ton roll on roll off dumpster truck
HOWO M7 roll on roll off dumpster truck
HOWO M7 220HP roll on roll off dumpster truck
HOWO 10CBM roll on roll off dumpster truck
HOWO M7 10 Ton Hook dumpster truck
HOWO M7 10CBM Hook dumpster truck
HOWO M7 220HP Hook dumpster truck
HOWO Hook dumpster truck
HOWO 220 HP roll off hook lift garbage truck
HOWO 10TONS roll off hook lift garbage truck
HOWO 10CBM roll off hook lift garbage truck

HOWO M7 10 Ton Hook dumpster truck

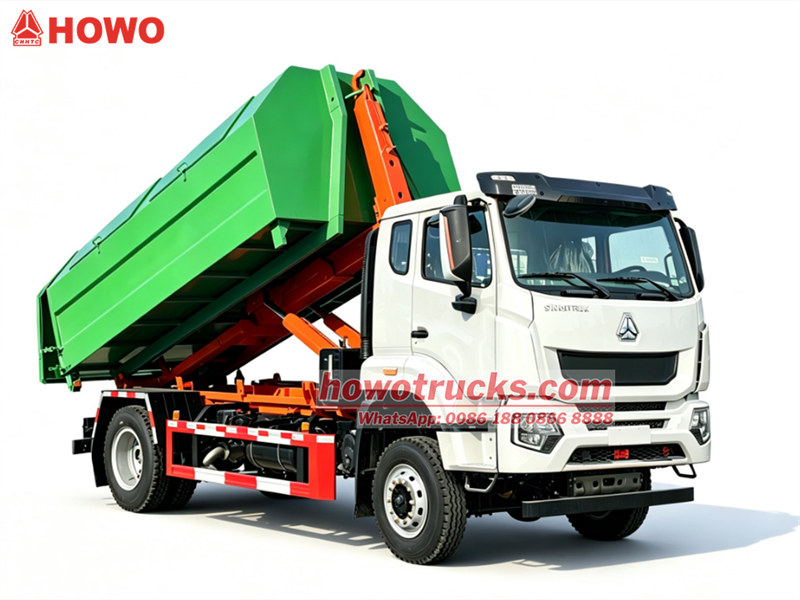

Built on the reliable HOWO chassis, the 220 HP roll off hook lift garbage truck is a mid range premium sanitation vehicle engineered for heavyduty waste transport. Designed around the “one truck, multiple containers” concept, it supports cyclic operations with various sealed bins for enclosed haulage of compacted municipal waste, bulk industrial and community refuse. Eliminating the limitations of conventional waste trucks, it streamlines collection, transportation and unloading workflows, cuts unnecessary trips to disposal sites and delivers outstanding efficiency for urban roads, industrial parks and large residential communities.

  • 工作能力 :

    10CBM

  • 舱型 :

    HOWO TX double cabin

  • 驱动系统 :

    4x2

  • 轴距（毫米） :

    4700

  • 发动机专用 :

    220 Hp / YC6J220-331

  • 变速箱 :

    8JS85TE,8 forwards & 2 reverses

  • 前轴（公斤） :

    7500

  • 后轴（公斤） :

    13000*2
立即咨询

Built on the reliable HOWO chassis, the 220 HP roll off hook lift garbage truck is a mid range premium sanitation vehicle engineered for heavy duty waste transport. Designed around the “one truck, multiple containers” concept, it supports cyclic operations with various sealed bins for enclosed haulage of compacted municipal waste, bulk industrial and community refuse. Eliminating the limitations of conventional waste trucks, it streamlines collection, transportation and unloading workflows, cuts unnecessary trips to disposal sites and delivers outstanding efficiency for urban roads, industrial parks and large residential communities.

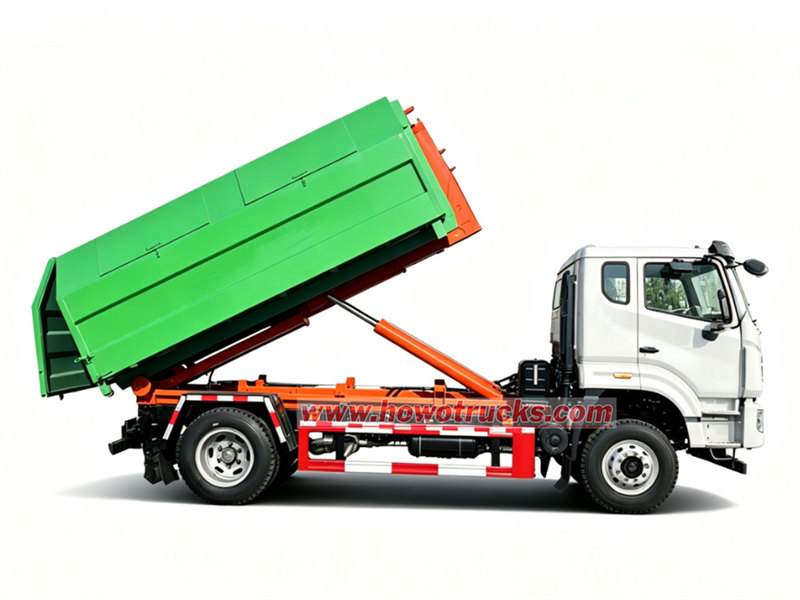

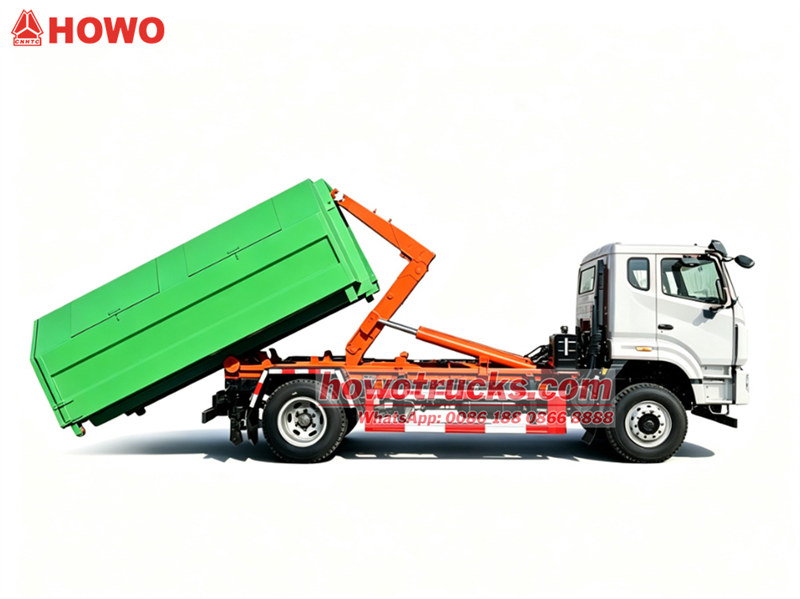

HOWO garbage hook lift truck



*HOWO Heavy Garbage Hook Lift Truck*

------------------------------------------------------------------

CS Trucks Group is professional manufacturer in Howo truck area,

guarantee all products Brand-New and High-Quality.

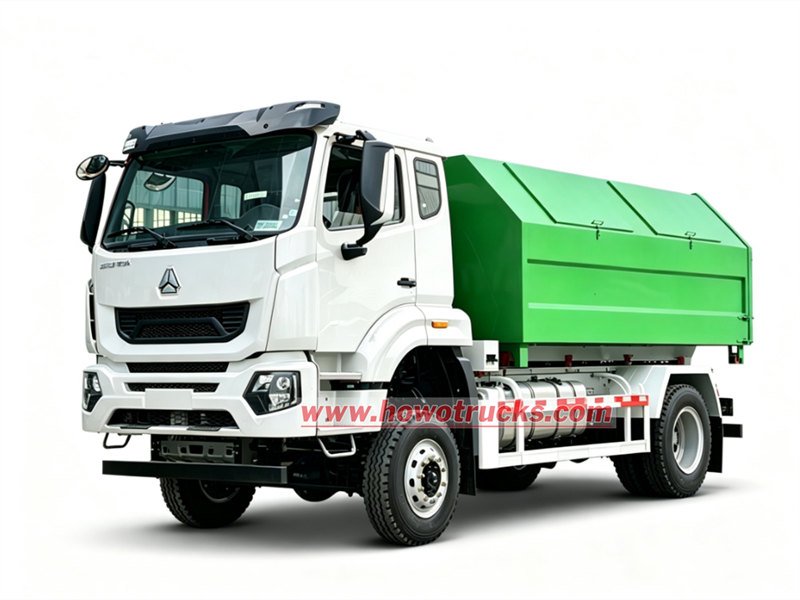

HOWO garbage hook lift truck



✦Ⅰ.Product Parameter For HOWO Hook Lift Truck «««

HOWO garbage hook lift truck

Best Choice,HOWO Trucks

⇓ ⇓ ⇓




HOWO M7 10tons Hooklift Truck

Vehicle model

CS518303GBL

Dimension(L×W ×H)(unloaded)(mm)

8300*2550*3140mm

Garbage bucket capacity

10CBM

Approaching angle/Departure angle(°)

21/27

Wheel base (mm)

4700

Max speed(km/h)

105

GVW

18000kg

Curb weight(kg)

9500kg

Loading Weight(kg)

13 tons

Engine

Model

YC6J220-331,water-cooled,4 strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection

Fuel type

Diesel

Power

220HP

Emission

EURO 3

Displacement

6.494L

Rated speed

2500 rpm

Max.torque

800N·m

Fuel tanker capacity(L)

200L

Transmission

Model

8JS85TE 8 speed,manual

Brake system

Service brake

Dual circuit compressed air brake

Parking brake

spring energy, compressed air operating on rear wheels

Front axle

Steering with double T-cross section beam

Rear axle

Pressed axle housing, central double reduction with differential locks between axles and wheels

Cab

Configuration

HOWO M7 single row cab, with air conditioner, allowable 2 passengers, with ABS, with air suspension seat

Tyre

Size

10.00R20 Tire, With one spare tire

Number

6+1 pcs

Electrical system

Battery

24V

Alternator

28V-1500kw

LIFTING SYSTEM

Lift capacity

10 tons

Garbage bin material

Carbon steel

Sidewalls

Sheet carbon steel (thickness: 5 mm)

Bottom

Sheet carbon steel (thickness: 6 mm)

Discharge time

50S-55S

Discharge system

lifting/dump type

Max dump angle

45°

Hydraulic system pressure

16Mpa

Standard equipment

Hydraulic oil pump and operation valve, balance valve, hydraulic lock, main operation oil cylinder of hook arm, sliding oil cylinder of sleeve arm, hydraulic oil pipe , hydraulic oil tank,  Hydraulic strengthen rear outrigger.

Operation way: Manual and Wireless remote control operation.

One dumper box,



Howo garbage hook lift truck



✦Ⅱ.Structural Analysis for Hook Lift Upper Body «««

Behind the efficient performance of the HOWO M7 10 ton hooklift truck lies its mature power‑take‑off hydraulic system and robust hook‑arm mechanical assembly.

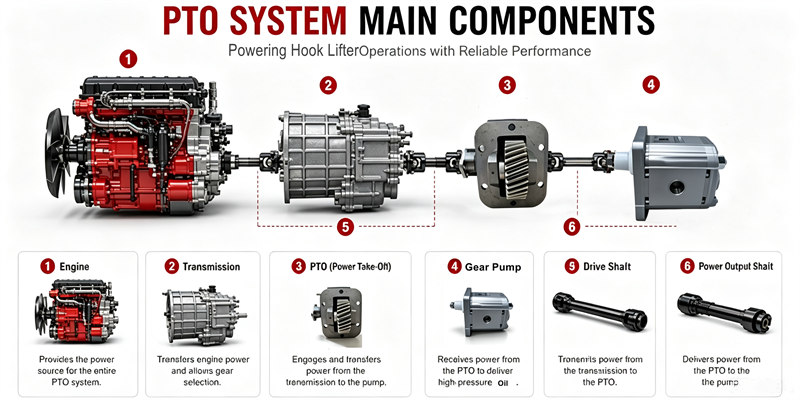

The PTO system transfers engine power through transmission, drive shafts and gear pump, delivering stable high‑pressure hydraulic power for all lifting and dumping movements. Meanwhile, the precision‑engineered hook‑arm structure, built with heavy‑duty cylinders, locking mechanisms and reinforced beams, completes container hooking, lifting and unloading reliably. Together these two core assemblies guarantee steady cyclic operation, fast 50‑55‑second discharge and long‑term durability under heavy‑load waste‑transfer conditions.



HOWO 10Ton roll on roll off dumpster truck



Howo 340HP roll off container garbage truck



HOWO TX garbage hooklift truck



HOWO TX garbage hooklift truck

✦Ⅲ.Advantage For HOWO M7 Container Garbage Truck «««

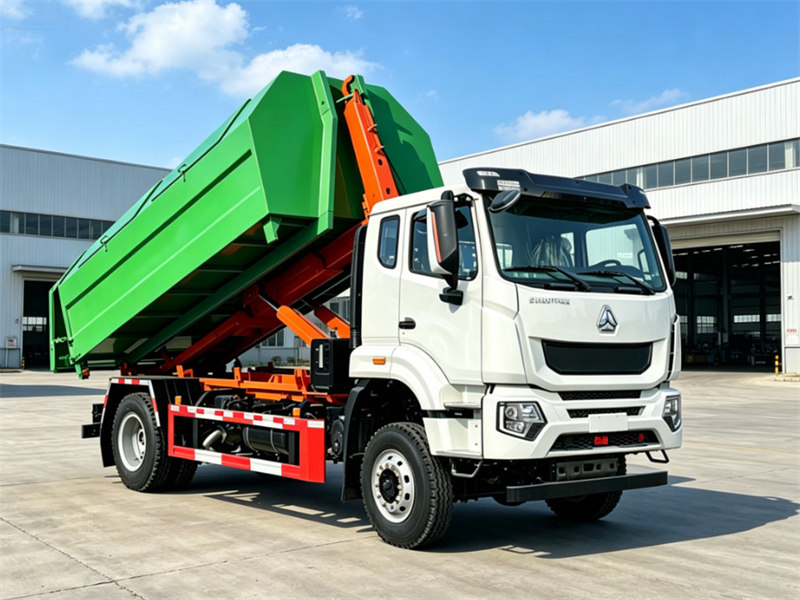

HOWO heavy 10tons garbage hooklift truck

1.Chassis & Powertrain

♦ YC6J220 33 diesel engine, 220HP / 800N·m torque, sufficient power for heavy load waste transfer

♦ 8 speed manual transmission, stable power output, adapts to complex urban and suburban road conditions

♦ HOWO M7 single row cab fitted with air suspension seat, A/C and ABS, improves driving comfort & safety

♦ Dual circuit air brake + spring energy parking brake, reliable braking performance under full load status

♦ 4700 mm wheelbase, 21° approach / 27° departure angle, good pass ability on uneven job site ground

♦ Max speed 105 km/h, supports fast transit between waste collection points and disposal stations

♦ 200L fuel tank, reduces frequent refuelling and boosts continuous operation time



HOWO heavy 10tons garbage hooklift truck

2.Hook lift Upper Body & Hydraulic System

♦ 10 ton rated lifting capacity, perfectly matches 10CBM carbon steel waste container

♦ Bin sidewall 5 mm carbon steel, bottom plate 6 mm carbon steel, anti  deformation for heavy duty waste

♦ Discharge cycle only 50-55 seconds, 45° maximum dumping angle, high efficiency unloading

♦ Hydraulic working pressure 16 Mpa, complete hydraulic configuration: gear pump, control valve, balance valve, hydraulic lock and heavy duty hook arm cylinders

♦ Equipped with hydraulic reinforced rear outriggers, enhances vehicle stability during bin lifting and dumping

♦ Dual operation modes: manual control + wireless remote control, flexible for different working scenarios

♦ “One truck for multiple bins” solution, realizes cyclic waste collection and transfer, improves overall sanitation work efficiency

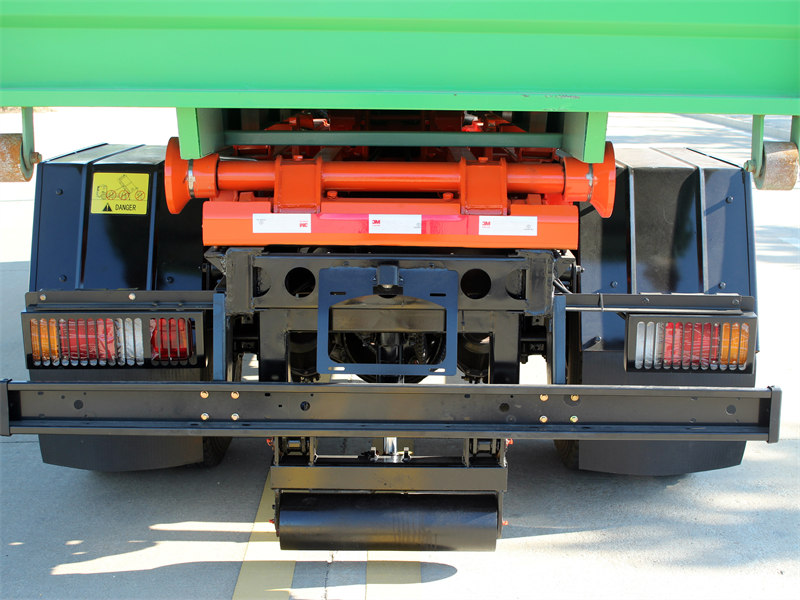

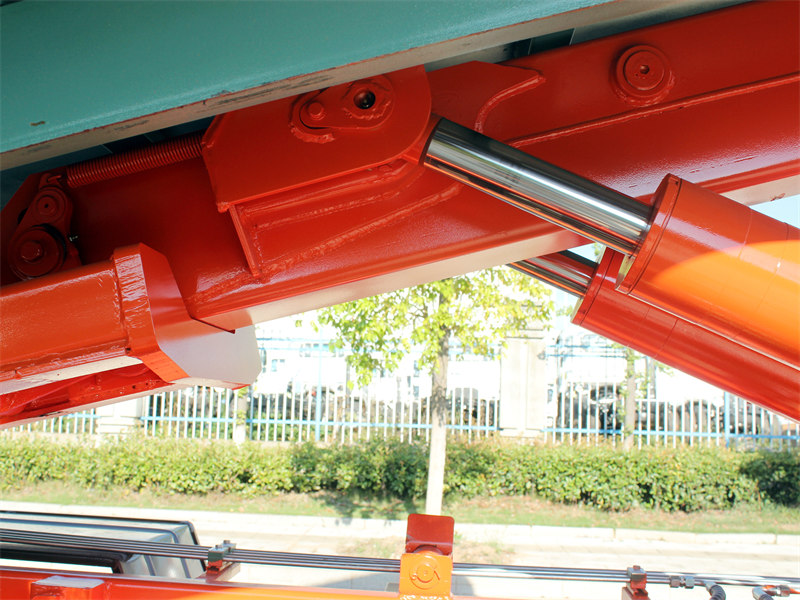

  • HOWO 220HP roll off hook lift truck

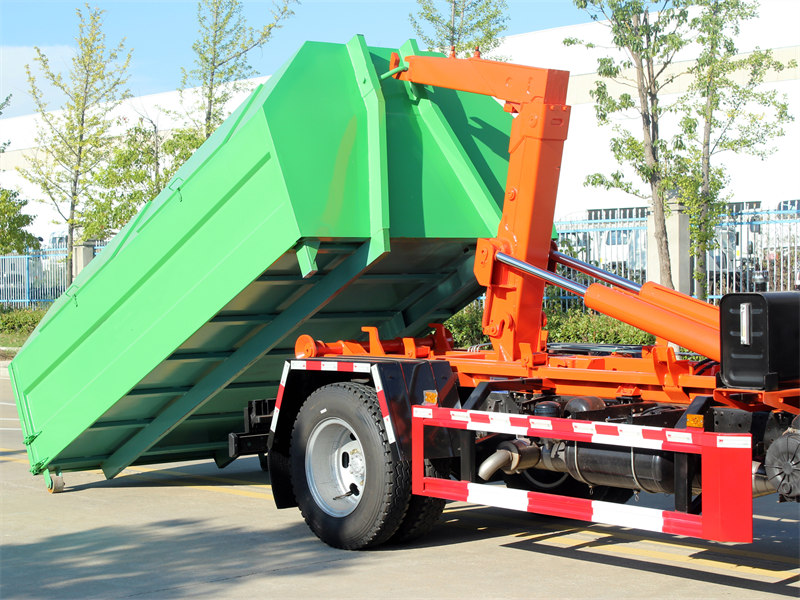

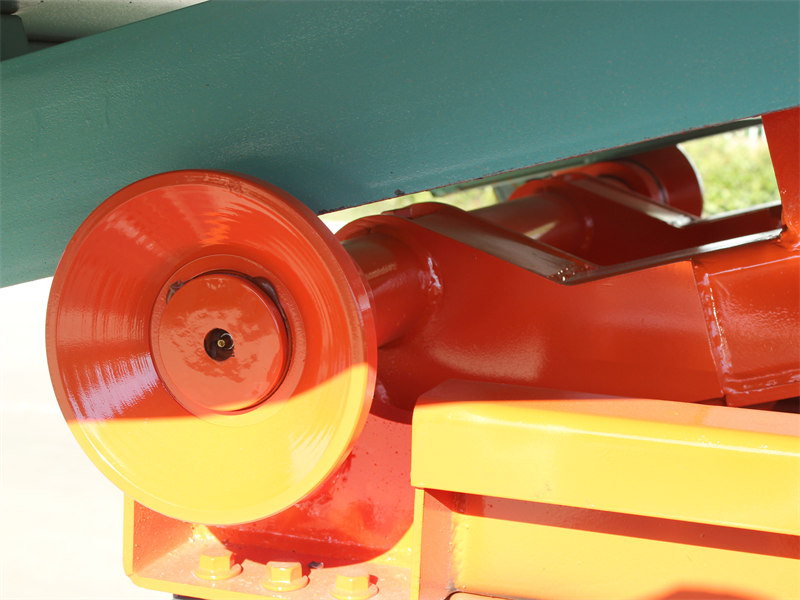

  • HOWO 220HP roll off hook lift truck
  • HOWO 220HP roll off hook lift truck



✦Ⅳ.Maintenance for HOWO Garbage Hook Lift Truck «««



This HOWO 220HP roll off hook lift truck delivers competitive long term maintenance costs. It adopts mature HOWO chassis components that are widely available globally for easy sourcing of spare parts. The hook lift upper body uses robust welded steel structures with proven hydraulic assemblies, featuring fewer vulnerable wearing parts.

Designed for heavy cyclic waste transfer tasks, it avoids overly complex custom components. With routine scheduled service, owners can keep repair expenses low. Compared with dedicated compact garbage trucks, it helps you cut overall operational expenditure for medium volume waste haulage.



HOWO M7 10tons hook lift truck

( HOWO M7 10tons Garbage Hooklift Truck )



HOWO 220HP roll off hook lift truck

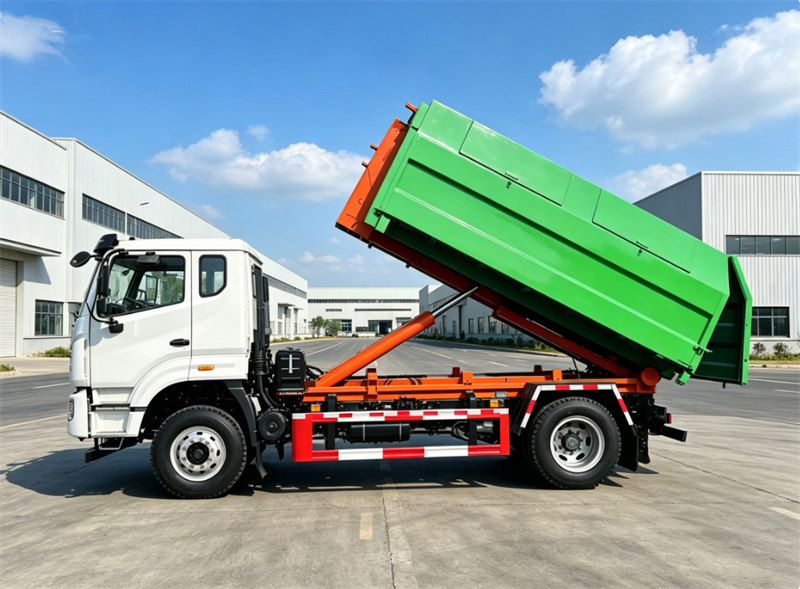

( HOWO M7 10 Ton Hook dumpster truck )



China professional HOWO special truck supplier and exporter, we supply high quality Howo special truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our Howo trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.



♦ Maximize save your sea freight.

♦ Professional guidance on your importing documents.

♦ Safety, Quickly, Timely



HOWO heavy 10tons garbage hooklift truck



HOWO M7 10 Ton Hook dumpster truck
