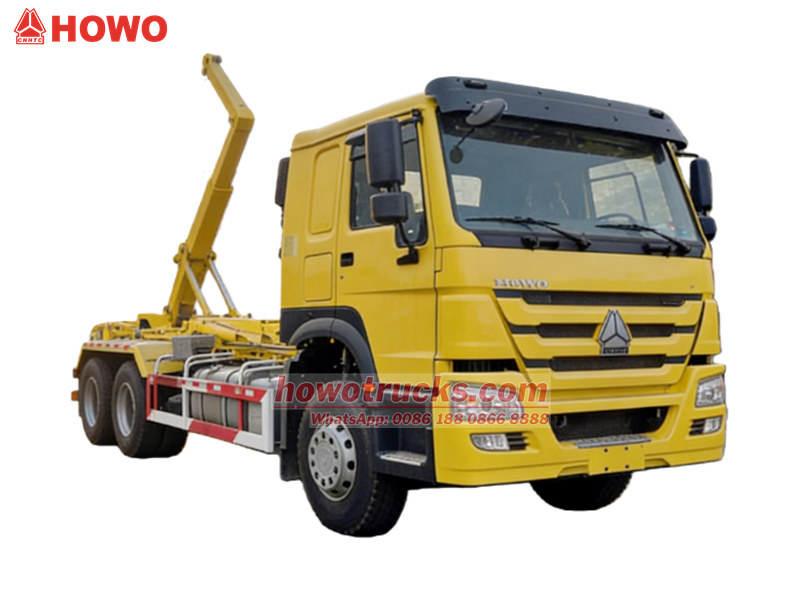

Howo 340HP roll off container garbage truck

The Howo 340HP roll off container garbage truck is a high-end sanitation vehicle specifically designed for heavy-duty garbage transfer. Its core features are "large load capacity, high efficiency, and strong adaptability." It is primarily used for the sealed transfer of compressed and reduced-volume household waste at garbage transfer stations, as well as for the collection and transport of bulk and heavy-duty garbage from industrial parks, large communities, and main urban roads. It serves as a crucial hub connecting garbage collection and final disposal.

The Howo garbage hook lift truck breaks away from the limitations of traditional garbage trucks, which are limited to "single-operation and limited load capacity." Adopting a core design logic of "one truck, multiple containers, and cyclical operation," it can be matched with sealed garbage containers of different sizes, achieving integrated and efficient garbage collection, transfer, and unloading operations. This eliminates the need for frequent trips to garbage disposal sites, significantly improving sanitation work efficiency

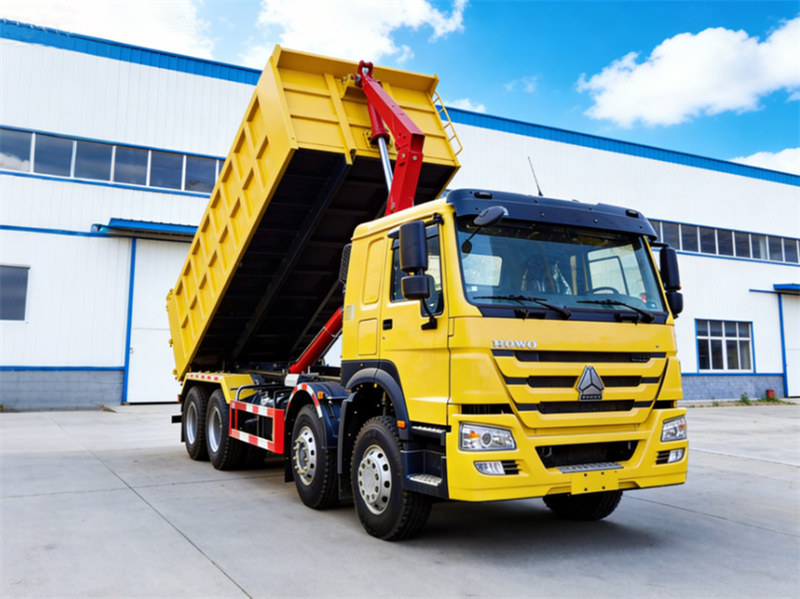

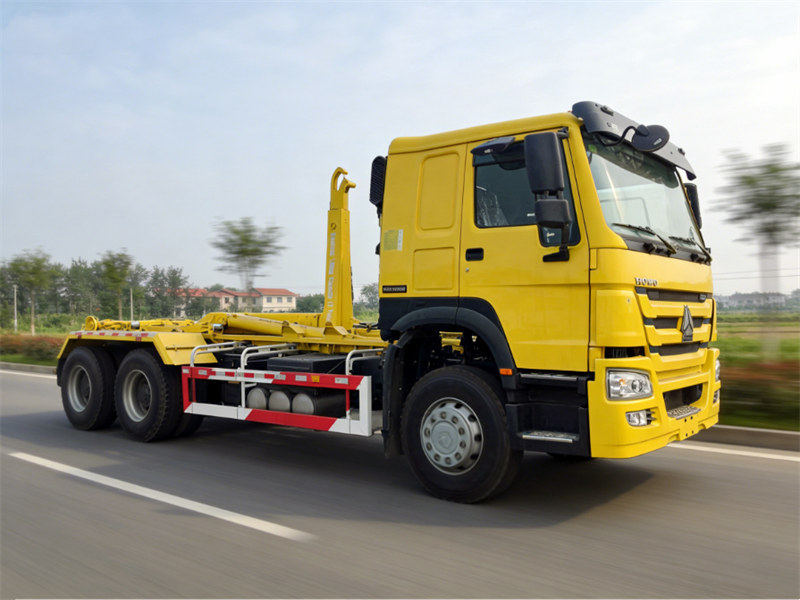

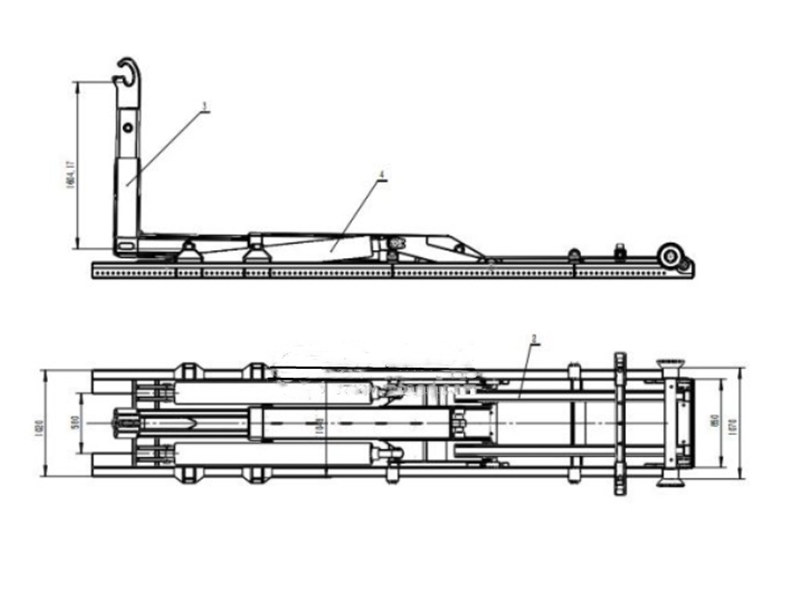

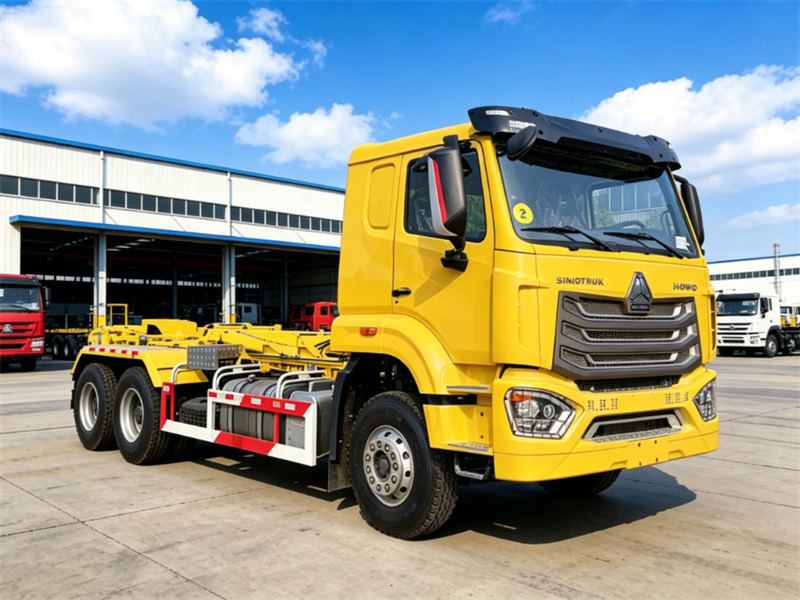

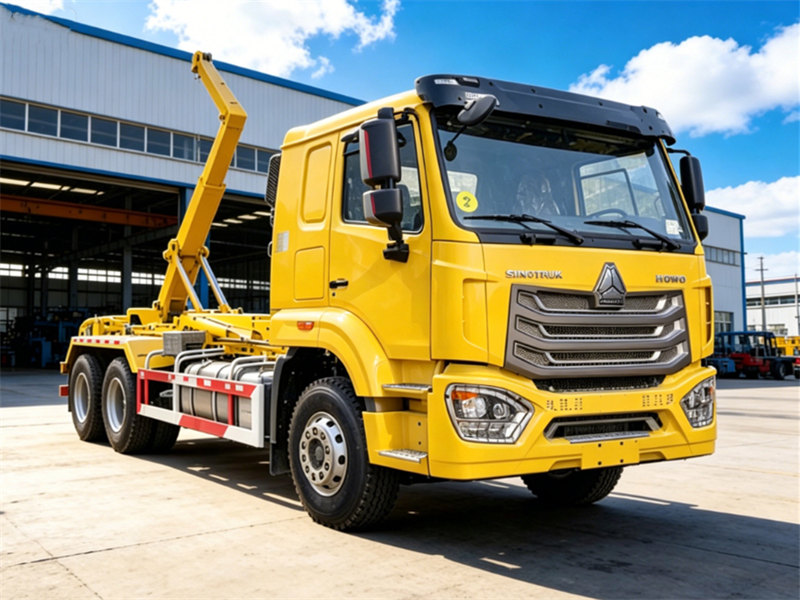

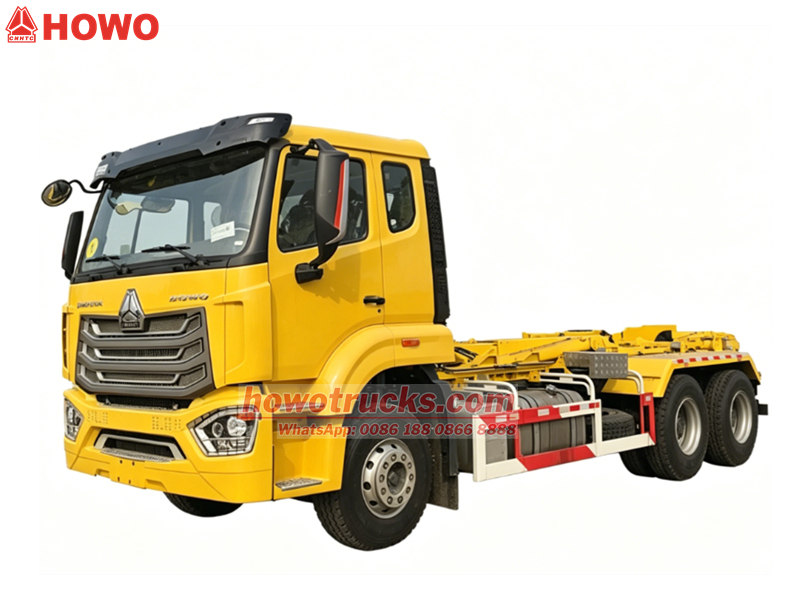

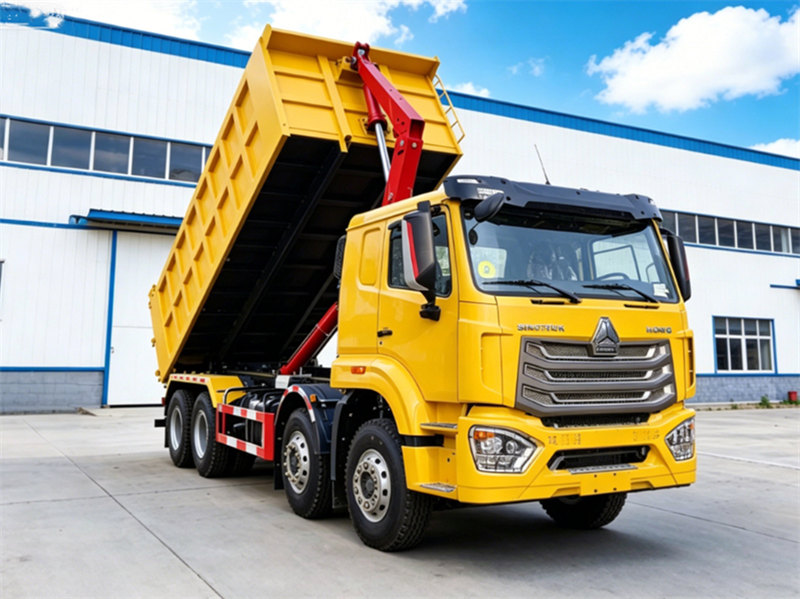

*Howo Heavy Garbage Hook Lift Truck*

------------------------------------------------------------------



Heavy Duty and High Efficiency:

♦ The Howo garbage hook lift truck has a rated load capacity of 30 tons and a garbage bin volume of up to 20 CBM

♦ Its single-trip transport capacity far exceeds that of ordinary vehicles, significantly reducing the number of transport trips

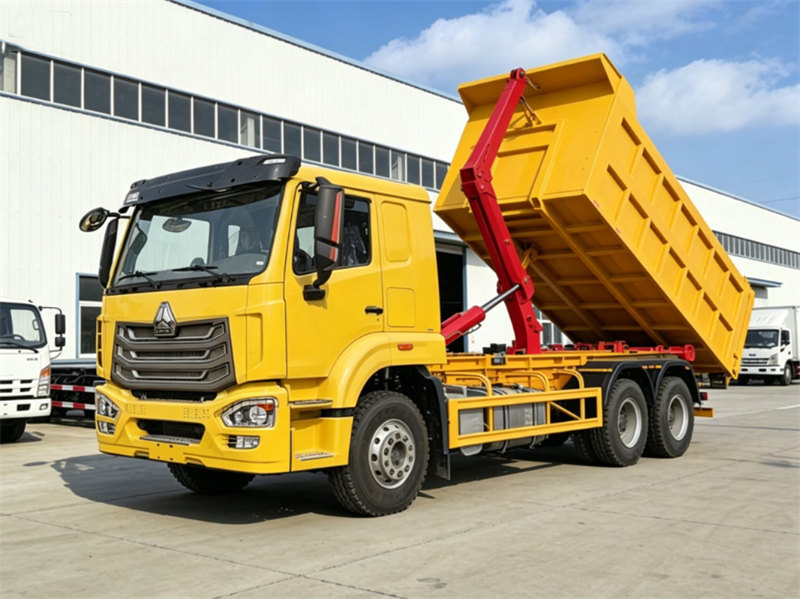

♦ The hydraulic lifting system has a maximum lifting capacity of 25 tons, with an unloading time of only 50-55 seconds and a maximum tilting angle of 45°

♦ Combined with a hydraulic system pressure of 16 MPa, it can quickly complete garbage unloading operations, avoiding operational delays caused by garbage accumulation



Easy Operation:

♦ The Howo roll-off container garbage truck features both manual and wireless remote control operation modes.

♦ Manual operation is available for close-range work, while wireless remote control can complete the entire process of loading, unloading, and other operations from a distance or in complex environments.

♦ Eliminating the need for close contact with garbage improves operational safety and reduces labor intensity.



Robust Structure:

♦ The Howo hook lift truck's cargo box is constructed from high-quality Q235 carbon steel, with side panels up to 5mm thick and a floor panel up to 6mm thick.

♦ Following a fully sealed welding process, it not only boasts high structural strength, capable of withstanding the impact of heavy-duty garbage, but also possesses excellent corrosion and deformation resistance, effectively preventing secondary pollution caused by garbage and sewage leakage.

♦ The front axle features a double T-section beam steering system, while the rear axle is a stamped axle housing with a central dual-stage speed bump and inter-axle and inter-wheel differential locks, enabling it to adapt to heavy-load driving and complex road conditions.



✦Ⅳ.Application for Howo Garbage Hook Lift Truck «««

♦ The 30-ton load capacity and 20 CBM garbage bin volume perfectly solve the pain points of "small single-trip transfer volume and frequent round trips."

♦ Combined with a top speed of 105 km/h, it significantly shortens transfer time and improves overall waste collection efficiency.

♦ It can save 3-4 hours of operating time per day, significantly reducing labor and fuel costs.

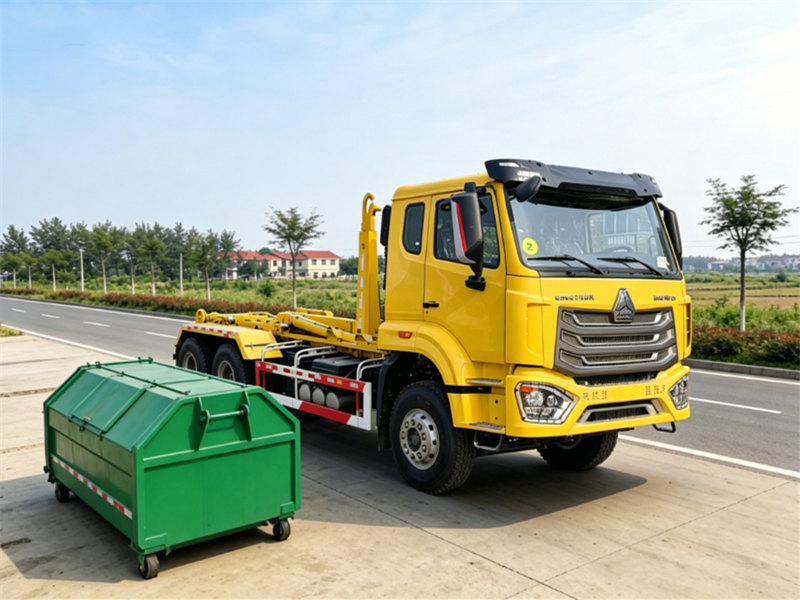

♦ The "one truck, multiple bins" operating mode further enhances the vehicle's adaptability.

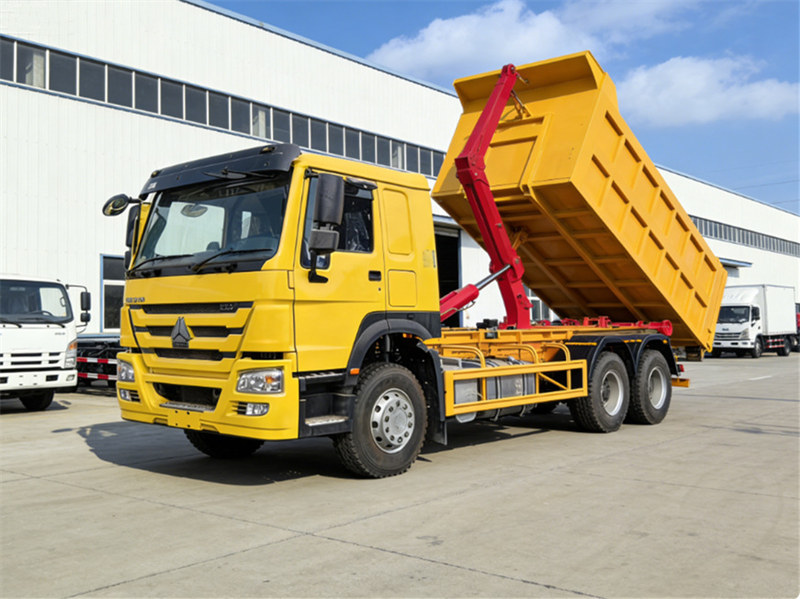

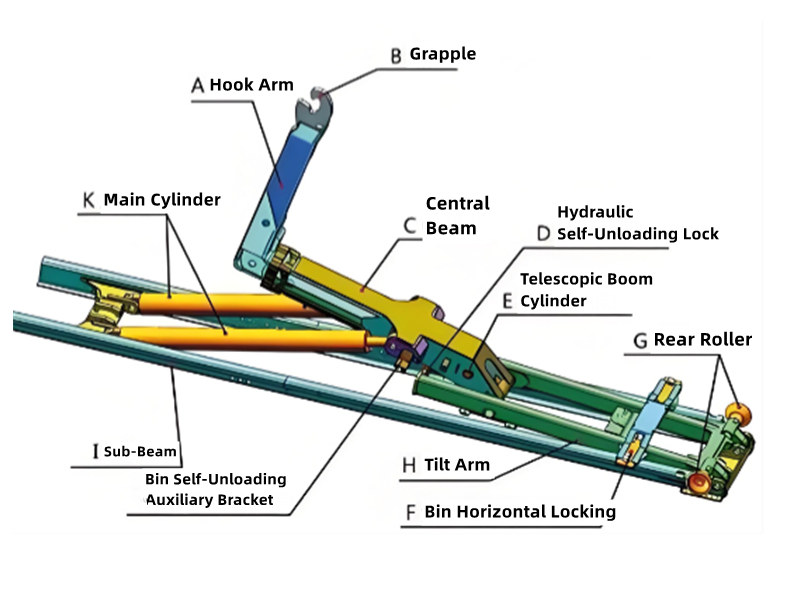

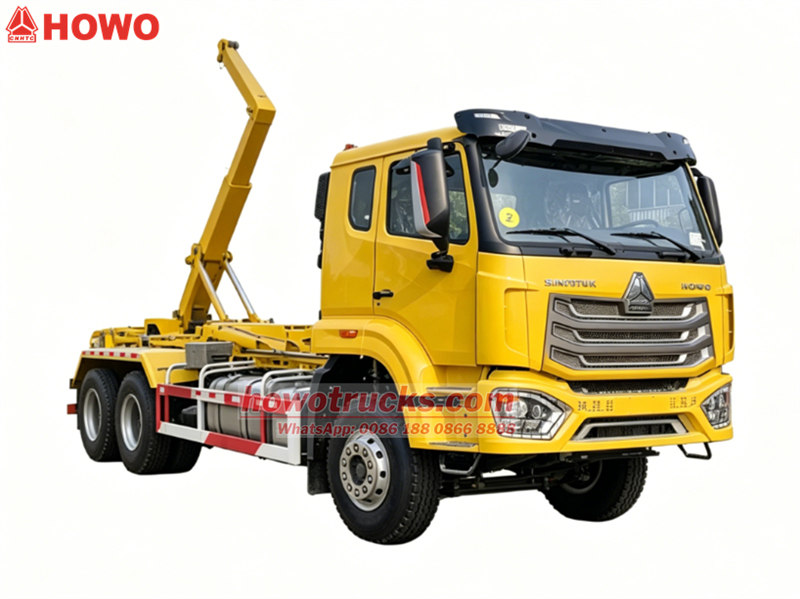

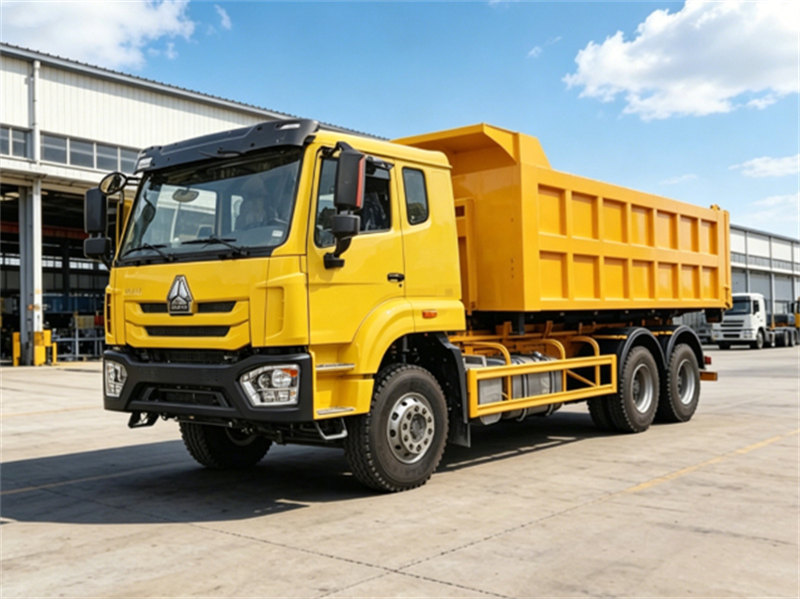

( Howo 340HP roll off container garbage truck )

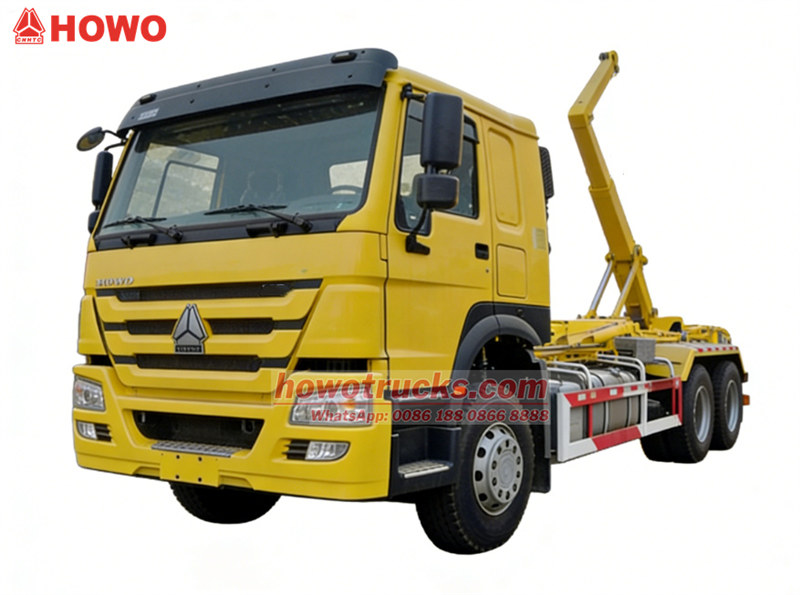

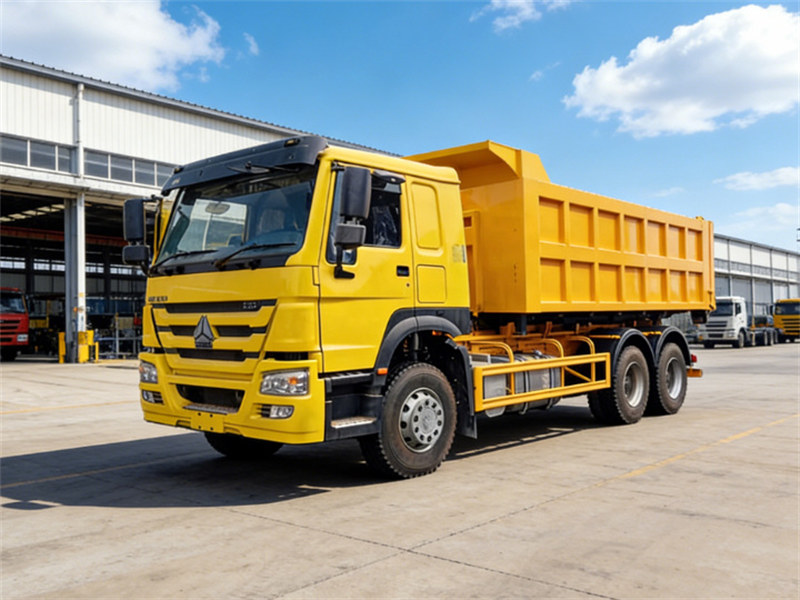

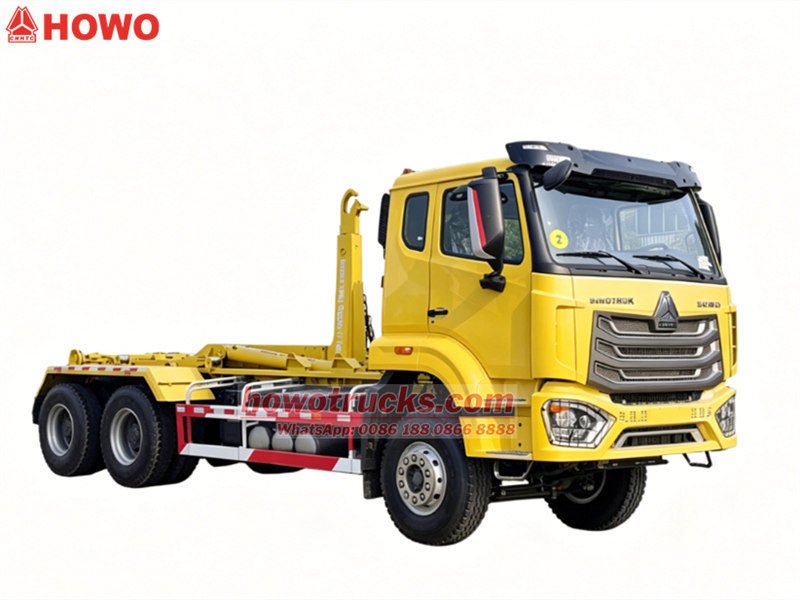

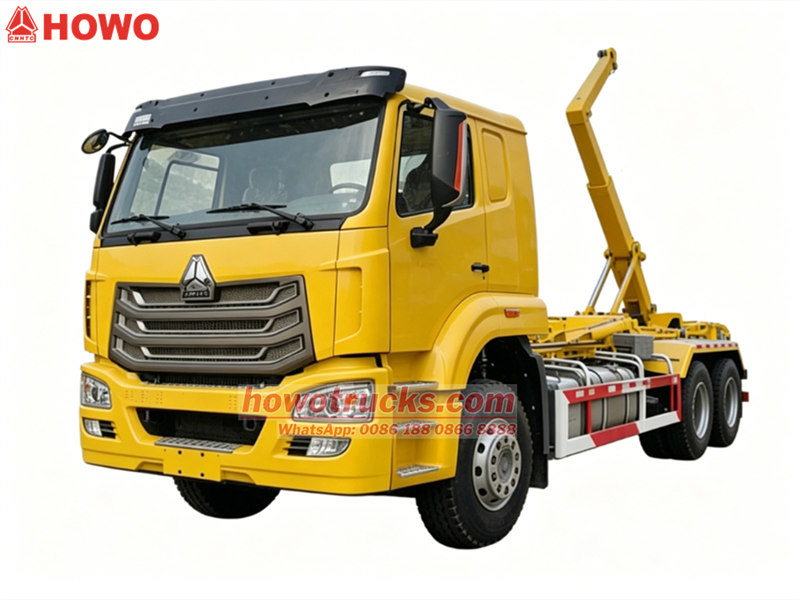

( Howo 20CBM garbage hook lift truck )

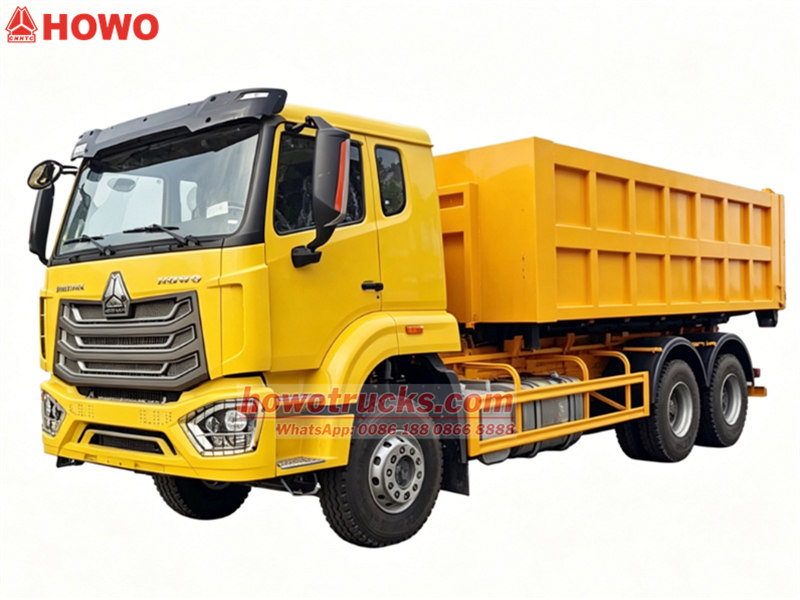

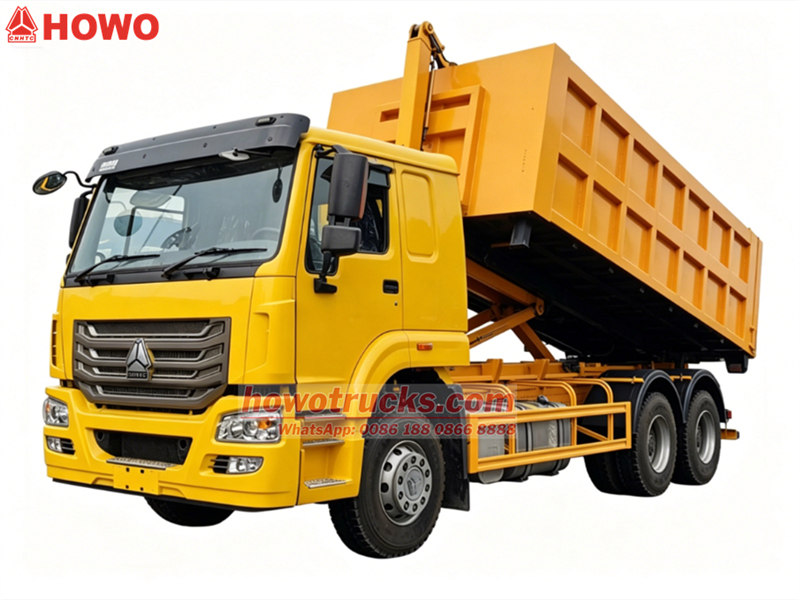

( Howo 340HP garbage hook lift truck )
