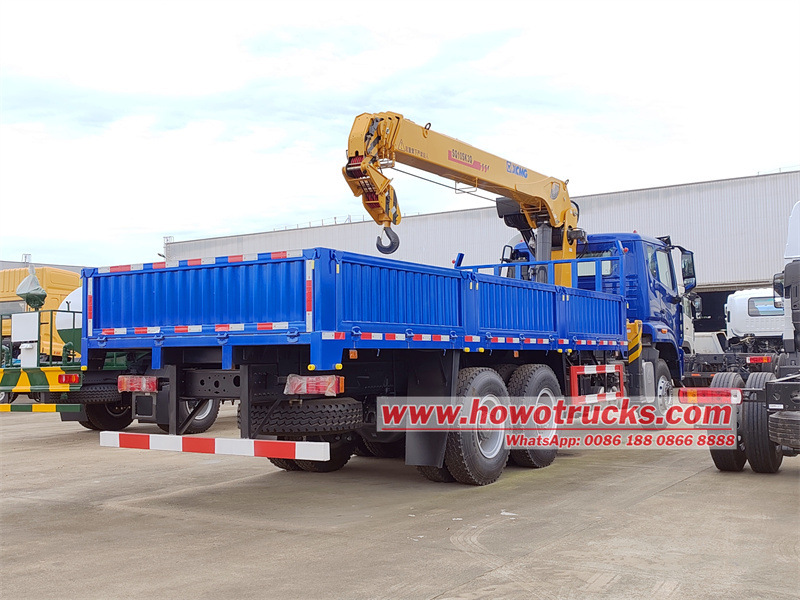

HOWO 6X4 cargo truck mounted XCMG 10tons boom crane

HOWO 6x4 truck mounted XCMG SQ10SK3Q boom crane

HOWO lorry truck with 10 T hydraulic crane

The Sinotruk Howo NX 6x4 truck-mounted crane has a 10-ton capacity and a wheelbase of 4600+1350mm. It is equipped with a Sinotruk WD615.47 371hp engine, an HW19710 10-speed transmission, and a XCMG SQ10SK3Q crane. The maximum lifting capacity is 10 tons, with a lifting torque of 25T·m. The cargo box dimensions are 6200x2450x550mm. The crane features hydraulic outriggers and ground control lever on both sides, left side upper control and a remote control box.

工作能力 :
5000L
舱型 :
HOWO NX371
驱动系统 :
4X2
轴距（毫米） :
4600+1350
发动机专用 :
371 HP / Sinotruk WD615.47
变速箱 :
HW19710 , manual, 10 forwards & 2 reverses
前轴（公斤） :
9500
后轴（公斤） :
16000 x 2

产品详情
客户案例

The HOWO lorry truck with 10 T hydraulic crane is a powerful medium-sized engineering tool that combines transportation and lifting capabilities. The chassis is driven by a 371-horsepower engine paired with a 10-speed transmission, providing robust load-bearing capacity. The superstructure features a XCMG 10tons 4-section straight boom crane with a maximum lifting height exceeding 12.35 m and a working radius of 12 m, easily handling site transport and equipment installation. The 6.2-meter carbon steel cargo box is sturdy and durable. With multiple operating modes including top-down and bottom-up controls, plus a remote control box, it allows for flexible and safe single-person operation, making it a practical choice for construction sites and logistics scenarios.

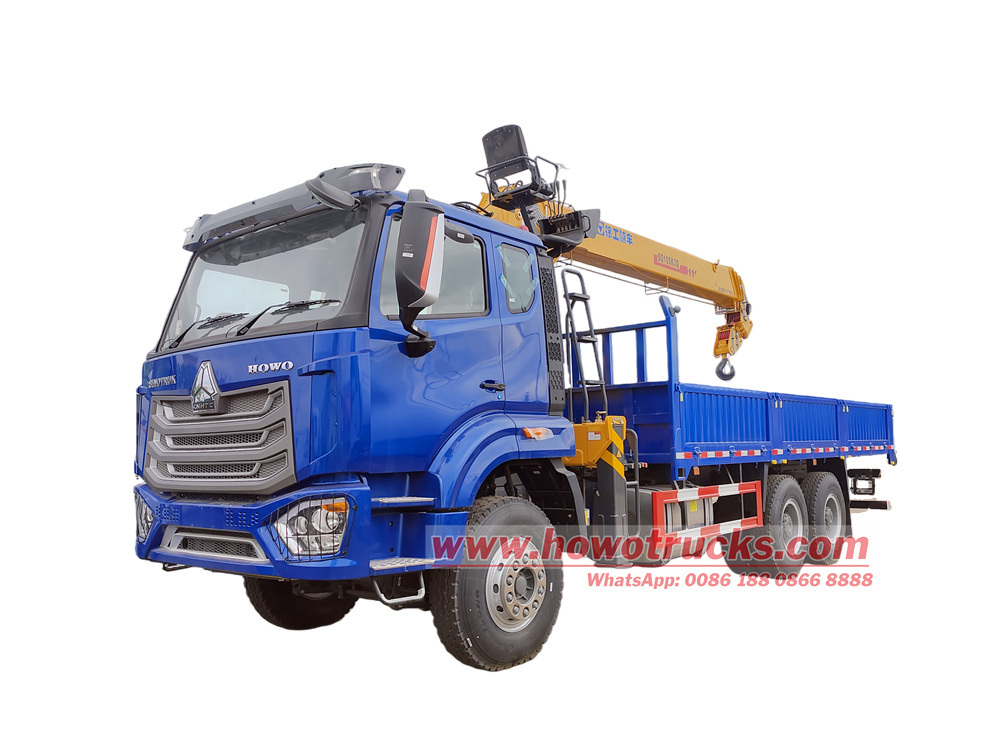

HOWO lorry truck with 10 T hydraulic crane

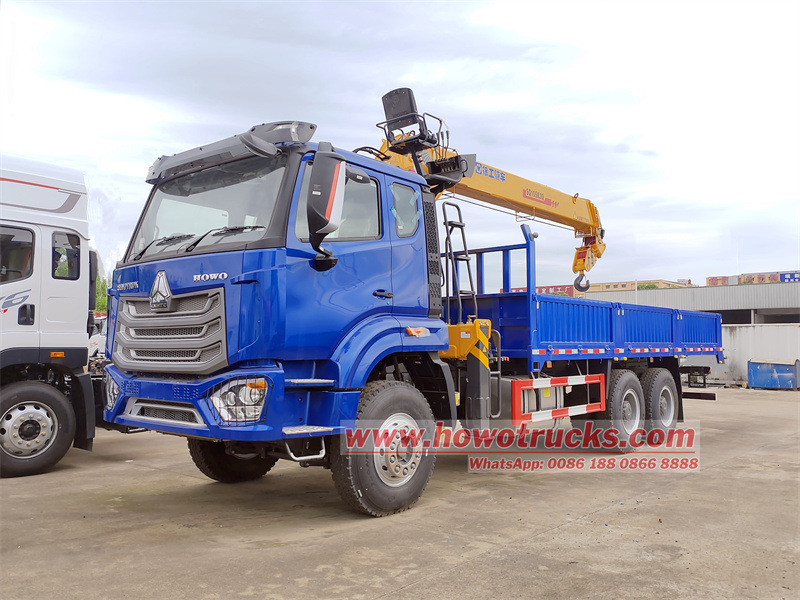

HOWO NX 6x4 truck-mounted crane

-----------------------------------------------------------------

Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Main Configuration:

Manufacturer: CS TRUCKS GROUP LIMITED

Working Capacity

Engine Model

Wheelbase

Application

XCMG 10tons crane

WD615.47 / 371HP

4600+1350mm

• Construction sites:

• Logistics and transportation:

• Municipal engineering:

• Emergency rescue:

» Ⅱ. Product Parameter for HOWO NX 6x4 boom crane truck：

HOWO NX 6X4 mobile truck with crane
General Technical Parameters
Overall Dimension		9650 × 2550 × 3830 mm
Gross Vehicle Weight		25000 Kg
Curb Weight		15840 Kg
Chassis Specification
Chassis Brand		SINOTRUK HOWO NX
Drive model		6x4,LHD
Cabin		HOWO H77L cabin, Left Hand Driving, with one bed, A/C
Number of Passengers		3
Engine	Style	Inline 6 cylinders, water-cooled, four-stroke, with exhaust valve brake, direct injection, turbocharged and intercooled, diesel
	Model	SINOTRUK WD615.47
	Power	371HP / 273kW
	Rated speed	2200rpm
	Max torque	1500N.m
	Max torque speed	1100-1600rpm
	Emission standard	EURO 2
	Displacement	9.726L
Gearbox		HW19710, 10F & 2R,manual
Brake System		Air brake
Wheel Base		4600+1350 mm
Front/Rear Axle Loading		7000/18000(two axles) kg
Tire		315/80R22.5，10+1 tires
Max Driving Speed		90km/h
Upper structure Specification
Cargo Body	Dimension	6200 x 2450 x 550 mm
	Material	Q235 carbon steel
	Cargo Thickness	Side 3mm,Bottom 4mm
Boom crane	Model	XCMG SQ10SK3Q 4-sections boom crane
	Max. Lifting Moment	25T·m
	Max. Lifting Capacity	10000kg
	Max.lifting height	12.35m
	Max. Hydraulic Boom Length	12m
	Rotation angle	360° ALL Rotation
	Amplitude range	0~75°
	Maximum working pressure	26 Mpa
	Recommend power	30Kw
	Max Oil Flow of Hydraulic system	63 L/min
	Oil tank capacity	160 L
	Crane weight	3765 kg
	Installation space	1150mm
Optional function	1. knuckle boom crane.
	2. Hydraulic tipper box.
	3. Grab bucket
	4. Aerial work basket
Other Configuration	Manually hydraulic joystick, Remote control operation, etc.

» Ⅲ. Chassis Configuration

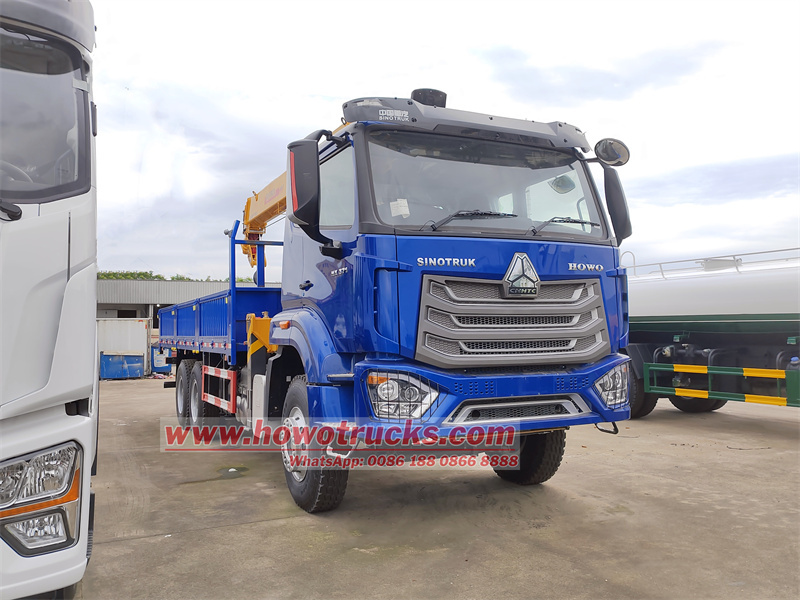

• Chassis Model: Sinotruk Howo NX371 chassis.

• Drive Type: 6x4 drive, high load-bearing capacity.

• Wheelbase: 4600+1350mm

• Powertrain: Sinotruk WD615.47 371hp inline six-cylinder diesel engine, 9.726L displacement, 1500 Nm torque, Euro III emission standard.

• Transmission System: Sinotruk HW19710 10-speed gearbox.

• Axles: VGD95 front axle (drum), MCX16ZG dual rear axles (drum) with a gear ratio of 4.803.

• Tires: 12.00R20 tires.

• Fuel Tank: 400L fuel tank.

» Ⅳ. Large-capacity cargo box:

• Cargo box dimensions: 6200x2450x550mm, ample loading space.

• Material and construction: Q235B carbon steel, sturdy and wear-resistant.

• Plate thickness: Side plates 3mm thick, bottom plates 4mm thick.

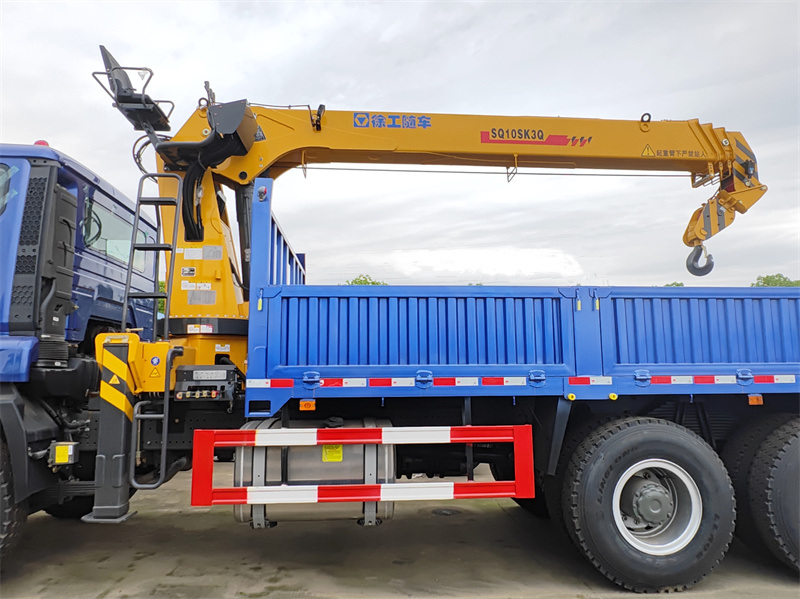

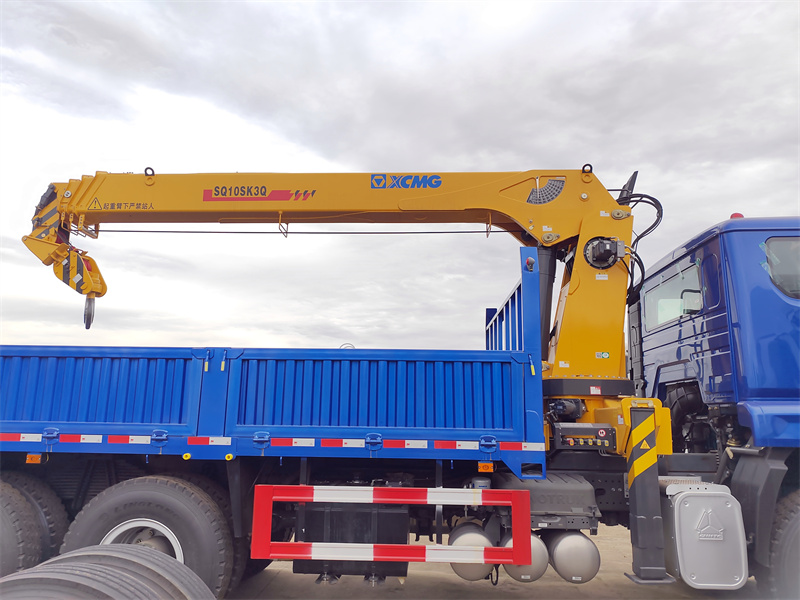

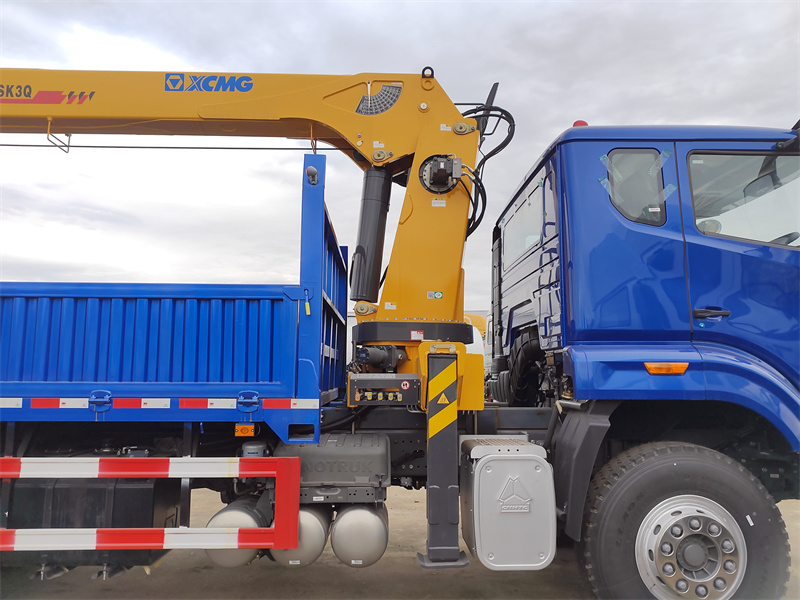

» Ⅴ. XCMG SQ10SK3Q Crane:

• Rated lifting capacity: 10 tons, maximum lifting torque up to 25 T·m, boasting powerful lifting performance.

• Boom technology: Utilizes 4-section synchronous telescopic straight boom technology for efficient and rapid operation.

• Working range: Maximum extended boom length 12 meters, maximum lifting height up to 12.35 meters, providing a wide working coverage.

• Weight: The crane weighs approximately 3765 kg, achieving a reasonable lightweight design while ensuring strength.

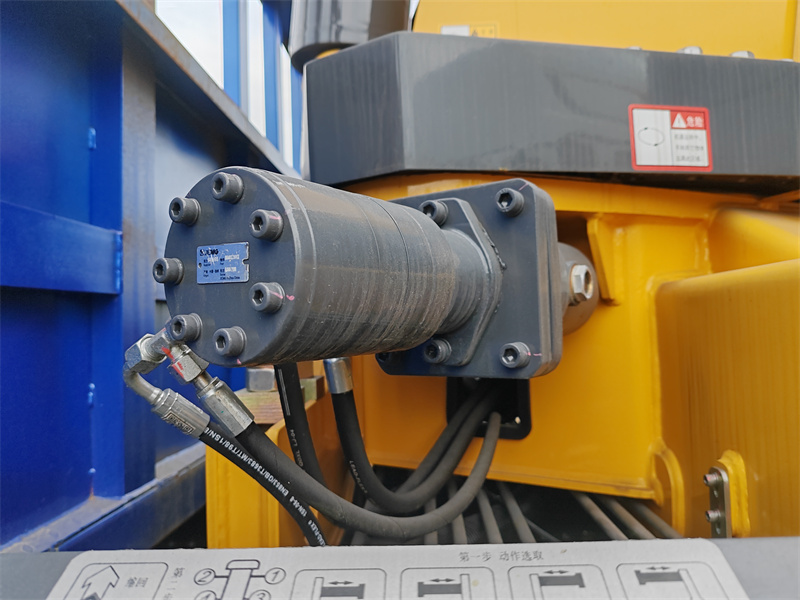

• Hydraulic system: Maximum working pressure 26 MPa, flow rate 63 L/min

• Working angle: 360° full rotation; amplitude range 0~75°

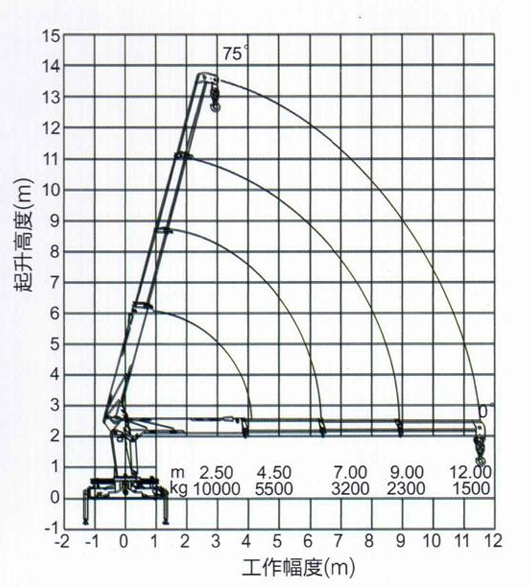

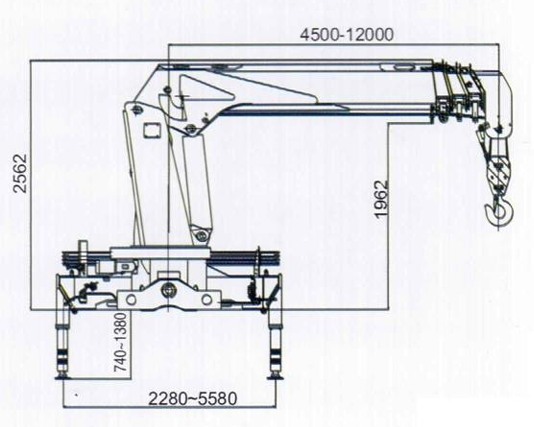

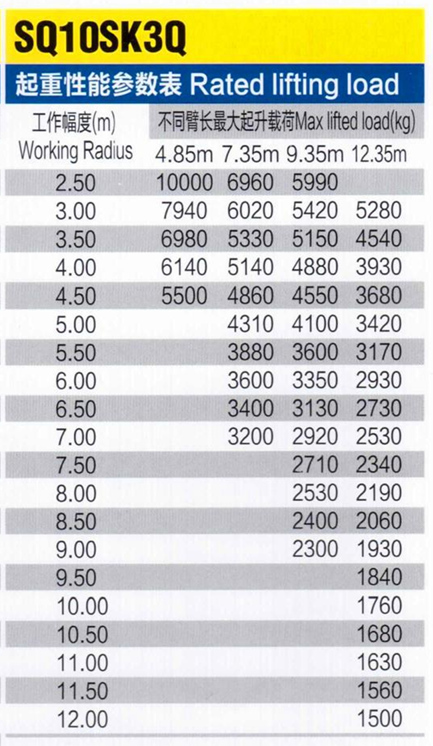

XCMG SQ10SK3Q crane rated lifting load XCMG SQ10SK3Q crane structure drawing XCMG SQ10SK3Q crane work rang

» Ⅵ. Operation Control System:

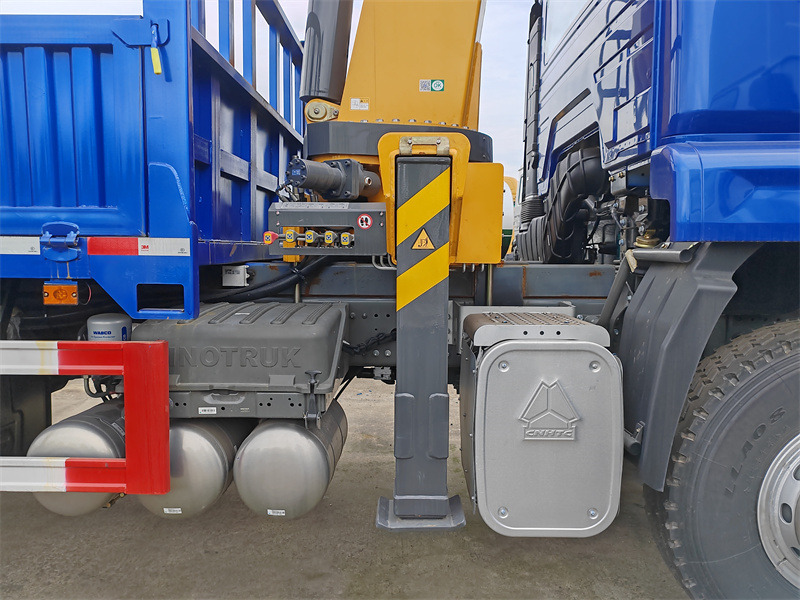

• Outrigger System: One hydraulic outrigger is installed on each side of the crane, forming a stable support structure.

• Control System:

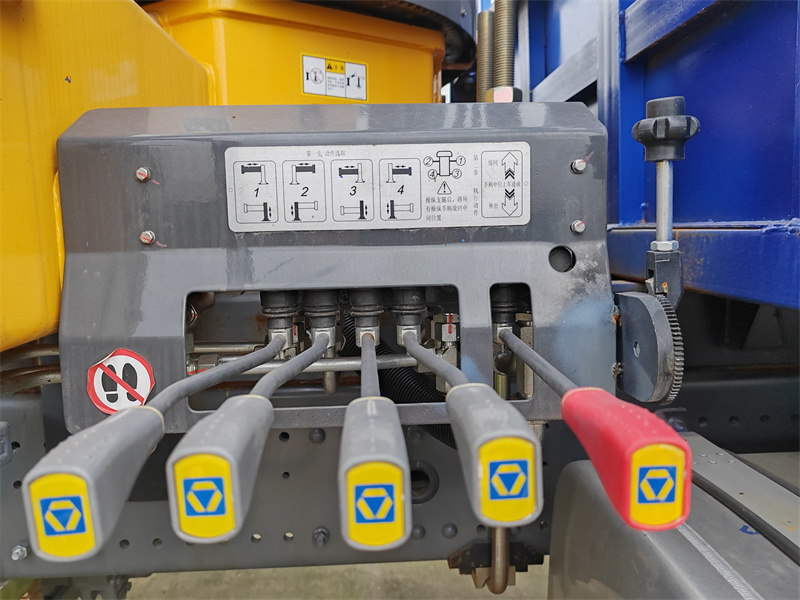

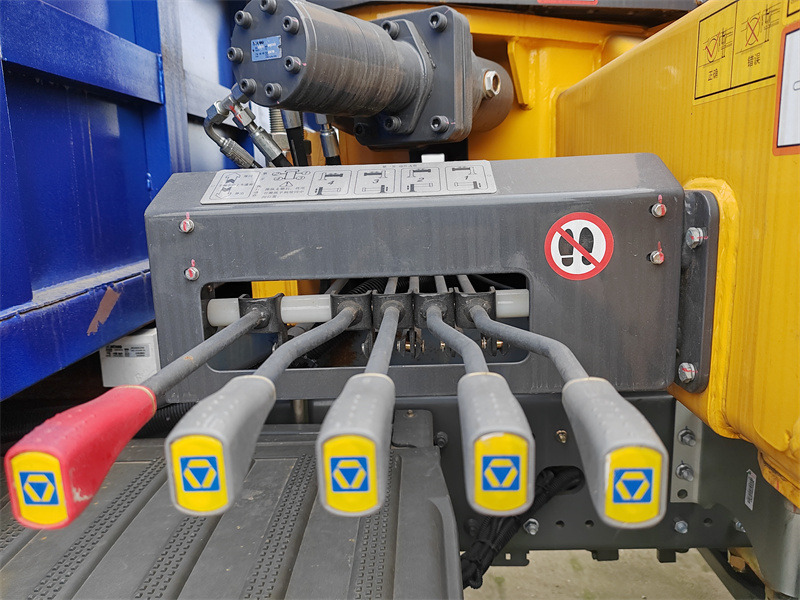

1. Side Operation: Manual hydraulic control levers is provided on each side, allowing the operator to control the crane from the optimal viewing angle.

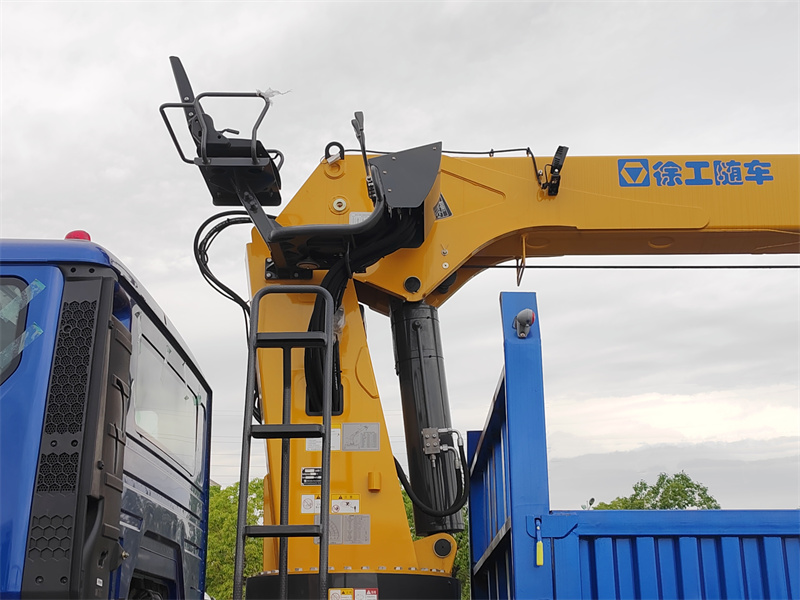

2. Upper Control Panel: An upper control panel with a seat is provided on the left side, integrating one set of manual hydraulic control levers, providing a high-altitude working view and precise control of lifting actions.

3. Remote Control Box: Equipped for more intuitive and convenient operation.

• Control Functions: All control levers work together to control all actions, including the horizontal and vertical extension and retraction of the outriggers, the extension, retraction, lifting and rotation of the boom, and the lifting and lowering of the hook, ensuring precision and flexibility.

• Safety Functions:

o Overload Protection: The hydraulic system has a built-in pressure sensor that automatically limits the load in case of overload.

o Emergency Braking: An emergency stop button is provided on the control panel for rapid response to emergencies.

» Ⅶ. Application Scenarios:

• Construction Sites: Lifting rebar, concrete components, and scaffolding.

• Logistics and Transportation: Loading and unloading large equipment and containers.

• Municipal Engineering: Streetlight installation and billboard replacement.

• Emergency Rescue: Lifting supplies at disaster sites.

CS trucks 5000 square meters workshop for fire trucks.china best crane truck manufacturer. We are China best HOWO boom crane trucks plant and professional upper structure manufacturer. established in 1983 , we specialized in customized garbage compactor truck, road sweeper truck, sewage tanker trucks, crane truck, fire trucks. and other special purpose vehicles.

HOWO NX 6X4 mobile truck with crane

热门标签 :

HOWO lorry truck with 10 T hydraulic crane

HOWO 6x4 truck mounted XCMG SQ10SK3Q boom crane

HOWO NX 6x4 臂架起重机卡车

HOWO NX 6x4 10吨伸缩臂起重机卡车

HOWO 6X4 货车搭载徐工 10 吨臂起重机

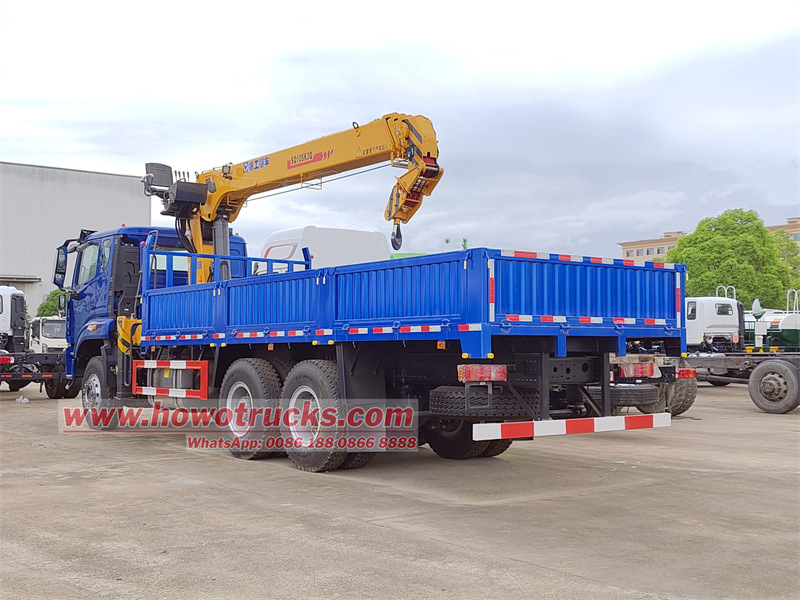

HOWO 6X4 10吨直臂卡车
