The Howo 12cbm hydro jetter road sweeping truck is a professional road sweeping equipment positioned in the medium-to-heavy-duty market. Built on the Howo TX chassis, it features a 4600mm wheelbase and a gross vehicle weight of 18,000kg. Its design balances flexibility and operational stability, allowing it to move easily through various scenarios such as city streets and industrial parks without space constraints. The vehicle offers optional left/right-hand drive to suit different regional needs. The cab is equipped with air conditioning, and the manual tilt design combined with mechanical suspension significantly improves driver comfort, making it suitable for long-term cleaning operations.
工作能力 :
6000L舱型 :
Howo TX double cabin驱动系统 :
4x2轴距（毫米） :
4800发动机专用 :
290 Hp / MC07.25-61变速箱 :
HW19710,10 forwards & 2 reverses前轴（公斤） :
7500后轴（公斤） :
13000The Howo 12cbm hydro jetter road sweeping truck is a professional road sweeping equipment positioned in the medium-to-heavy-duty market. Built on the Howo TX chassis, it features a 4600mm wheelbase and a gross vehicle weight of 18,000kg. Its design balances flexibility and operational stability, allowing it to move easily through various scenarios such as city streets and industrial parks without space constraints. The vehicle offers optional left/right-hand drive to suit different regional needs. The cab is equipped with air conditioning, and the manual tilt design combined with mechanical suspension significantly improves driver comfort, making it suitable for long-term cleaning operations.
As a multi-functional device integrating sweeping, vacuuming, and water spraying, its core configuration covers multiple systems including power, cleaning, hydraulics, and electrical. It boasts strong power support, efficient cleaning capabilities, and prioritizes safety and convenience, meeting diverse needs from daily street sweeping to complex environment maintenance. It is an ideal piece of equipment for urban cleaning and park maintenance.

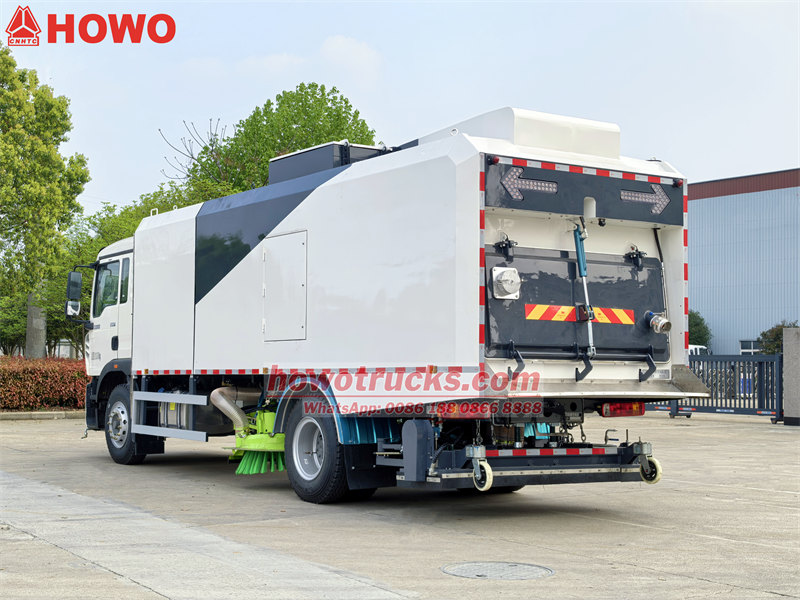

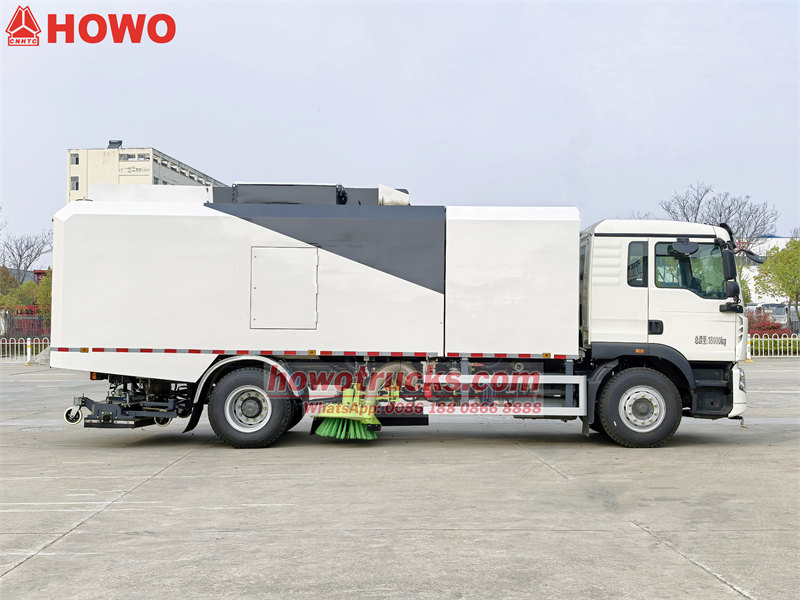

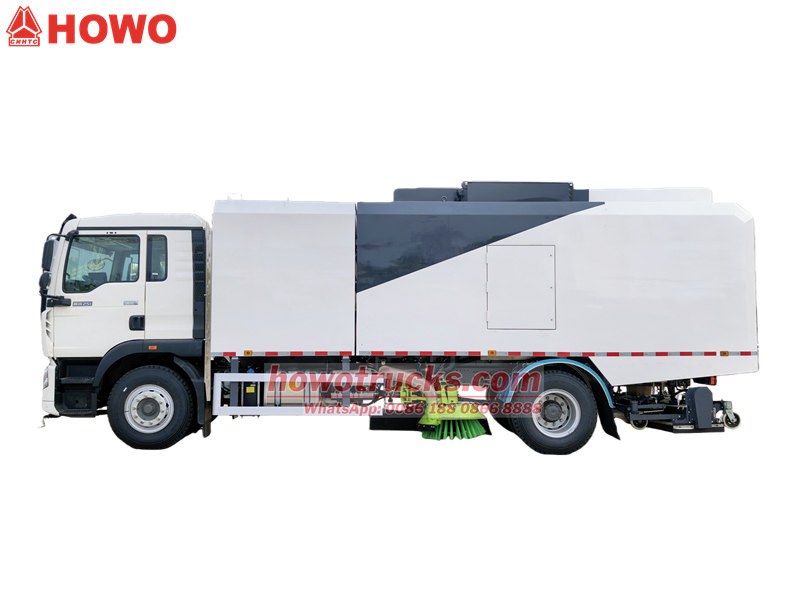

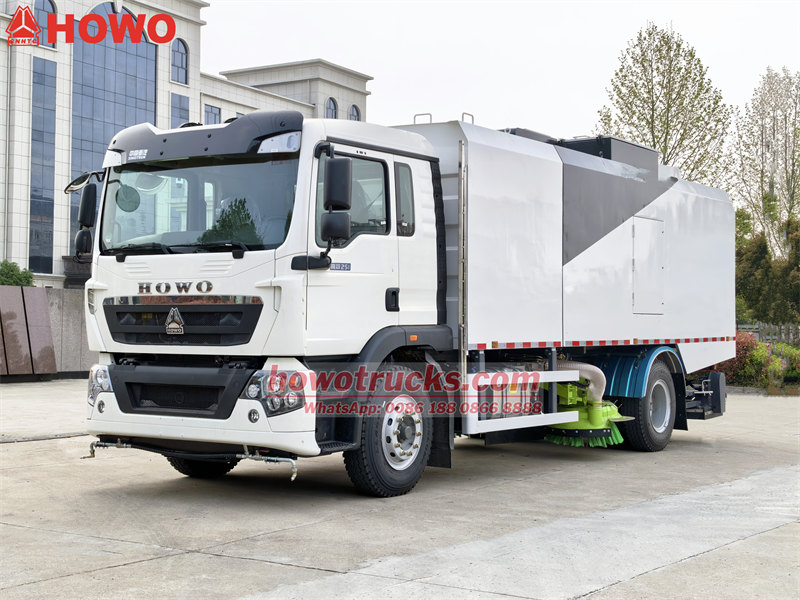

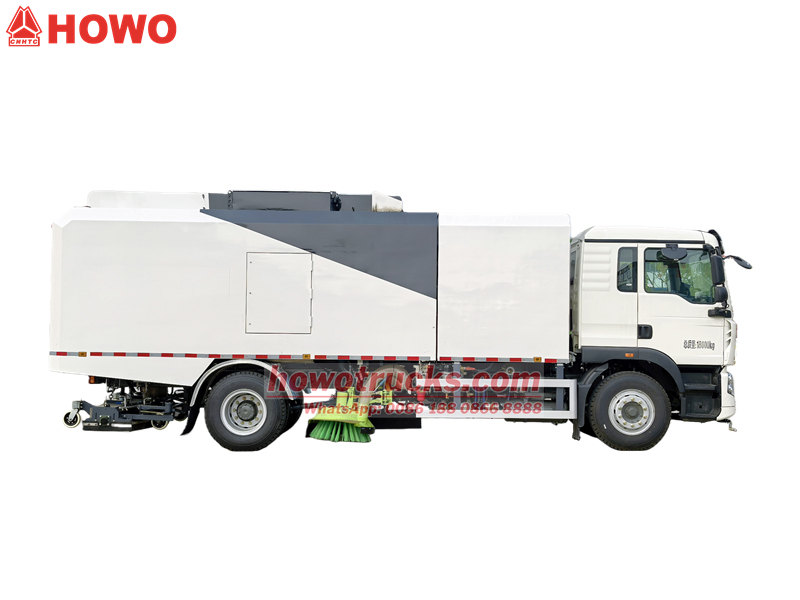

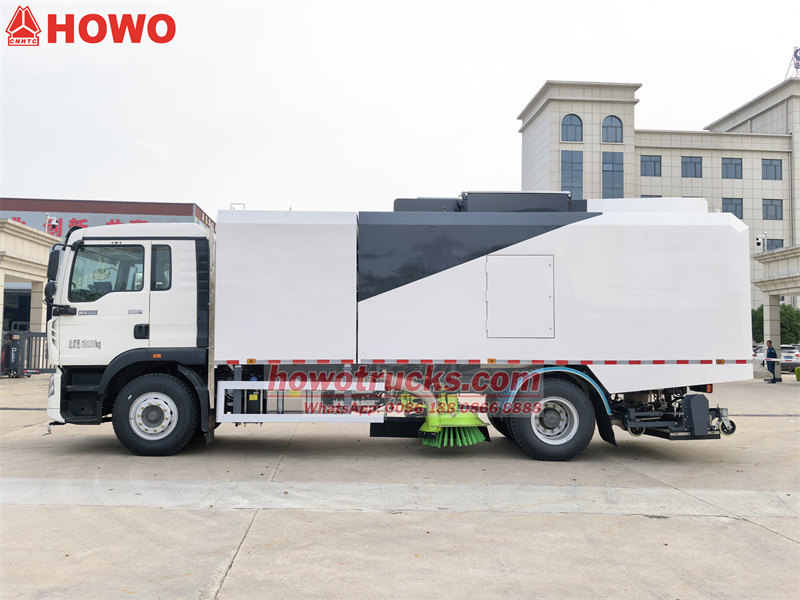

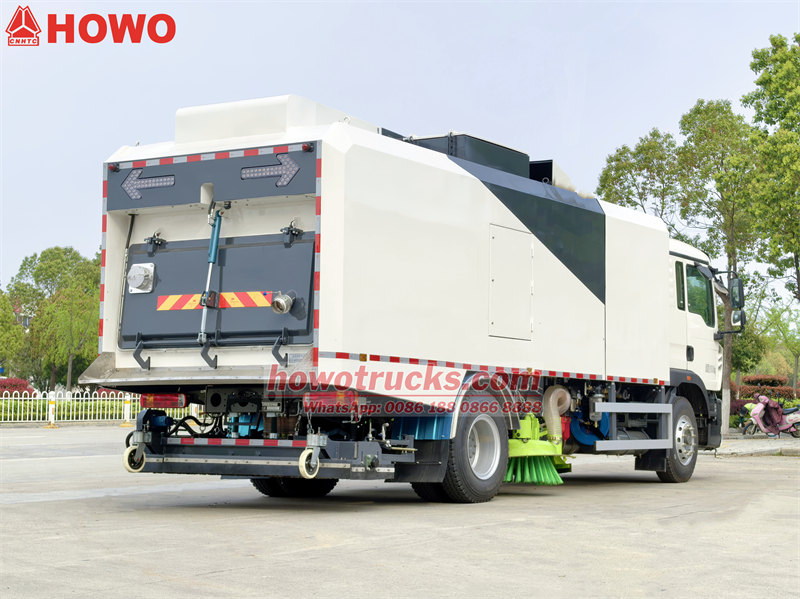

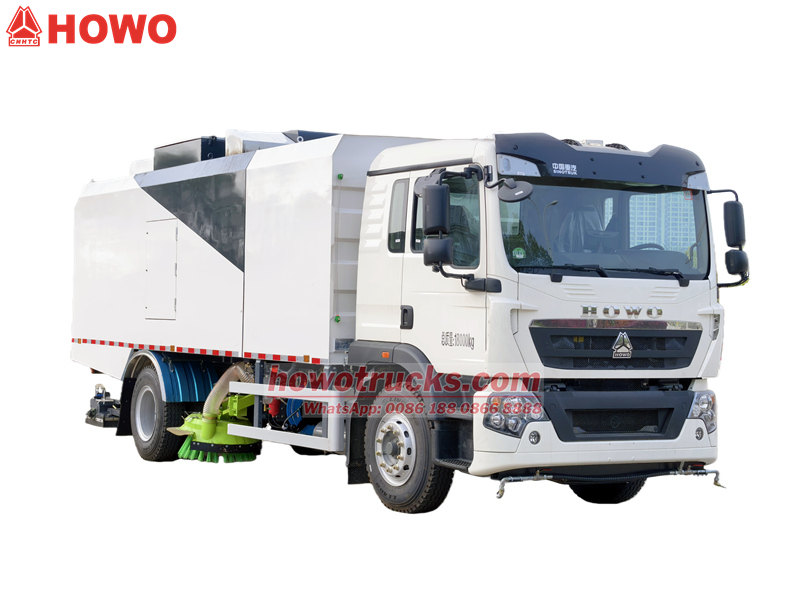

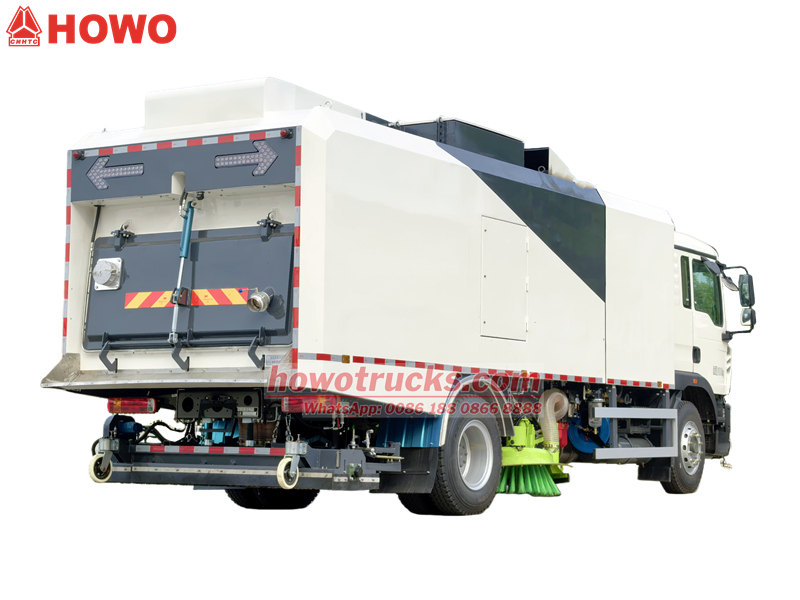

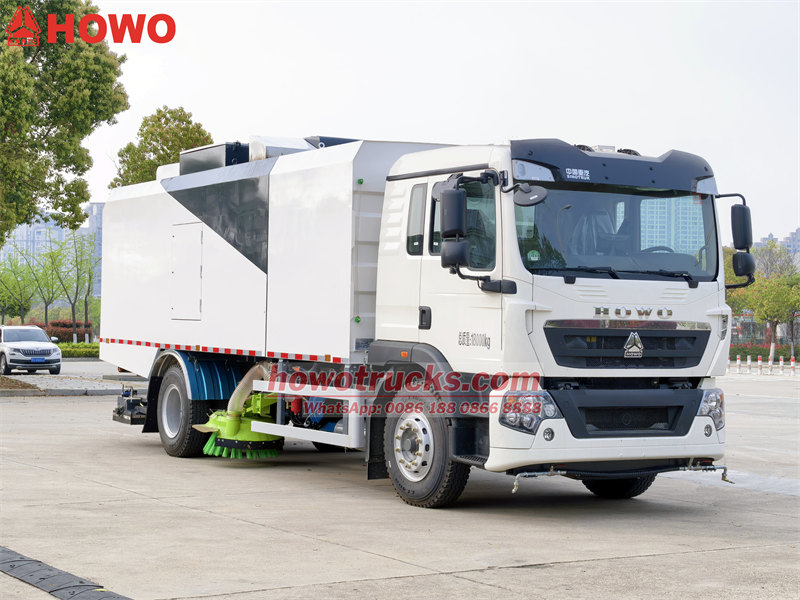

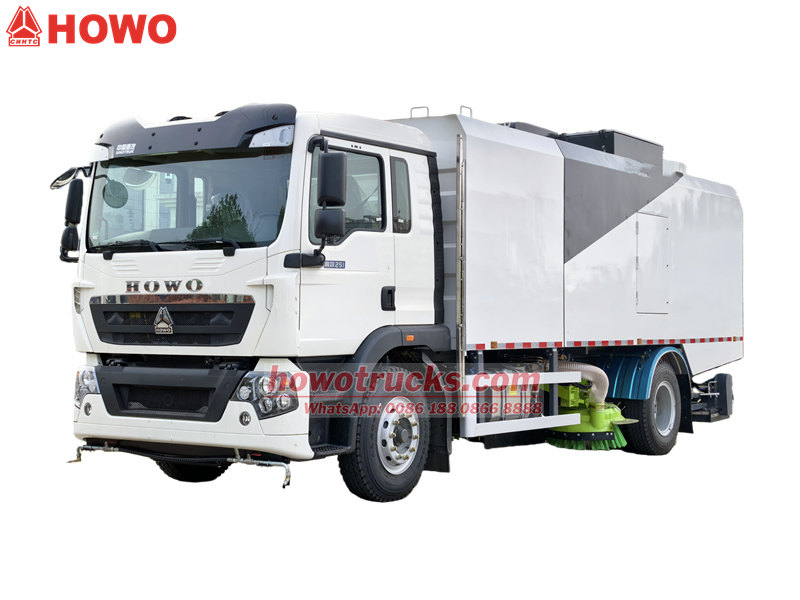

*Howo TX hydro jetter road sweeping truck*
------------------------------------------------------------------
CS Trucks Group is professional manufacturer in Howo truck area,
guarantee all products Brand-New and High-Quality.
Manufacturer: CS Trucks Group
Features:
1. Truck Chassis: Sinotruk Howo truck TX chassis, 4X2,4x4 model
MC model with 290HP and Euro 6
2. Tank material: 4-6mm thick stainless steel for prolonged service lier
carbon steel or aluminum alloy can be choose
3. Tanker body: Customized for 4CBM water tanker and 6CBM dust tanker
4. Control Box: SIMENS PLC electric control box with in cabin and rear hopper, convenient operation
Also matched hydraulic pump for tanker lifting for emergency usage
5. Working Environment: Super designed working temperature -22℃ to +48℃ day and night, with efficiently working height over 4000m
Best Choice,Howo Sweeper Trucks
|
Howo Middle Duty Street Sweeping Tuck |
||
|
Main Specification |
||
|
Vehicle Brand |
CS Trucks Group |
|
|
Chassis Brand |
Howo TX |
|
|
Overall dimensions (L x W x H) |
8650x2530x3150 mm |
|
|
Drive Type |
4x2 Left/Right hand drive |
|
|
Wheelbase |
4800 mm |
|
|
Cabin |
Howo luxury cab, with A/C and 2 seats, Forward control, all steel welded construction. Manual tilt,Mechanical suspension |
|
|
Weight |
GVW |
18000kg |
|
Kerb weight |
9630kg |
|
|
Engine |
Model |
MC07.25-61 |
|
Type |
Inline 6-cylinder diesel engine |
|
|
Power |
290HP |
|
|
Displacement |
6.9 L |
|
|
Emission standard |
Euro 6 |
|
|
Transmission |
Manual |
Fast 10 forward and 2 reverse speeds |
|
Tyre |
12.00R20 |
6+1 spare tyre |
|
Upper Structure Parameter |
||
|
Volume of water tank |
4000L |
|
|
Volume of Dustbin |
5000L |
|
|
Material |
water tank |
Carbon steel |
|
garbage tank |
Inner stainless steel, outer carbon steel |
|
|
Hydraulic valve |
China famous brand |
|
|
Hydraulic motor |
China top brand |
|
|
Switch |
Schneider control switch |
|
|
Auxiliary Motor |
Brand |
Cummins |
|
Horsepower |
141 HP |
|
|
Sweeping Technical |
Max sweeping width (mm) |
3.5m |
|
Max. sweeping capacity |
70000m3/h |
|
|
Sweeping speed |
3-20km/h |
|
|
Cleaning efficiency |
≥95% |
|
|
Max. particle inhalation |
110mm |
|
|
Disc plate brush extension size |
>400mm |
|
|
Garbage tank door max.discharge angle |
>50° |
|
|
Sweeping system |
Type |
Total 2 pcs mechanical brushes with 2pcs high pressure water spray boom and 1 sucking discmounted in the middle, it is driven by the hyraulic motoispeed is adjustable, can be independently controlled,has automatic avoidance function |
|
Sweeping brush diameter |
ф 850mm |
|
|
Sweeping disk speed |
1 10r/min high-speed,80r/min medium speed50r/min low-speed |
|
|
Sweeping disk dip angle adjust |
forward 4 ° ~ 6 ° extroversion 4 °~ 7 ° |
|
|
Sucking disc |
Type |
Double suction hole, hydraulic control, spring suspension |
|
Suction hole diameter |
180mm |
|
|
Suction performance |
Delivers air blast and suction |
|
|
Hydraulic system |
Type |
Open type, electrical |
|
Main components |
Gear pump, hydraulic motor, hydraulic cylinder, solenoid valve |
|
|
Pressure |
16Mpa |
|
|
Hydraulic oil volume |
60L |
|
|
Oil temperature |
60°C |
|
|
Water spraying system |
Components |
Pump, nozzle, water filter, etc. |
|
Low pressure water system |
Model |
Hangzhou Weilong 60/90 |
|
Flow rate |
60m3/h |
|
|
Water delivery distance |
90m |
|
|
Washing width |
24m |
|
|
Washing road |
Type |
Front washing bar |
|
Electrical system |
Type |
DC24V, PLC control |
|
Volts |
24V |
|
|
Battery |
2x12V |
|
|
Tools |
2 pcs fire hose,1 pcs fire wrench,1pcs water filter wrench,1 set chassis tools,1 pcs manual hydraulic pump rocker |
|
|
Spare parts |
88 pcs sweep brush,1 pcs fan seal,1 pcs rear door seal,2 pcs suction tube seal |
|

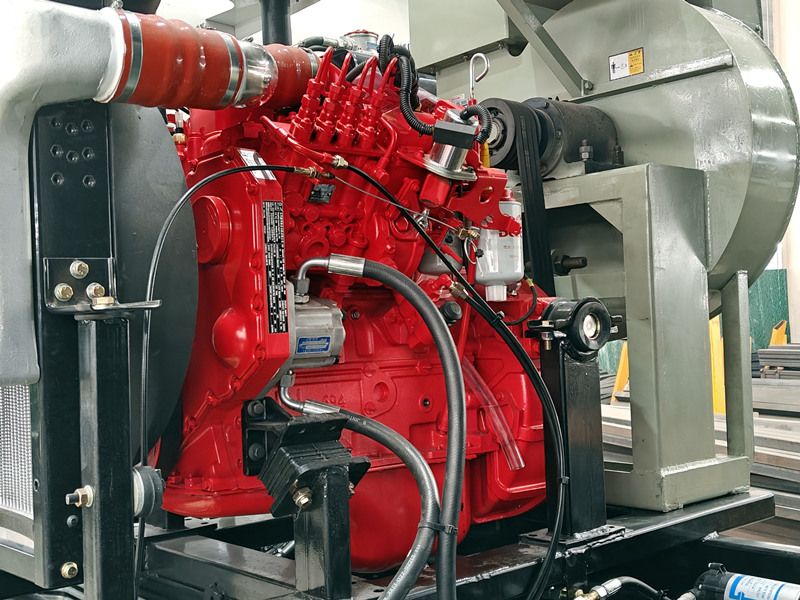

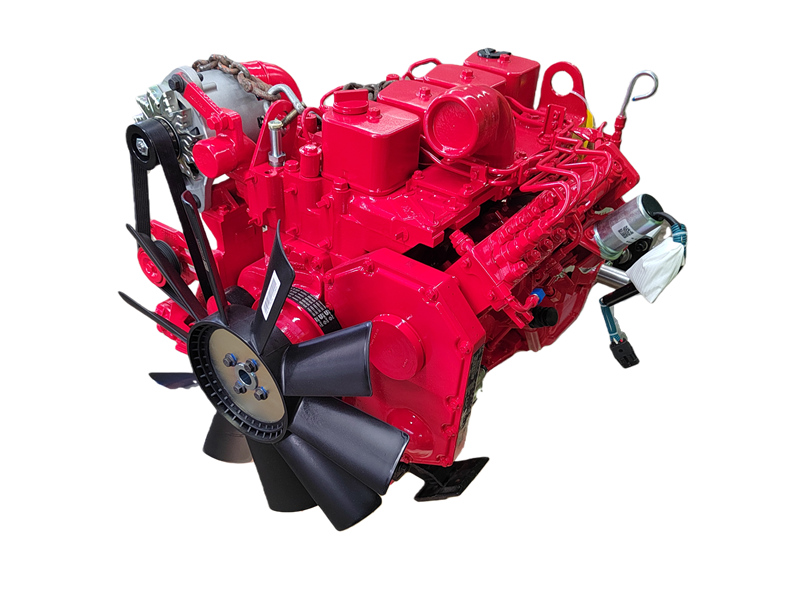

✦Ⅲ.Auxiliary Engine For Howo TX Sweeper Truck «««
 |
 |
|
Dongfeng Cummins Auxiliary Engine |
|||||||
|
Displacement |
Net Weight |
Idle Speed |
Model |
Supplier ID |
|||
|
3.9 L |
343 kg |
750 r/min |
B140 33 |
Engine Serial NO. 93223524 |
|||
|
Altitude Limit 3000 m |
Shop Order |
SO13889E |
CPL |
3411 |
|||
|
Approval NO. |
Family |
OBD |
|||||
|
Max Net Power KW 101 at 2500 r/min |
Rated KW 103 at 2500 r/min |
||||||
|
Licence NO. XK06-002-00411 |
Fuel rate at rated HP 88 mm³/stroke |
||||||
|
Engine ASSY. NO. |
Executed Standard Q/DCEC 1 |
||||||
✦Ⅳ.Advantage For Howo TX Vacuum Sweeper Truck «««

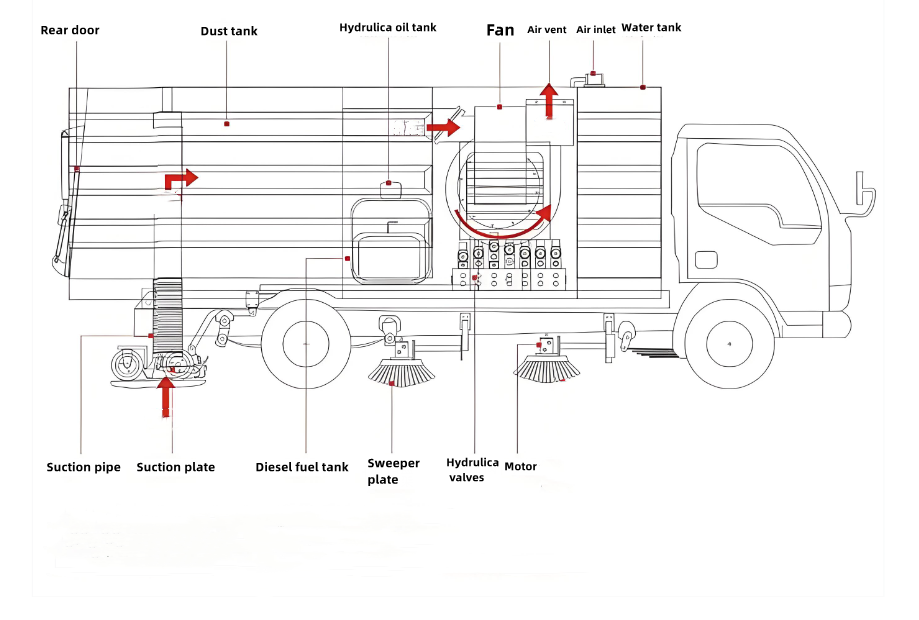

1. Cleaning System：
♦ The cleaning system employs a coordinated "sweeping + suction + spraying" operation mode, designed with precise technical parameters.
♦ It is equipped with two mechanical sweeping brushes, a high-pressure water spray system, and a rear-mounted suction cup. The sweeping brushes have a diameter of 850mm and are made of wear-resistant materials.
♦ It effectively removes road stains, dust, and various debris. The sweeping brush angle can be adjusted forward tilting 4°~6° and outward tilting 4°~7°.
♦ The sweeping brush speed supports three adjustable speeds: high speed (110 rpm), medium speed (80 rpm), and low speed (50 rpm), allowing for flexible switching according to the degree of road contamination.

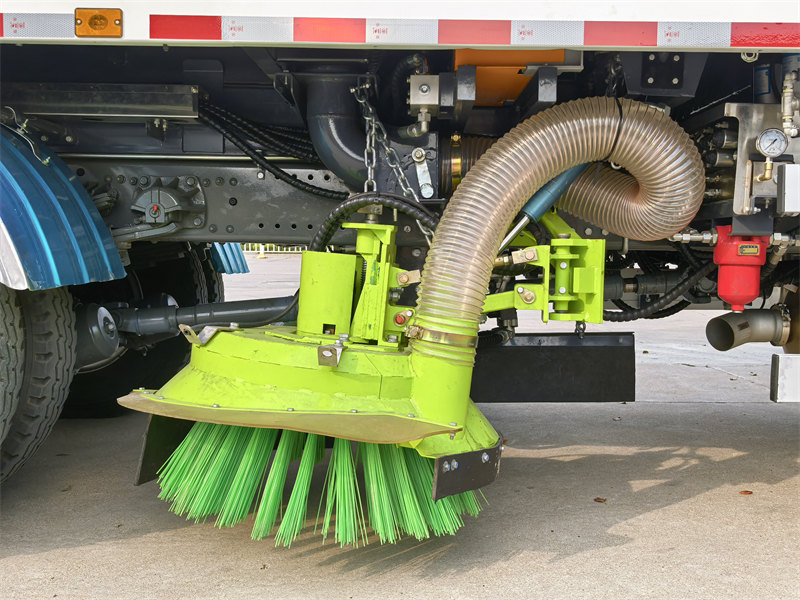

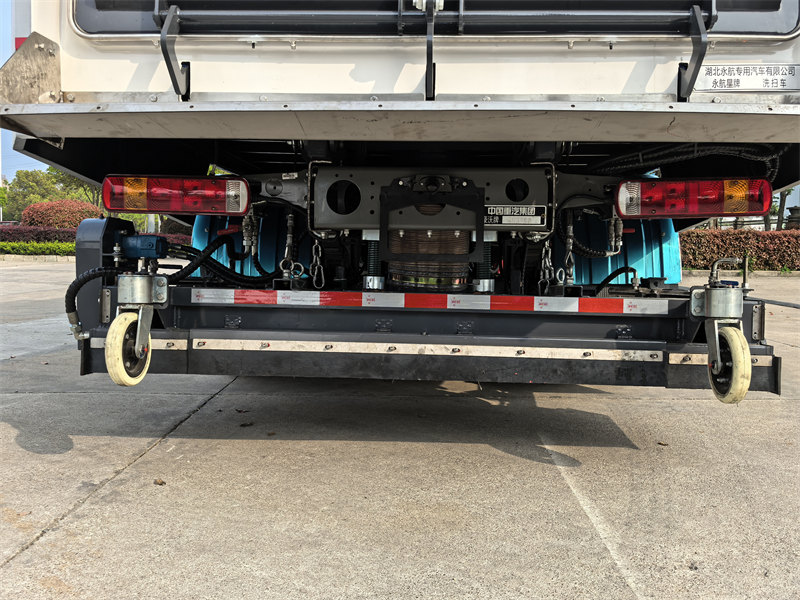

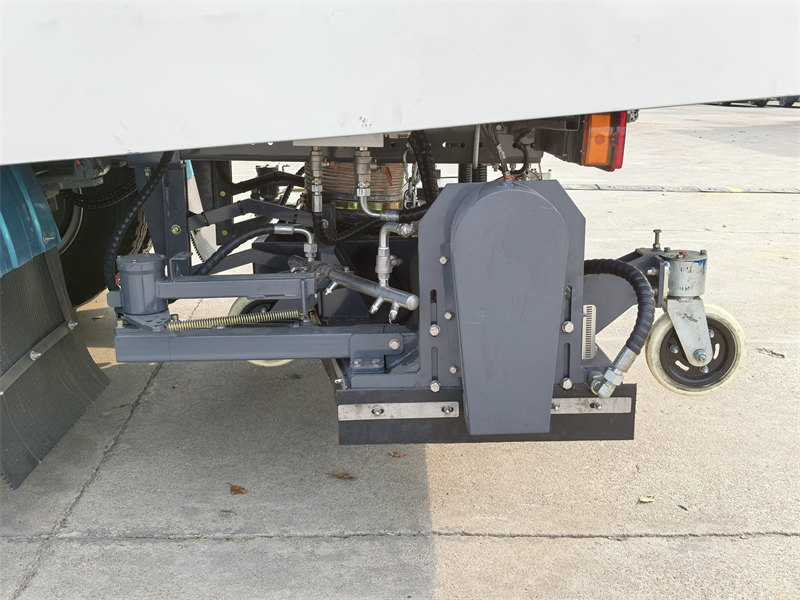

2. Suction Plate：
♦ The suction plate features a dual-inlet design, hydraulic control combined with spring suspension, and an inlet diameter of 180mm.
♦ It combines blowing and vacuuming functions, quickly adsorbing fine dust and larger particles from the road surface, with a maximum suction particle diameter of 110mm, ensuring thorough cleaning.
♦ It is equipped with a 2000L carbon steel water tank and a 6000L dust collection box, featuring a double-layer structure with an inner stainless steel layer and an outer carbon steel layer.
♦ It boasts excellent corrosion resistance and wear resistance, with a smooth and flat interior that prevents the accumulation of dirt and grime, reducing cleaning and maintenance costs.
3. Hydraulic System：
♦ The hydraulic system adopts an open electrical control design, with core components including a gear pump, hydraulic motor, hydraulic cylinder, and solenoid valves.
♦ The working pressure reaches 16 MPa, the hydraulic oil capacity is 60L, and the working oil temperature is controlled at 60℃ to ensure stable system operation and eliminate the risk of leakage.
♦ The hydraulic motor is selected from a well-known Chinese brand, offering high transmission efficiency and precise control over brush speed, suction cup lifting, and dust collection box tilting.
♦ The dust collection box door has a maximum tilting angle exceeding 50°, ensuring thorough waste disposal and convenient operation.
✦Ⅴ.Aplication For Howo TX Vacuum Sweeper Truck «««

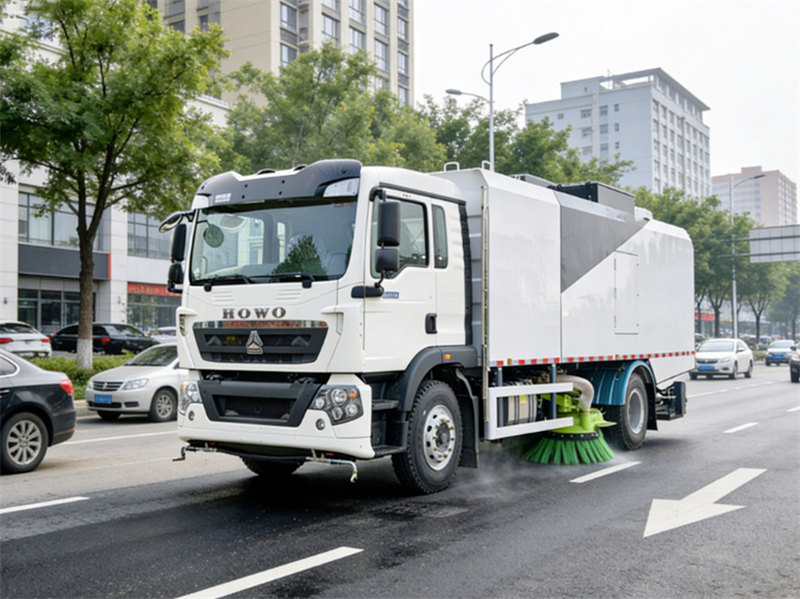

In the current trend of intelligent and efficient urban cleaning, the Howo TX vacuum sweeper truck can not only meet the needs of traditional cleaning scenarios, but also adapt to the operation and maintenance needs of complex scenarios such as industrial parks and highways, effectively improving cleaning efficiency, reducing labor costs, and reducing environmental pollution.
We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
China professional Howo special truck supplier and exporter, we supply high quality Howo special truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our Howo trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
♦ Maximize save your sea freight.
♦ Professional guidance on your importing documents.
♦ Safety, Quickly, Timely
